Torque & Sequence

Flex Plate

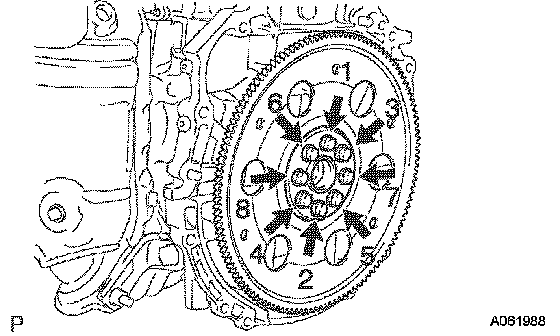

Install the front spacer, drive plate and rear spacer with 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.
Torque 98 Nm (1,000 kgf-cm, 72 ft. lbs.)
