Exhaust Manifold

Exhaust Manifold
EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

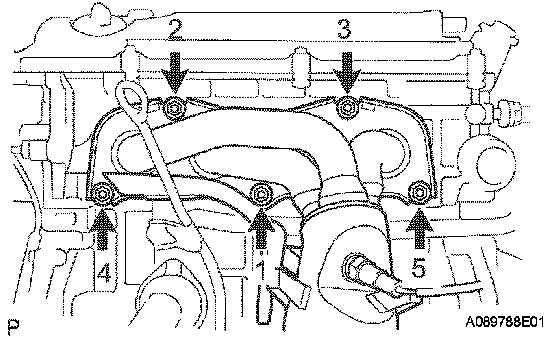

Install a new gasket and the exhaust manifold converter with the 5 nuts. Uniformly tighten the 5 nuts in the sequence shown in the illustration.
Torque 37 Nm (378 kgf-cm, 27 ft. lbs.)

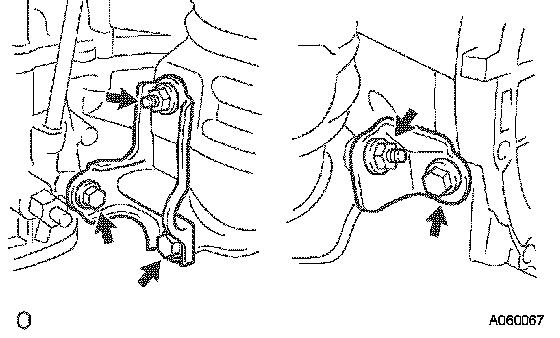

Install the No. 1 and No. 2 exhaust manifold stays with the 3 bolts and 2 nuts.
Torque 44 Nm (449 kgf-cm, 32 ft. lbs.)
