Home >> Toyota >> 2006 >> Solara L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

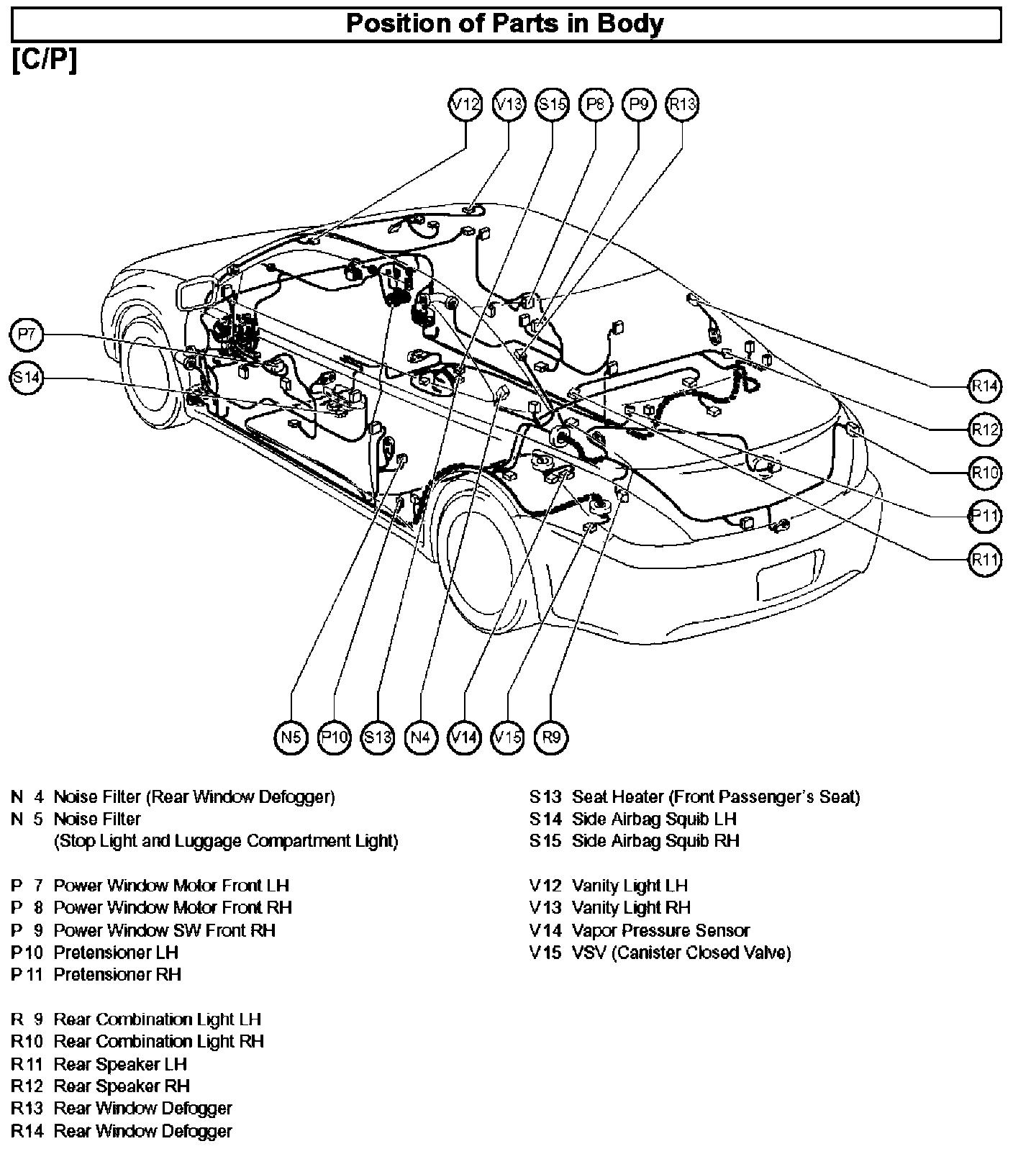

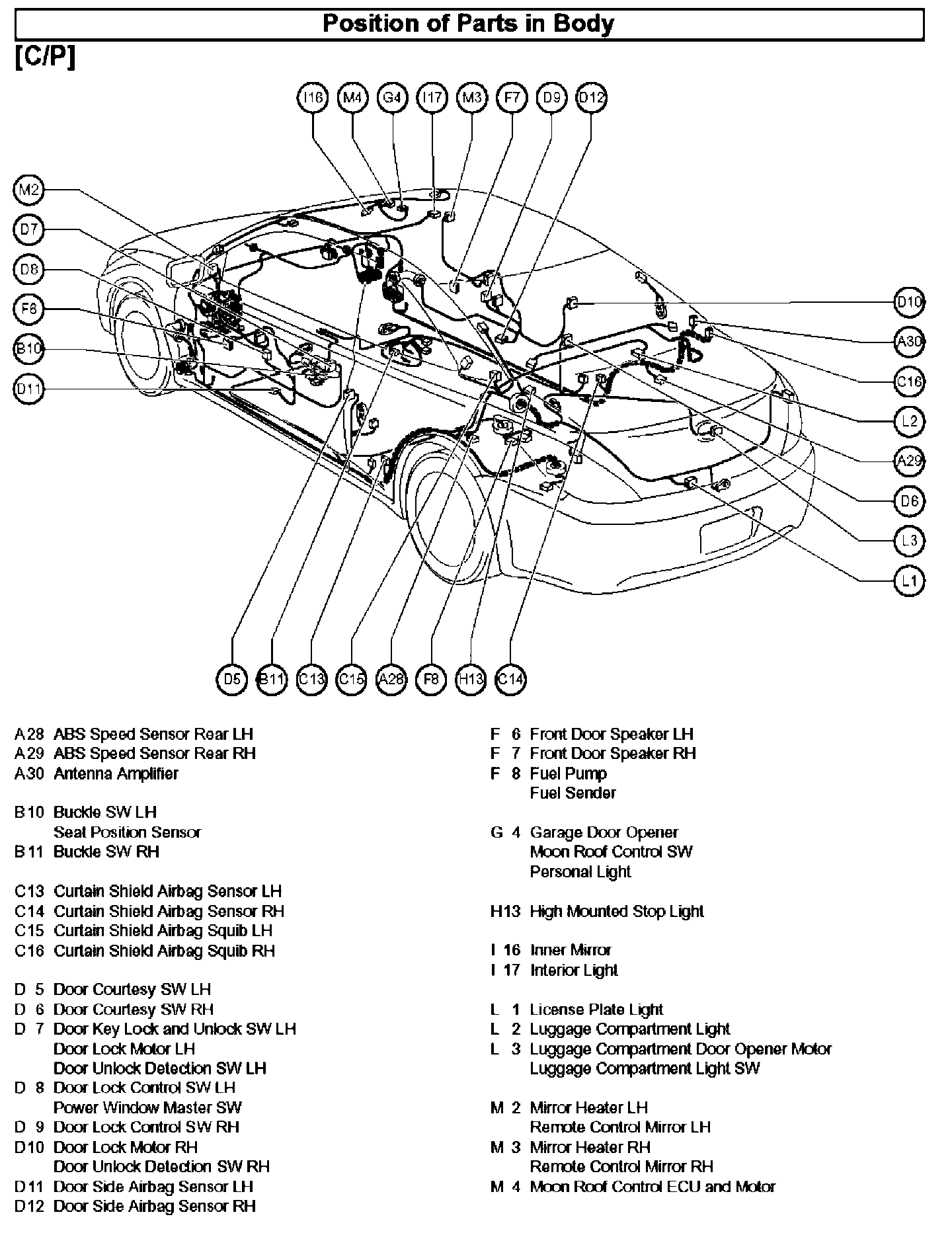

Power Window Switch: Locations

ABS - Mo:



No - VSV:



Power Window Control System (Coupe):
