Power Window Switch: Locations

Ig - Ya:



ABS - Mo:



No - VSV:

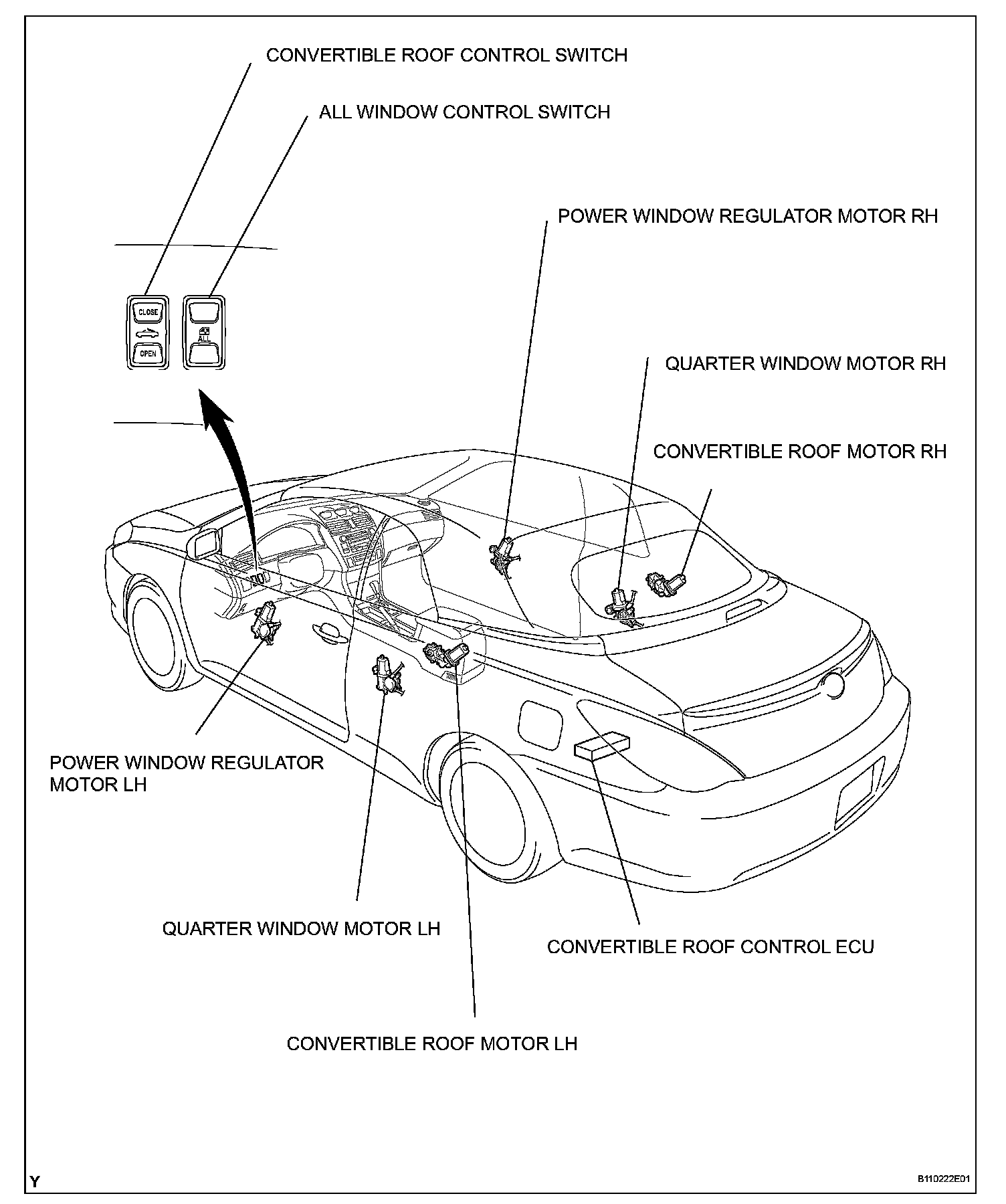

Convertible Roof Control System:

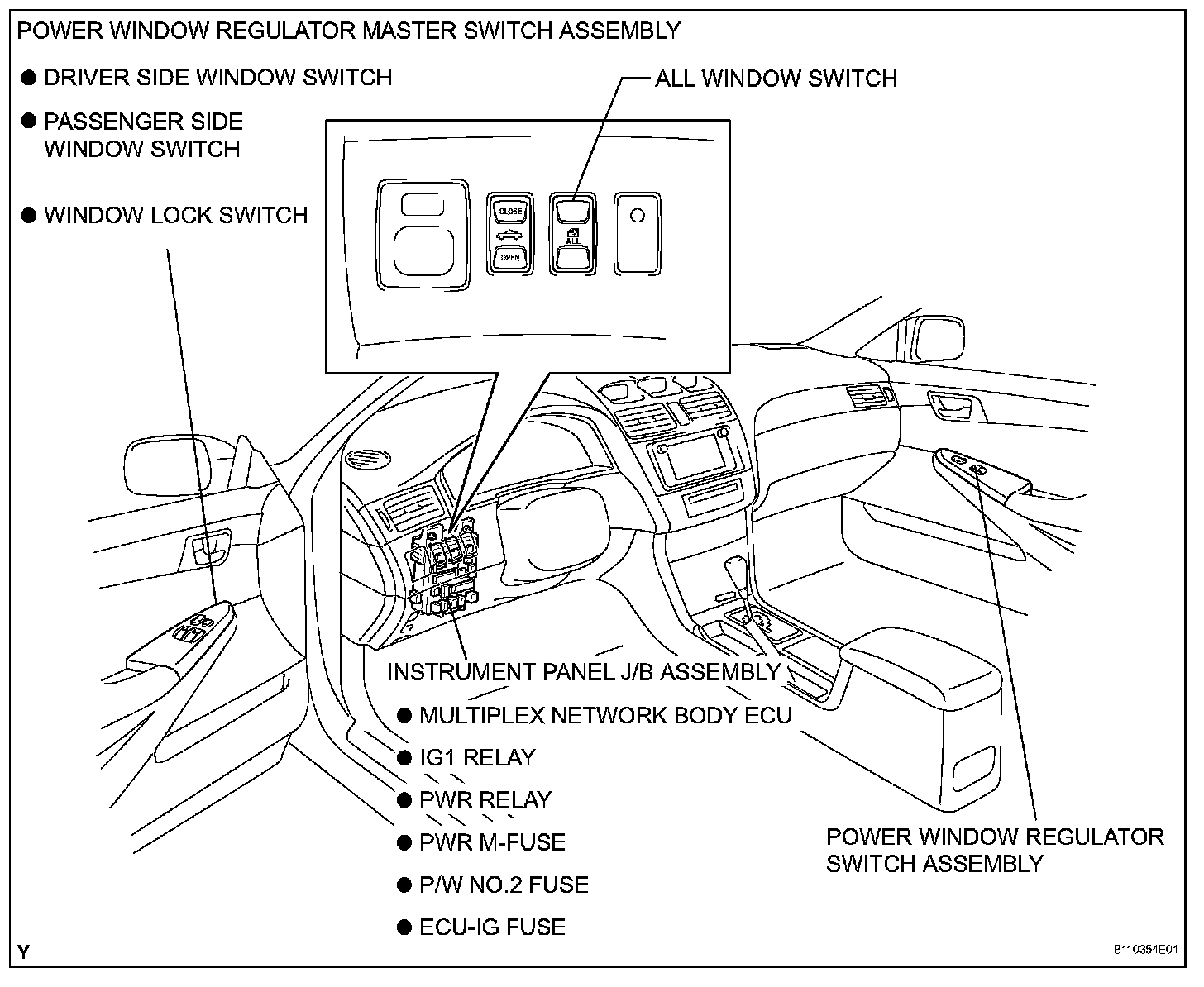

Power Window Control System (Coupe):

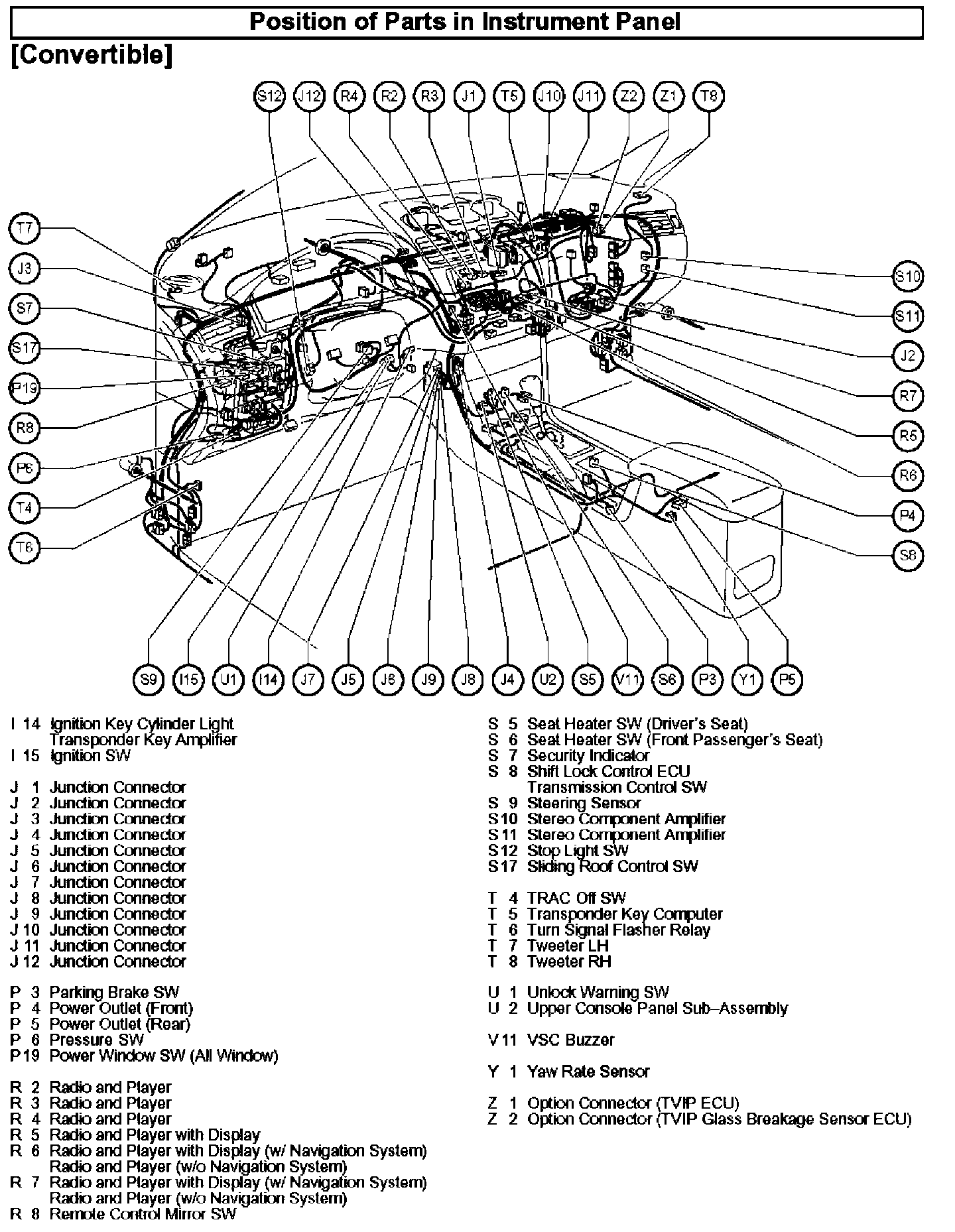

Power Window Control System (Convertible):
