Vehicle Stability Control System

TERMINALS OF ECU

Terminals Of Control Module/Pinouts:

1. TERMINALS OF ECU

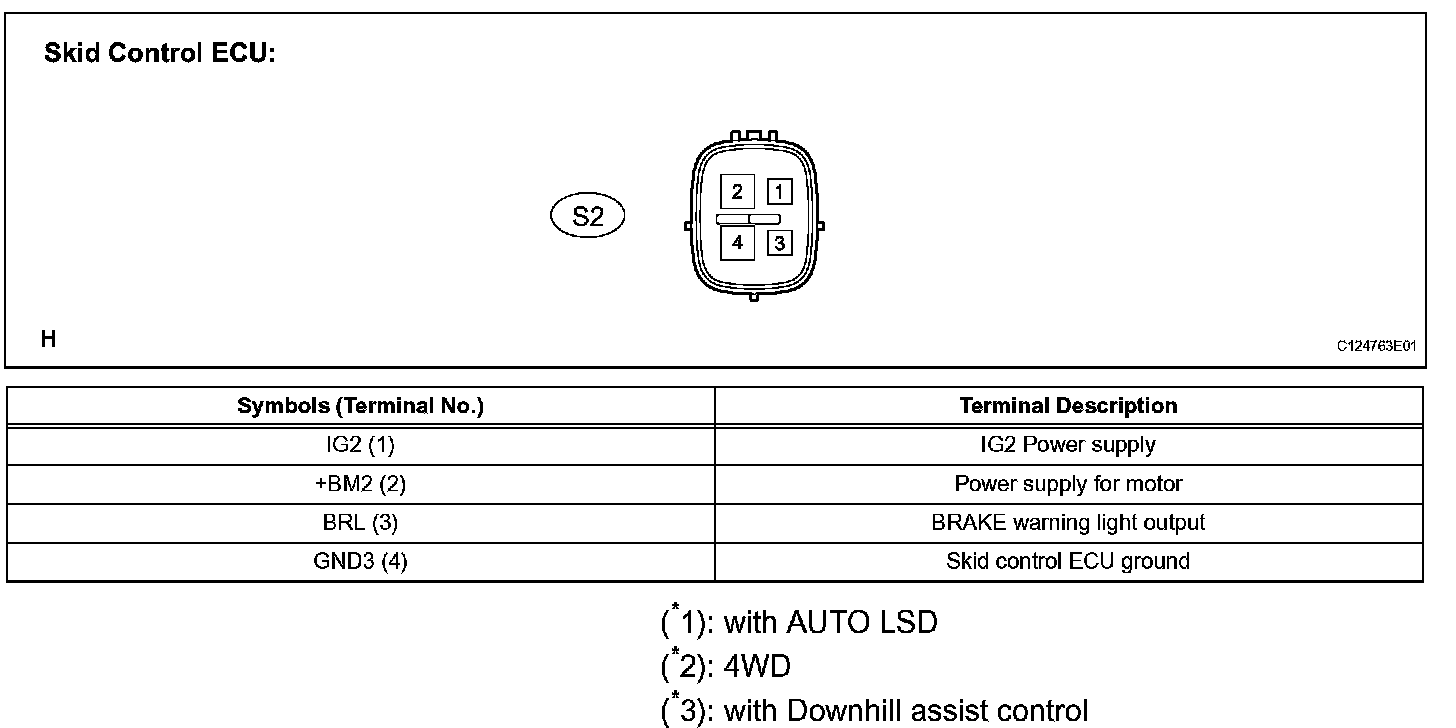

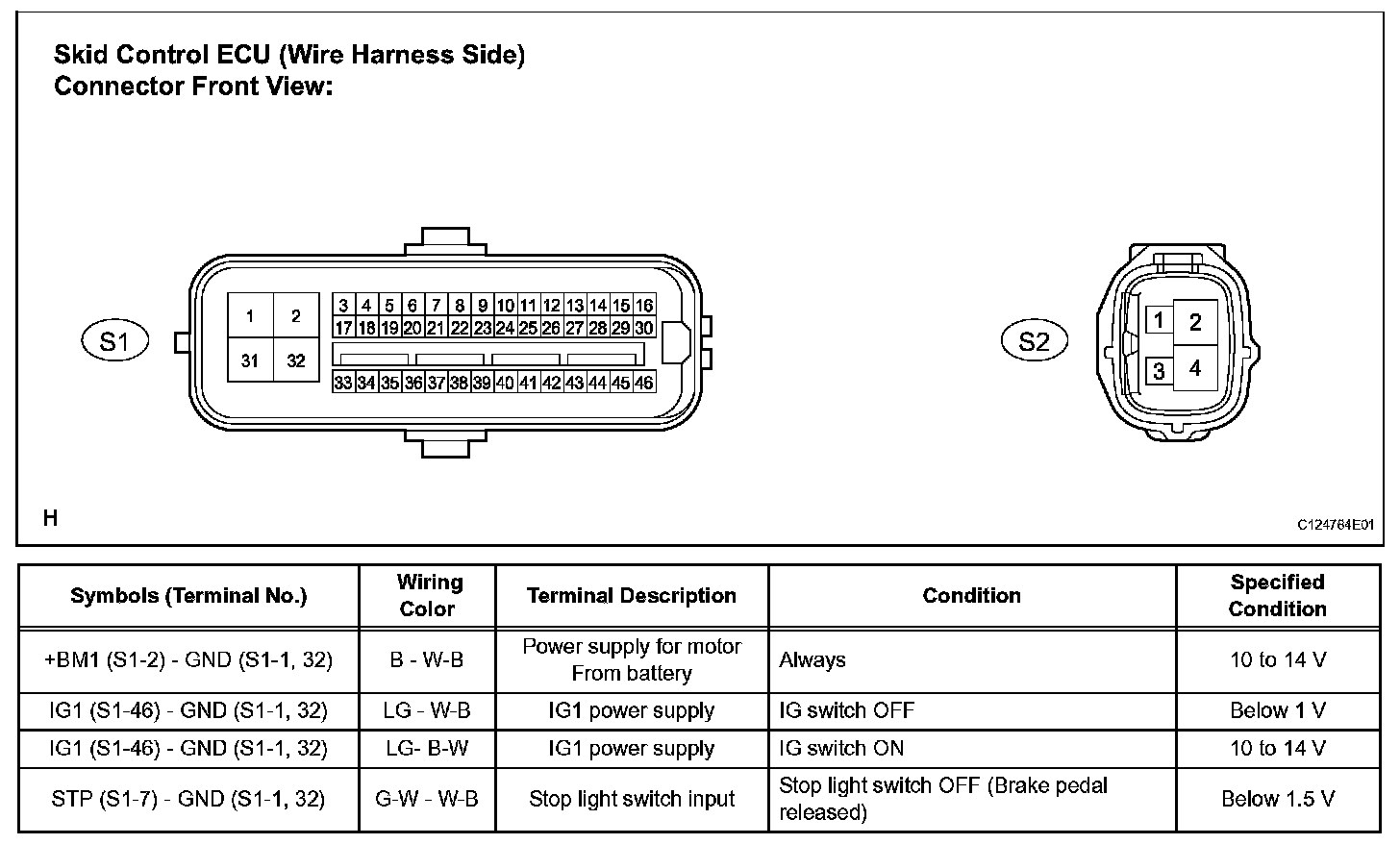

Terminals Of Control Module/Pinouts (Part 1):

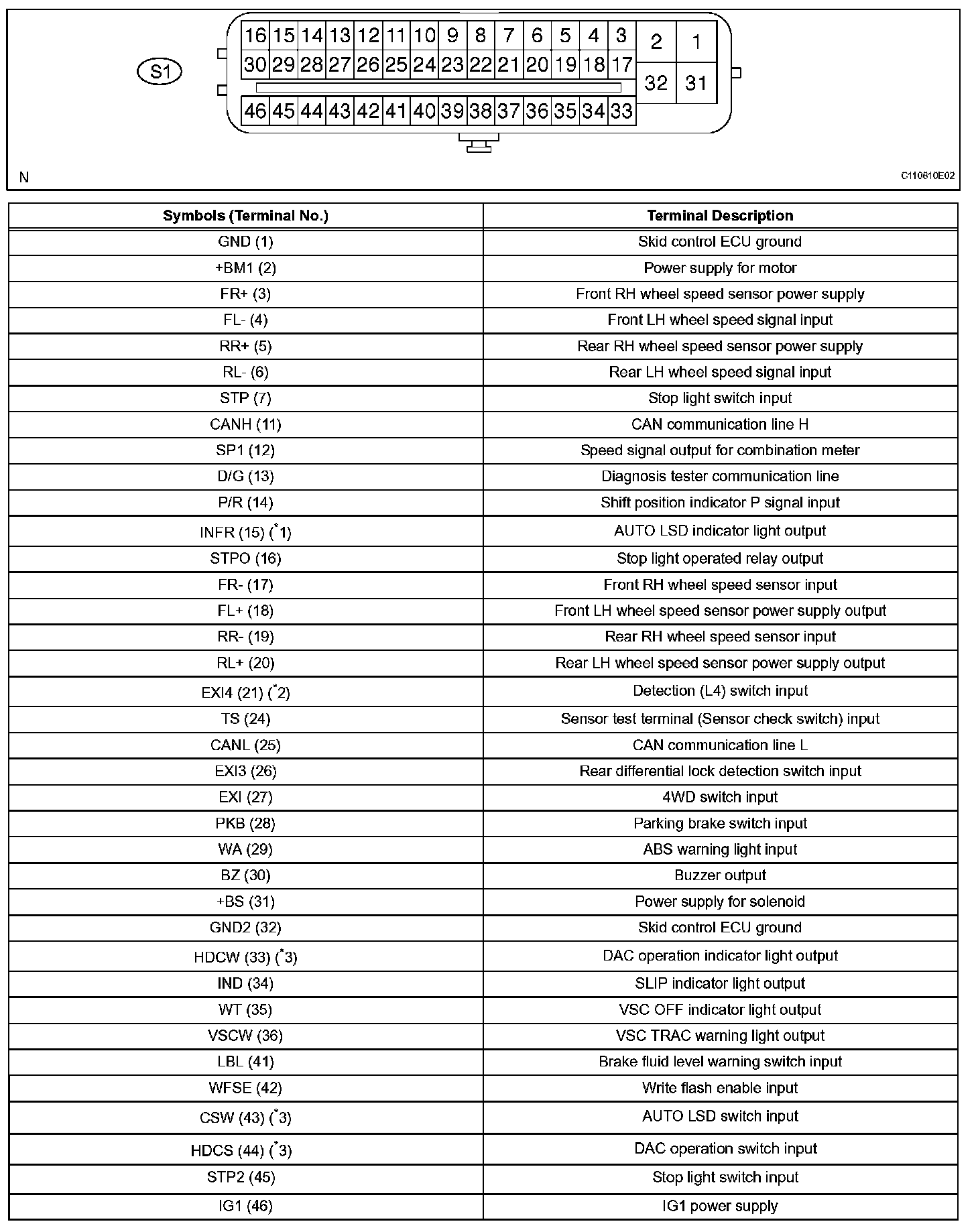

Terminals Of Control Module/Pinouts (Part 2):

2. TERMINAL INSPECTION

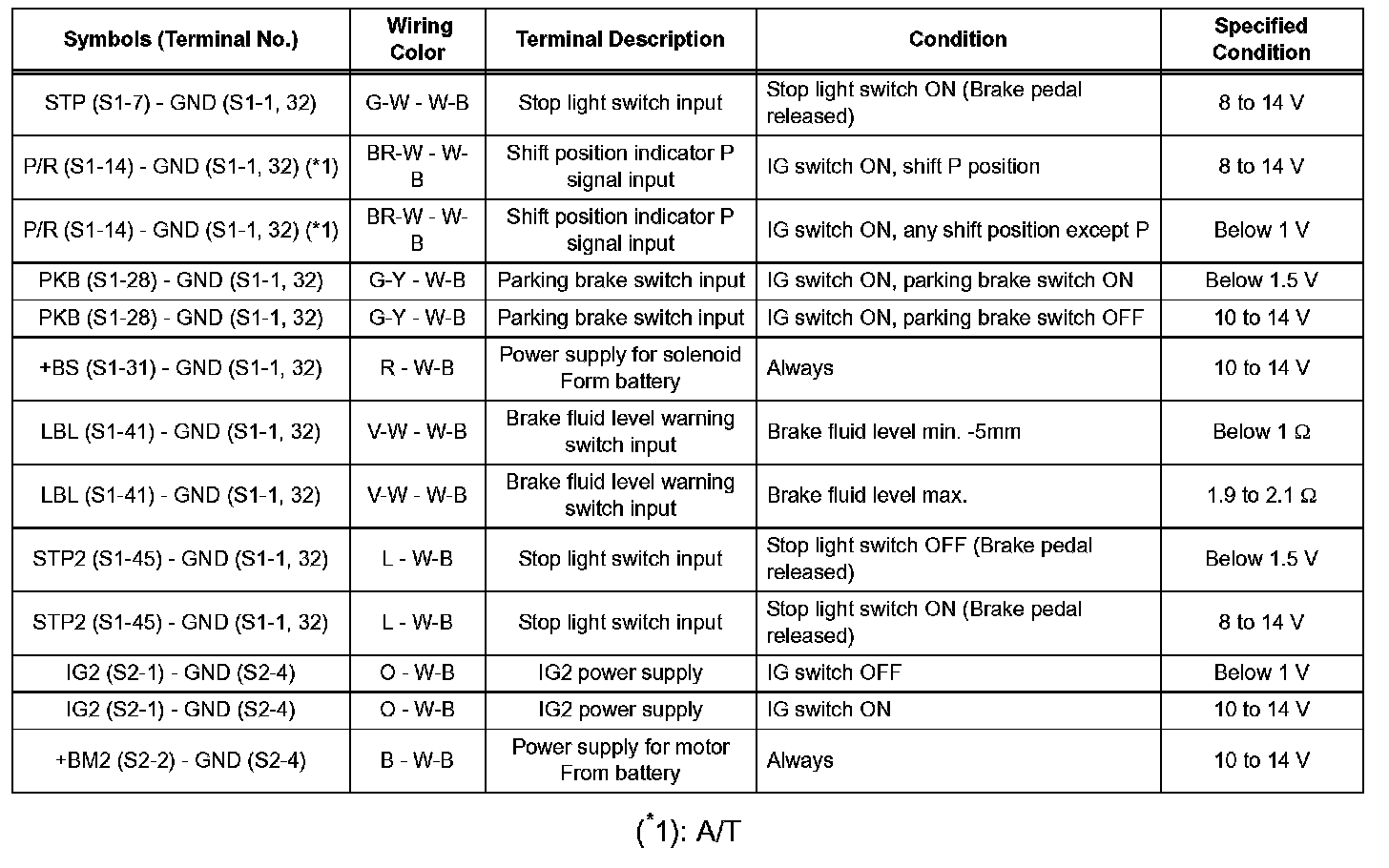

Disconnect the connector and measure the voltage or resistance on the wire harness side.

HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is water resistant.
