Home >> Toyota >> 2006 >> Tacoma 2WD V6-4.0L (1GR-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Back Window Glass

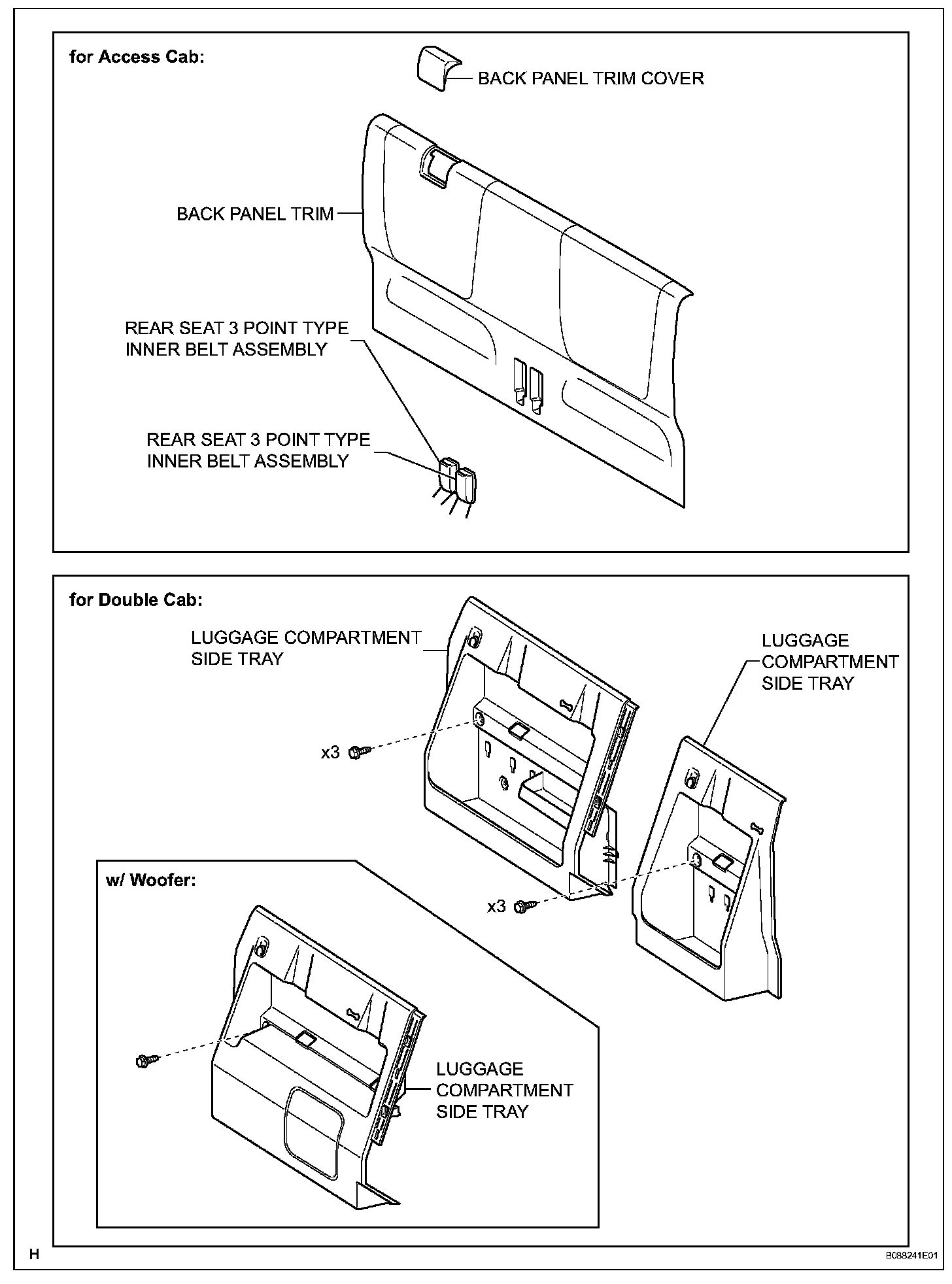

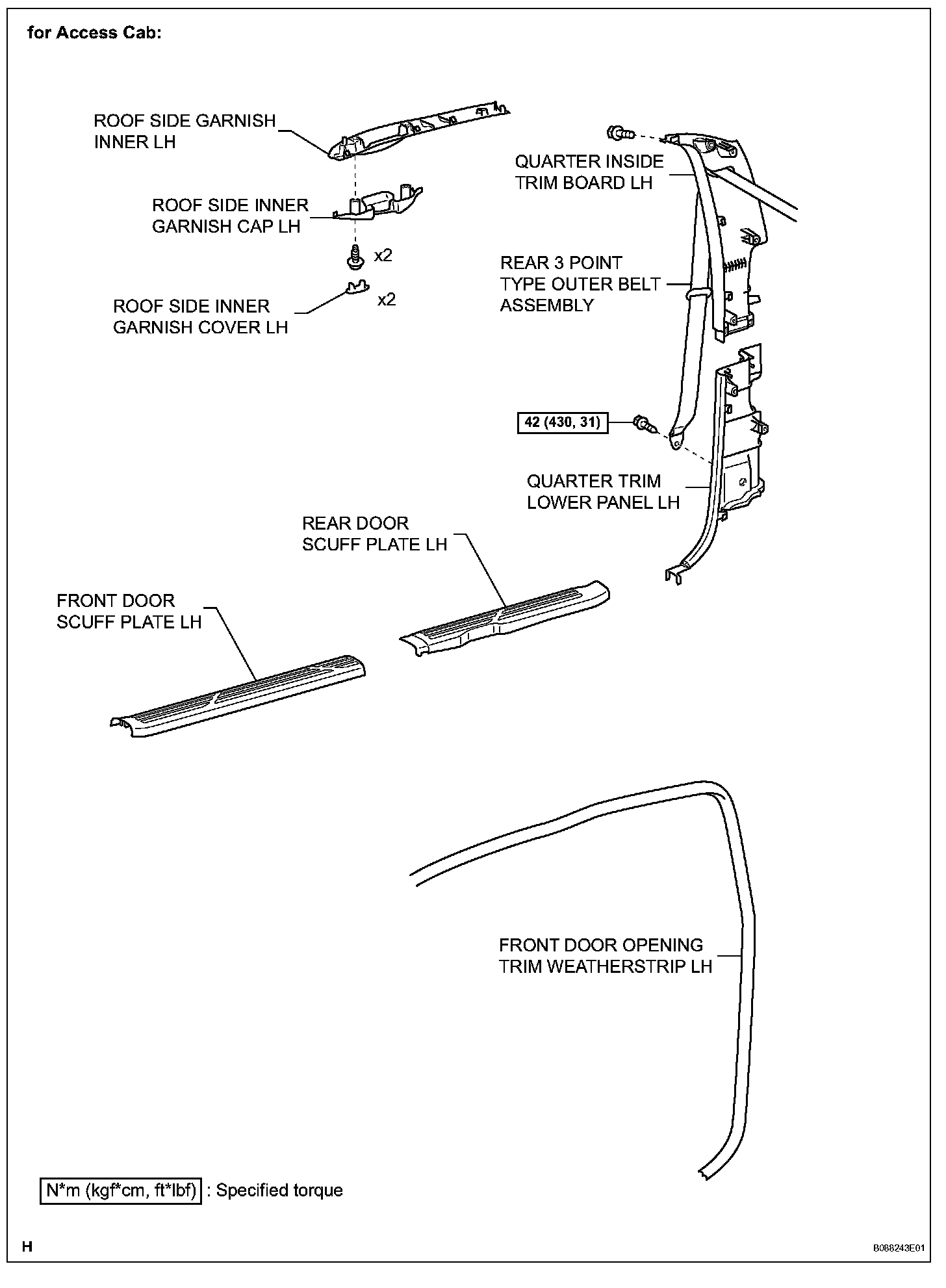

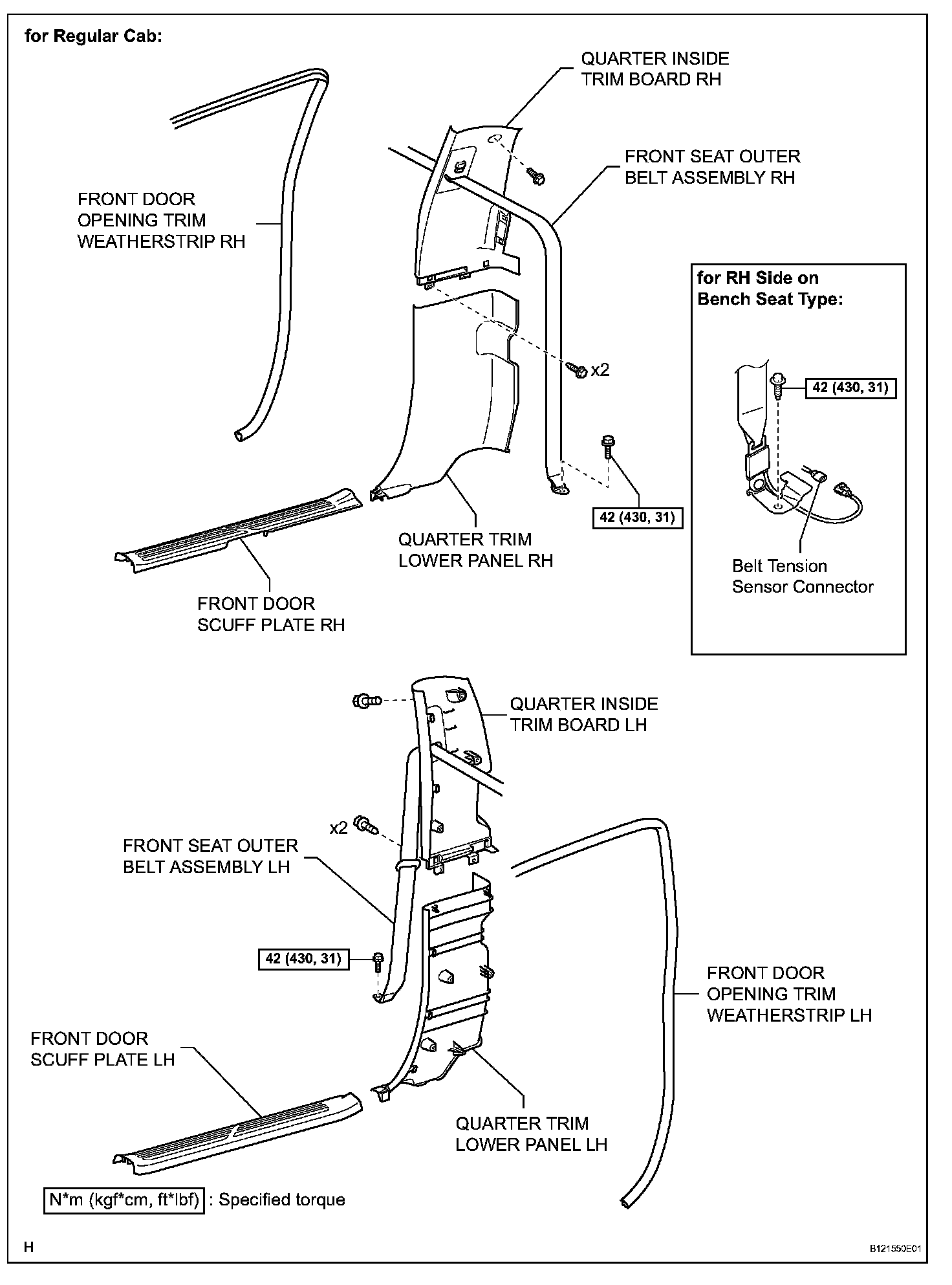

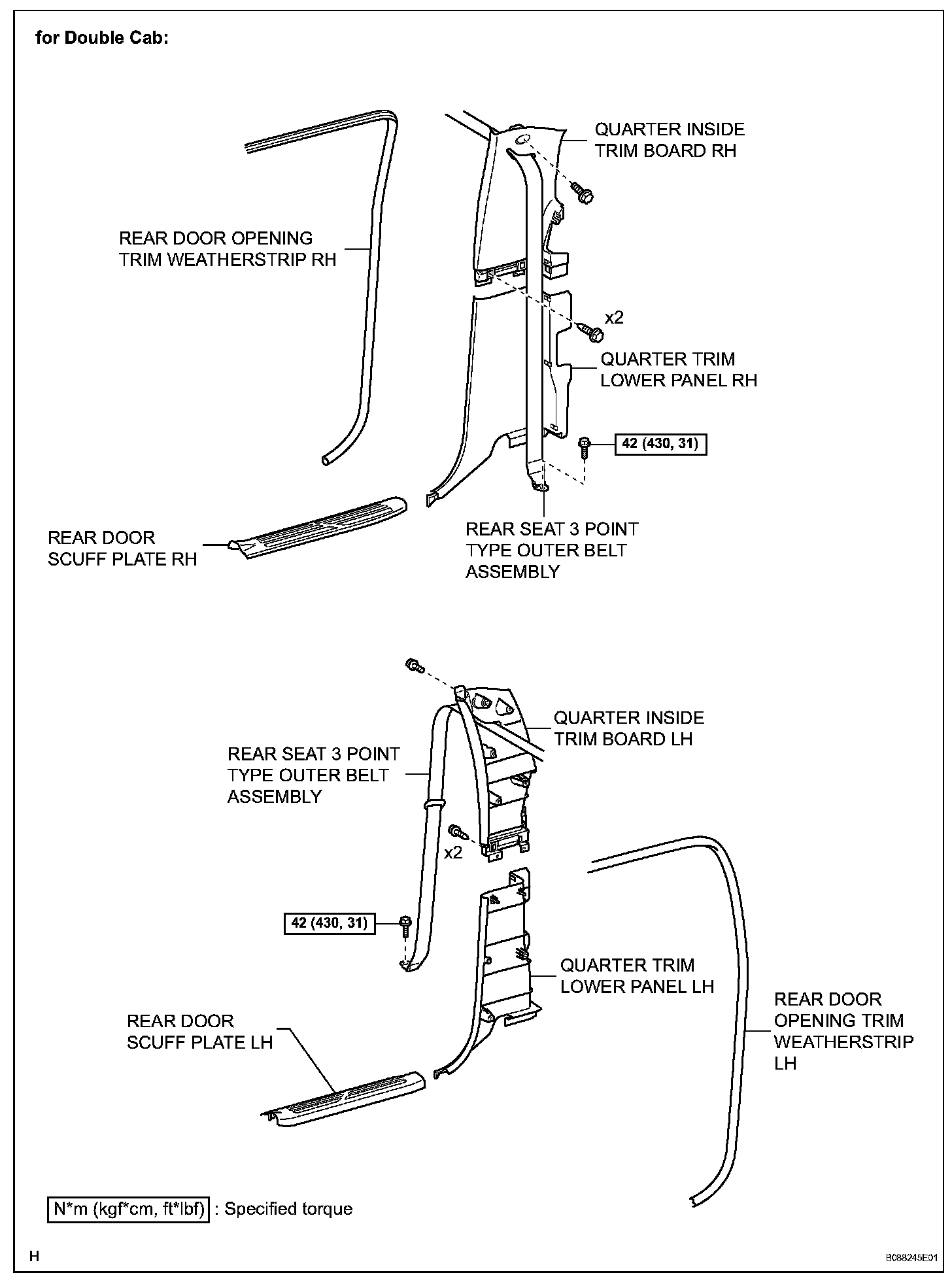

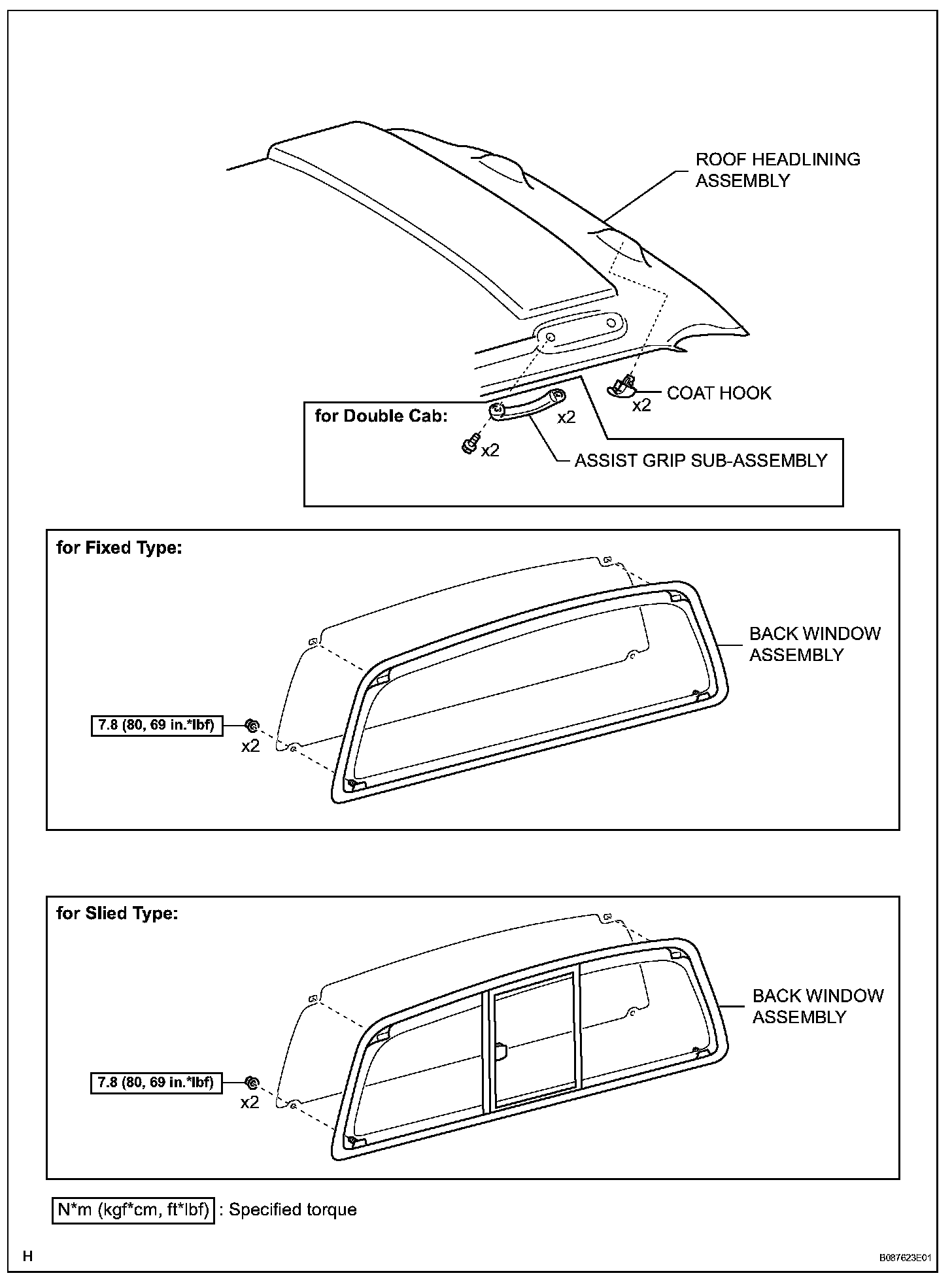

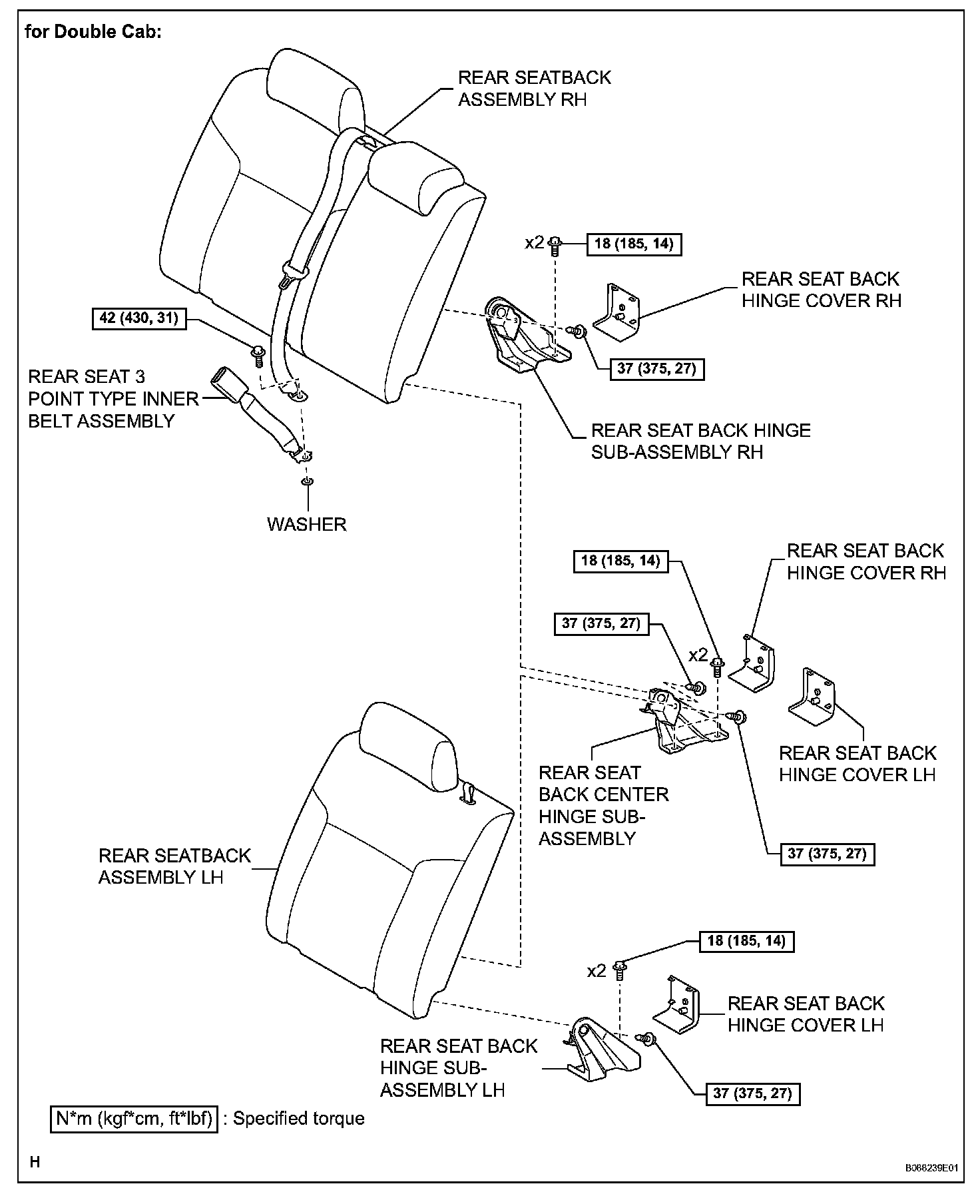

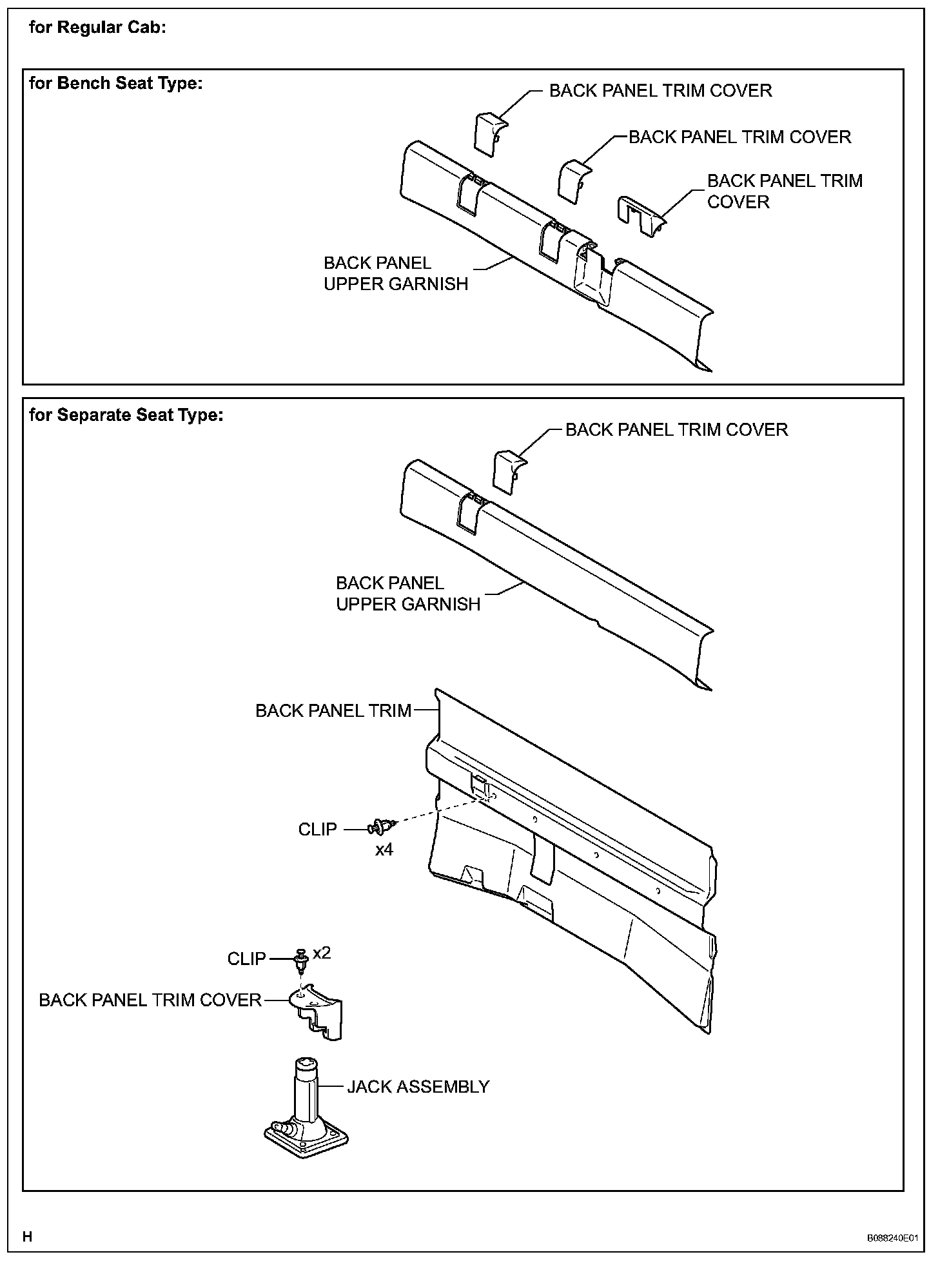

Back Window Glass

Back Window Glass:



Back Window Glass:



Back Window Glass:



Back Window Glass:



Back Window Glass:



Back Window Glass:



Back Window Glass:



Back Window Glass:
