Engine Assembly

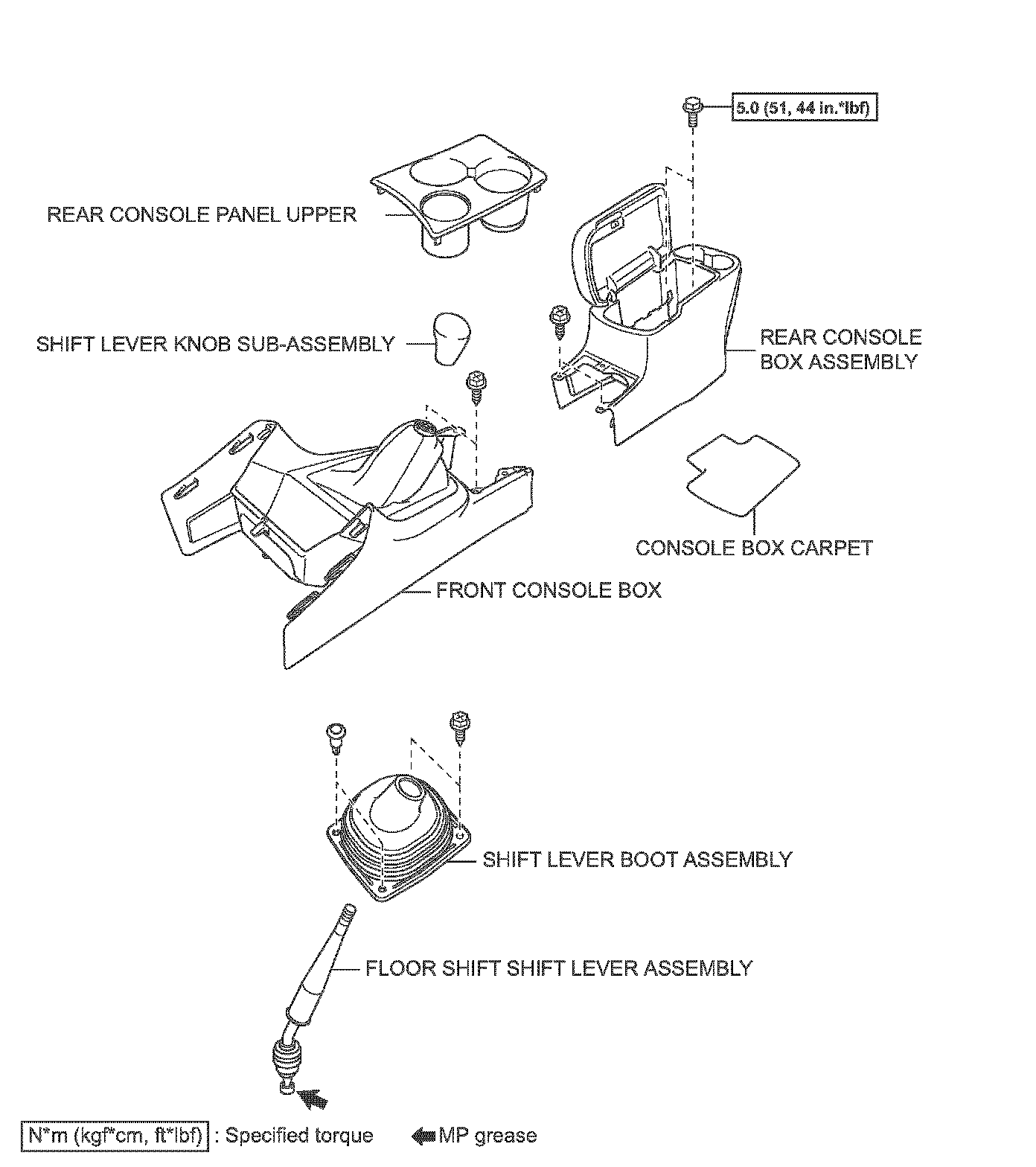

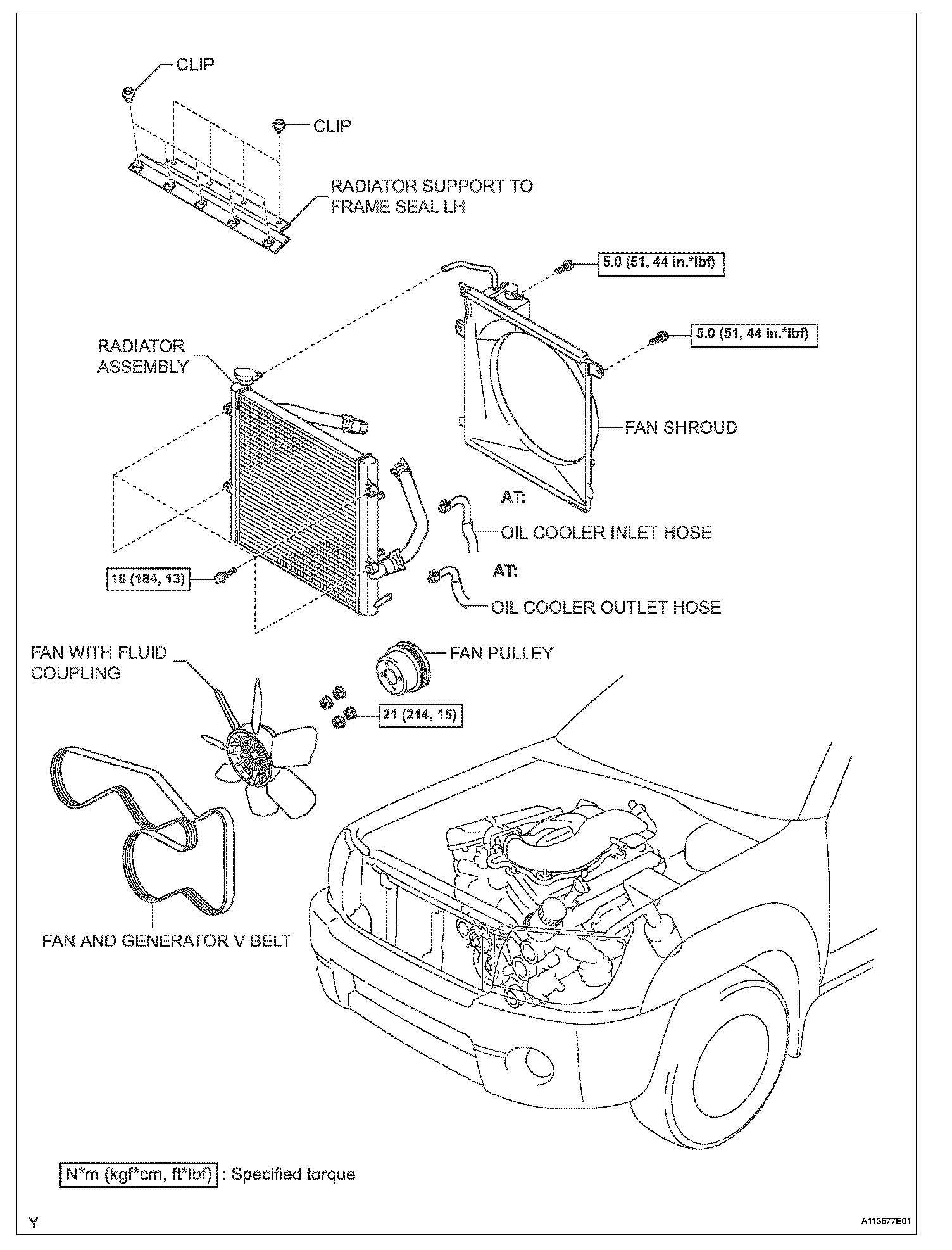

COMPONENTS:

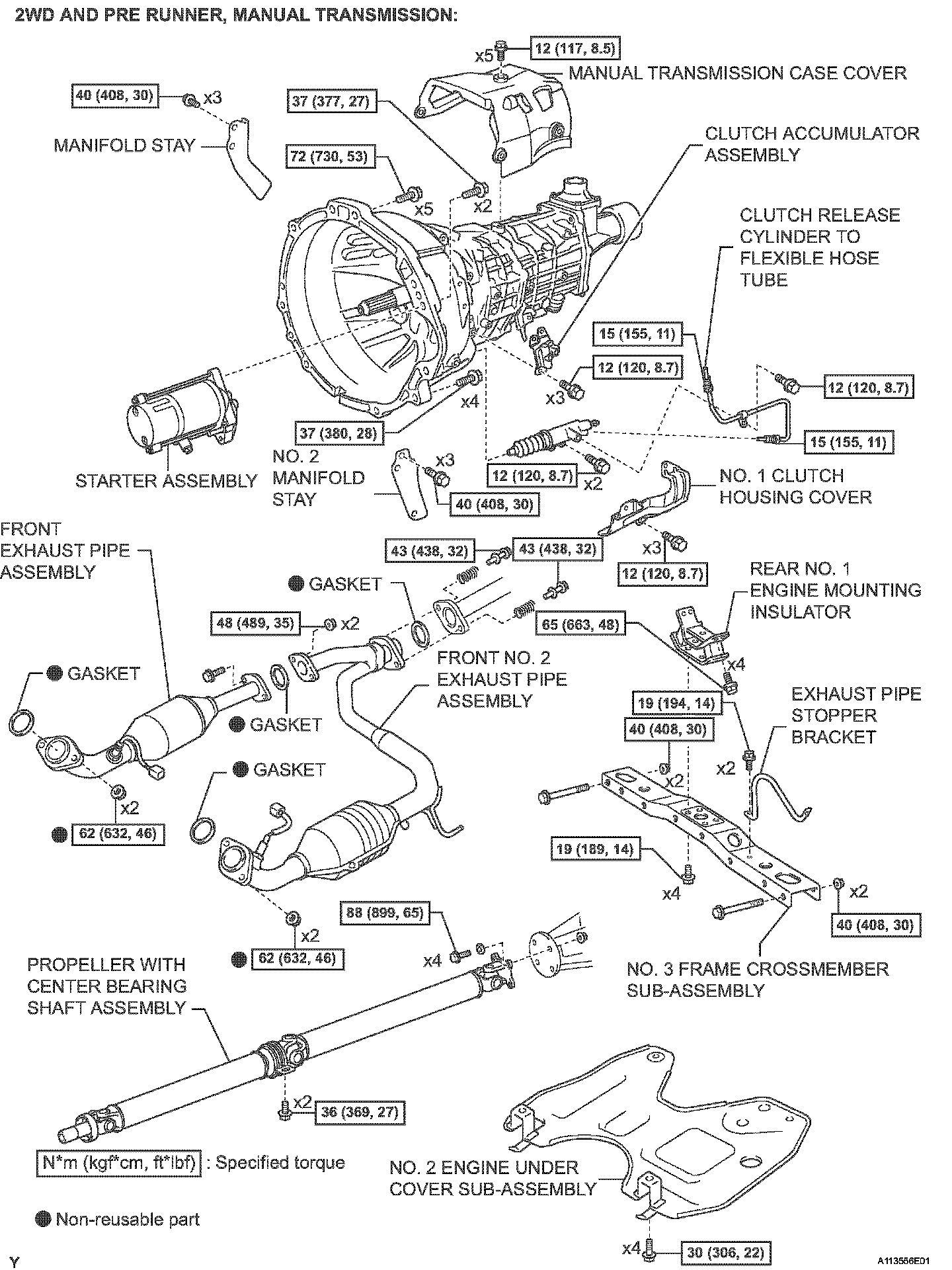

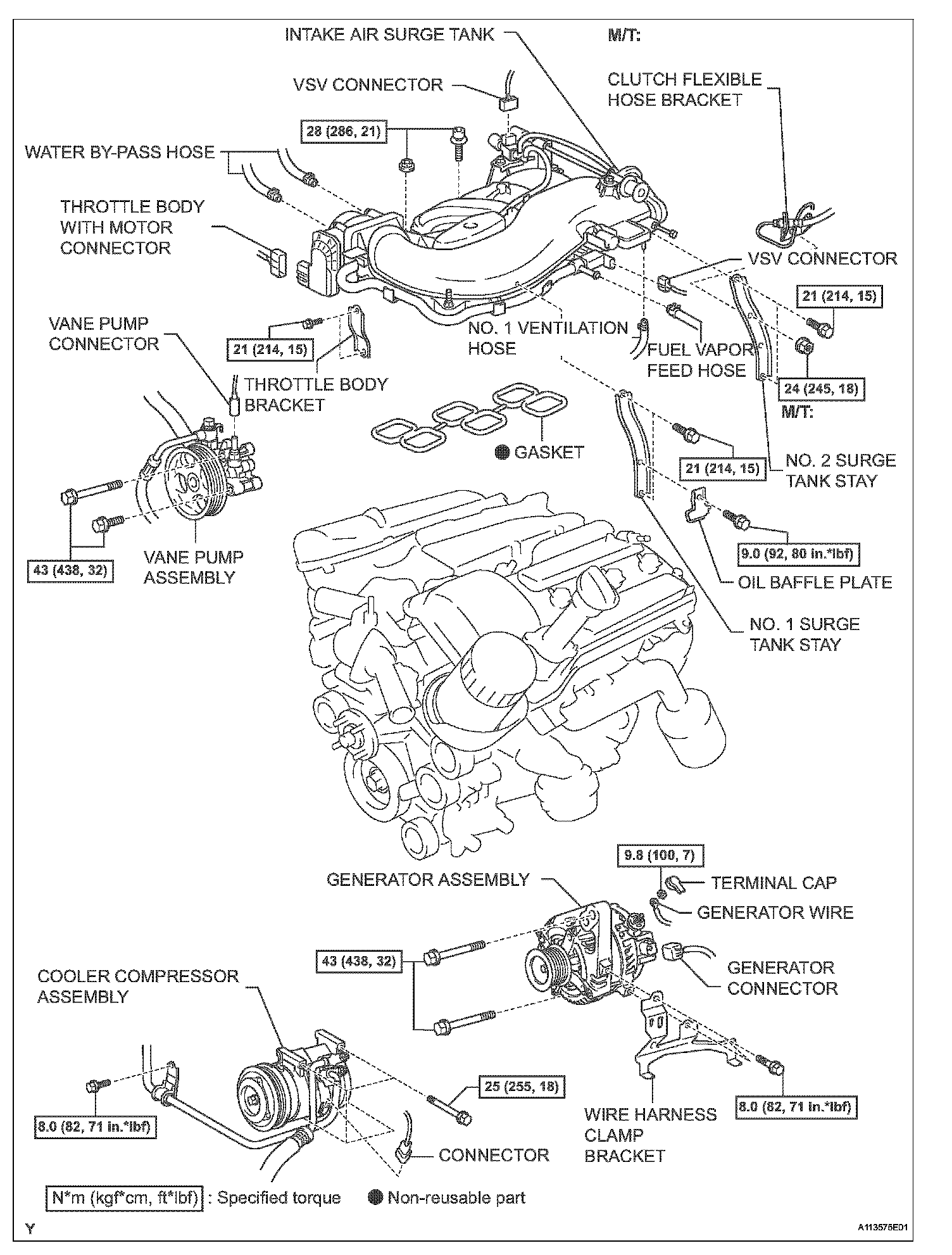

COMPONENTS:

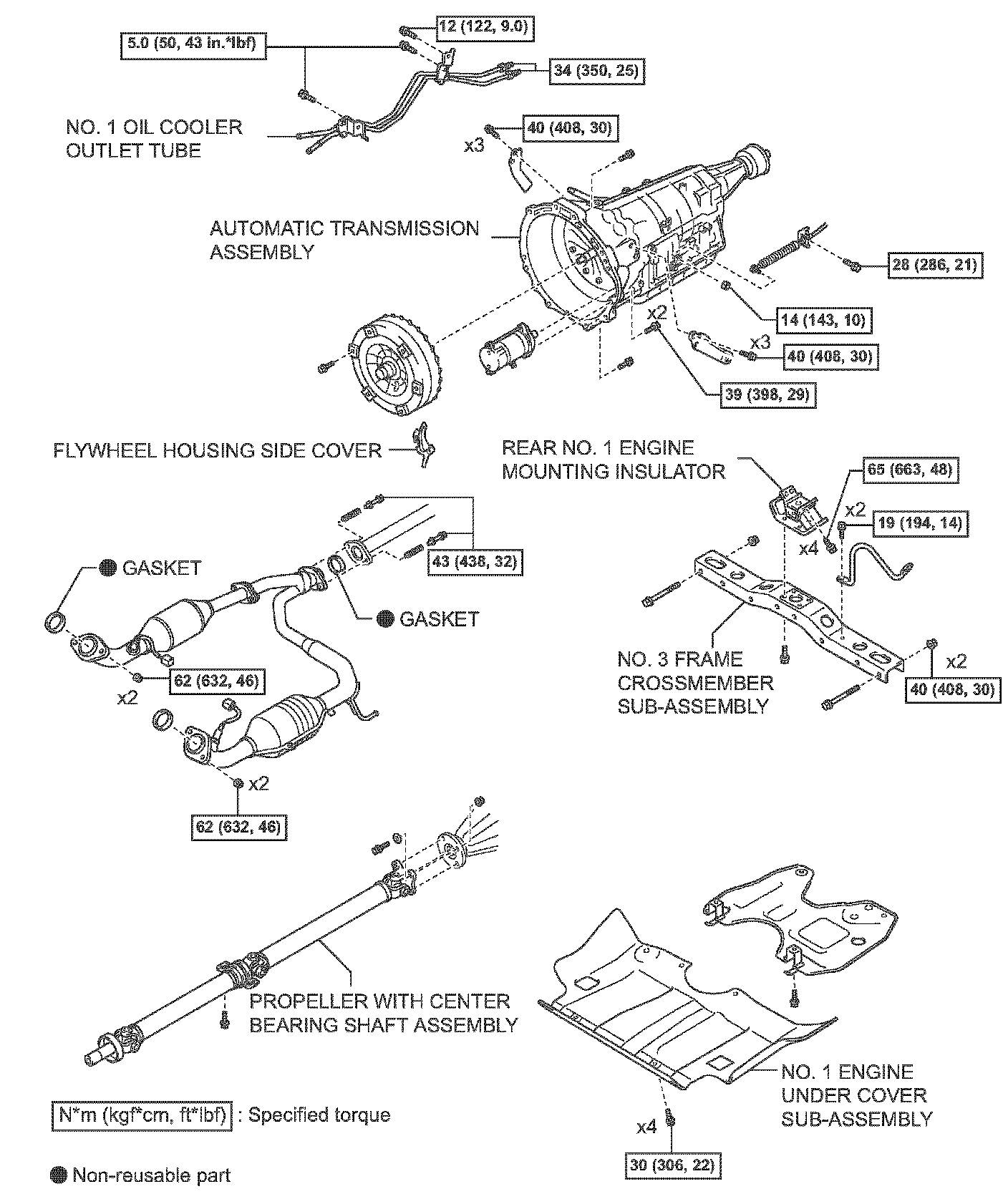

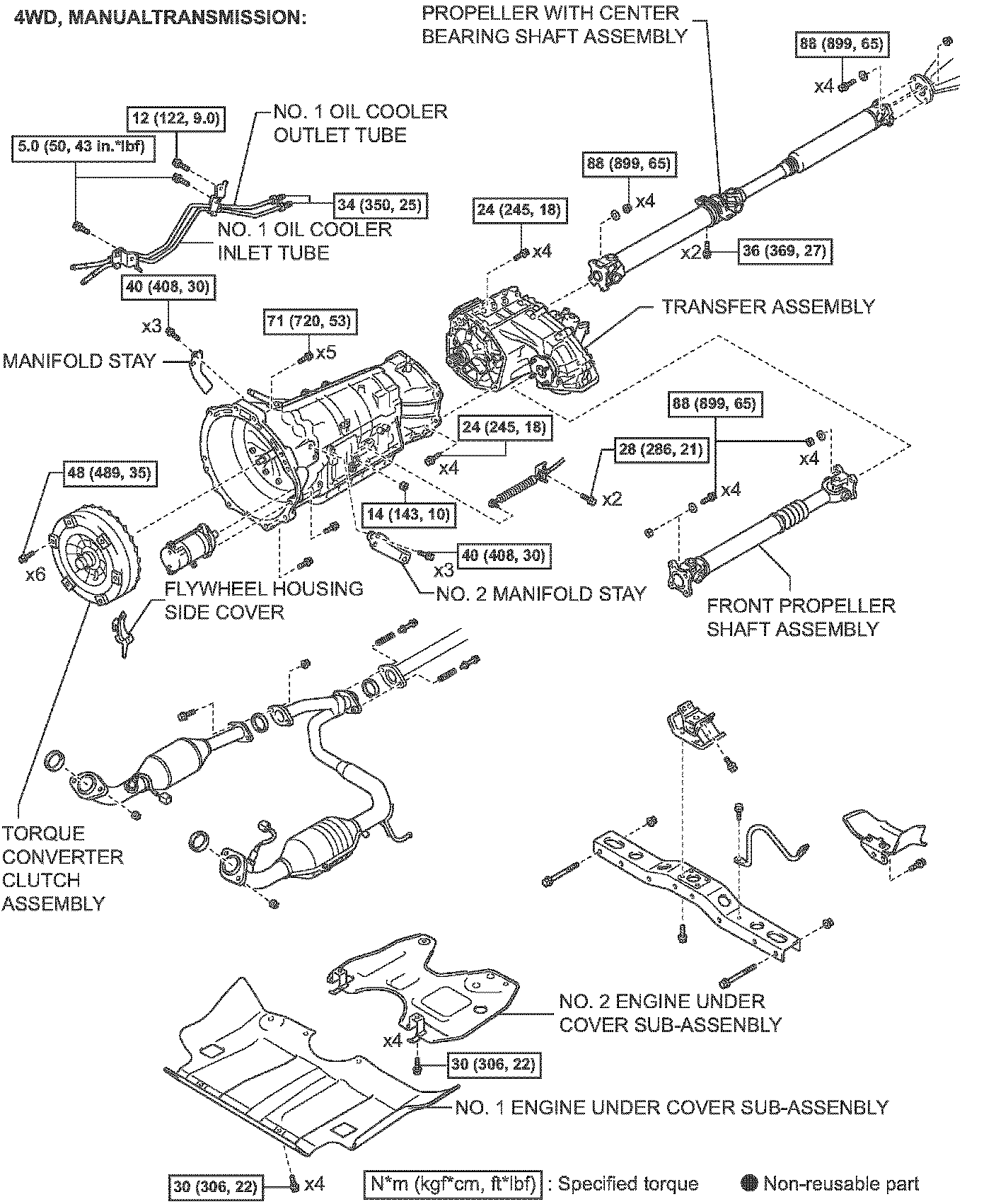

COMPONENTS:

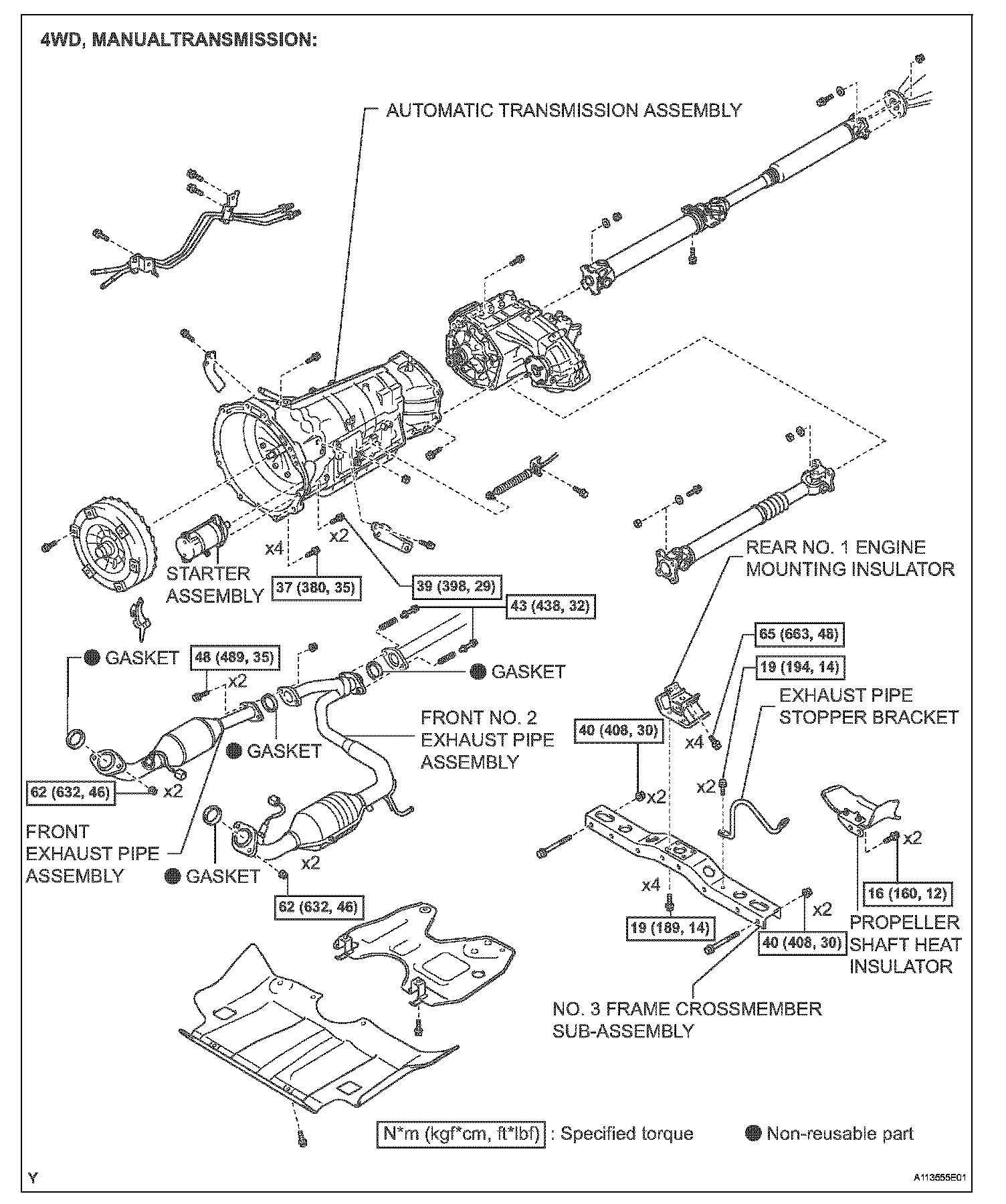

COMPONENTS:

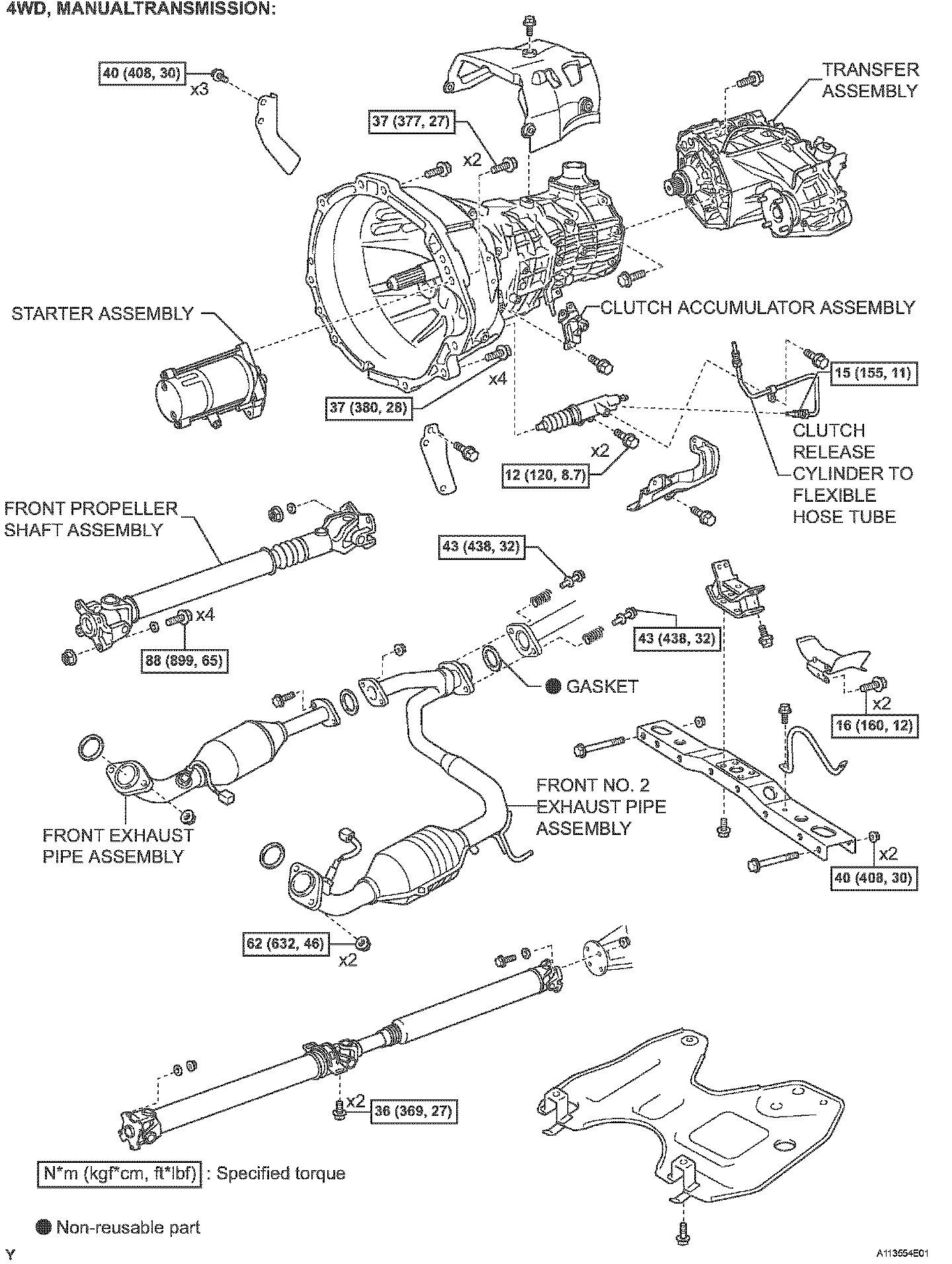

COMPONENTS:

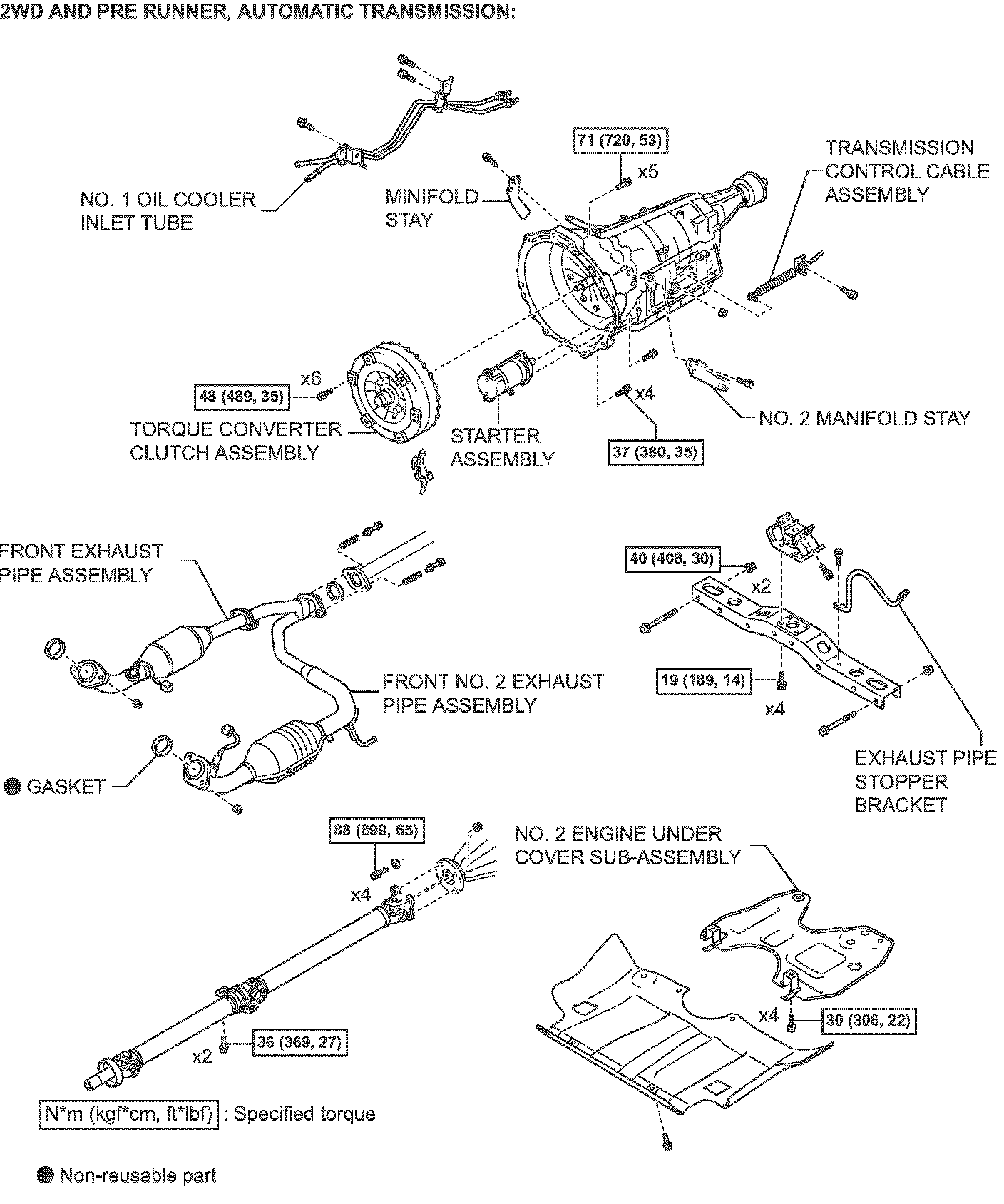

COMPONENTS:

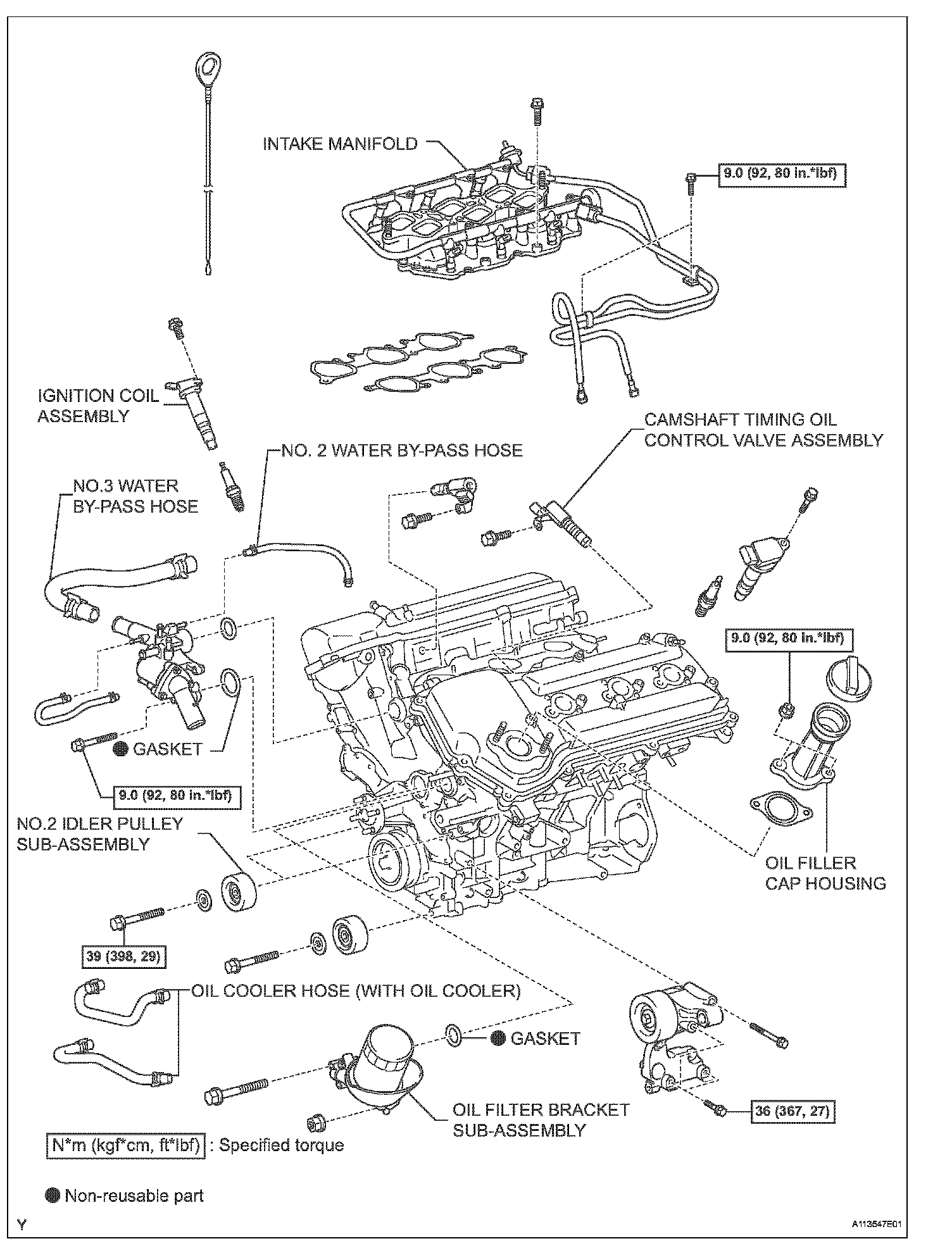

COMPONENTS:

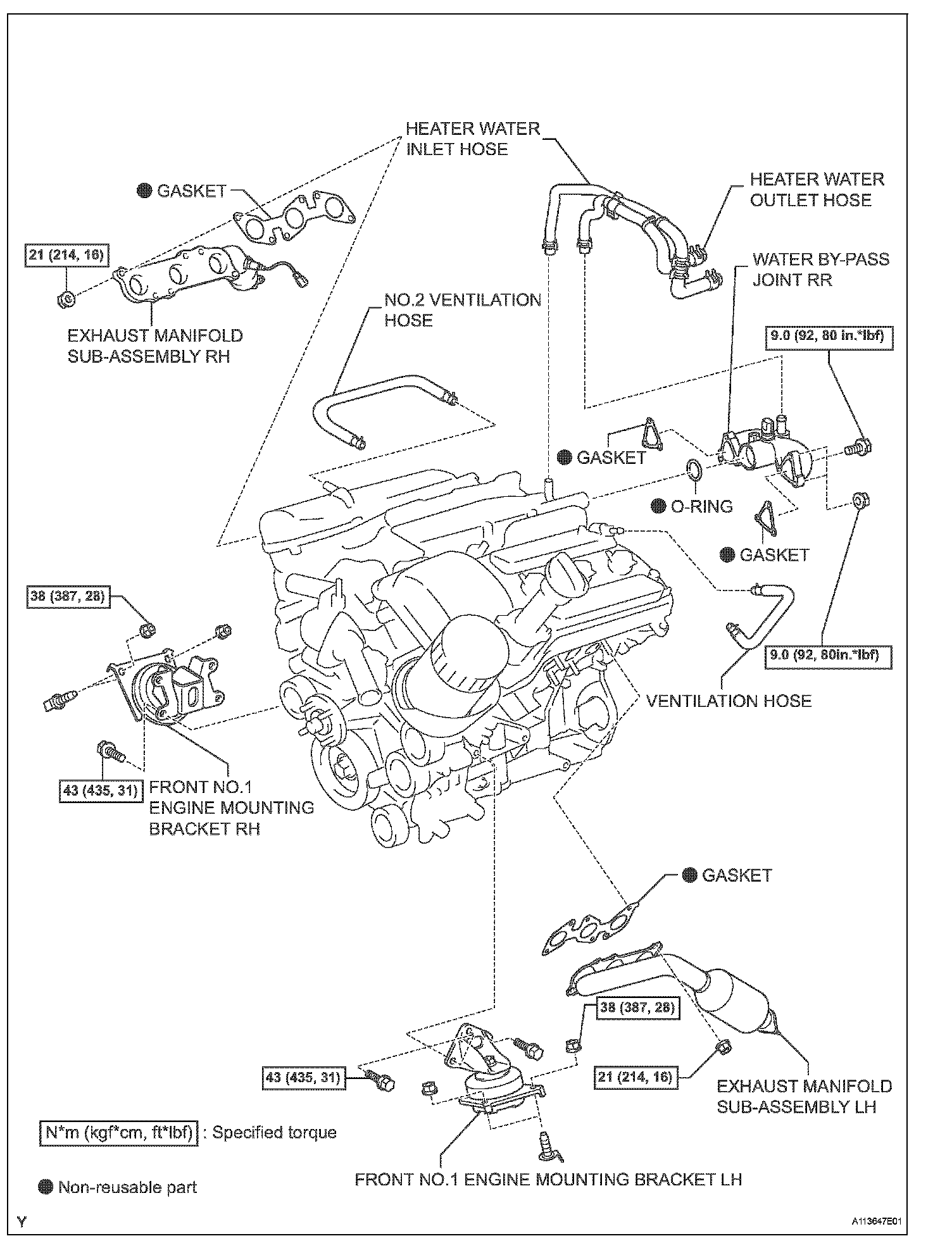

COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:
