Home >> Toyota >> 2006 >> Tacoma 2WD V6-4.0L (1GR-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Unit

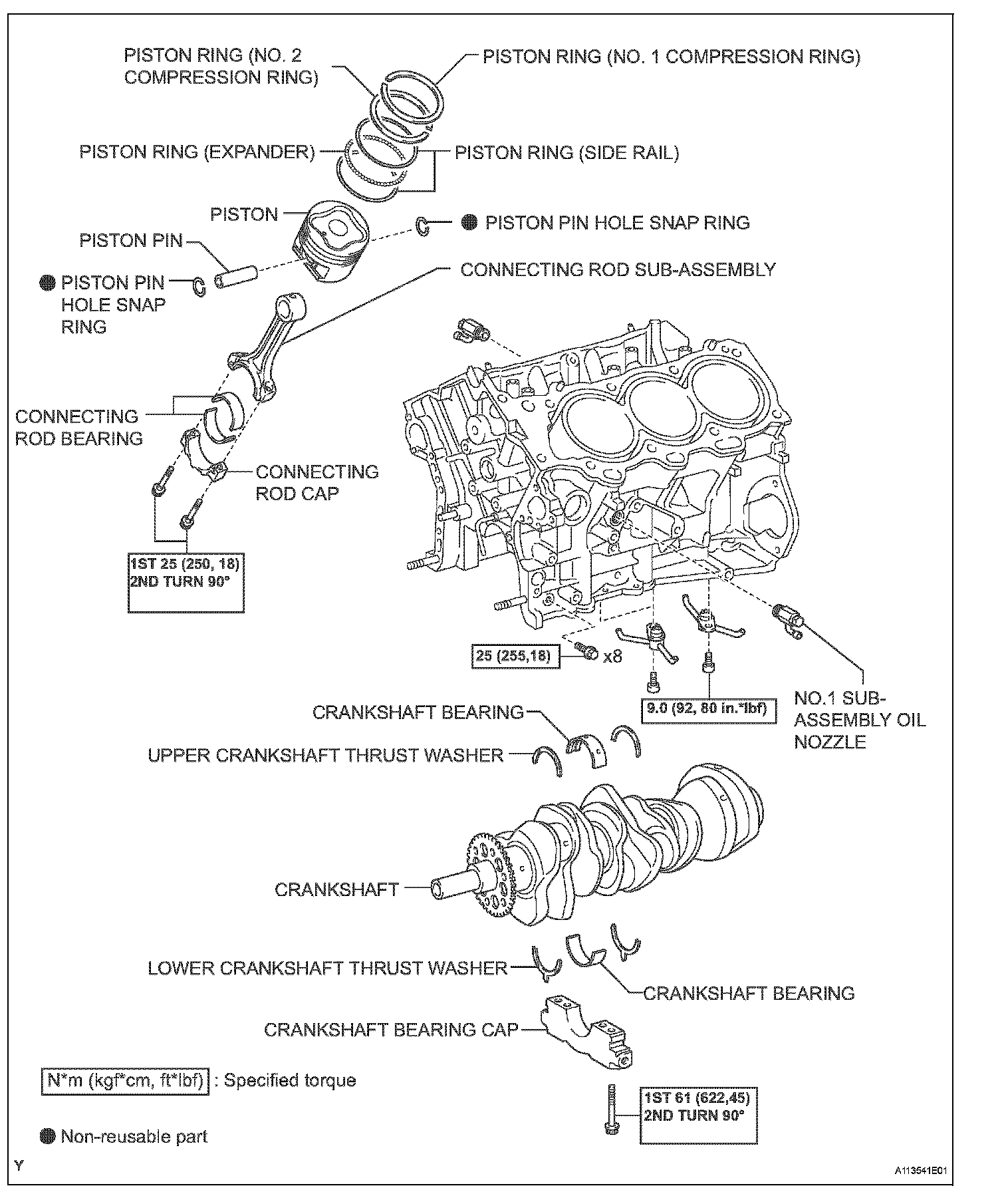

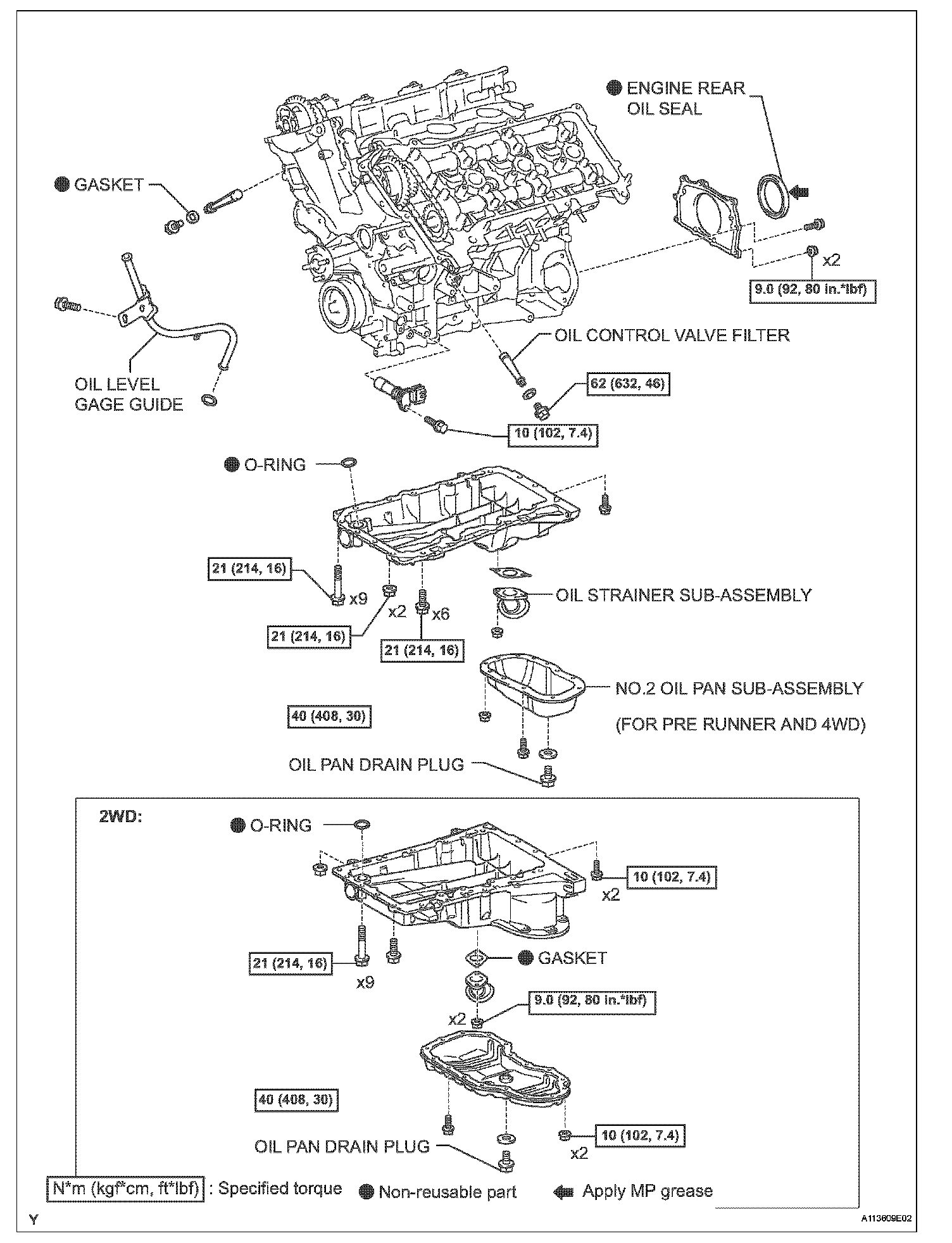

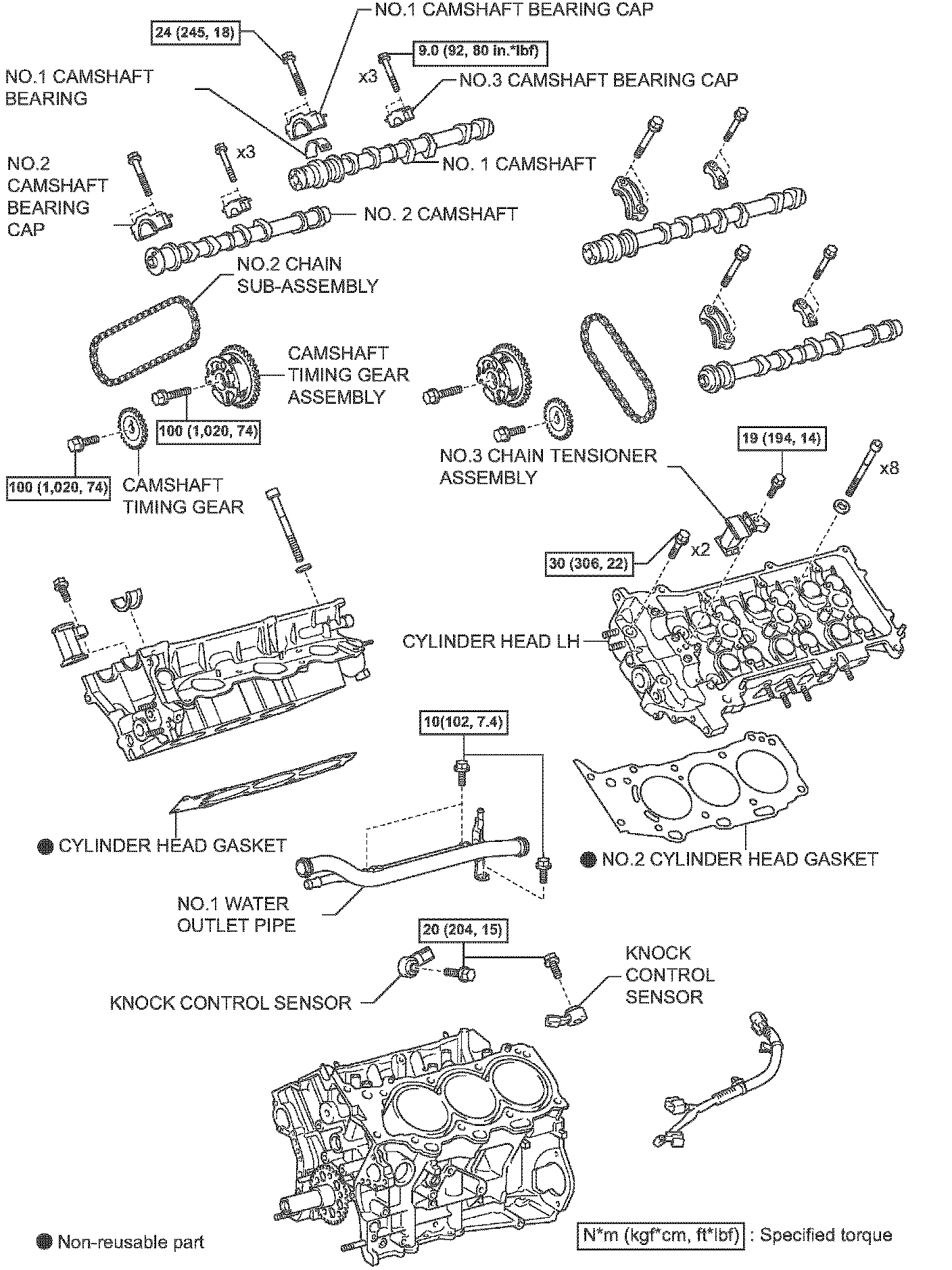

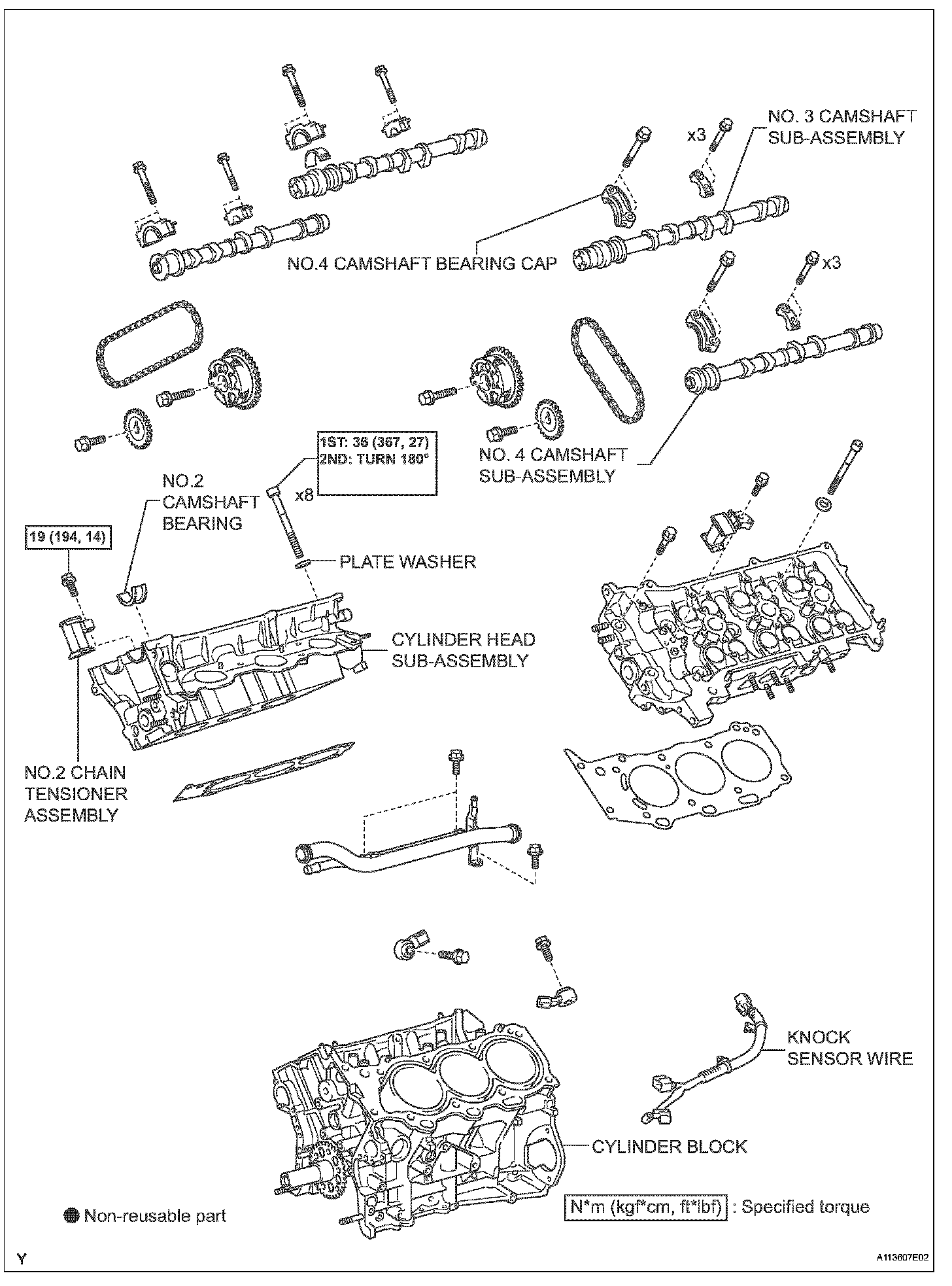

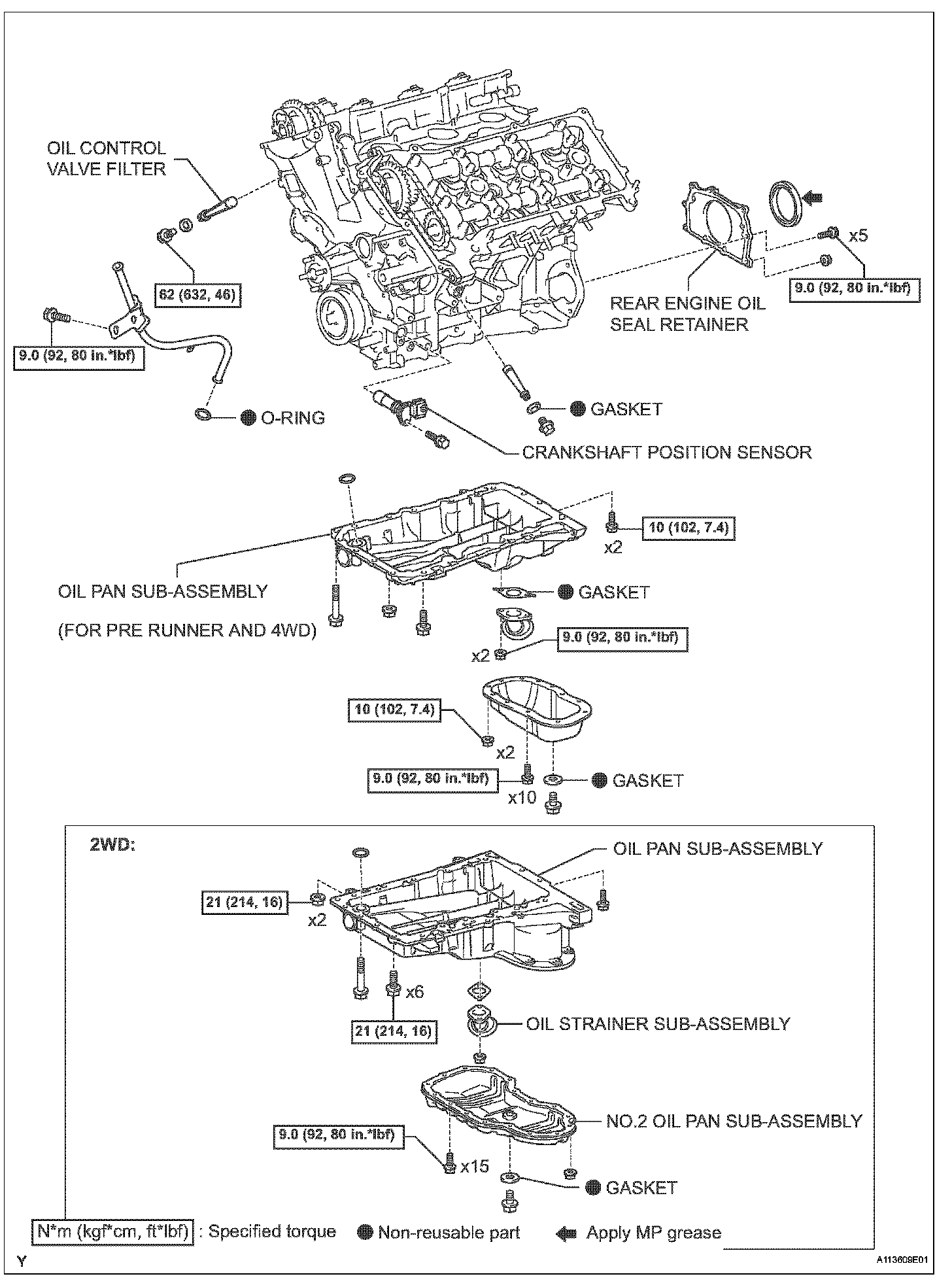

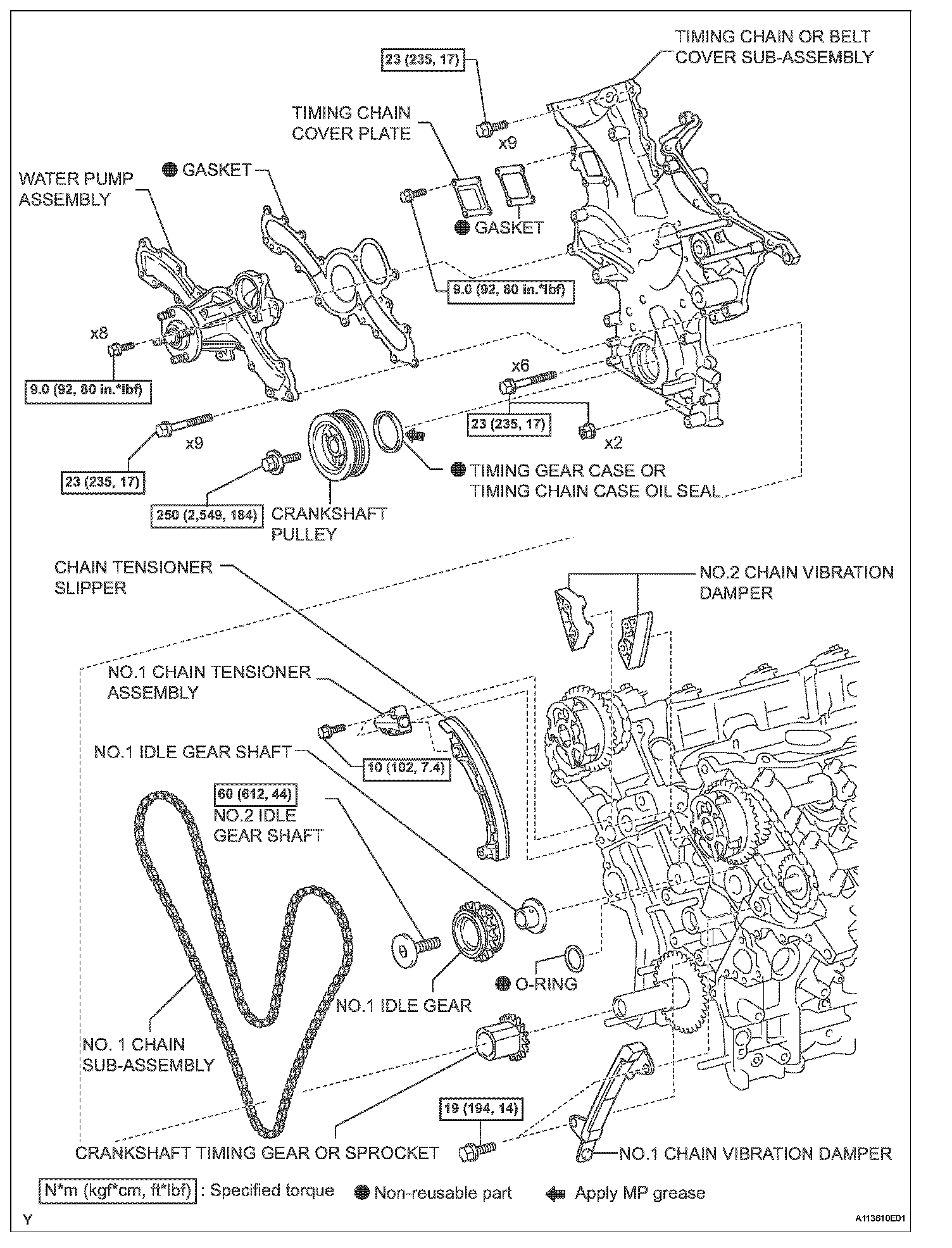

Engine Unit

COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:




COMPONENTS:
