Crankshaft Position Sensor: Testing and Inspection
INSPECTIONINSPECT CRANKSHAFT POSITION SENSOR
Check the resistance.

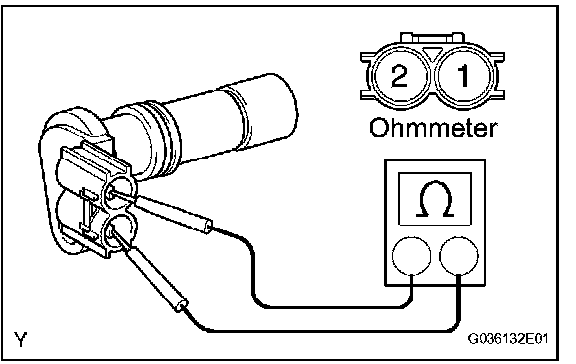

Using an ohmmeter, measure the resistance between the terminals.
Standard: 1850 to 2450 Ohms at 20 degree C (68 degree F)
If the result is not as specified, replace the crankshaft position sensor.
