System Specifications

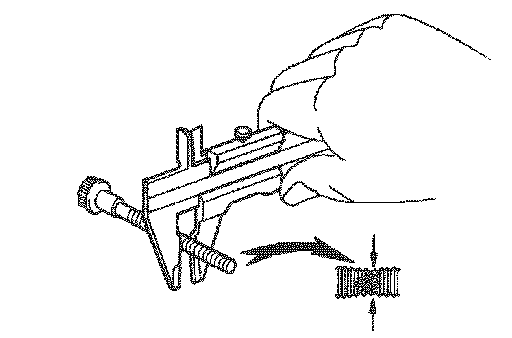

Cylinder Head Bolt Inspection
Standard O.D. 10.85 to 11.00 mm (0.4272 to 0.4331 inch)
Minimum O.D. 10.7 mm (0.421 inch)

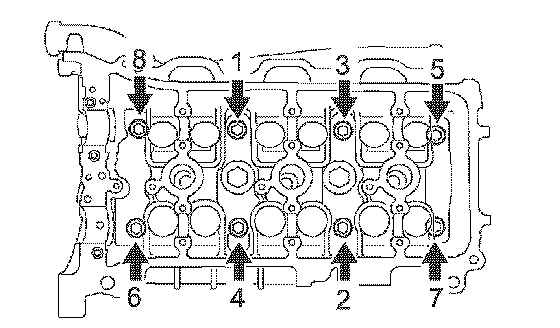

Cylinder Head Bolts
First Pass 36 Nm (367 kgf-cm, 27 ft. lbs.)
Second Pass 180°





Final Pass 30 Nm (306 kgf-cm, 22 ft. lbs.)

Cylinder Head Surface Variation
Maximum Warpage
Cylinder Block Surface 0.010 mm (0.0039 inch)
Intake Manifold Surface 0.10 mm (0.0039 inch)
Exhaust Manifold Surface 0.10 mm (0.0039 inch)

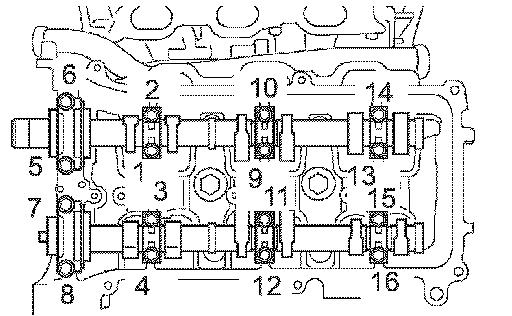

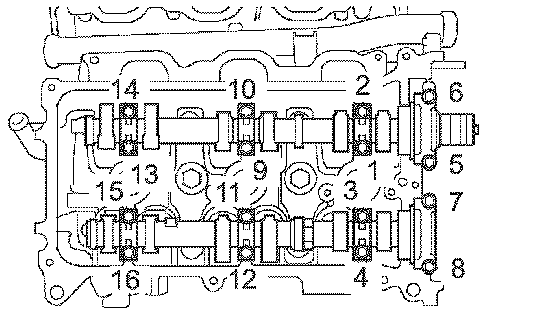

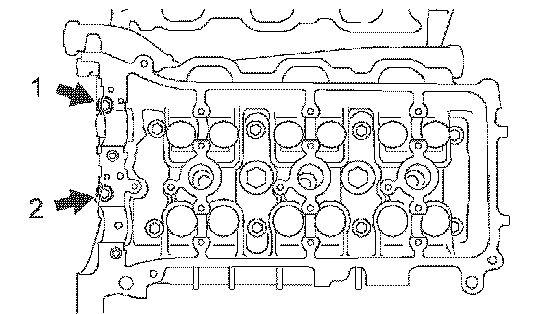

Camshaft Bearing Cap Bolts
10 MM Head 9.0 Nm (92 kgf-cm, 80 inch lbs.)
12 MM Head 24 Nm (245 kgf-cm, 18 ft. lbs.)

Camshaft Gear Bolts 100 Nm (1,020 kgf-cm, 74 ft. lbs.)

Intake Manifold Bolts 26 Nm (265 kgf-cm, 19 ft. lbs.)

Exhaust Manifold Nuts 21 Nm (214 kgf-cm, 16 ft. lbs.)
