Home >> Toyota >> 2006 >> Tacoma 2WD V6-4.0L (1GR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> System Specifications

System Specifications

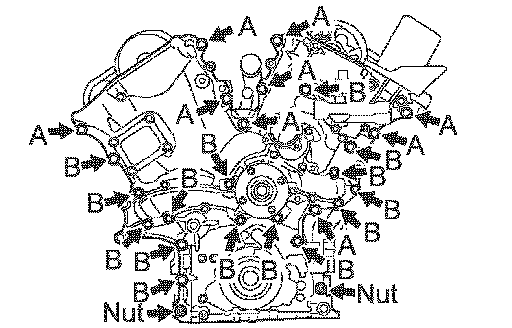

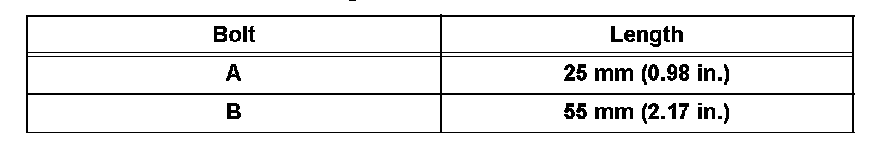

Bolt Length:





Timing Cover Bolts & Nuts 23 Nm (235 kgf-cm, 17 ft. lbs.)
