Transmission Control Systems: Locations

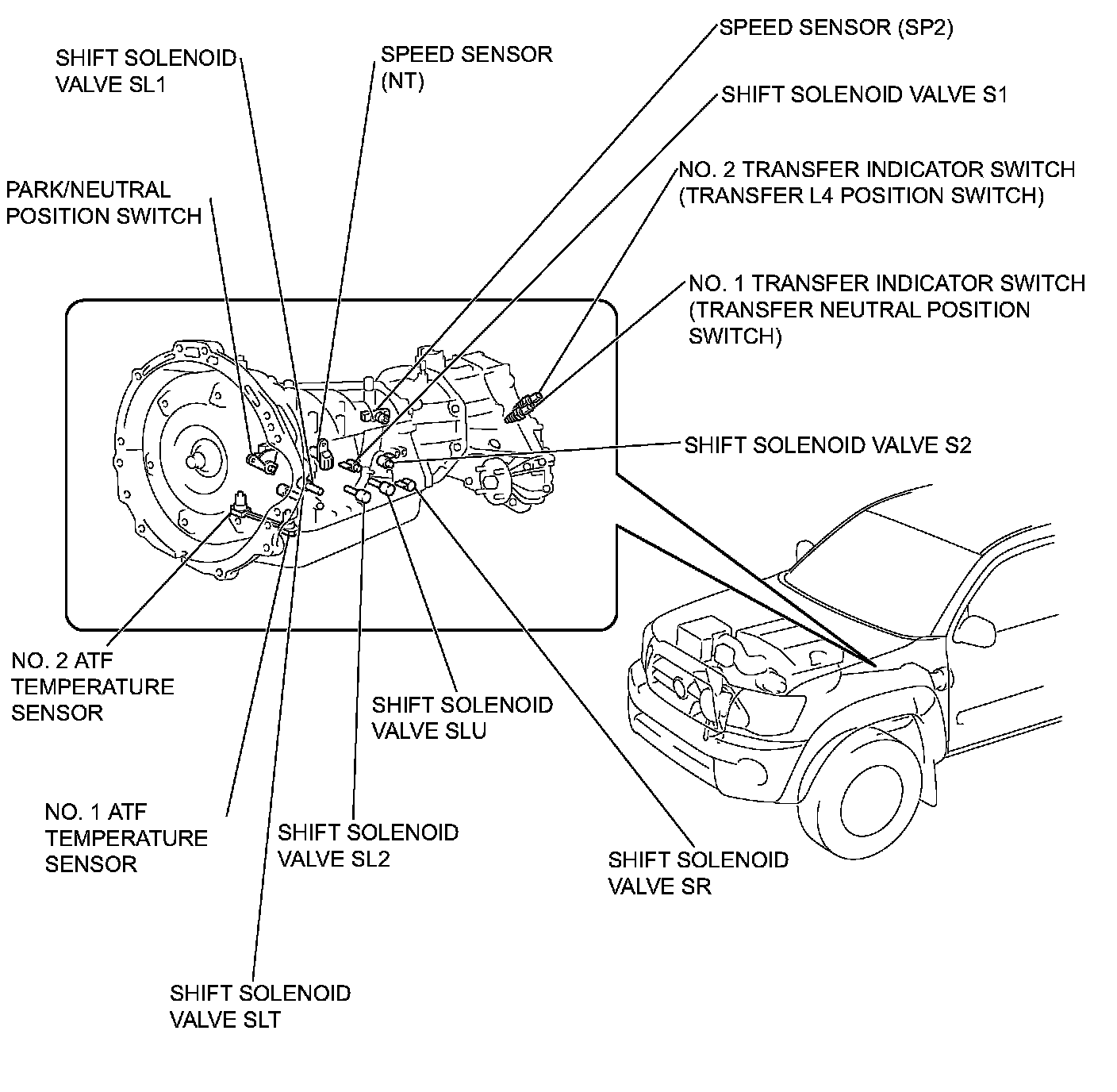

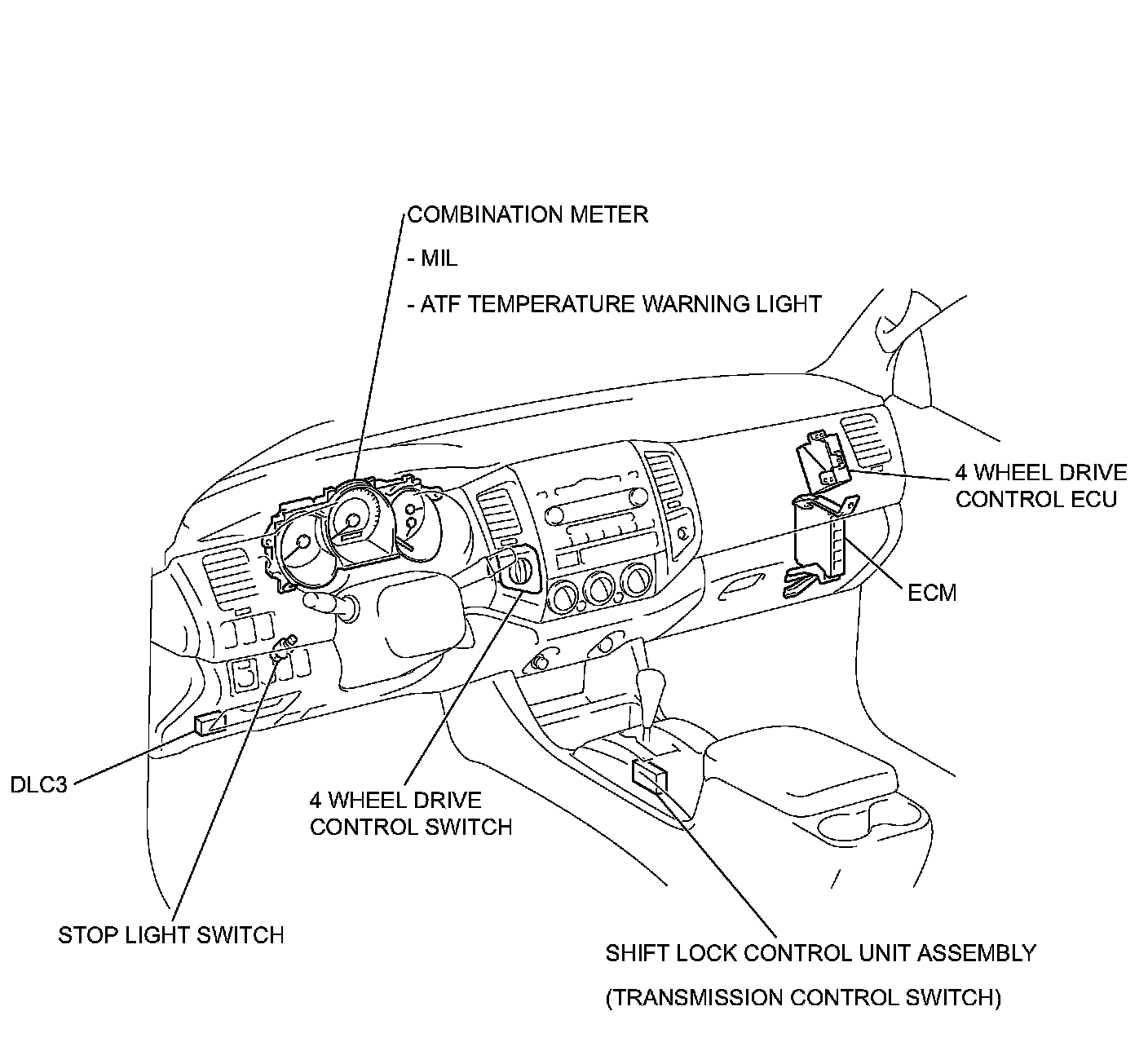

Parts Location (A750F Automatic Transaxle):
Parts Location (A750F Automatic Transaxle):
He - Wi:
