Key Reminder Warning System

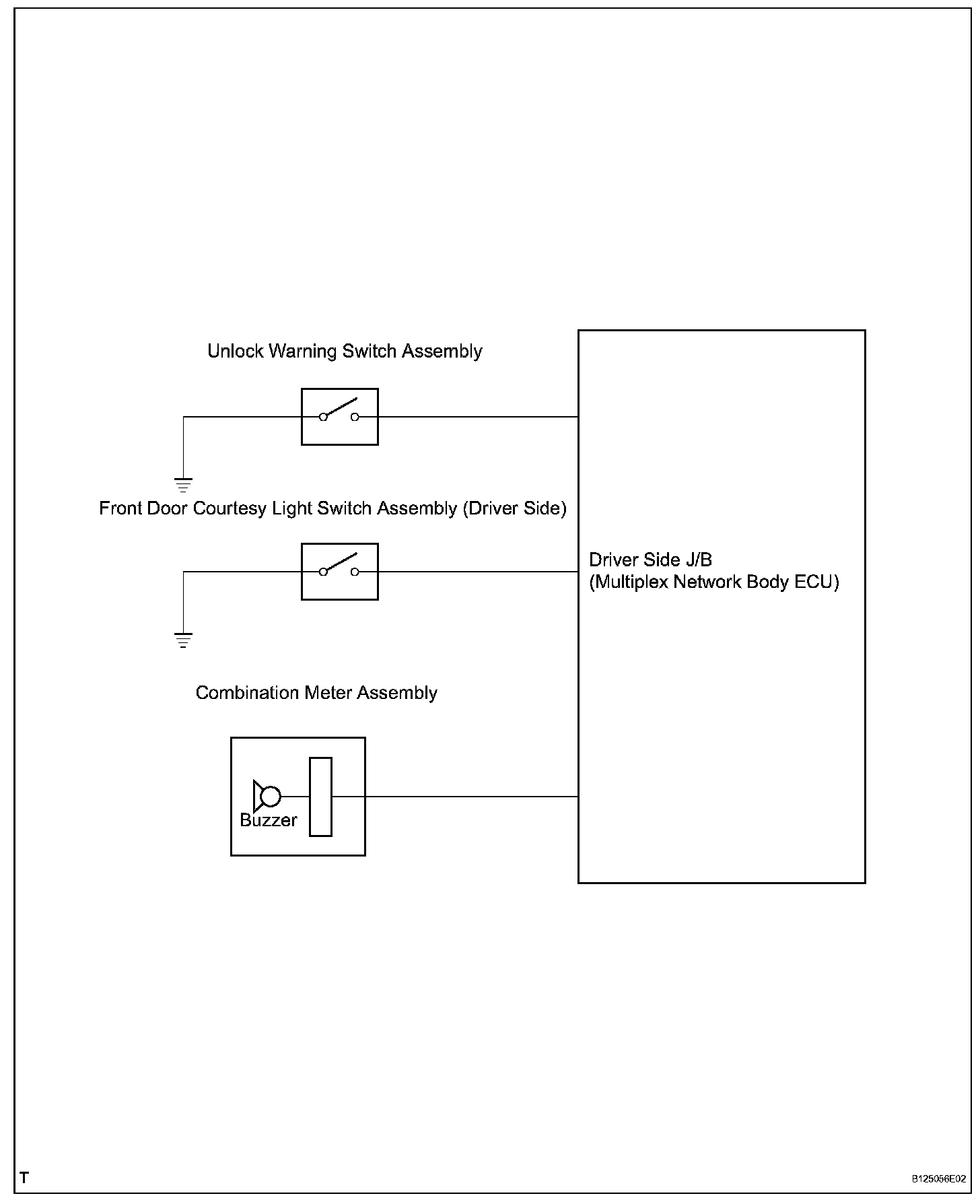

System Diagram:

SYSTEM DESCRIPTION

1. KEY REMINDER WARNING SYSTEM DESCRIPTION
a. When the driver side door is open with the ignition switch in the ACC or LOCK position, this system sounds a buzzer to warn the driver that the ignition key has not been removed.
