Cruise Control Switch Circuit

Cruise Control Switch Circuit

DESCRIPTION
This circuit sends signals to the ECM depending on the cruise control main switch condition. The battery supplies the positive (+) battery voltage to the cruise control main switch. Then terminal CCS of the ECM receives the voltage as the signal according to the switch condition.

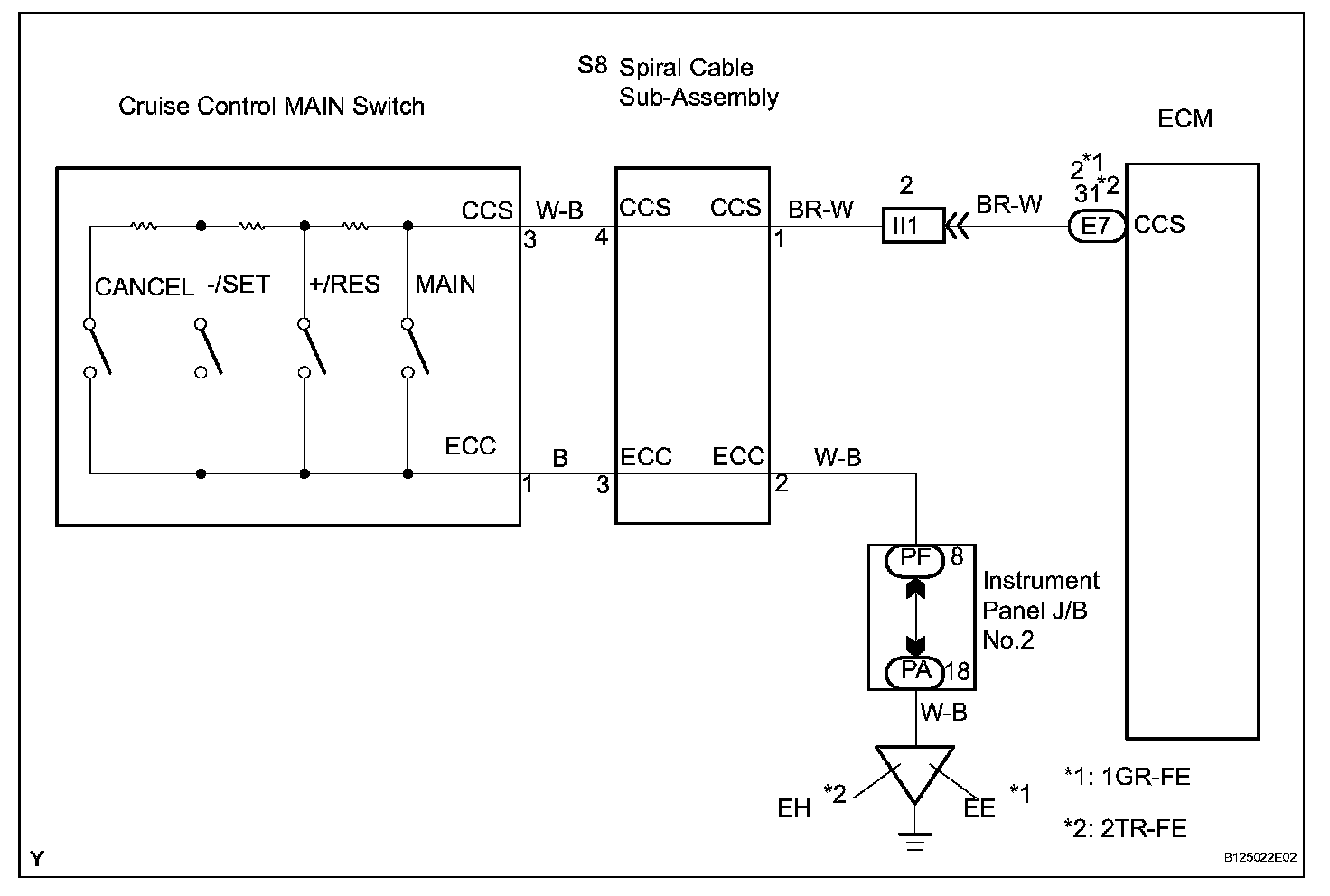

Wiring Diagram:

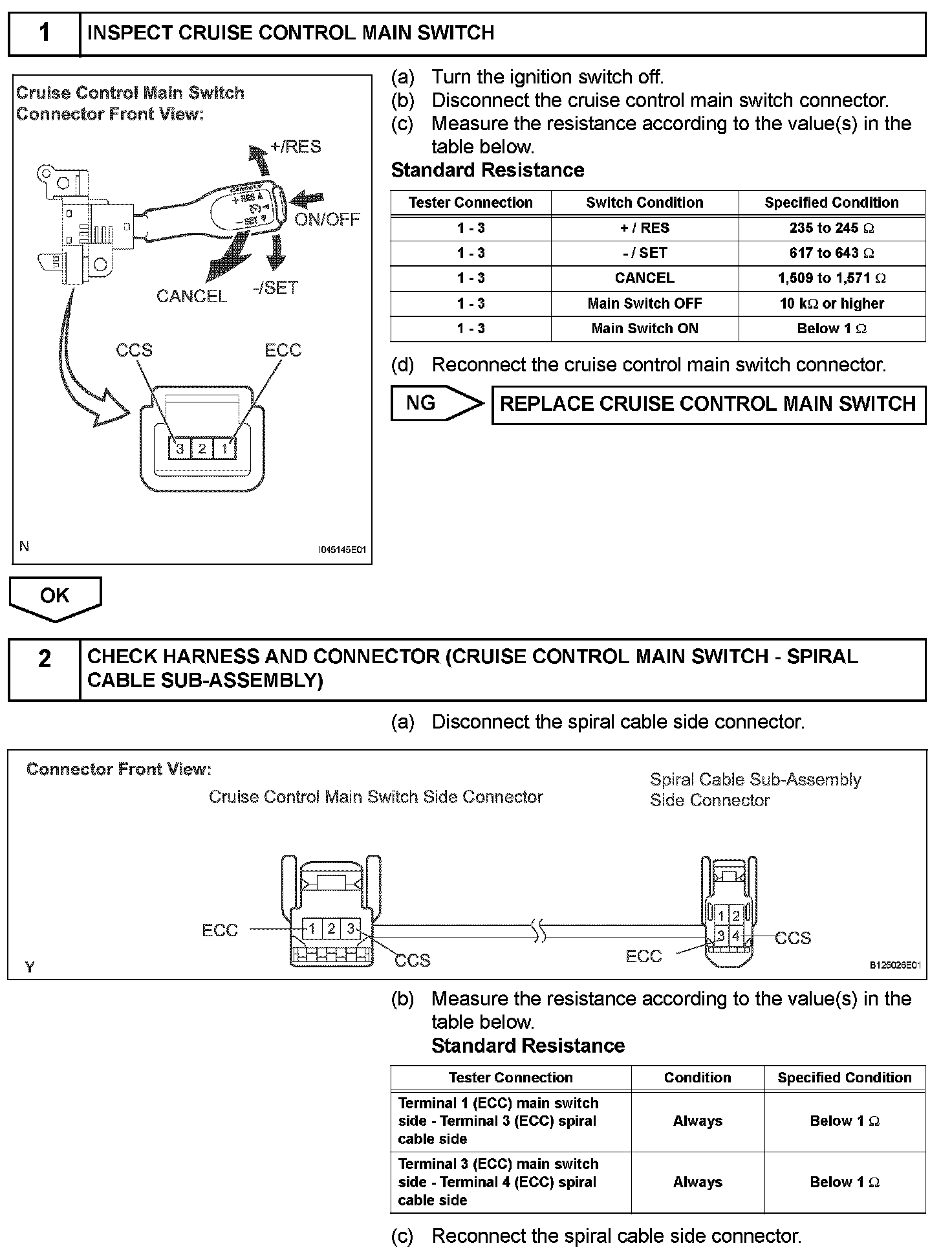

Step 1-2:

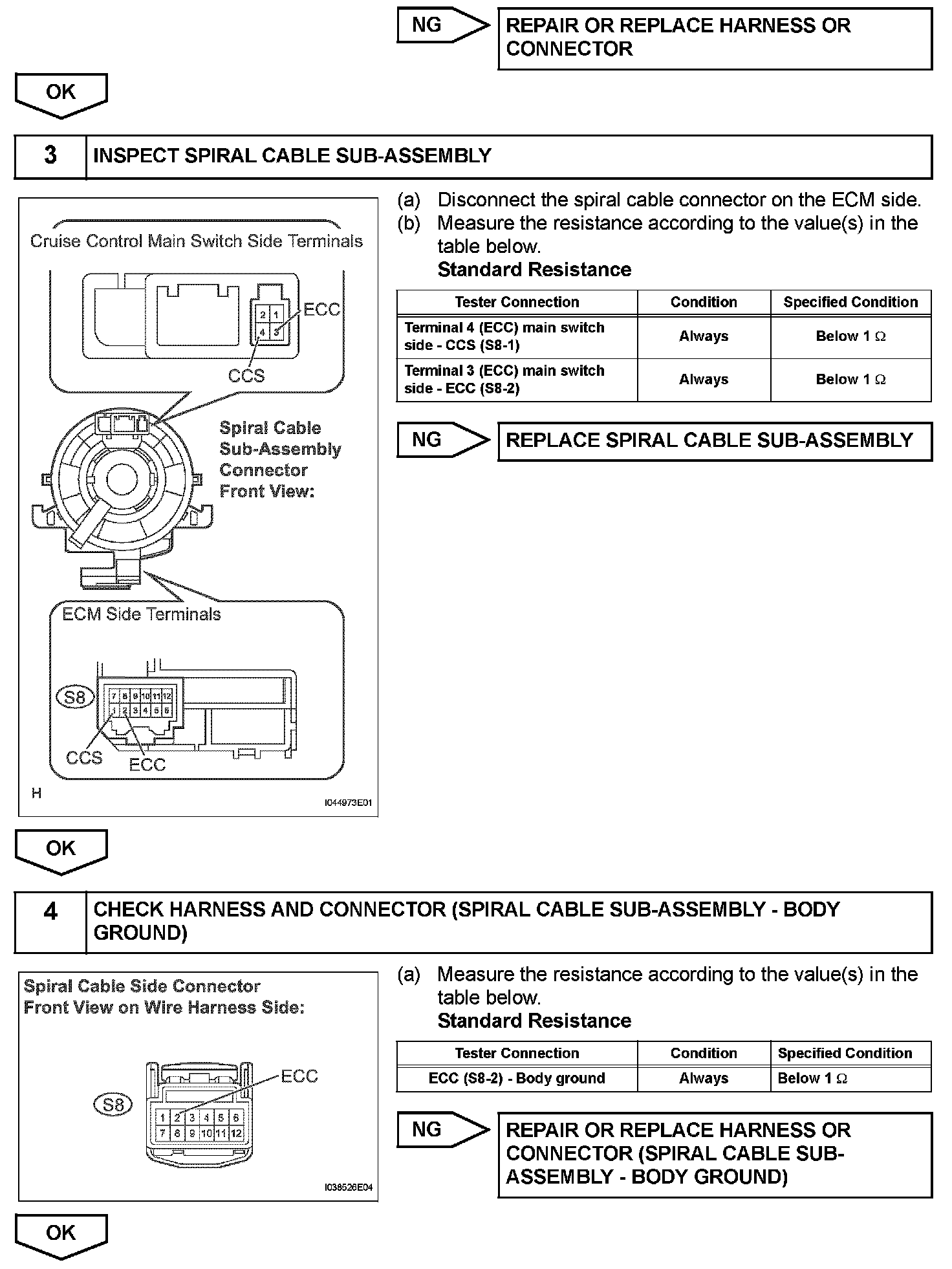

Step 2(Continued)-4:

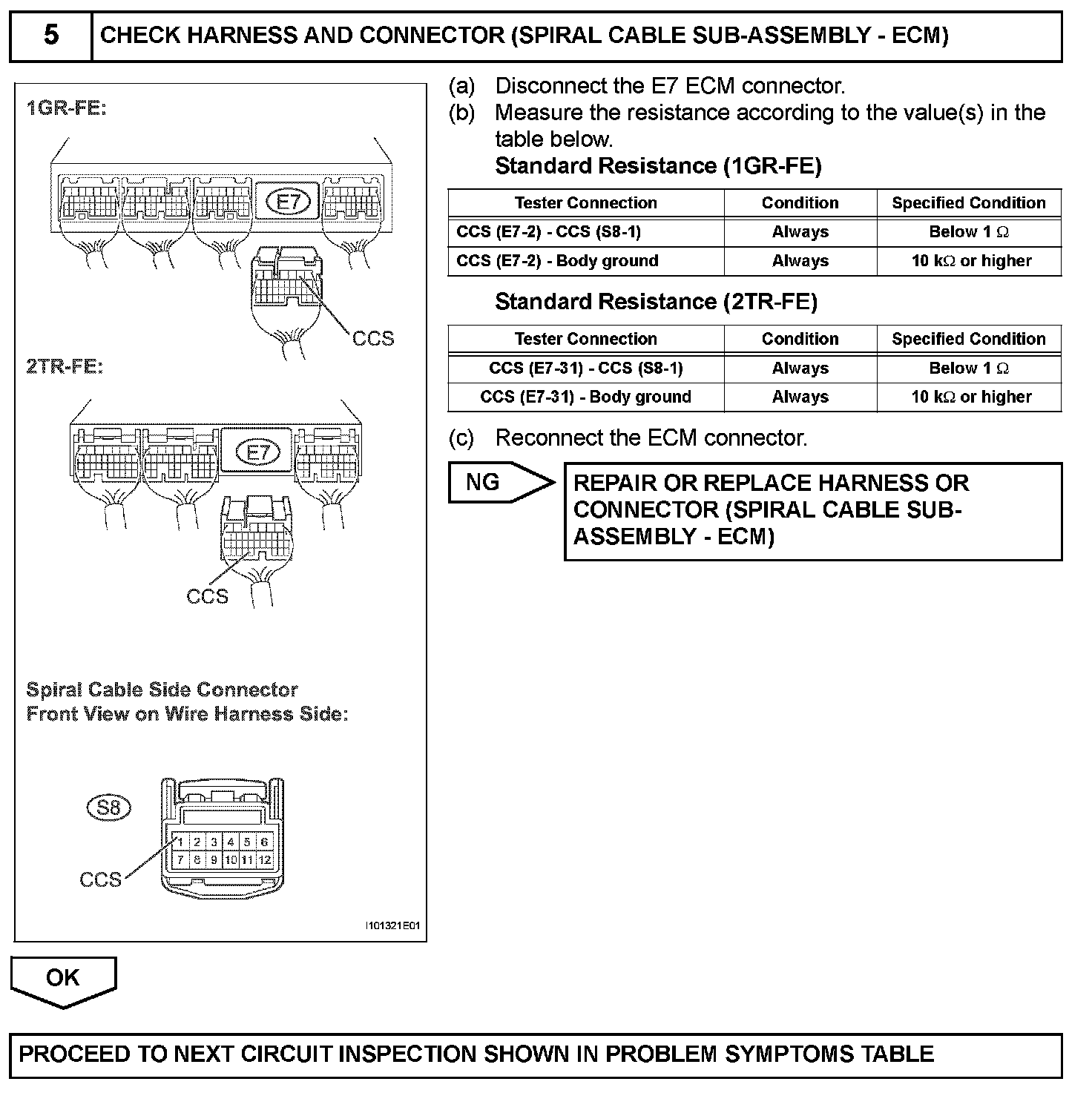

Step 5:

INSPECTION PROCEDURE
