Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Tacoma PreRunner L4-2.7L (2TR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Auxiliary Power Outlet
Auxiliary Power Outlet

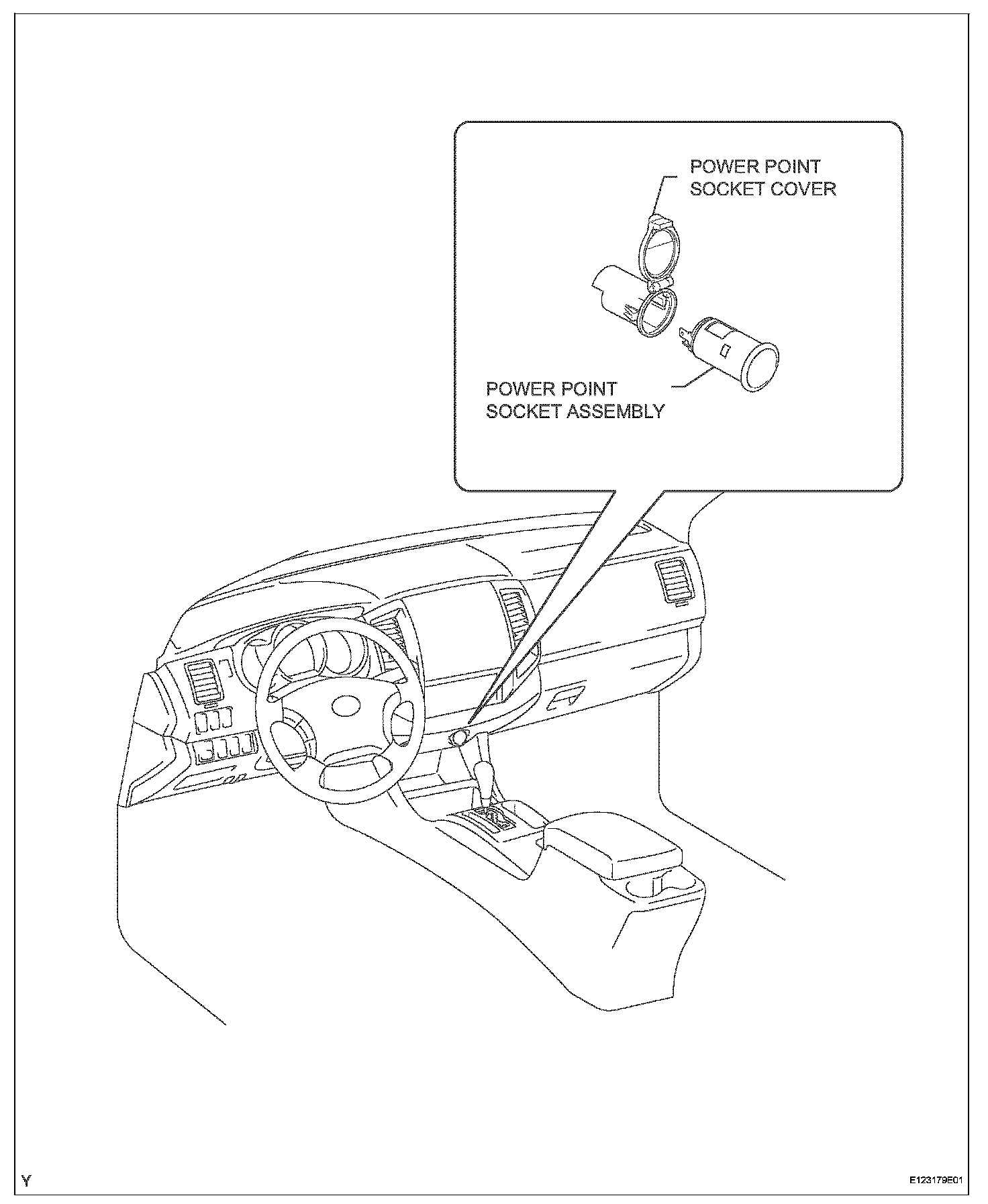

Power Point Socket:

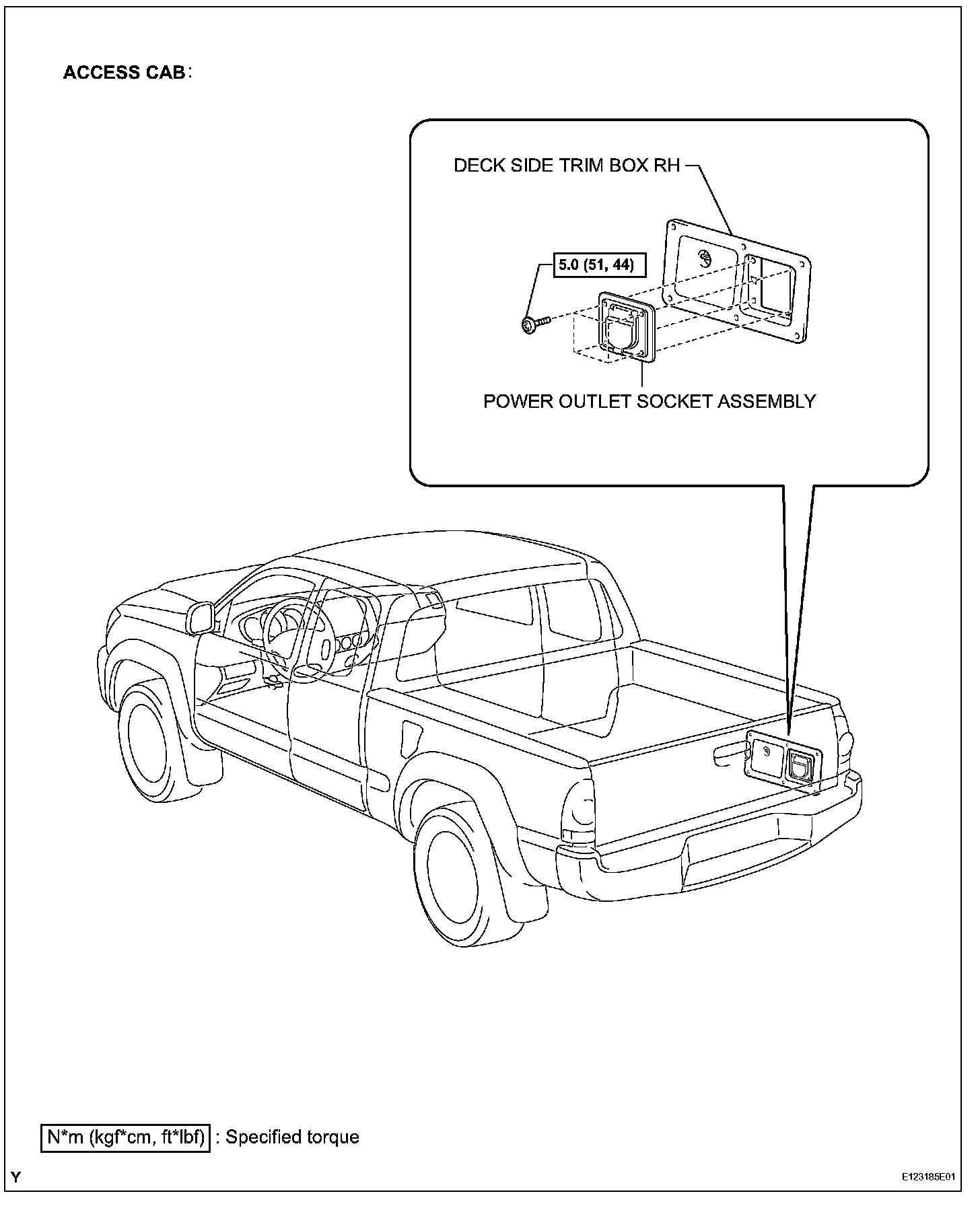

Power Outlet Socket:

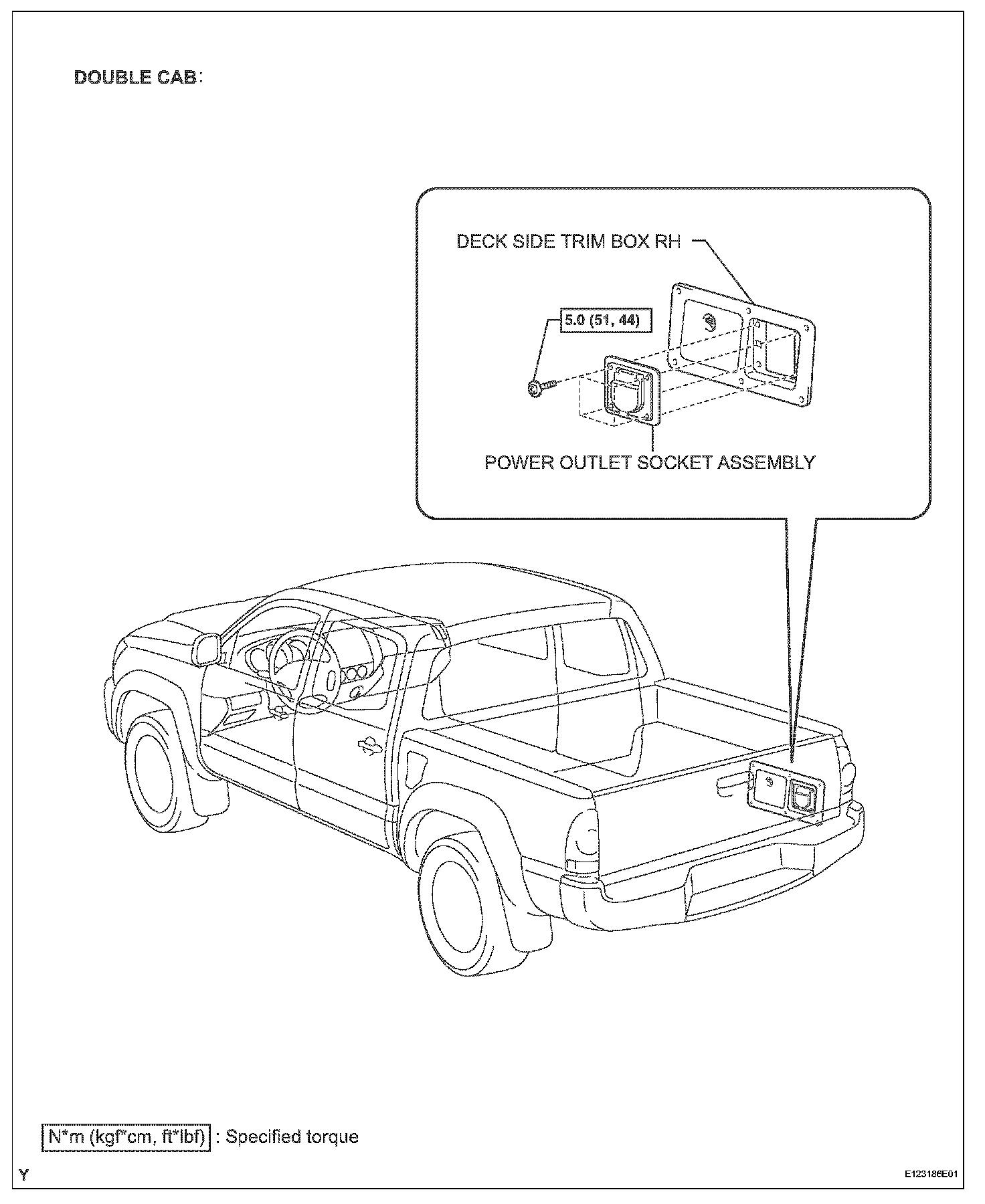

Power Outlet Socket:
