Fuse Block
>>
Locations
Fuse Block: Locations

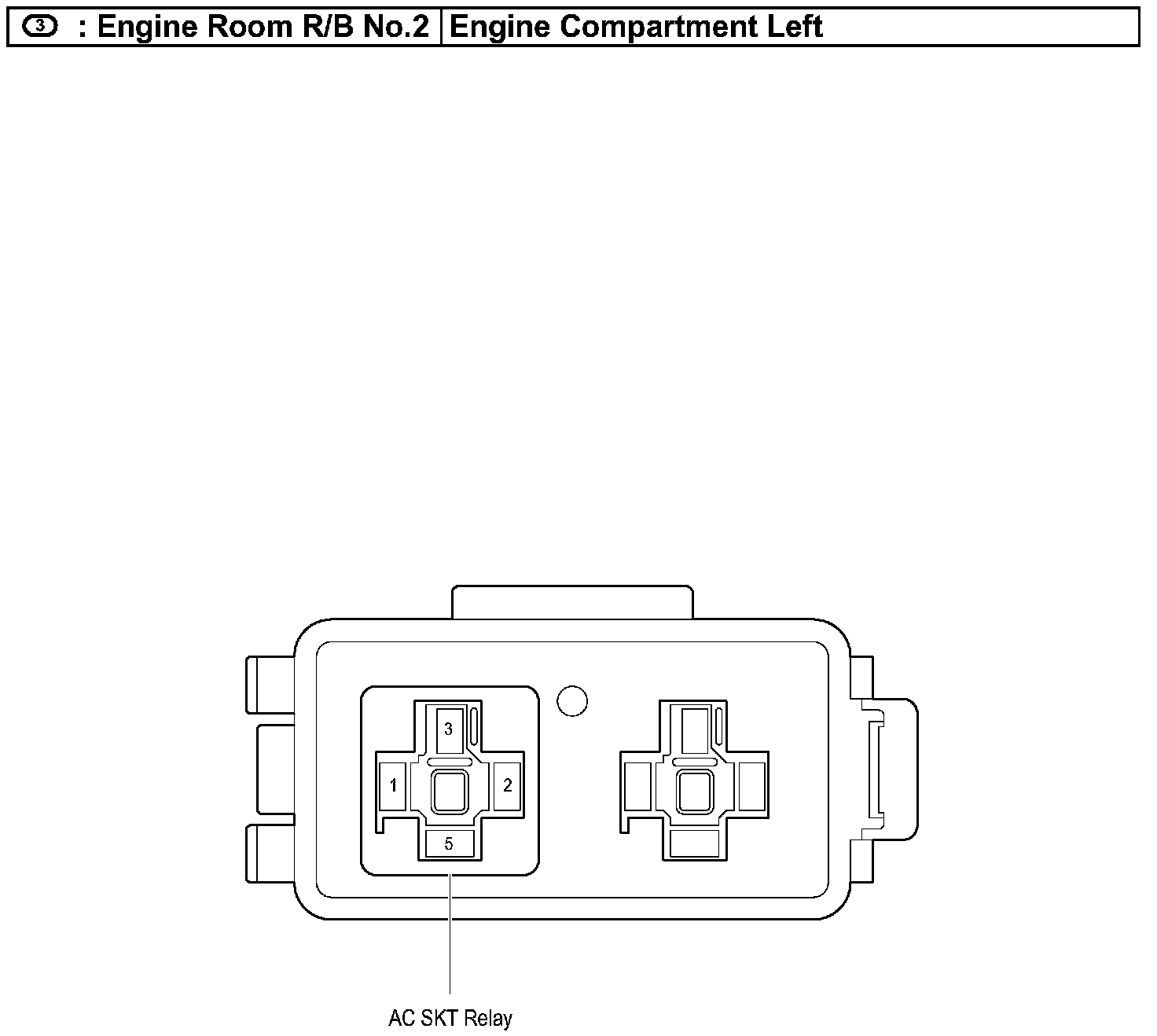

Engine Room R/B 2:

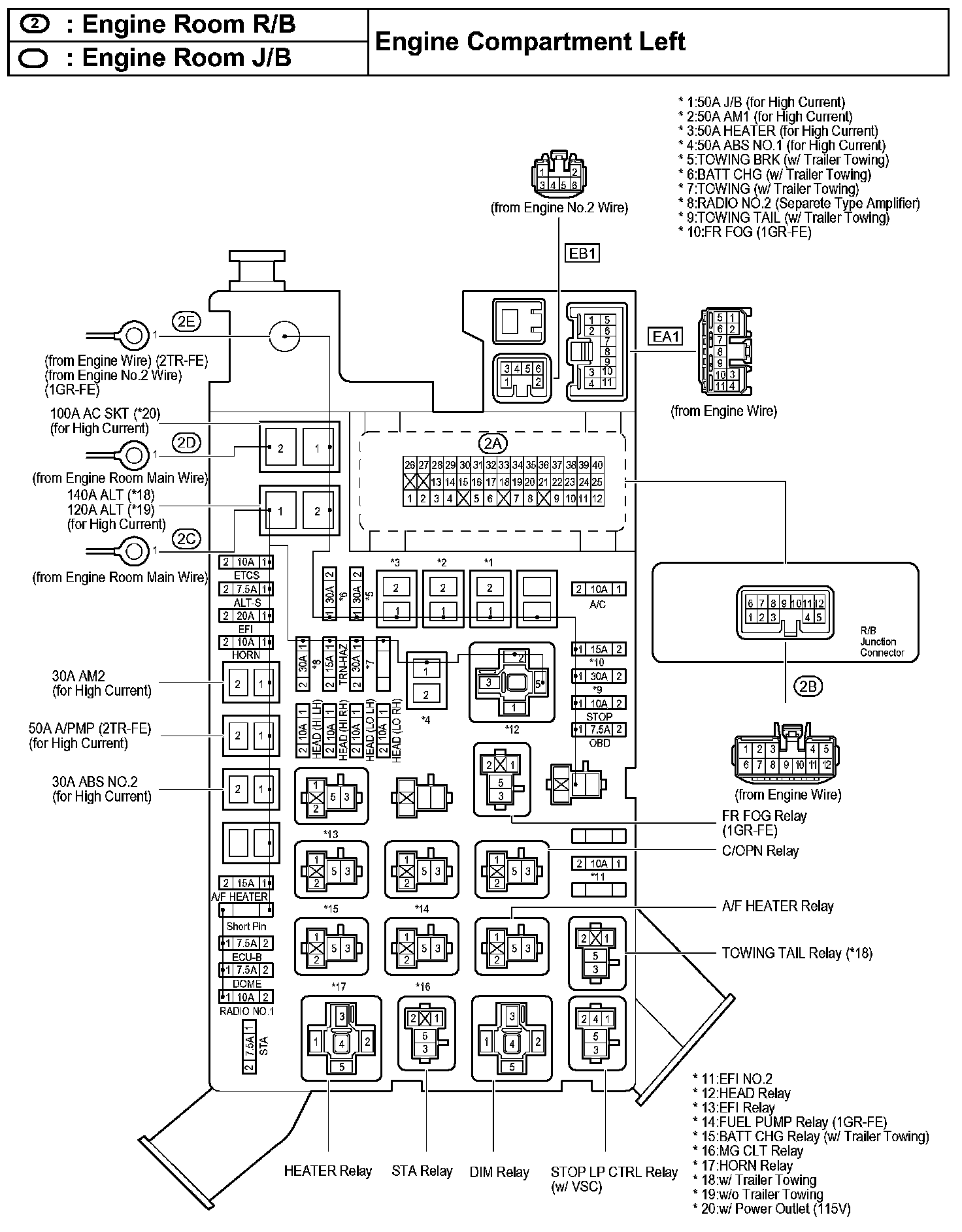

Engine Room R/B:

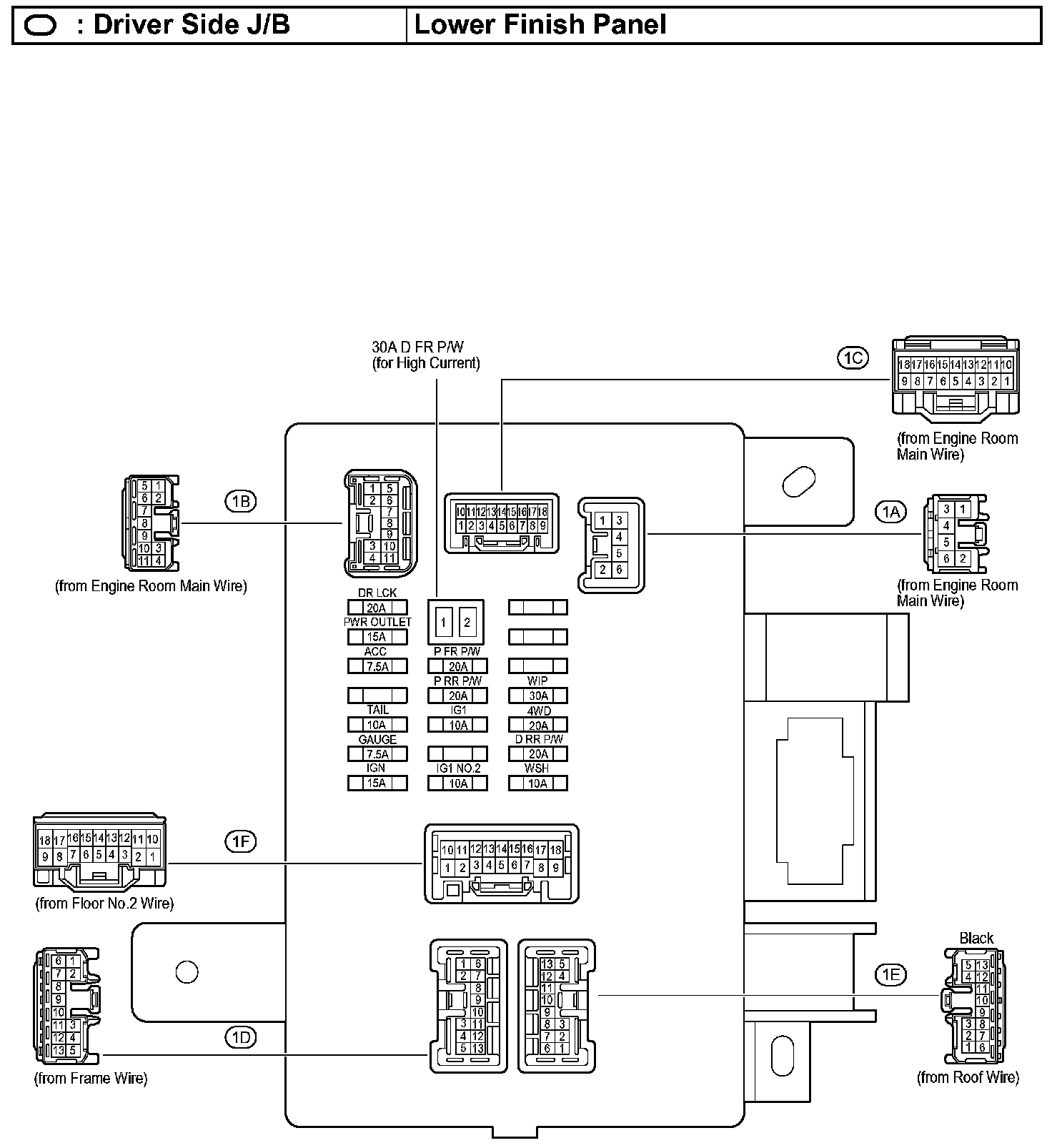

Driver Side J/B - Lower Finish Panel:

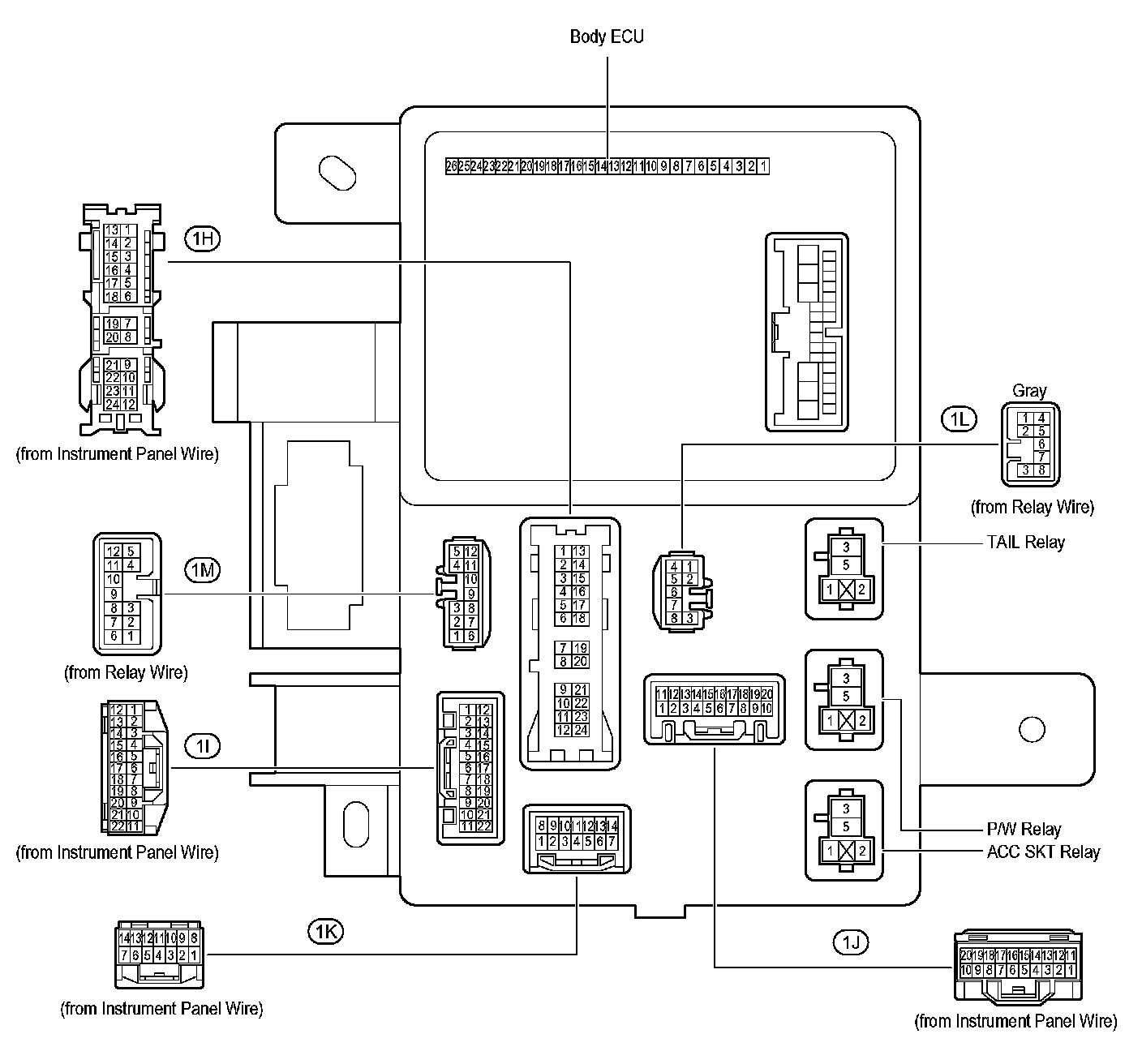

Driver Side J/B - Lower Finish Panel:
Details

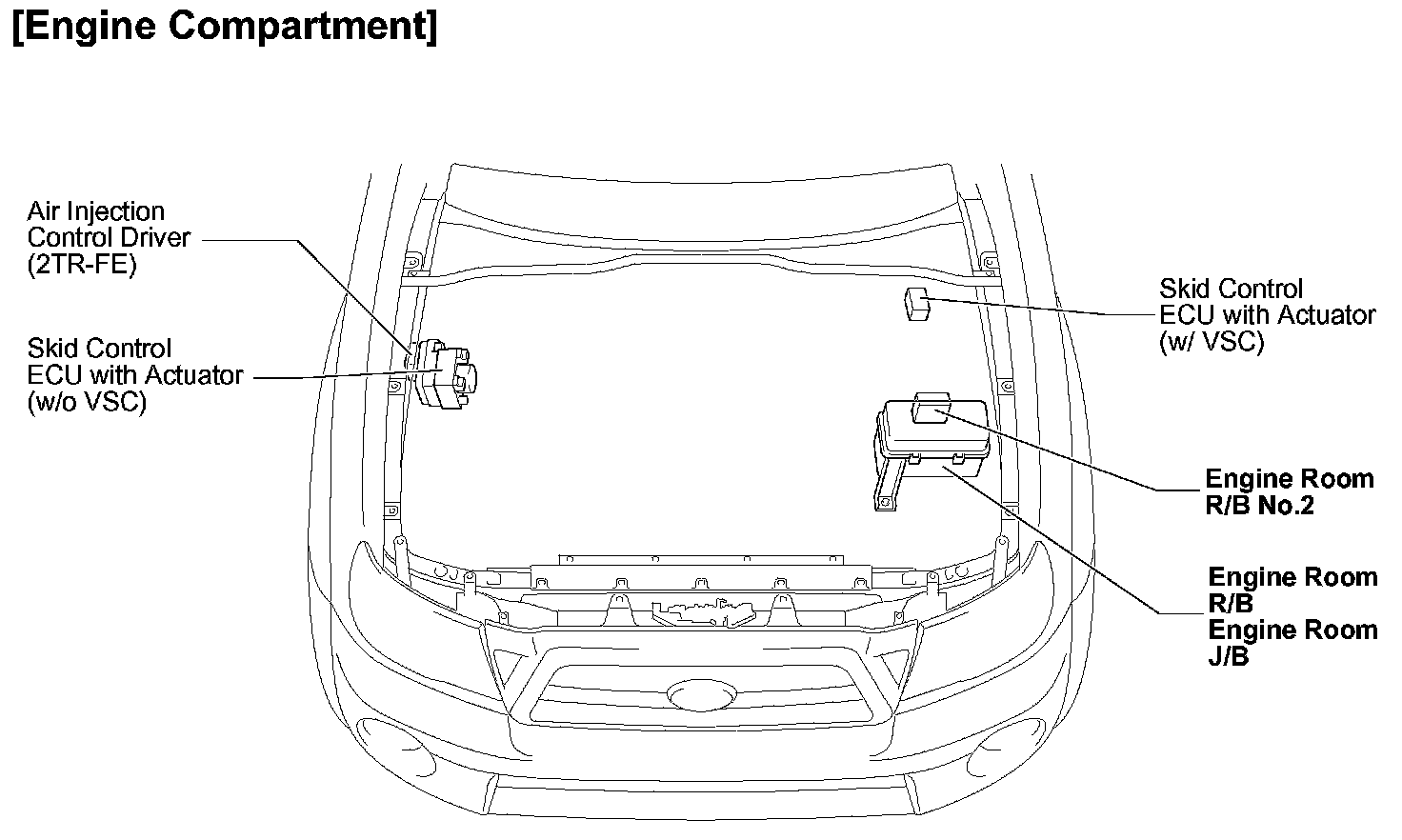

Engine Compartment:

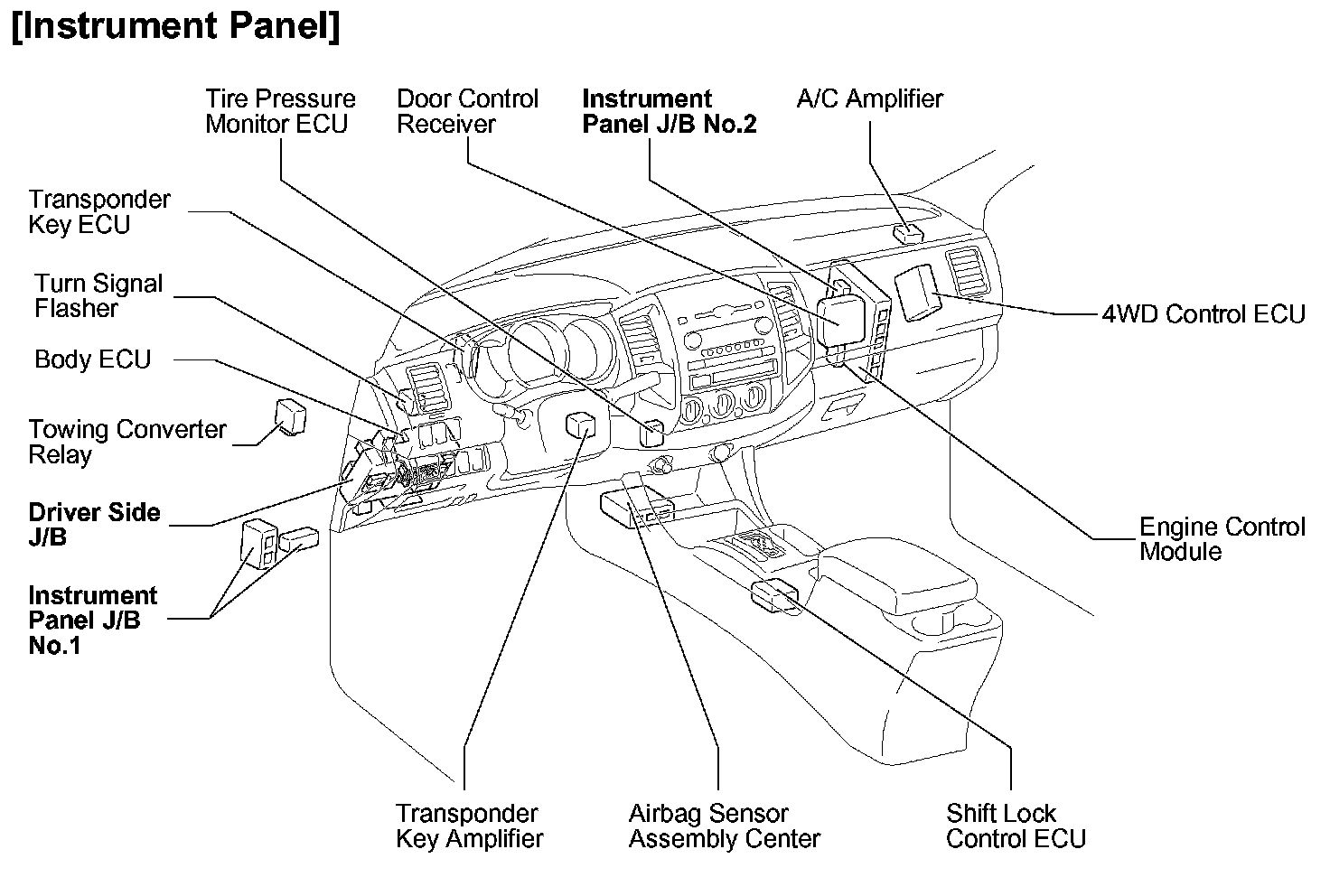

Instrument Panel:
Locations
