Oil Pan, Engine

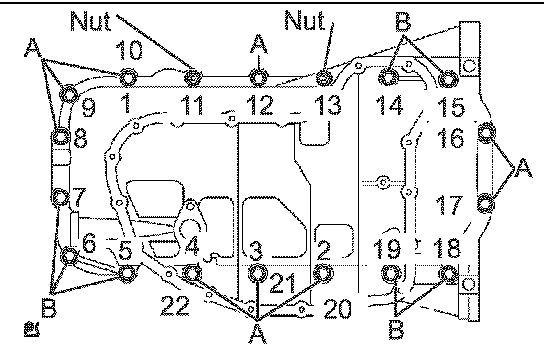

Upper Oil Pan Bolts & Nuts 26 Nm (265 kgf-cm, 19 ft. lbs.)
Bolt Length
Bolt A 20 mm (0.79 inch)
Bolt B 40 mm (1.57 inch)

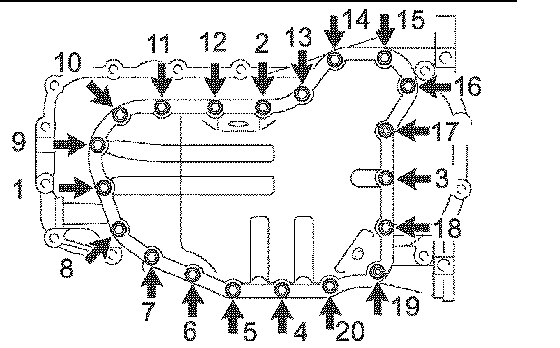

Lower Oil Pan Bolts & Nuts 9.0 Nm (92 kgf-cm, 80 inch. lbs.)
