Component Tightening Specifications and Sequences

Cylinder Head Bolt Inspection
Standard O.D. 10.76 to 10.97 mm (0.4236 to 0.4319 inch)
Minimum O.D. 10.40 mm (0.4094 inch)





Cylinder Head Bolts
First Pass 39 Nm (398 kgf-cm, 29 ft. lbs.)
Second Pass 90°
Final Pass 90°

Intake Manifold Bolts & Nuts 25 Nm (255 kgf-cm, 18 ft. lbs.)





Camshaft Bearing Cap Bolts
Bolt A 12 Nm (122 kgf-cm, 9 ft. lbs.)
Except Bolt A 16 Nm (158 kgf-cm, 11 ft. lbs.)





Crankshaft Bearing Cap Bolt Inspection
Standard Diameter 10.76 to 10.97 mm (0.4236 to 0.4319 inch)
Minimum Diameter 10.66 mm (0.4197 inch)





Main Bearing Cap Bolts
First Pass 39 Nm (398 kgf-cm, 29 ft. lbs.)
Final Pass 90°

Rod Bearing Cap Bolts
First Pass 25 Nm (255 kgf-cm, 18 ft. lbs.)
Final Pass 90°

New Crankshaft Pulley Bolt 260 Nm (2,651 kgf-cm, 192 ft. lbs.)

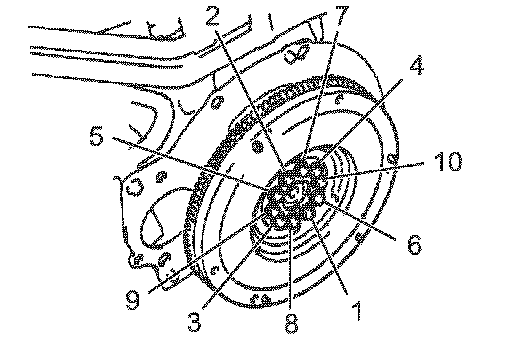

Flywheel Bolts
First Pass 27 Nm (270 kgf-cm, 20 ft. lbs.)
Final Pass 90°

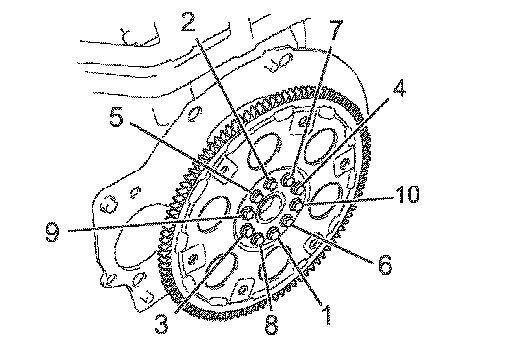

Flexplate Bolts 74 Nm (755 kgf-cm, 55 ft. lbs.)

Oil Pump Cover Bolts 9.0 Nm (92 kgf-cm, 80 inch lbs.)

New Exhaust Manifold Nuts 36 Nm (367 kgf-cm, 27 ft. lbs.)

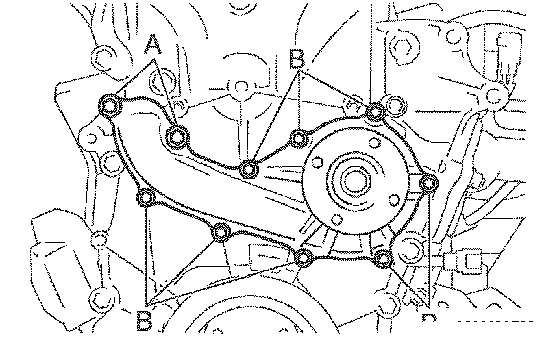

Water Pump
Bolt A 21 Nm (214 kgf-cm, 15 ft. lbs.)
Bolt B 9 Nm (92 kgf-cm, 80 inch lbs.)
