Control Module, A/T
Control Module, A/T

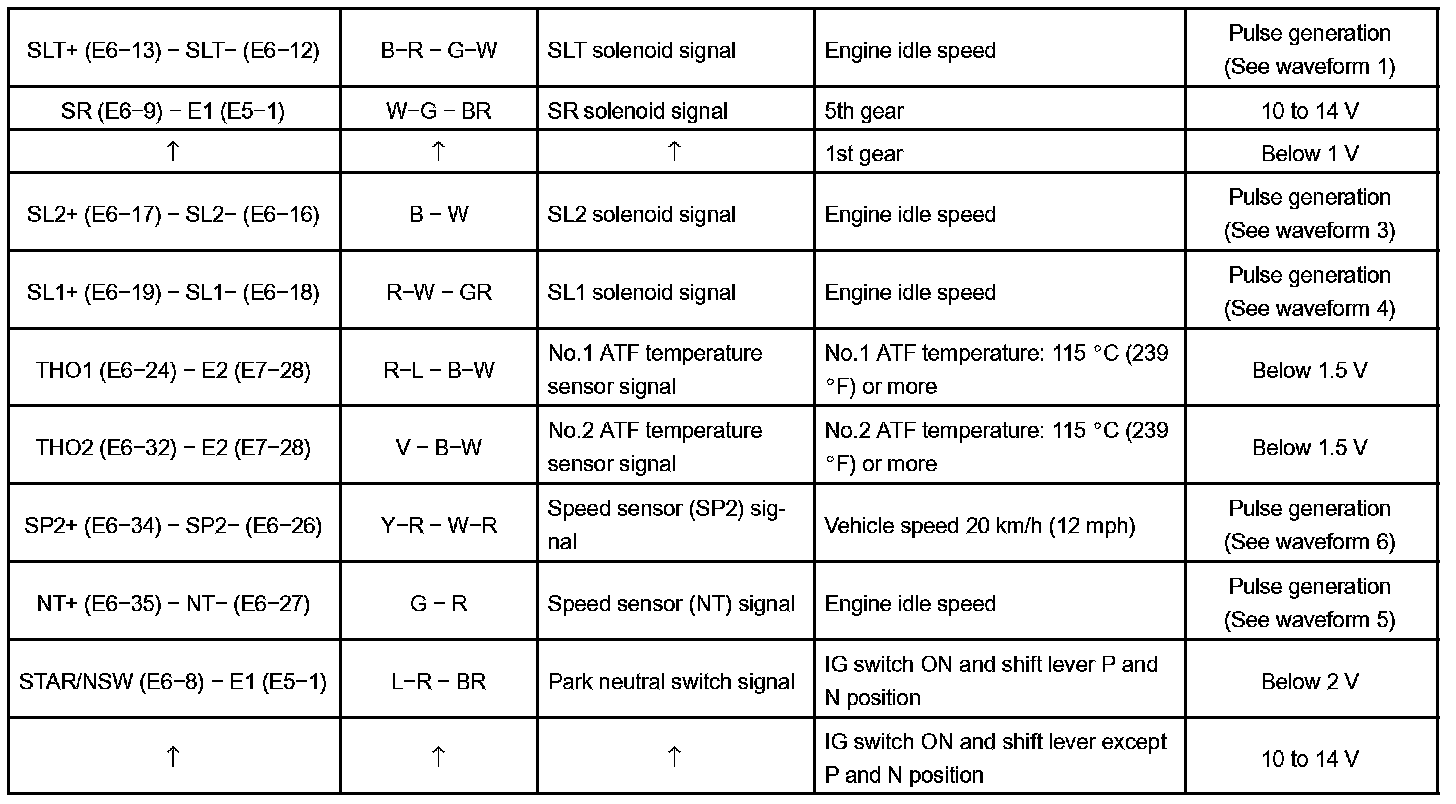

Terminals Of Control Modules/Pinouts (Part 1):
Terminals Of Control Modules/Pinouts (Part 2):

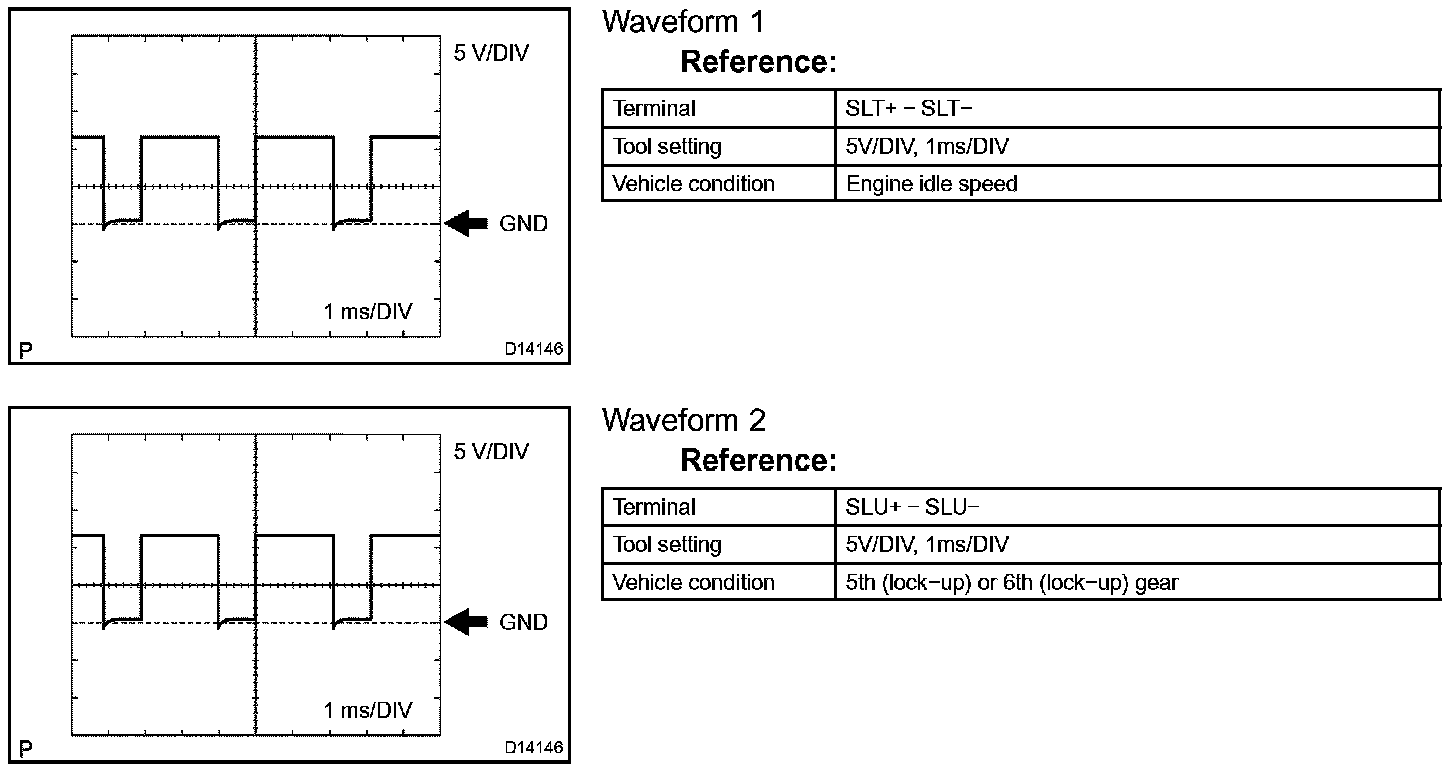

Oscilloscope Waveforms (Part 1):

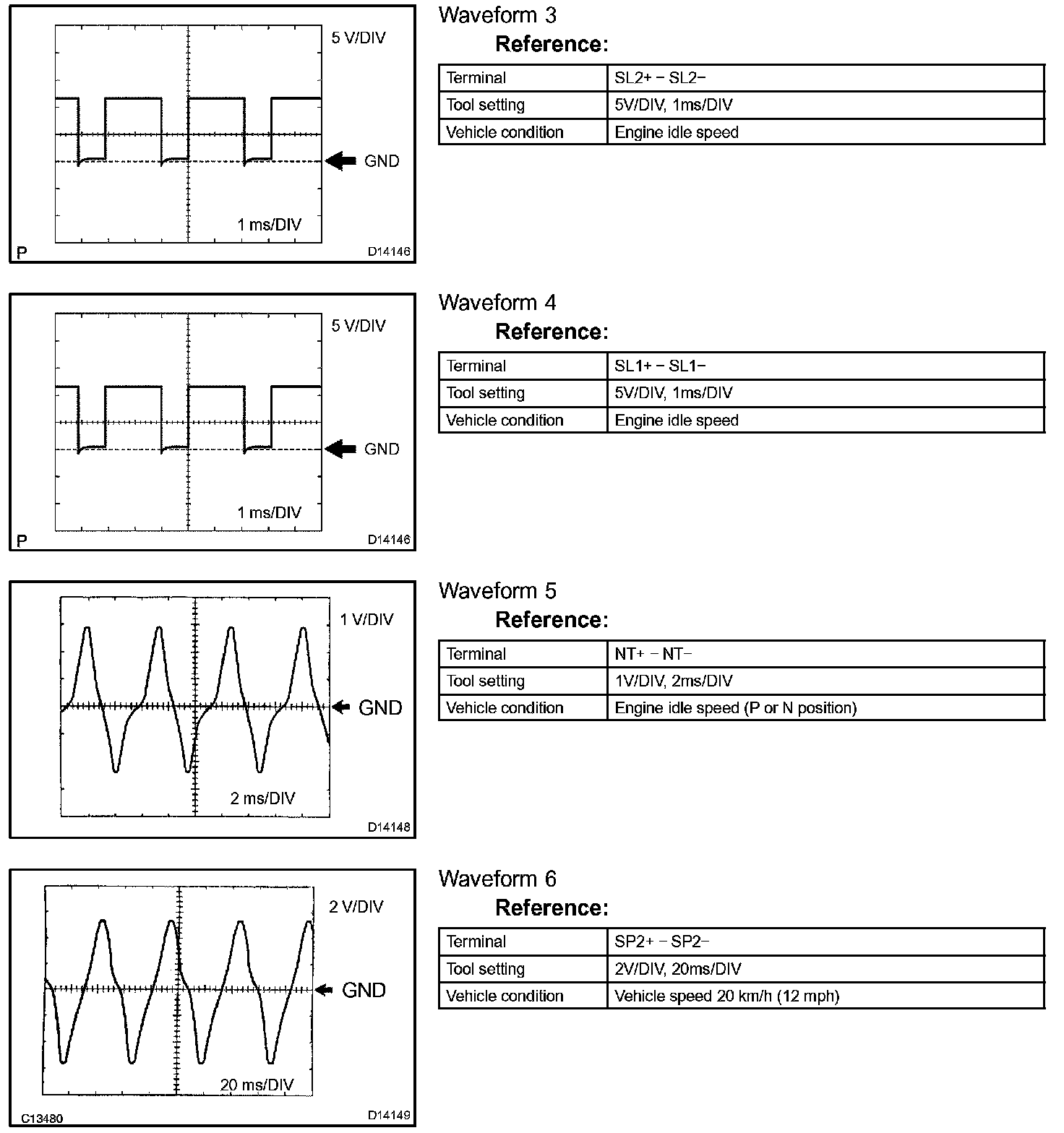

Oscilloscope Waveforms (Part 2):
