Malfunction Indicator Lamp: Testing and Inspection

MIL CIRCUIT

CIRCUIT DESCRIPTION

If the ECM detects a trouble, the MIL lights up. At this time, the ECM records a DTC in the memory.

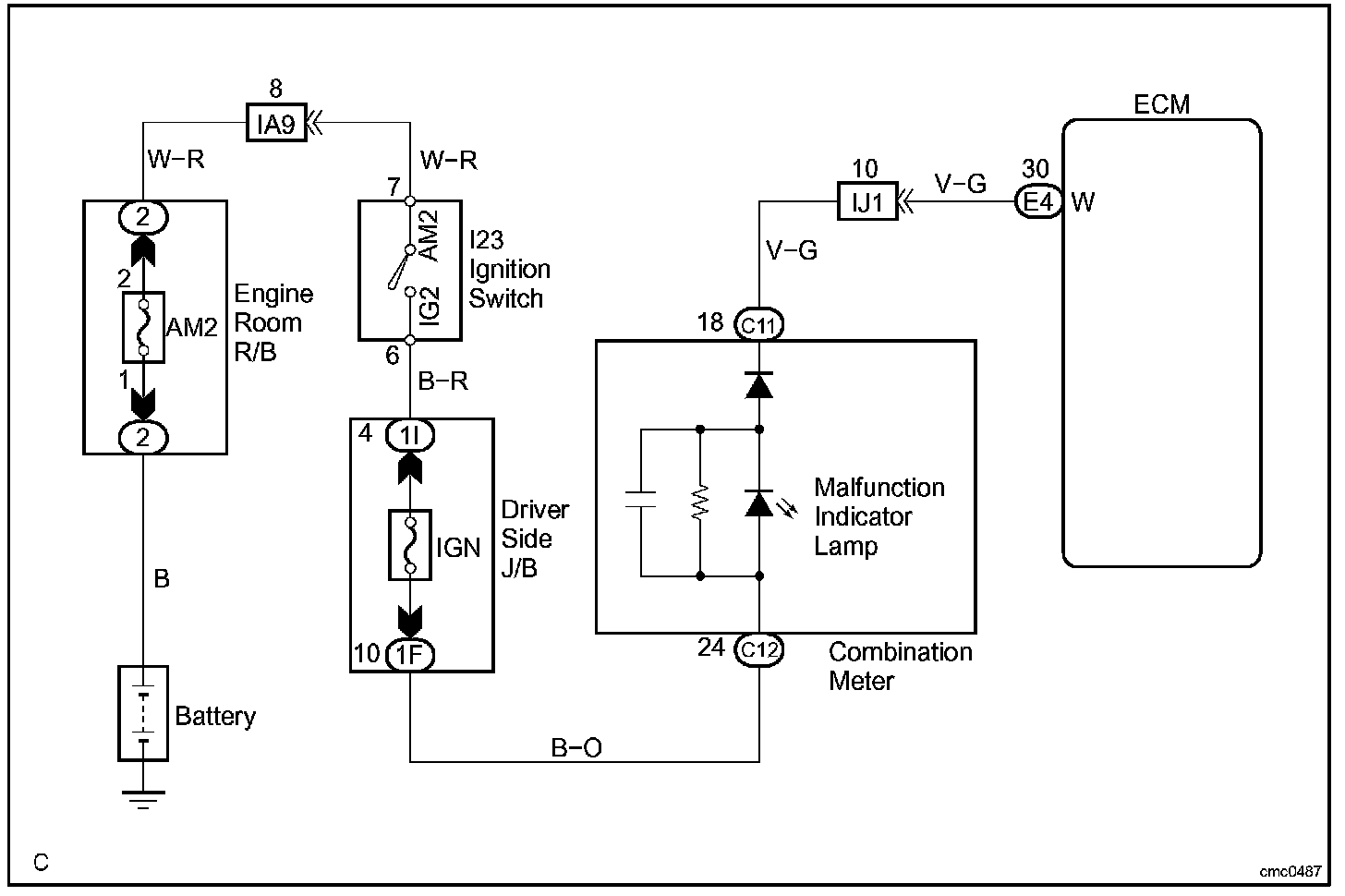

Wiring Diagram:

INSPECTION PROCEDURE





HINT: Troubleshoot each trouble symptom in accordance with the chart.

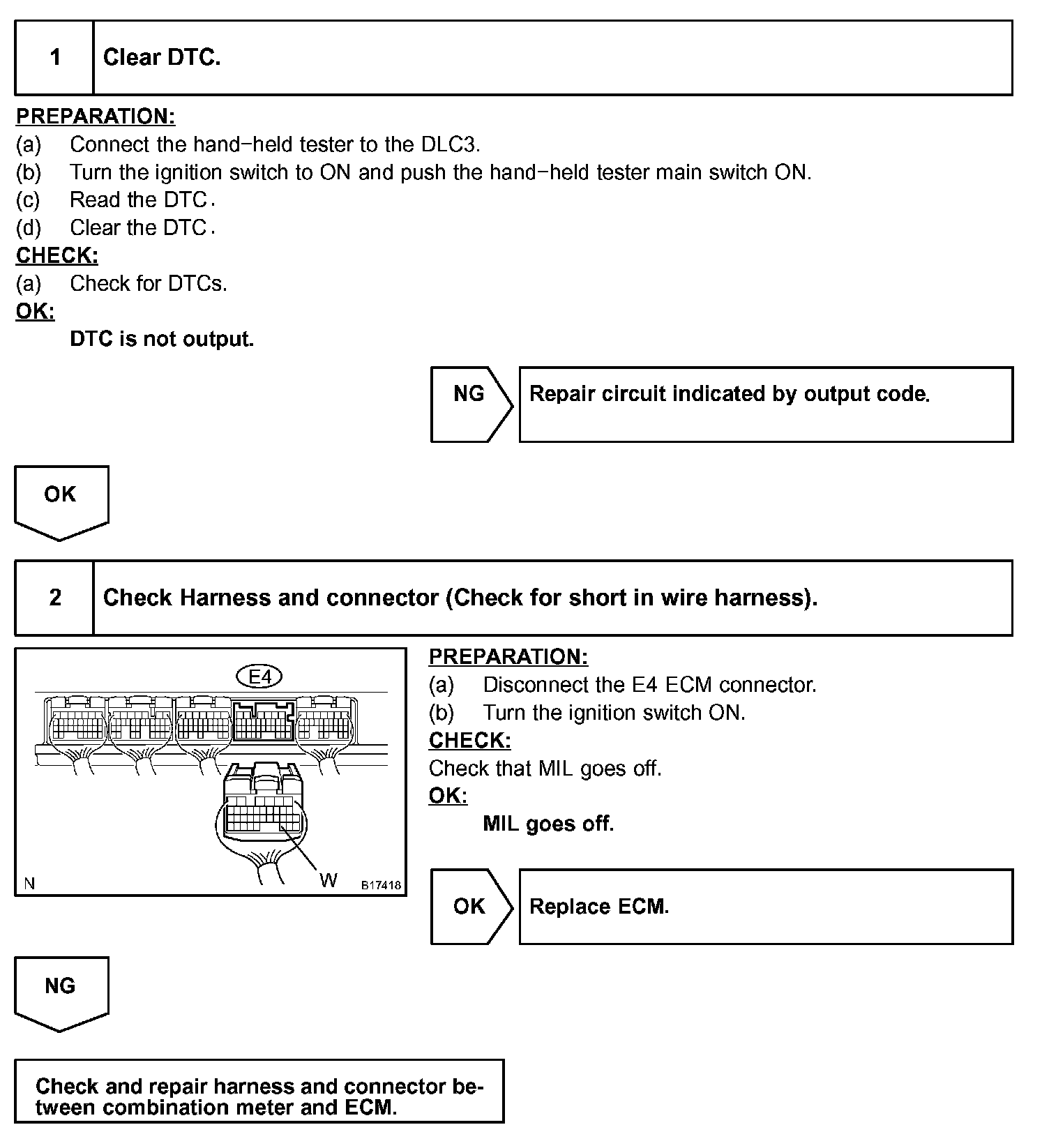

Step 1-2:

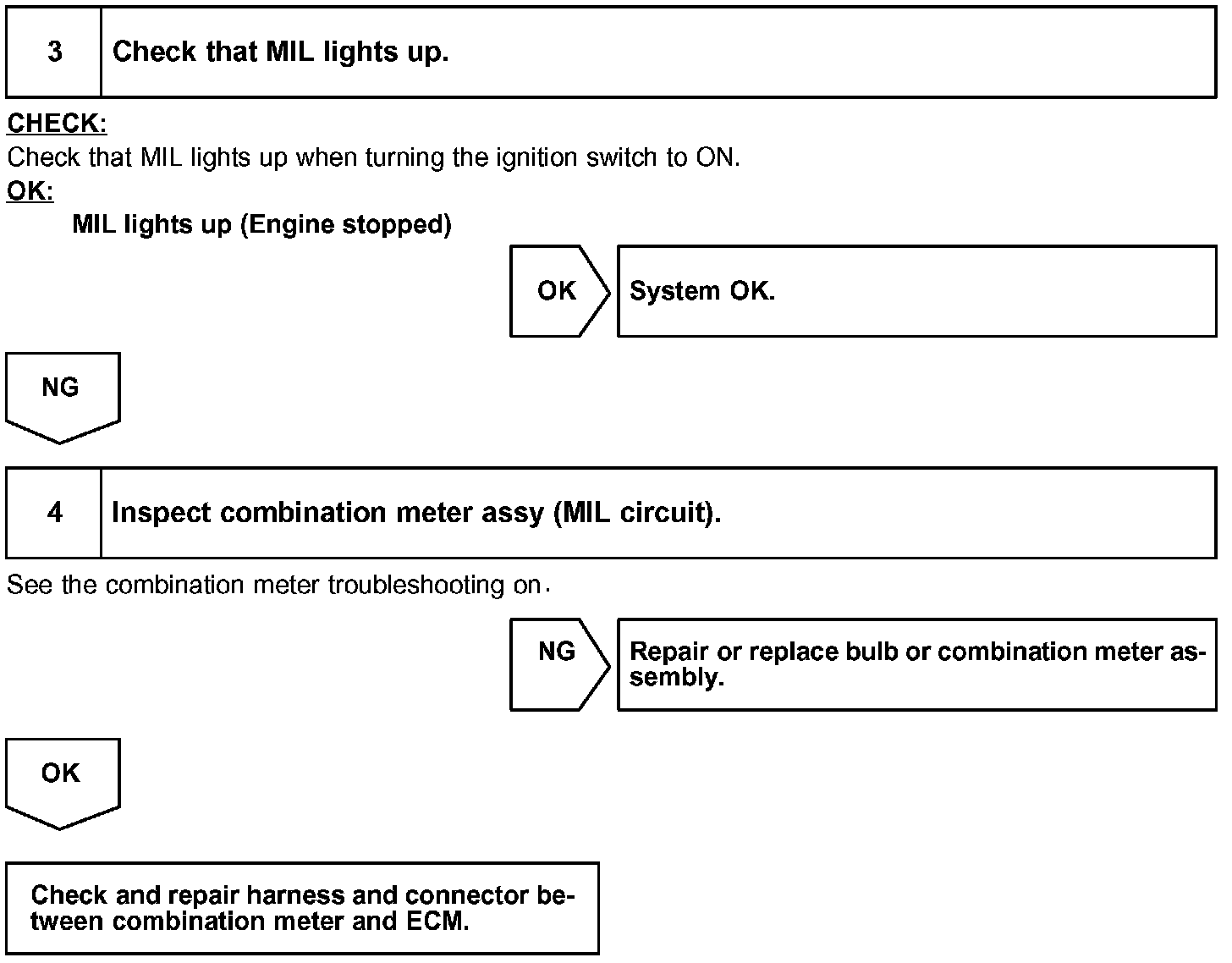

Step 3-4:
