Double Cab

WIRELESS DOOR LOCK CONTROL SYSTEM

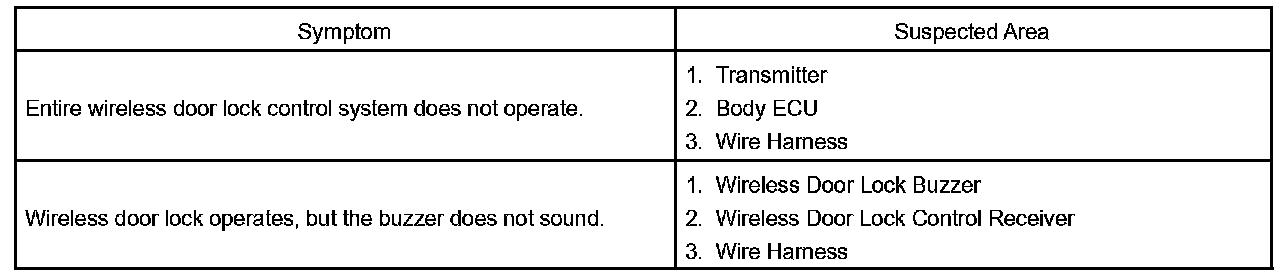

Problem Symptoms Table - Wireless Door Lock Control System:

This system uses the multiplex communication system. Check the diagnosis system of the multiplex communication system before you proceed with this troubleshooting.

HINT: Troubleshooting of the wireless door lock control system is based on the premise that the door lock control system is operating normally. Accordingly, before troubleshooting the wireless door lock control system, first make certain that the door lock control system is operating normally.
