Sound Signal Circuit (From Multi-Display Controller Sub-Assy to Radio and Navigation Assy)
Sound signal circuit (From multi-display controller sub-assembly to radio and navigation assembly)CIRCUIT DESCRIPTION
This is the sound signal circuit from the multi-display controller sub-assembly to the radio and navigation assembly.
Wiring Diagram:

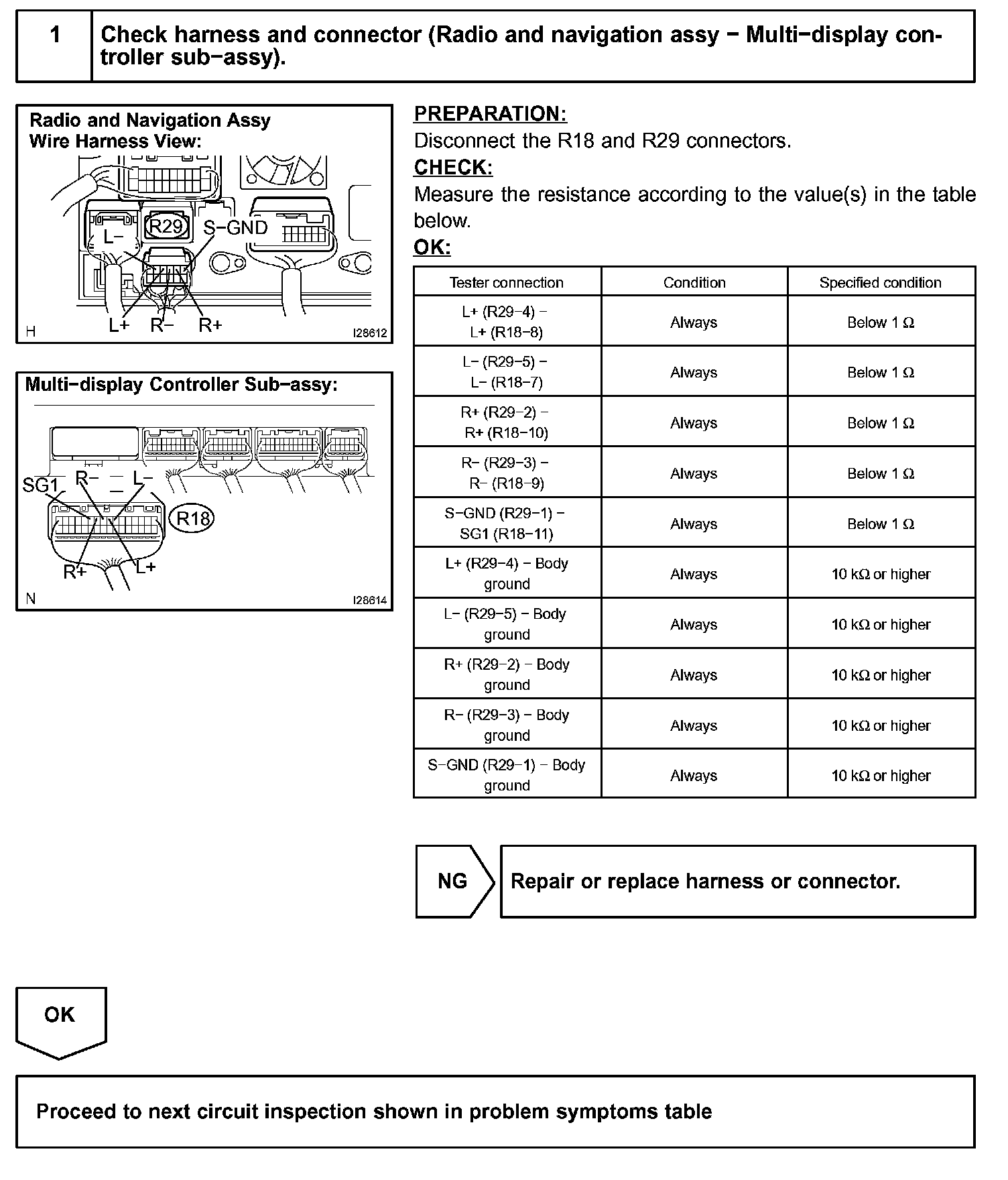

Step 1:
INSPECTION PROCEDURE
