Without Scan Tool

DTC clear (USING SST CHECK WIRE)

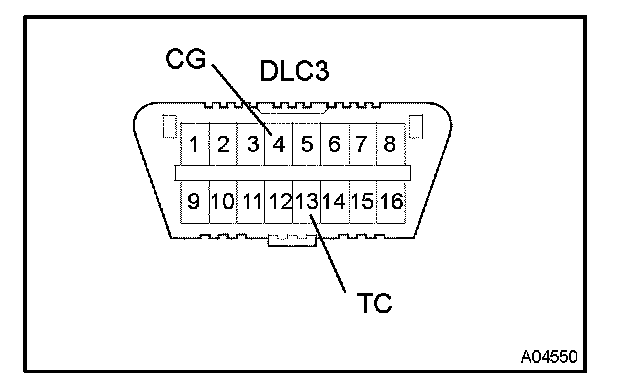

1. Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040

2. Turn the ignition switch to the ON position.

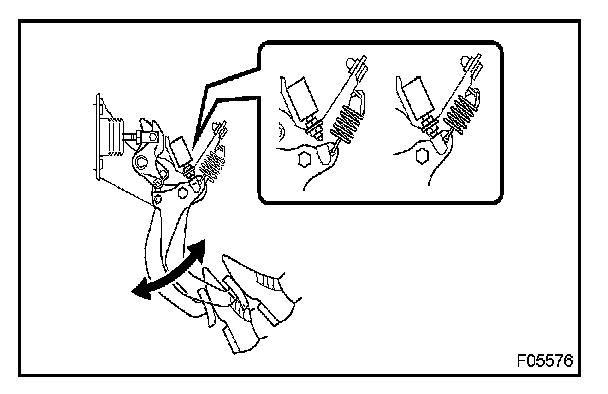

3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the warning light indicates a normal system code.
5. Remove the SST from the terminals of the DLC3.

HINT: Clearing the DTCs cannot be performed by removing the battery cable or the ECU-IG fuse
