Water Pump: Specifications

WATER PUMP

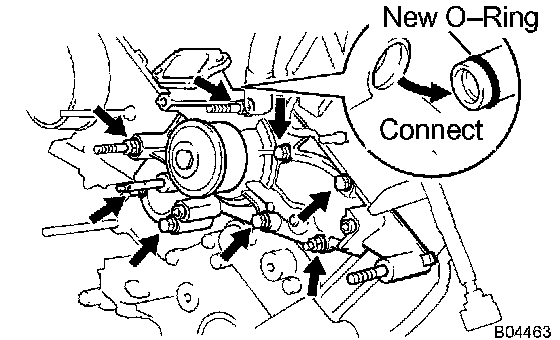

Install the water pump and a new gasket with the 5 bolts, 2 stud bolts and nut. Uniformly tighten the bolts, stud bolts and nut in several passes.
Torque:
Bolt: 21 Nm (215 kgf-cm, 15 ft. lbs.)
Stud bolt and nut: 18 Nm (185 kgf-cm,13 ft. lbs.)
