Access/Standard Cab

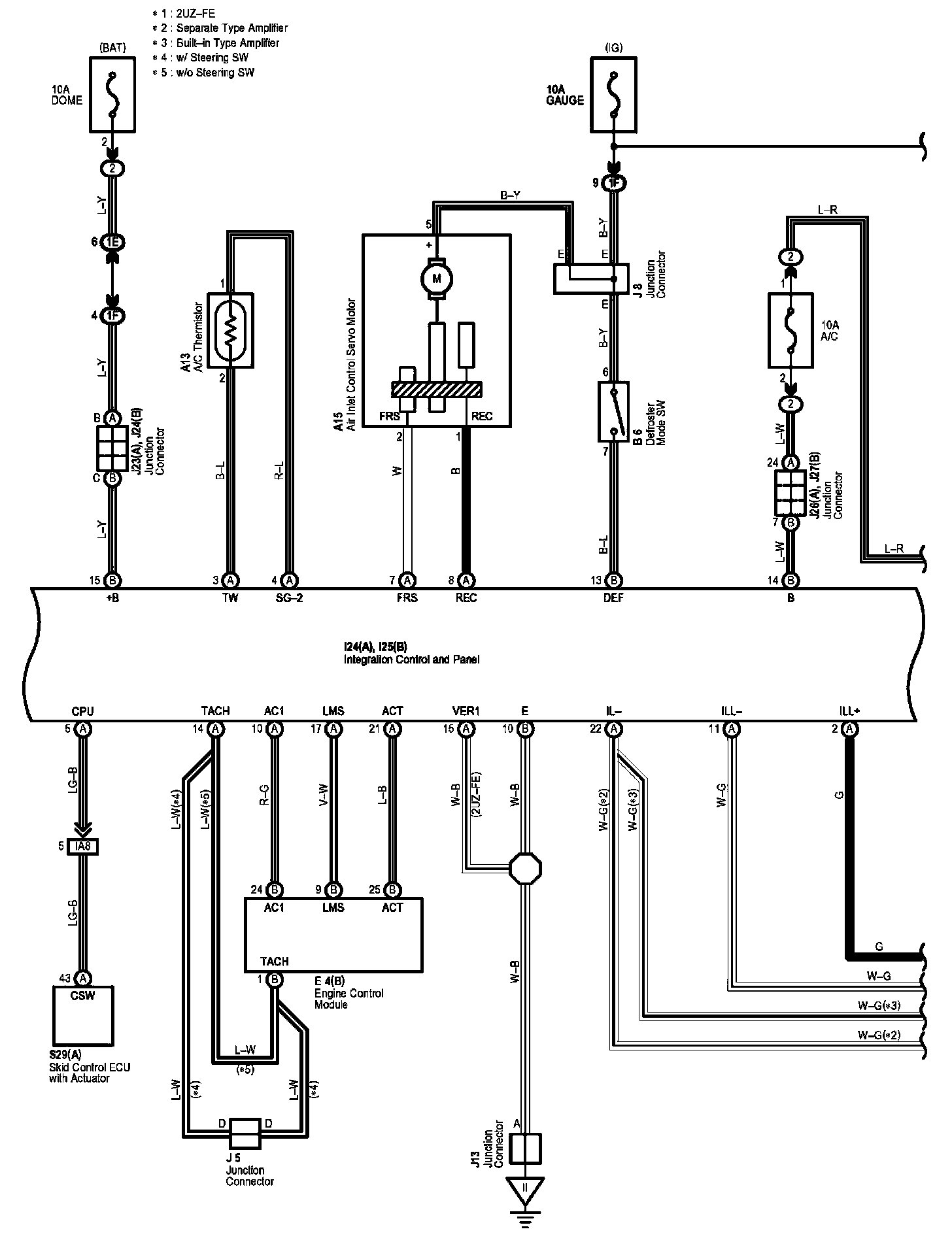

Center Cluster Integration Control System (Access/Standard Cab) Part 1:

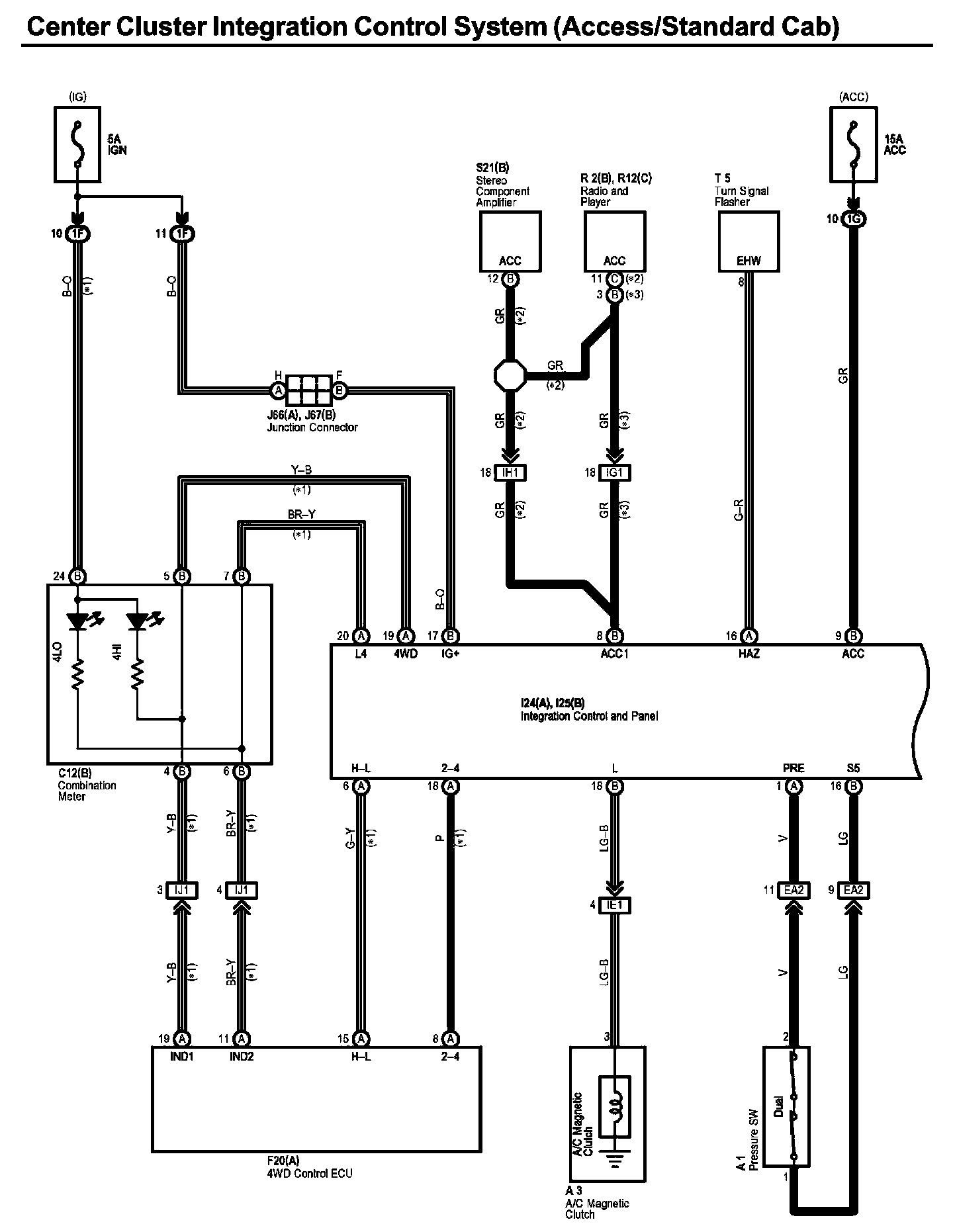

Center Cluster Integration Control System (Access/Standard Cab) Part 2:

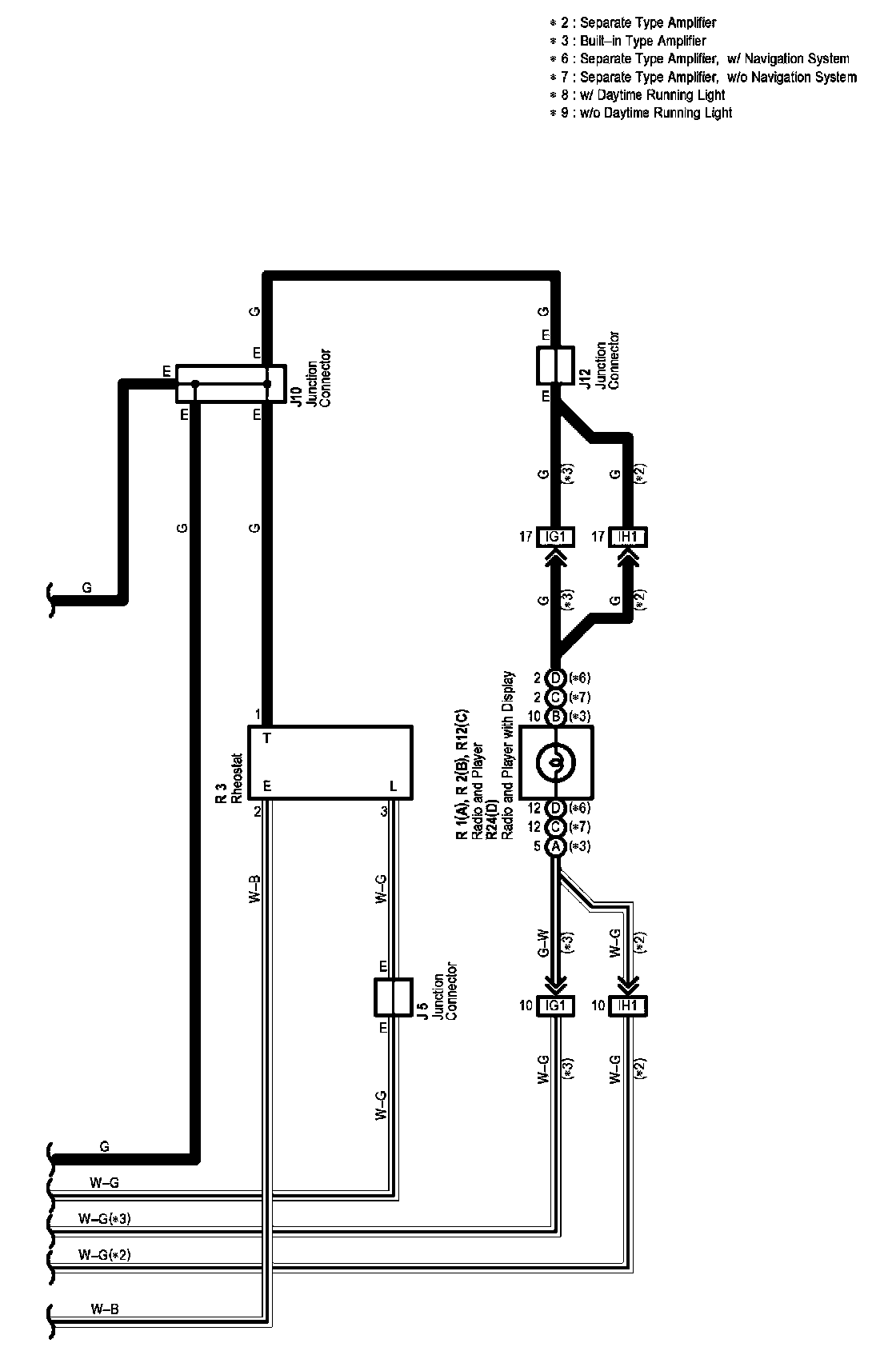

Center Cluster Integration Control System (Access/Standard Cab) Part 3:

Center Cluster Integration Control System (Access/Standard Cab) Part 4:

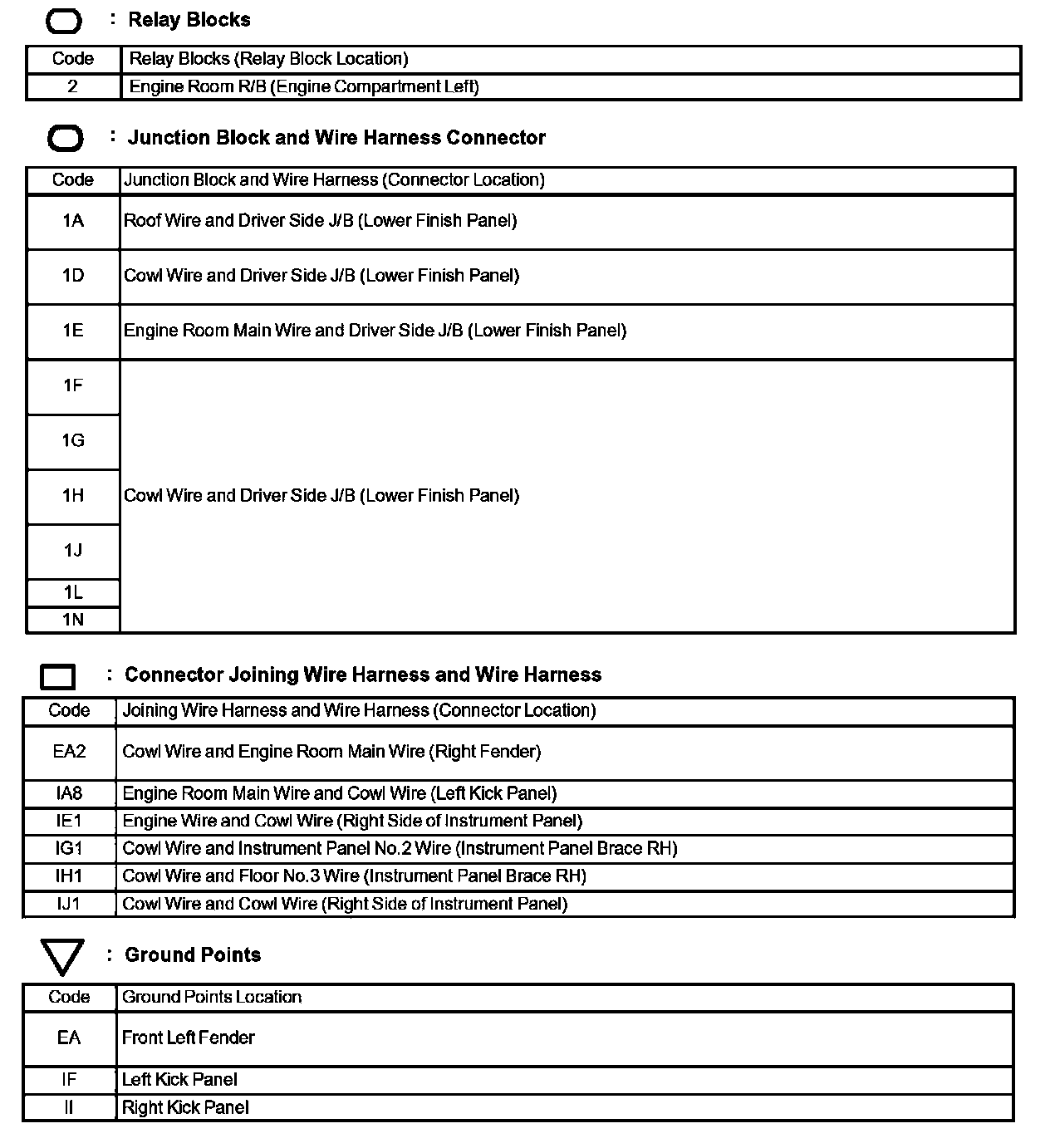

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
