Tire Pressure Warning Reset Switch Circuit

Tire Pressure Warning Reset Switch Circuit

CIRCUIT DESCRIPTION

Receiving the signal from the tire pressure warning reset switch, the tire pressure monitor ECU indicates the initialization of the pressure warning system.

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Step 1-2:

Step 3:

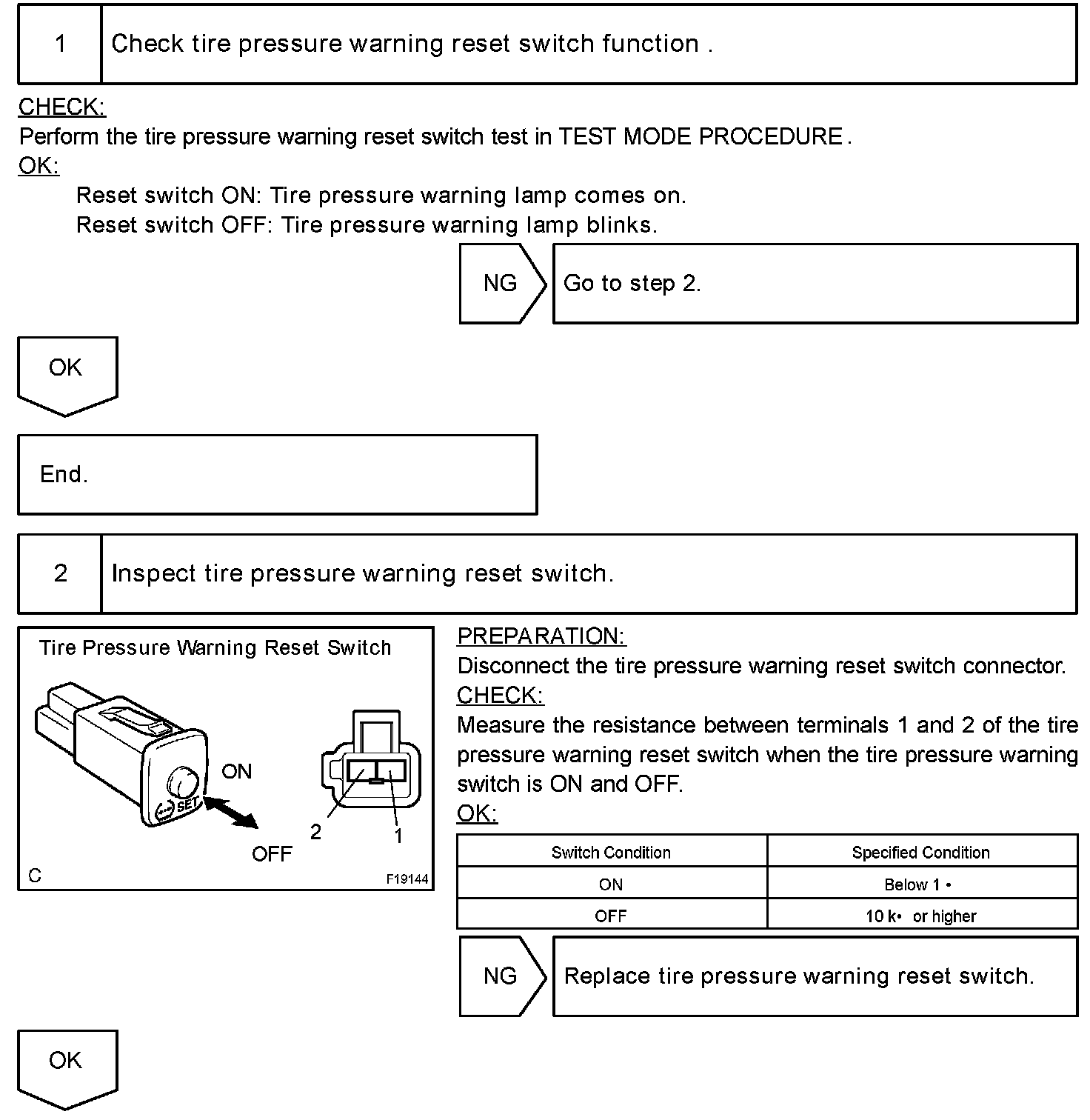

INSPECTION PROCEDURE

NOTE: It is necessary to register an ID code after replacing the tire pressure monitor valve sub-assembly and/or tire pressure monitor ECU.
