Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

Defection Item:




MODE DESCRIPTION

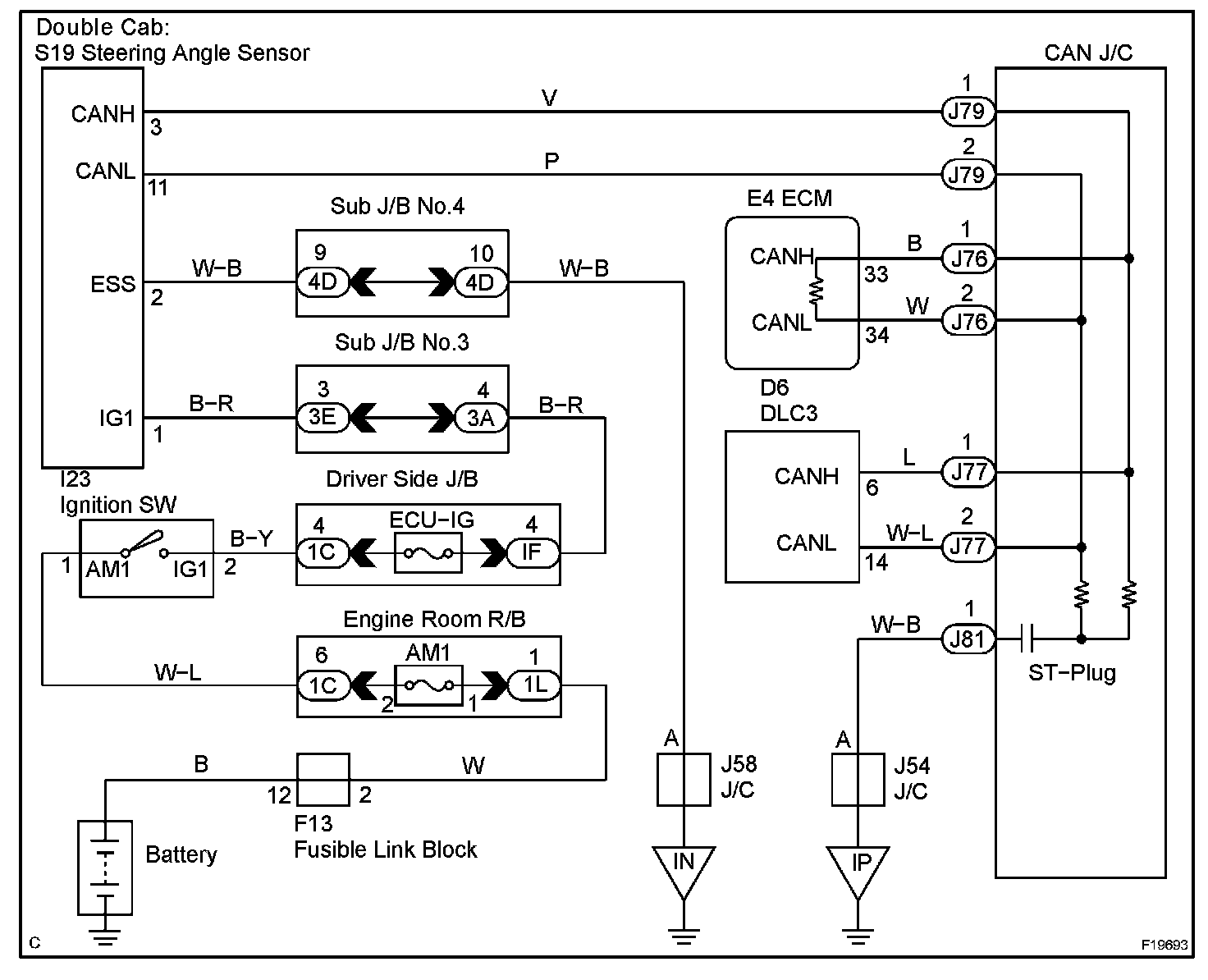

Wiring Diagram (Part 1):

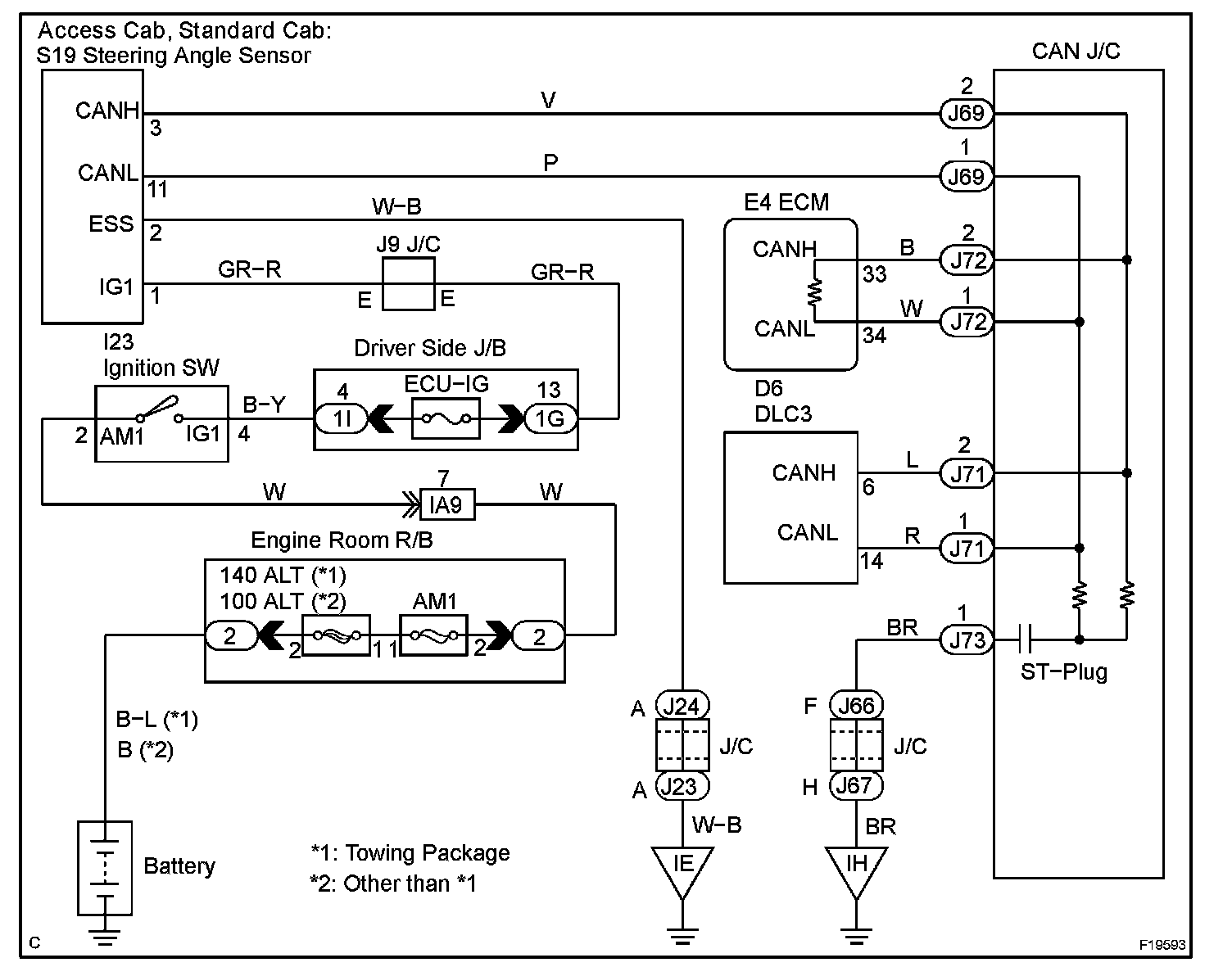

Wiring Diagram (Part 2):

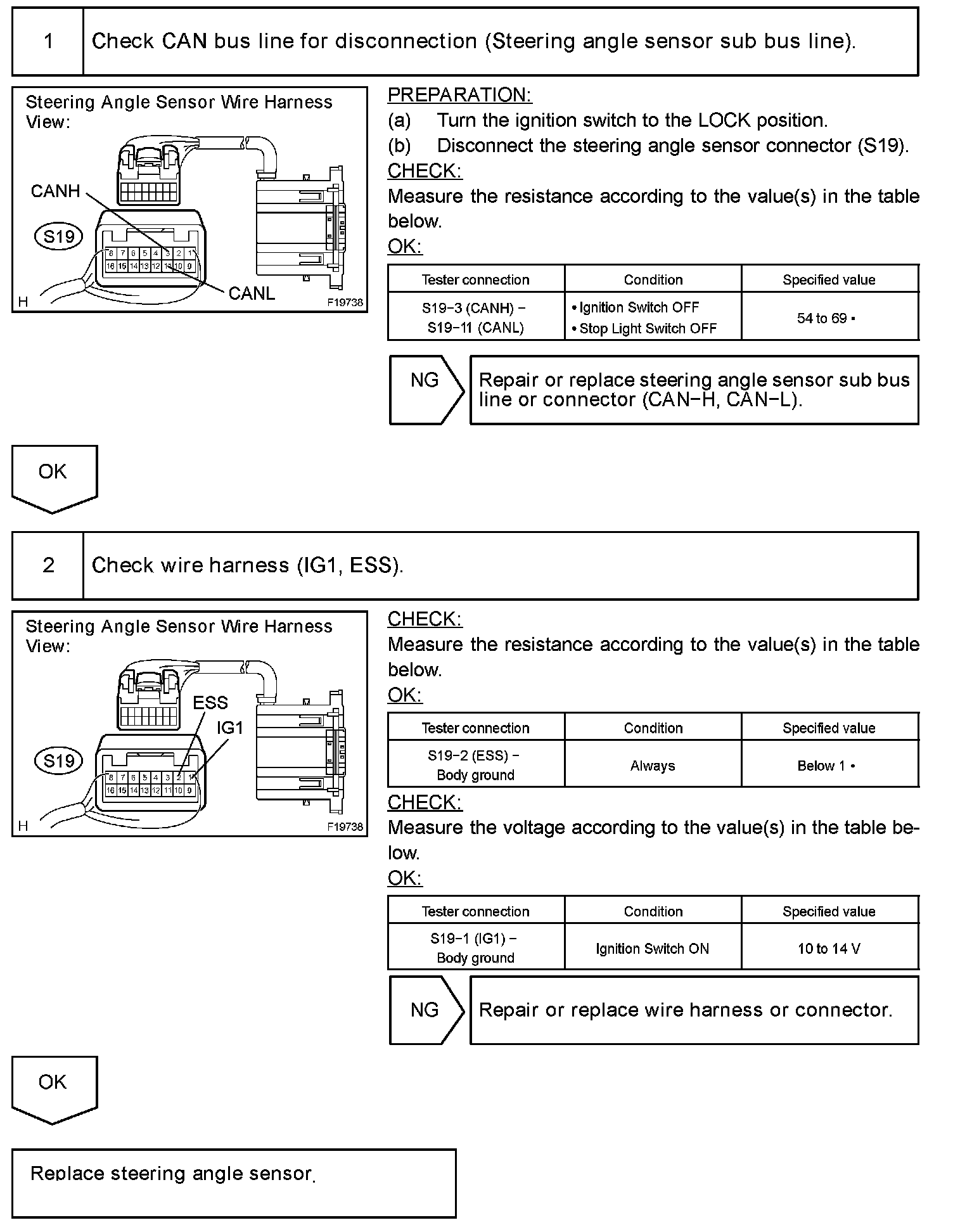

Step 1-2:




INSPECTION PROCEDURE
