Oxygen Sensor Relay
>>
Locations
Oxygen Sensor Relay: Locations

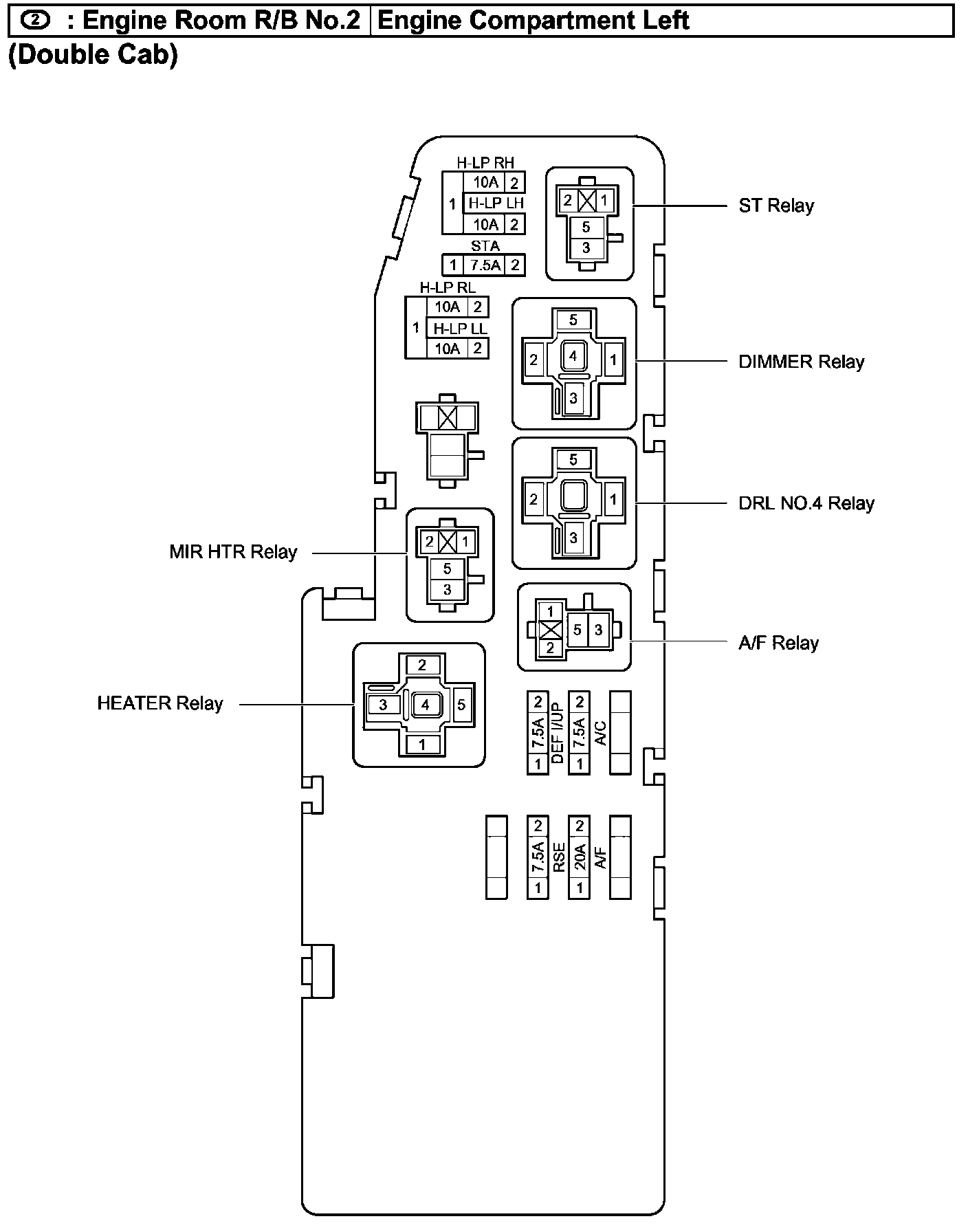

Engine Room R/B No.2 - Engine Compartment Left:
