SRS Warning Light Circuit Malfunction (Always Light Up, When DTC Is Not Output)

SRS Warning Light Circuit Malfunction (Always light up, when DTC is not output)

CIRCUIT DESCRIPTION

The SRS warning light is located on the combination meter.
When the SRS is normal, the SRS warning light comes on for approximately 6 seconds after the ignition
switch is turned from the LOCK position to ON position, and then goes off automatically.

If there is a malfunction in the SRS, the SRS warning light comes on to inform the driver of a problem.

When terminals TC and CG of the DLC3 are connected, the DTCs are displayed by blinking the SRS warning light.

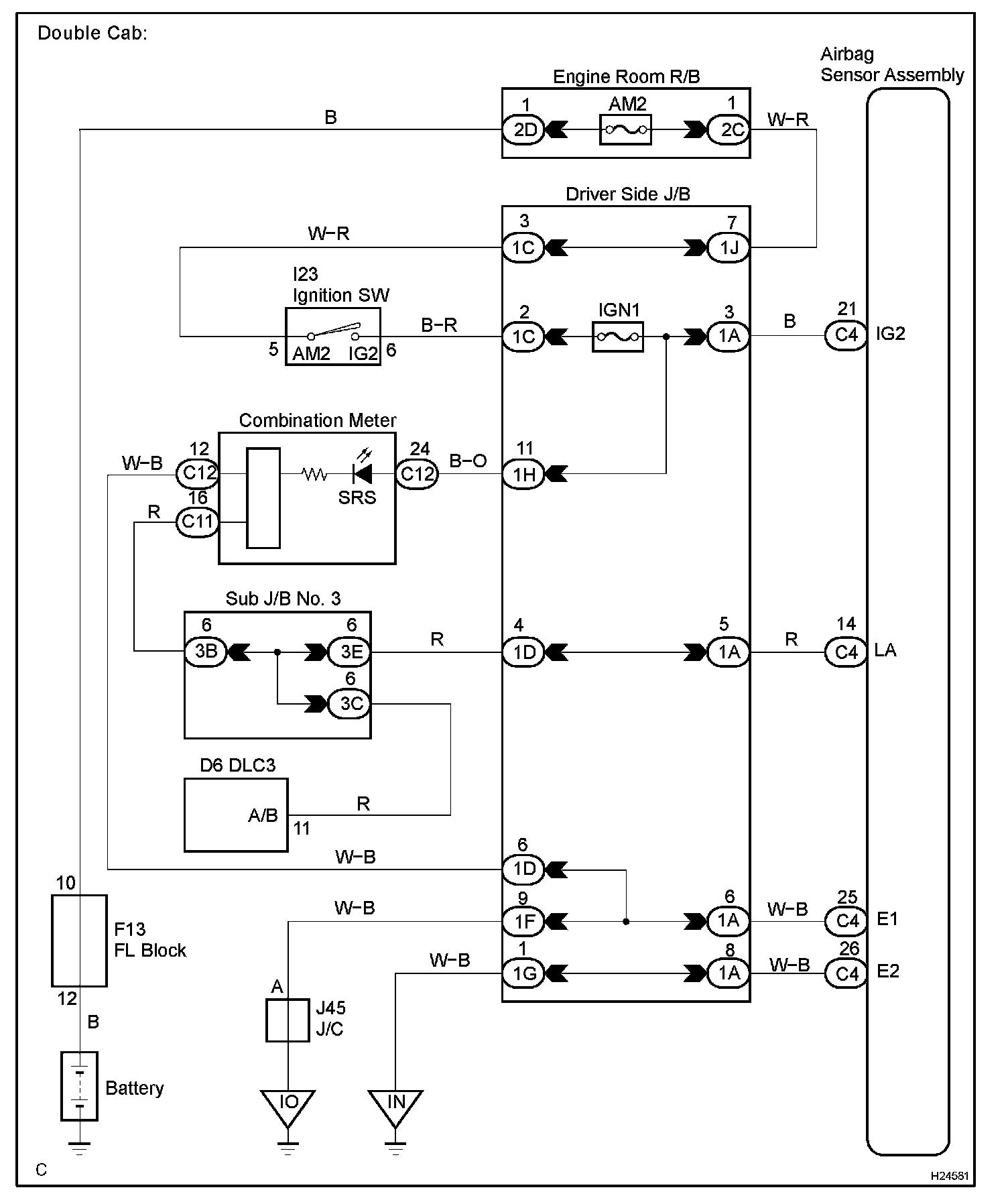

Wiring Diagram (Part 1):

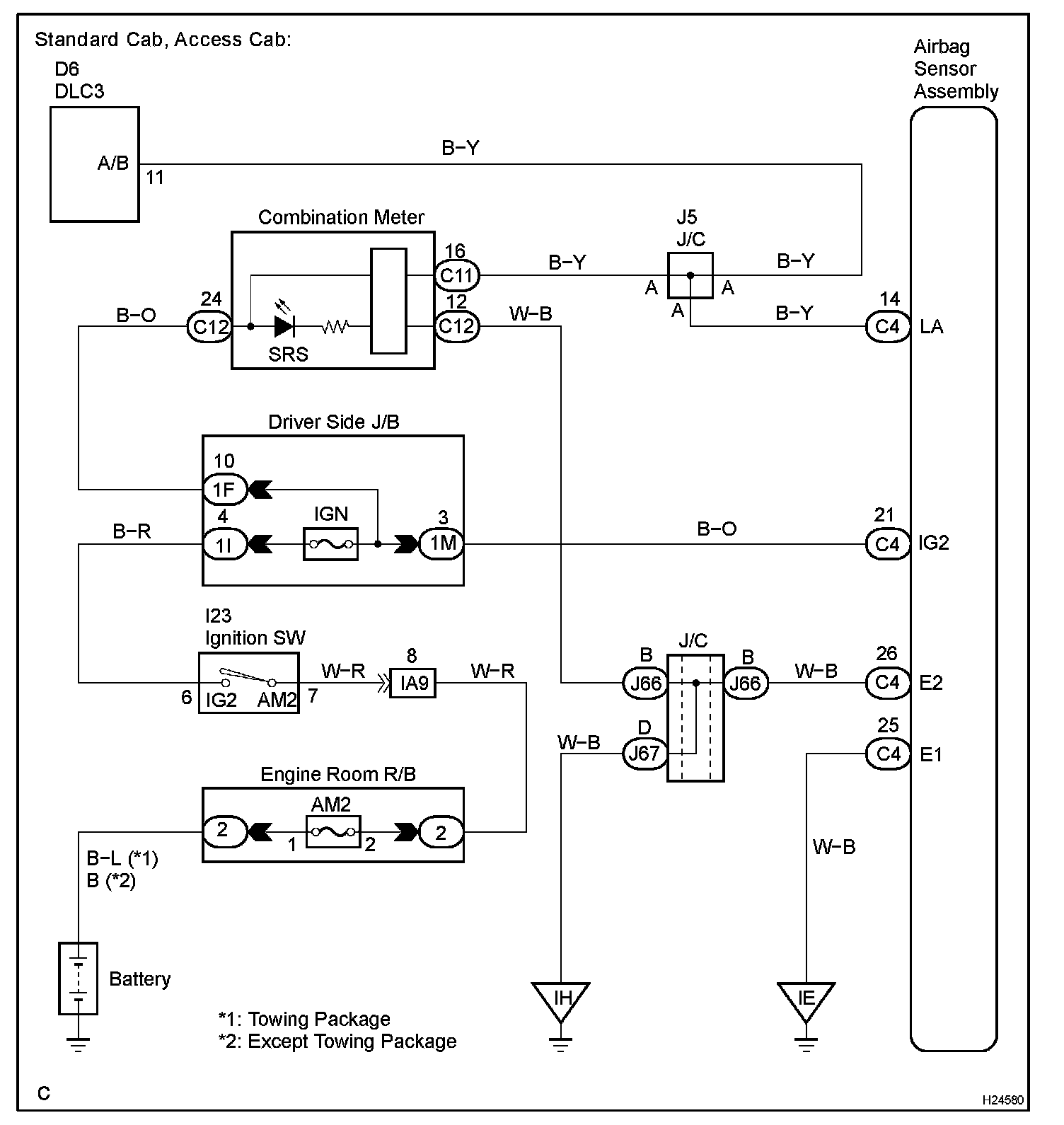

Wiring Diagram (Part 2):

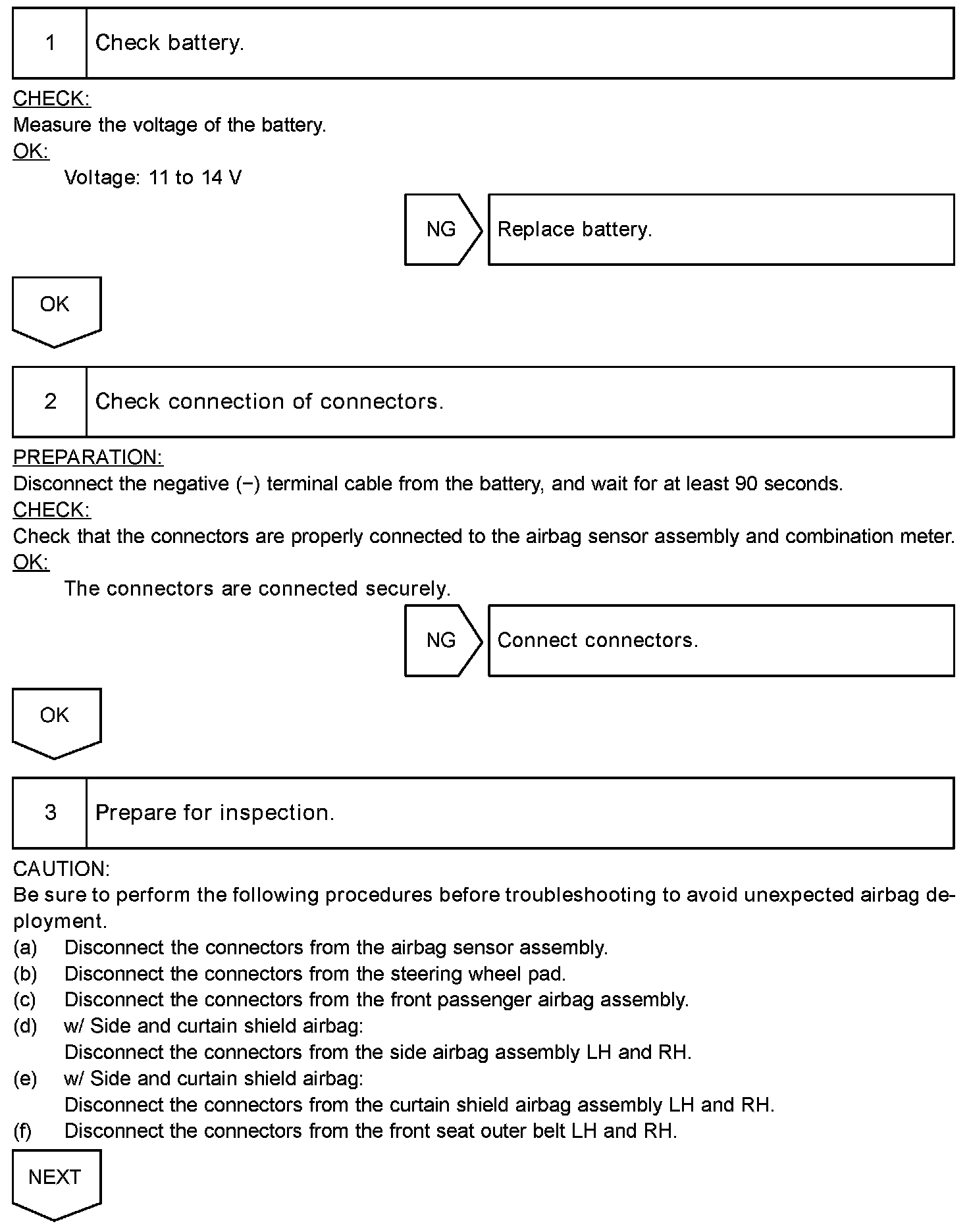

Step 1-3:

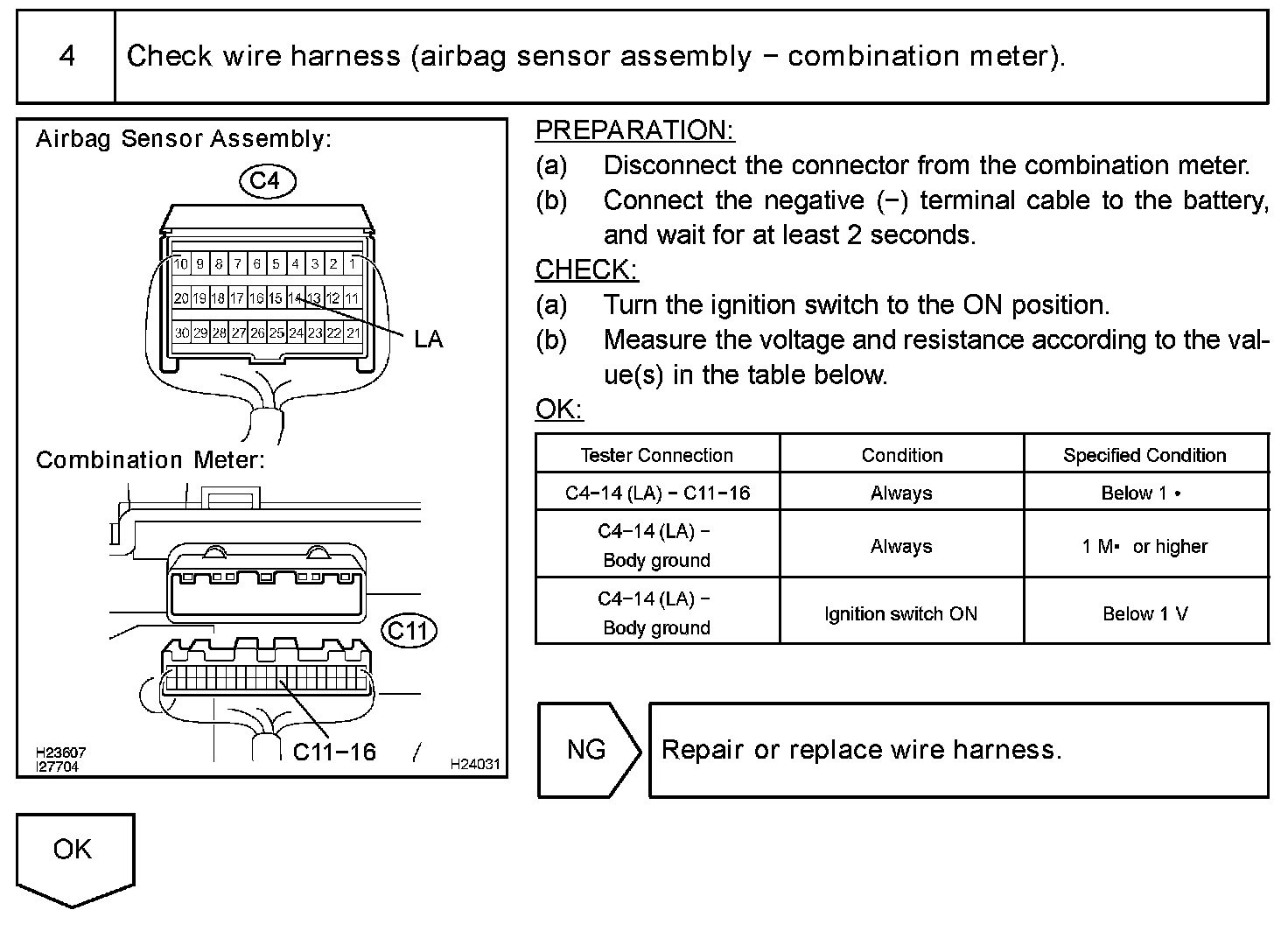

Step 4:

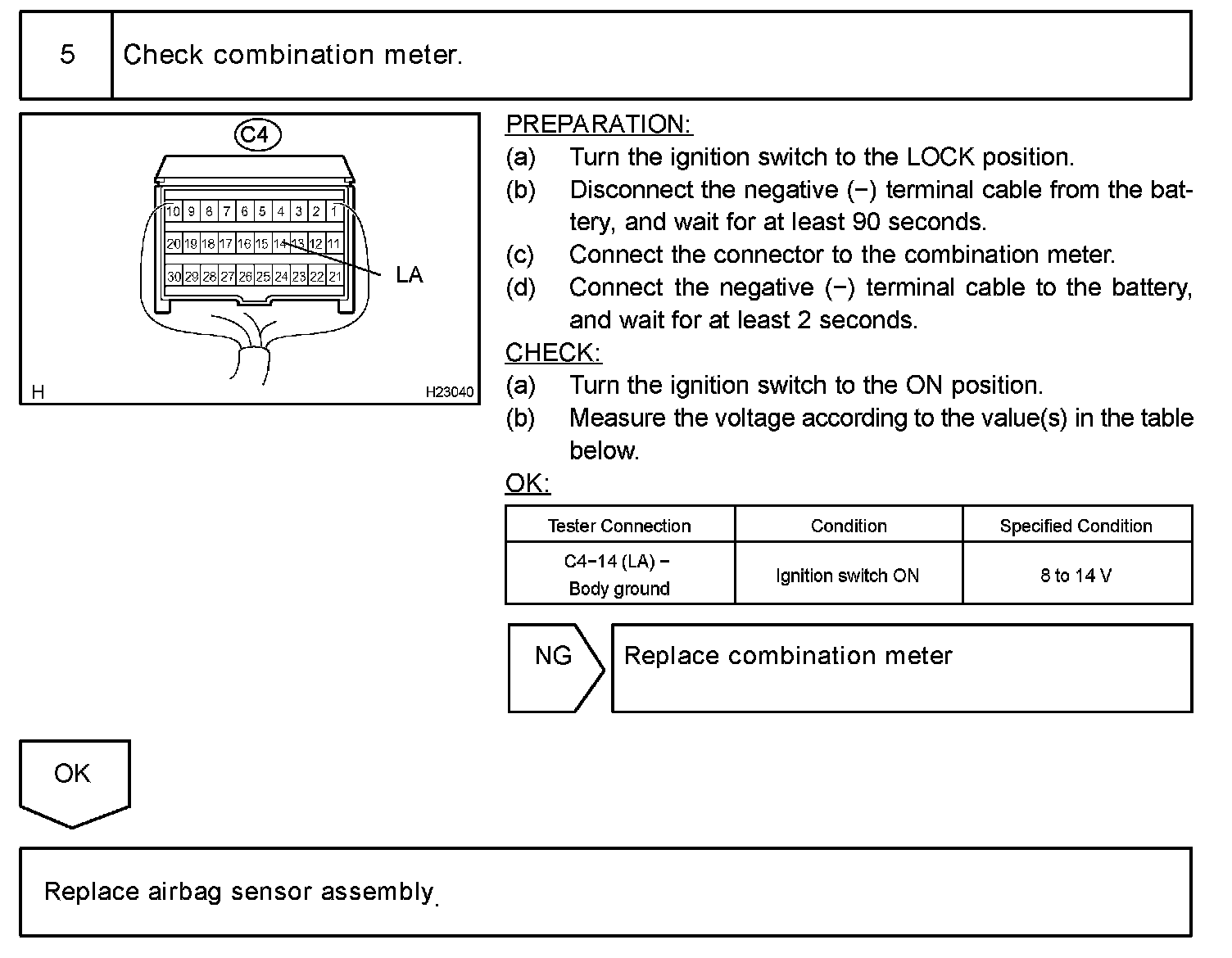

Step 5:

INSPECTION PROCEDURE
