Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Tundra 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Exploded Views
Exploded Views

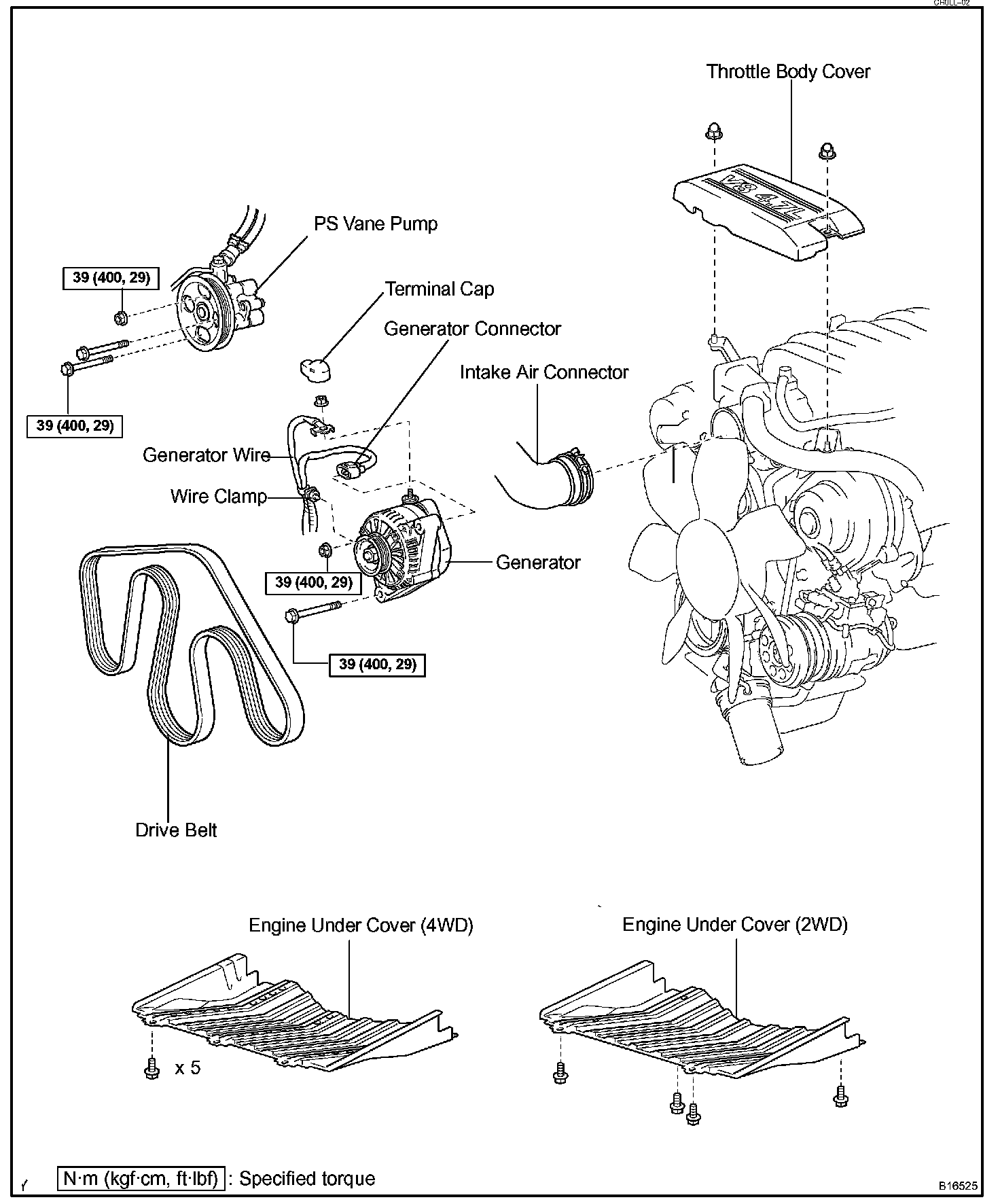

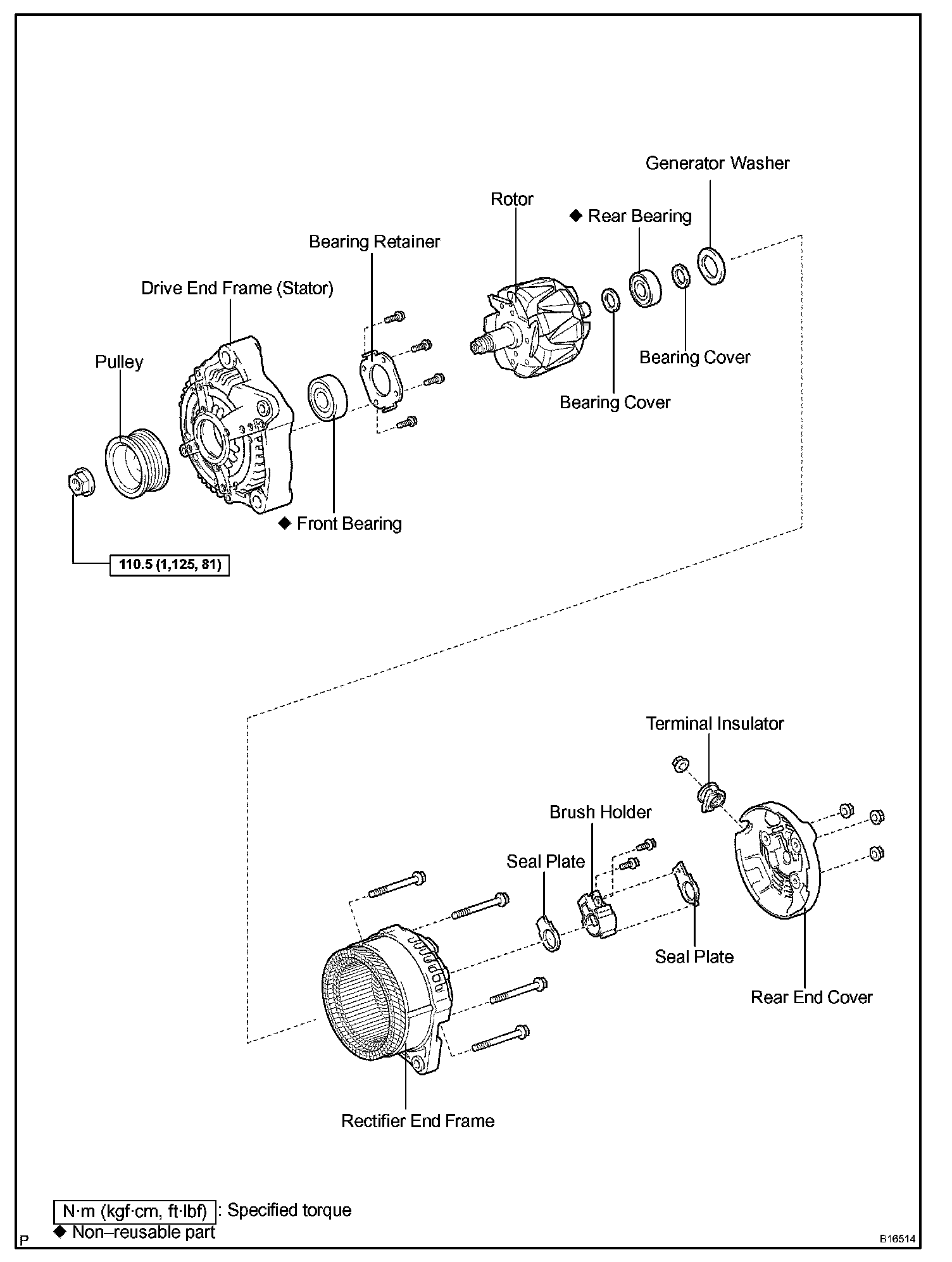

Generator (Standard Spec.) Part 1:
Generator (Standard Spec.) Part 2:

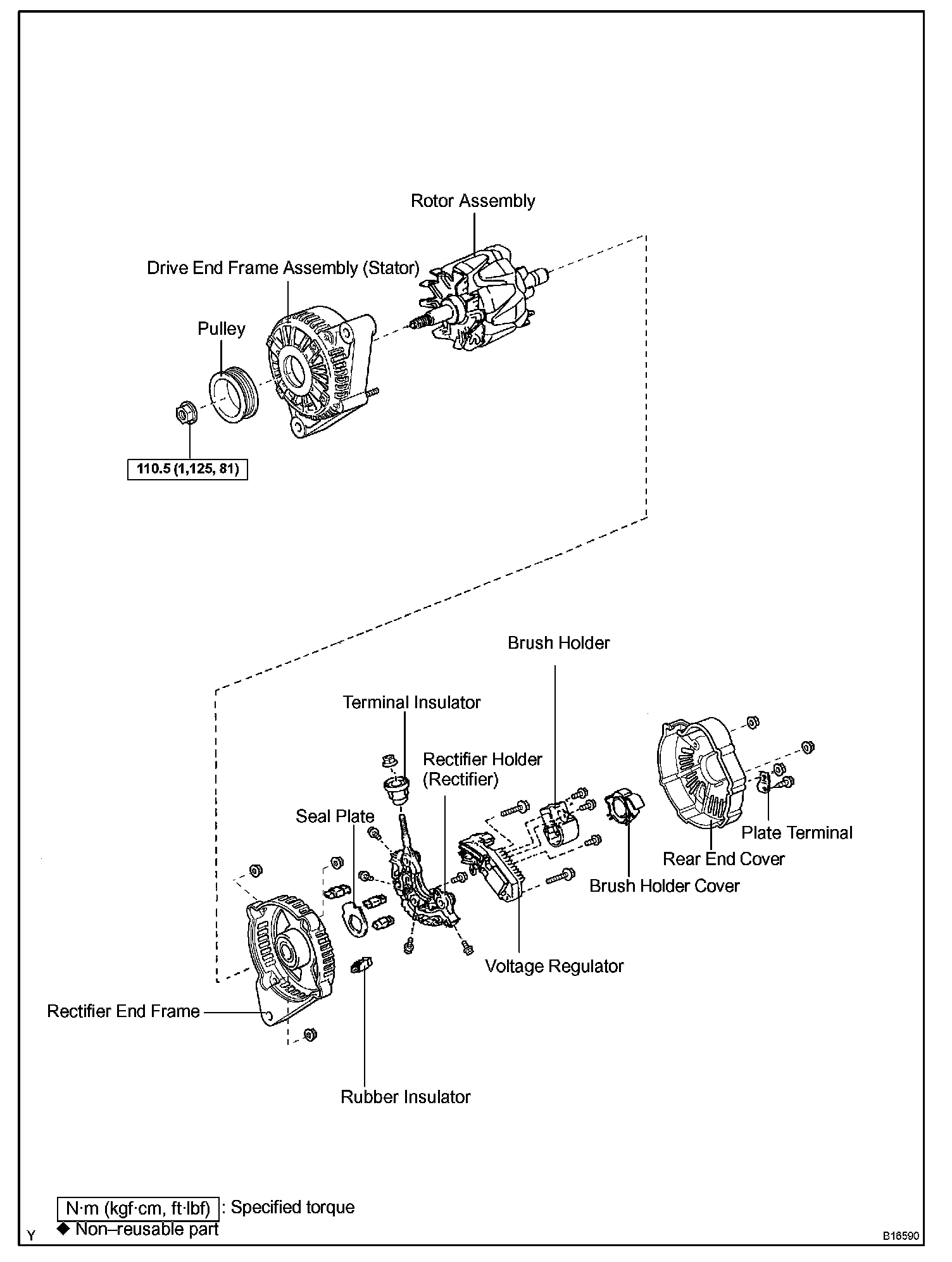

Generator (Towing Package Spec.) Part 1:
Generator (Towing Package Spec.) Part 2:
