Anti Lock Brake System

TERMINALS OF ECU

Terminals Of Control Modules/Pinouts (Part 1):

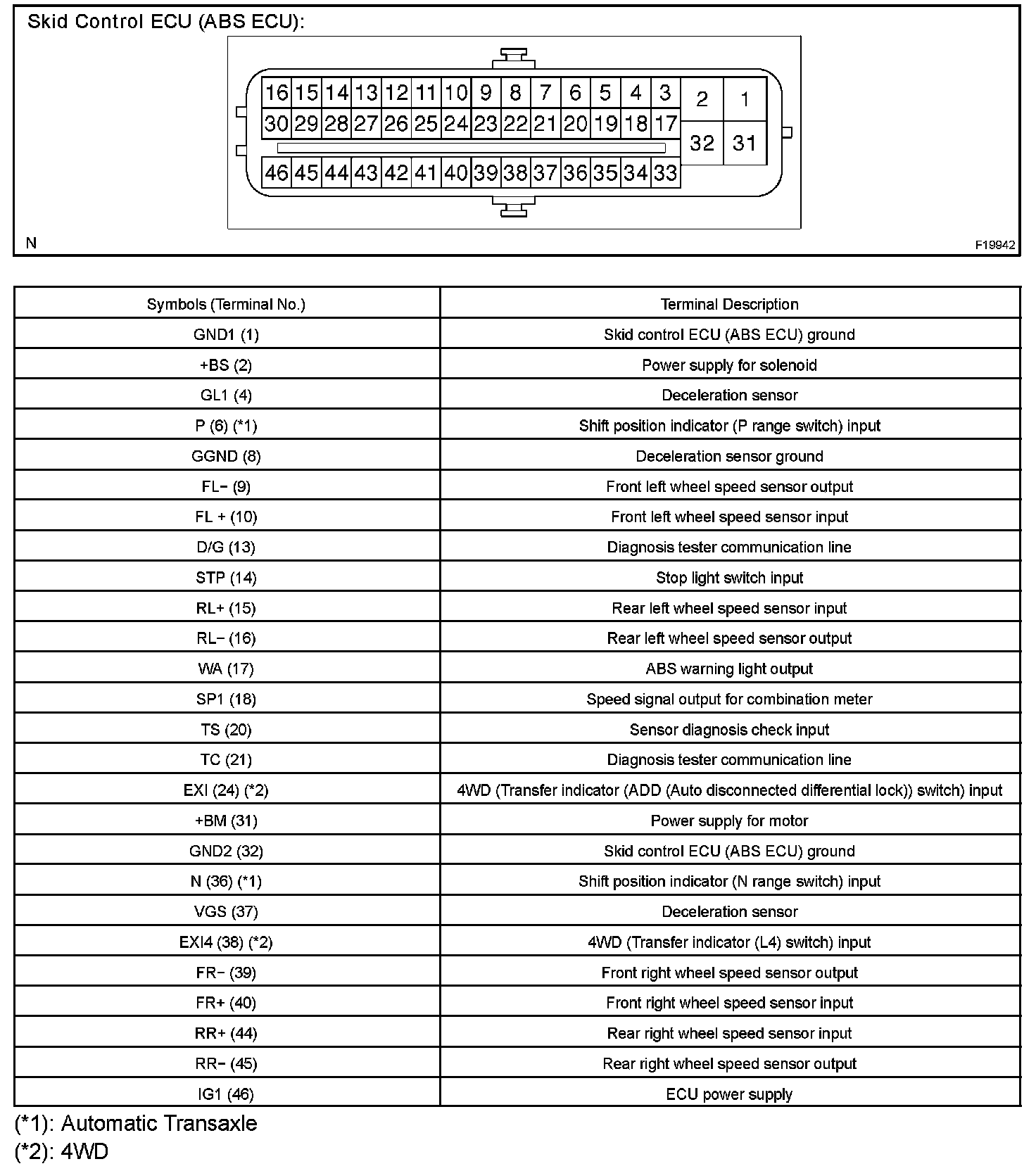

1. TERMINALS OF ECU

Terminals Of Control Modules/Pinouts (Part 2):

2. TERMINAL INSPECTION

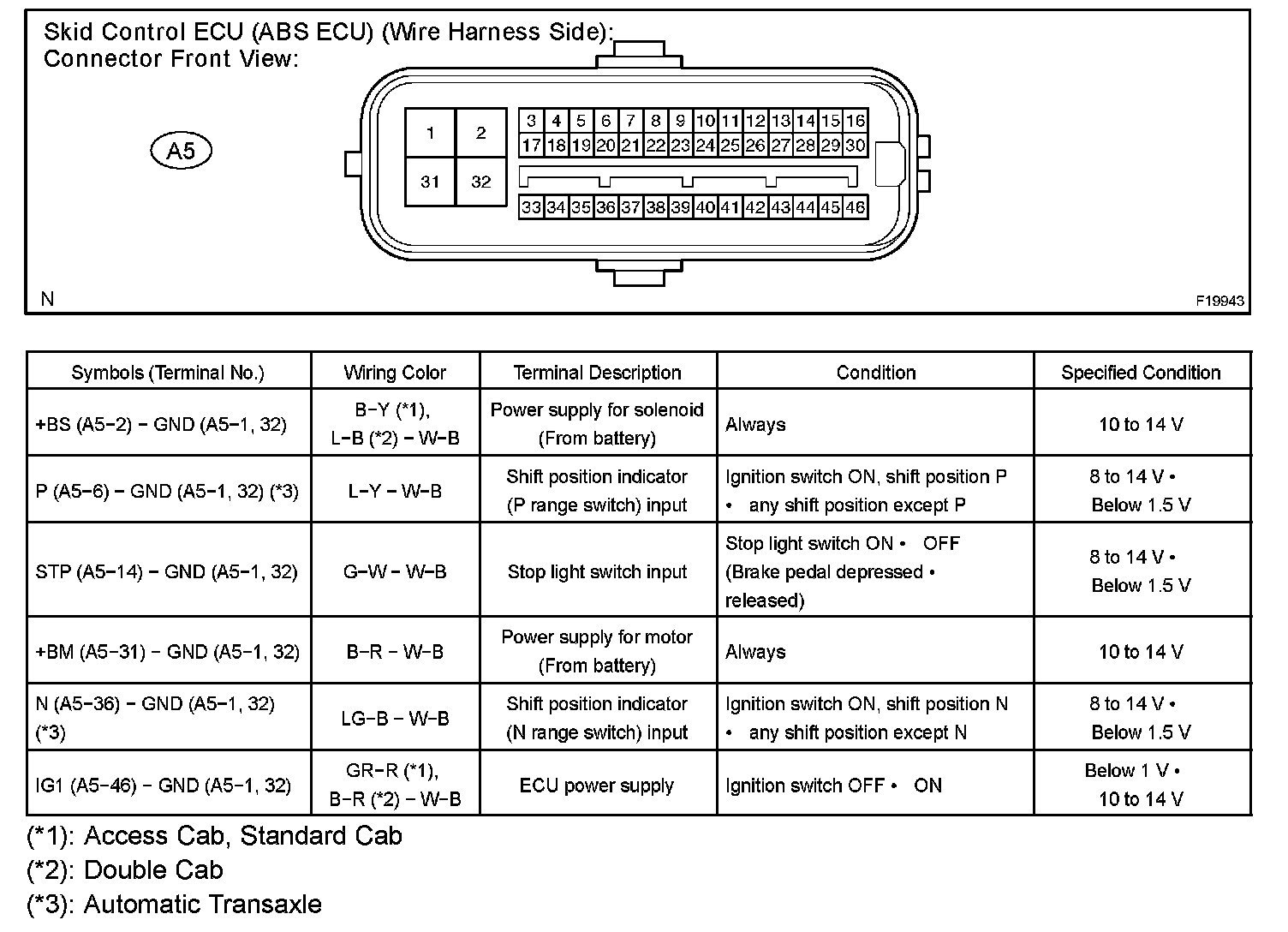

Disconnect the connector and measure the voltage on the wire harness side.

HINT: Voltage can not be measured with the connector connected to the skid control ECU (ABS ECU) as the connector is water resistance.
