Home >> Toyota >> 2006 >> Tundra 4WD V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

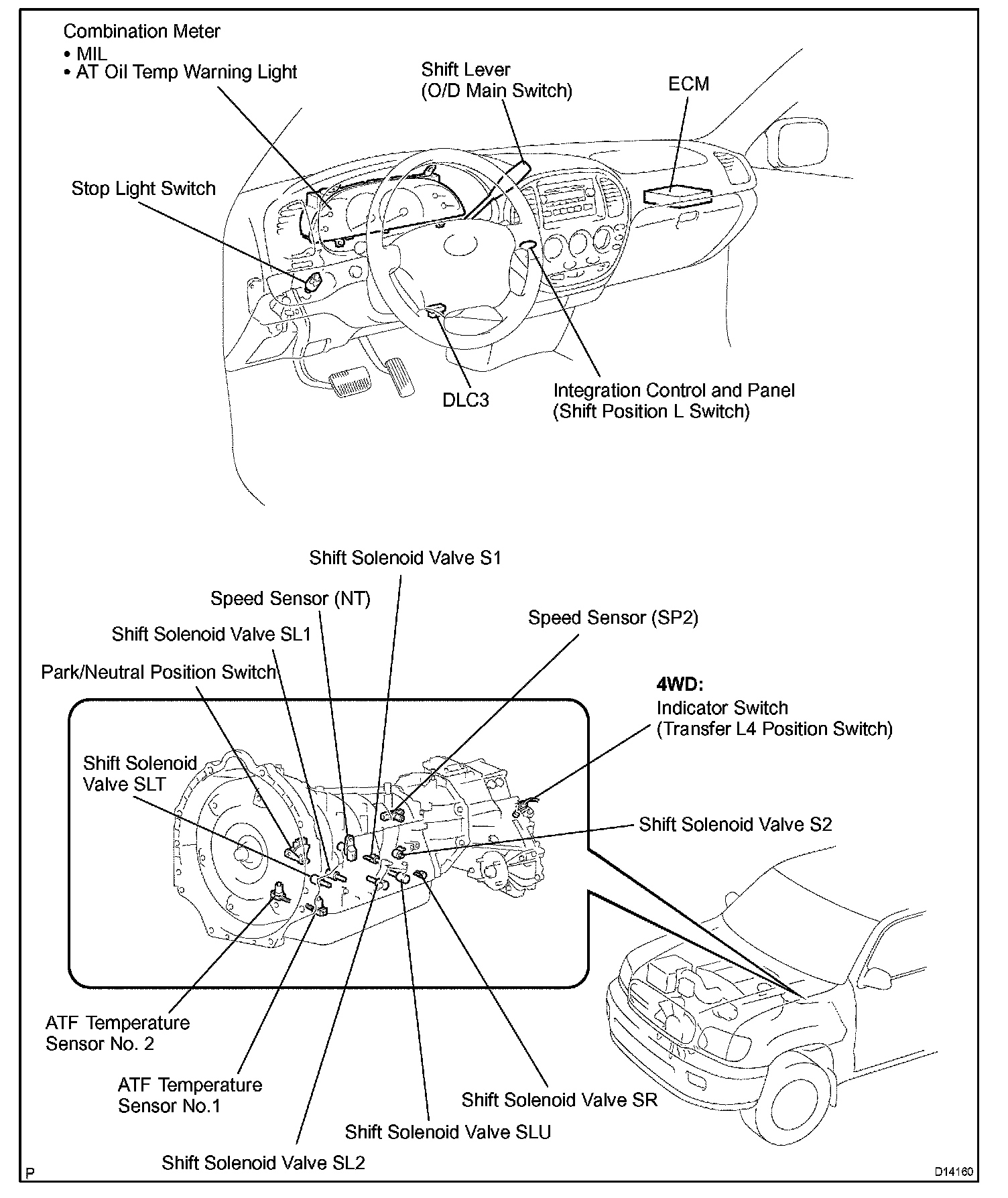

Atomatic Transmission (A750E/A750F For 2UZ-FE):
