Engine Control Module: Locations

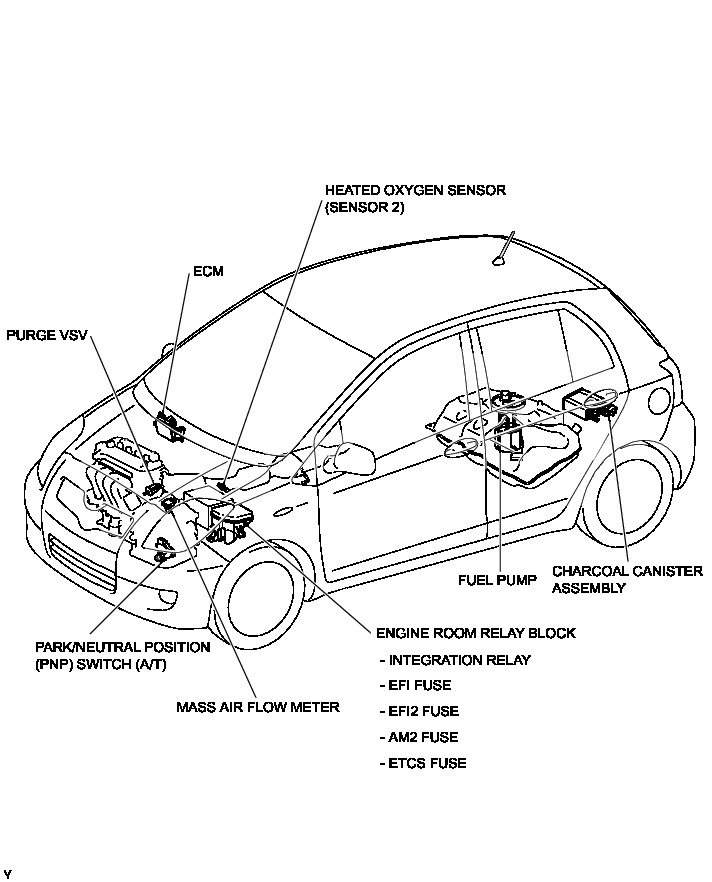

1NZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION

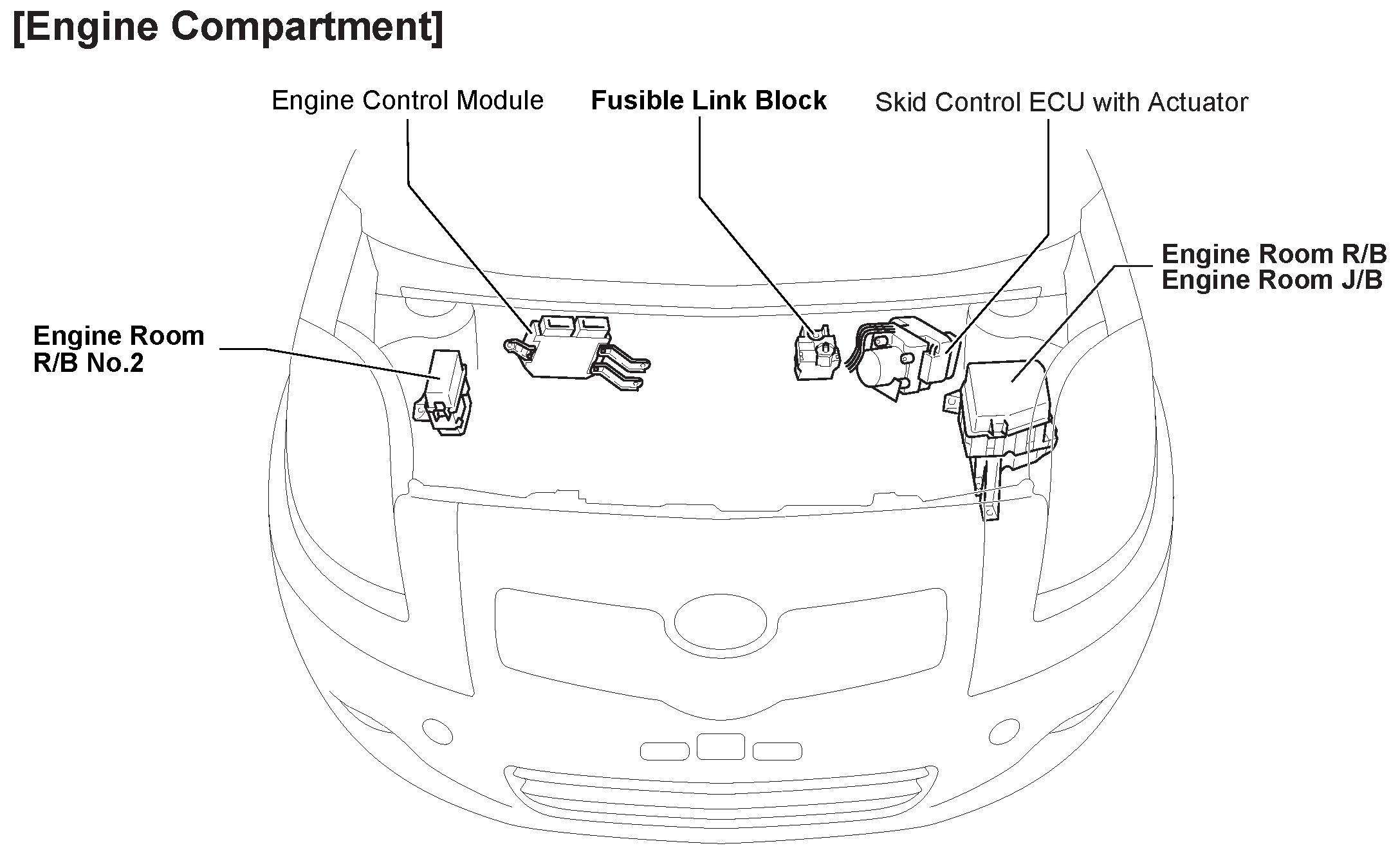

Engine Compartment:
