Pinout Values and Diagnostic Parameters

1NZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: TERMINALS OF ECM





HINT

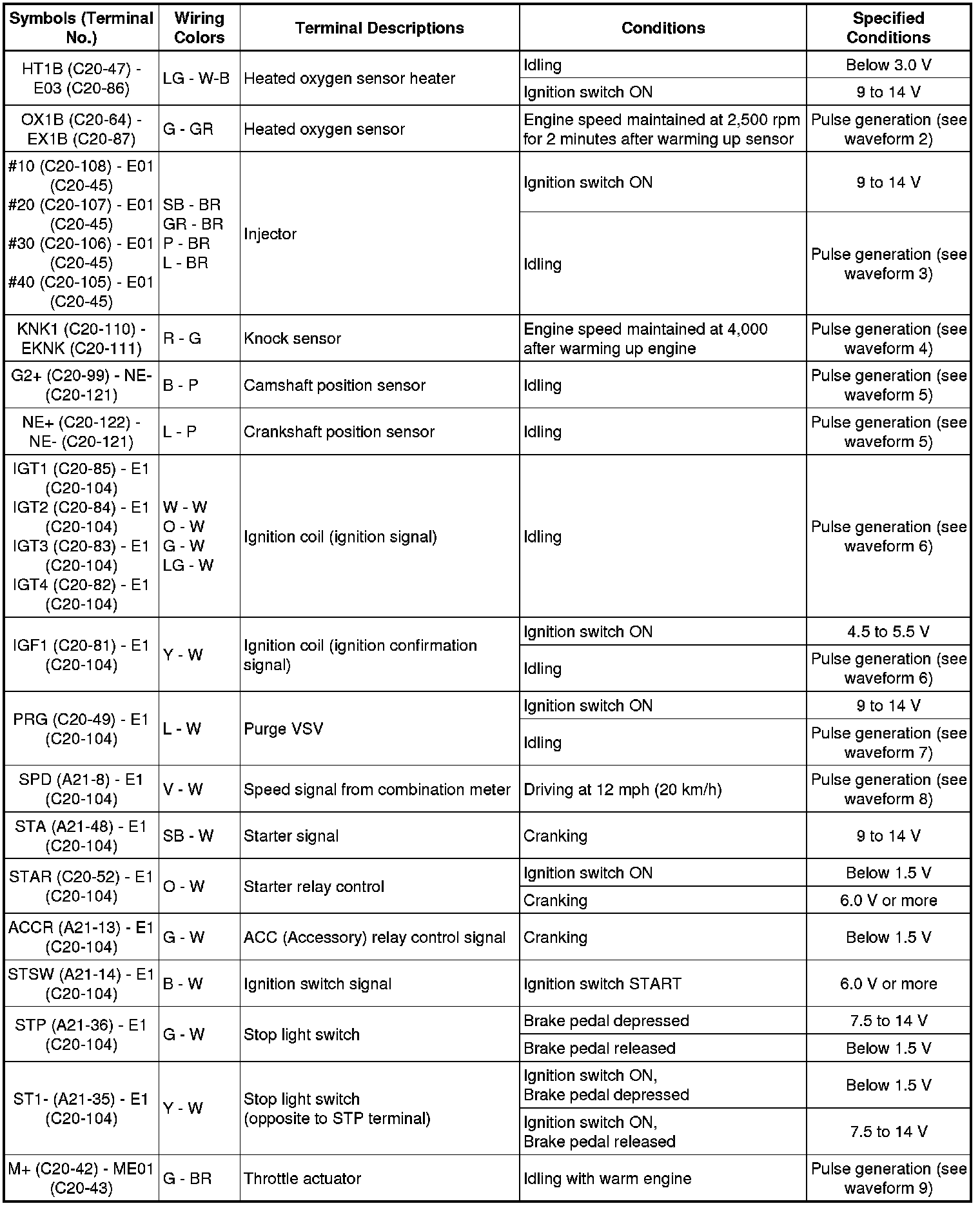

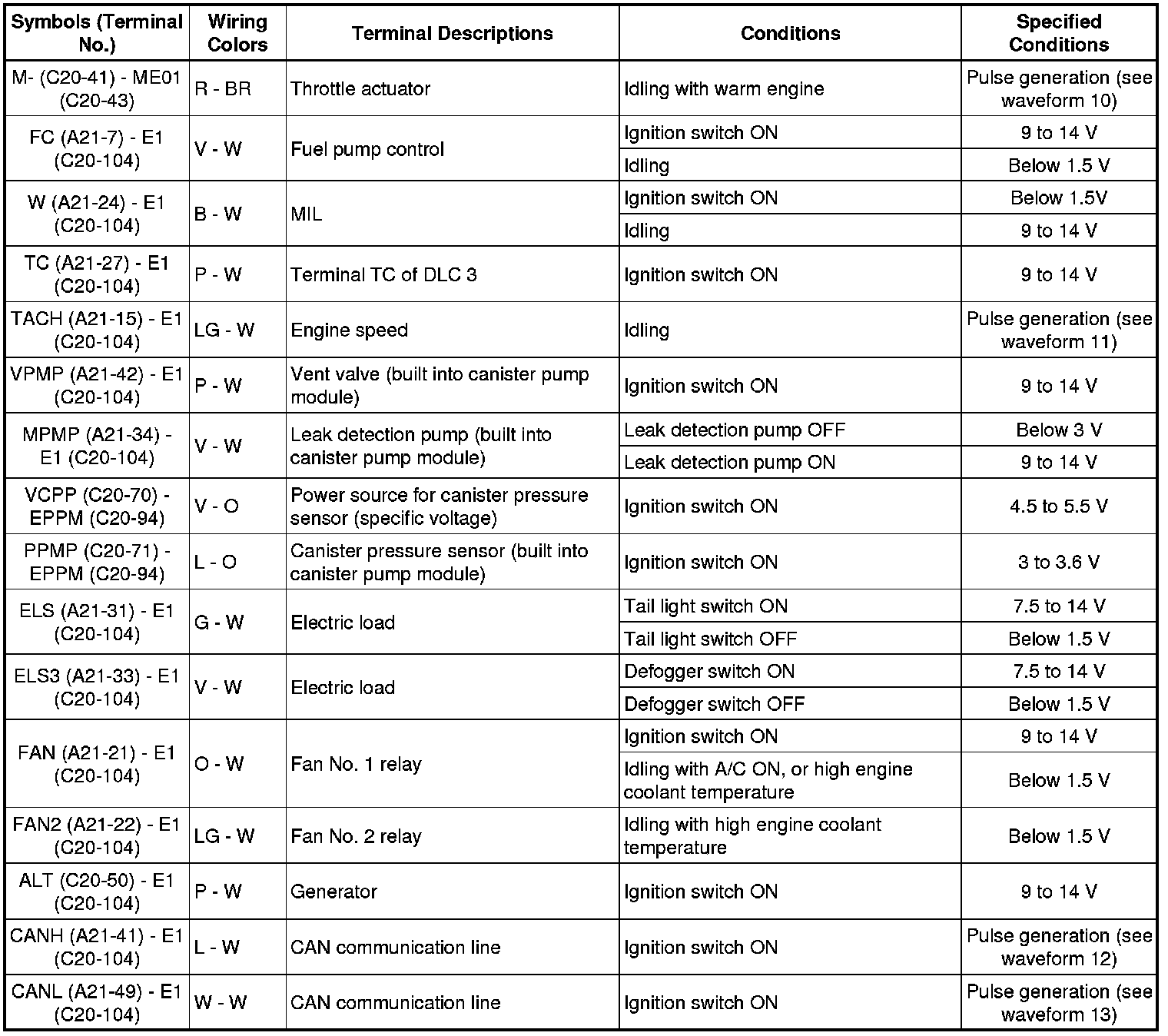

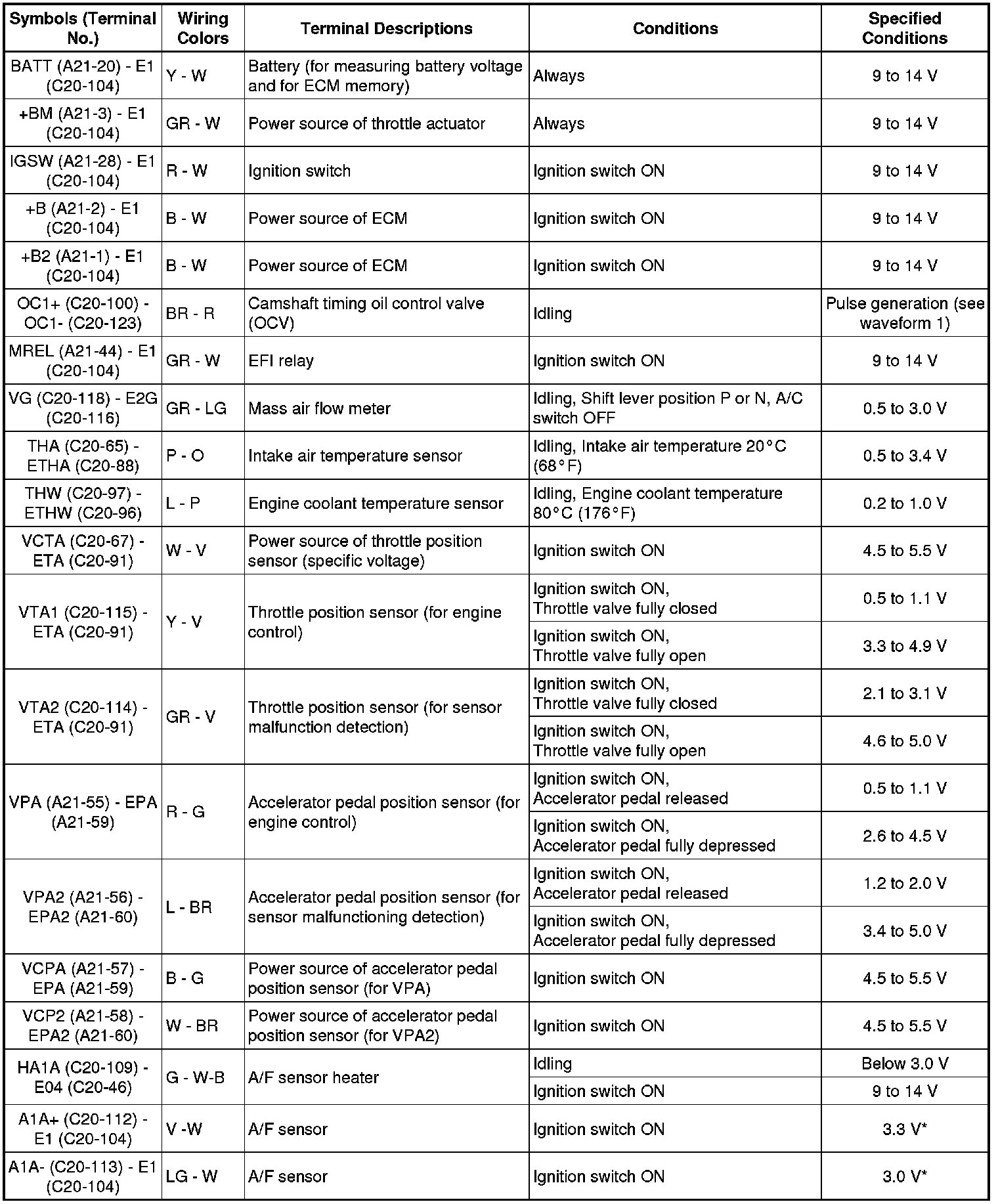

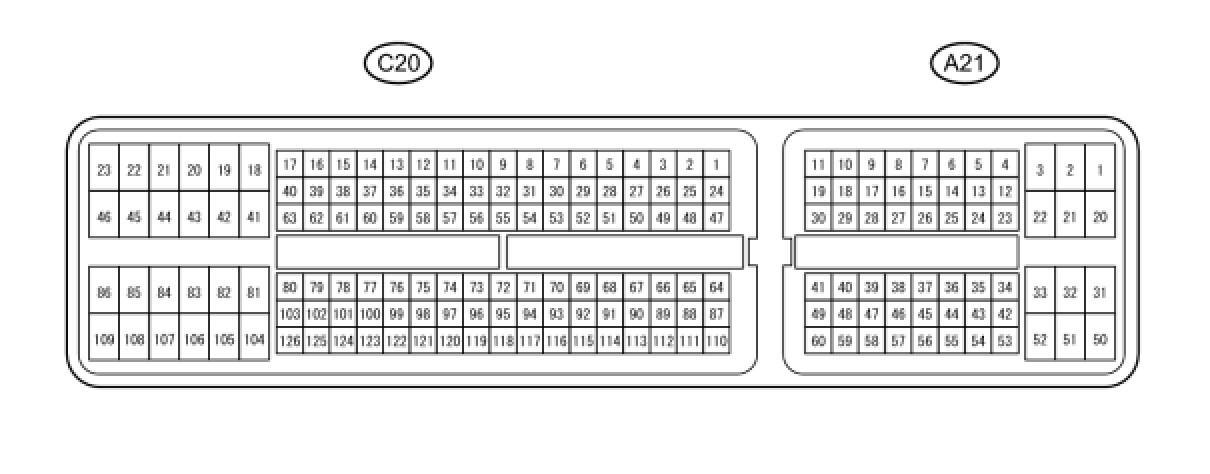

The standard normal voltage between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.













HINT
*: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

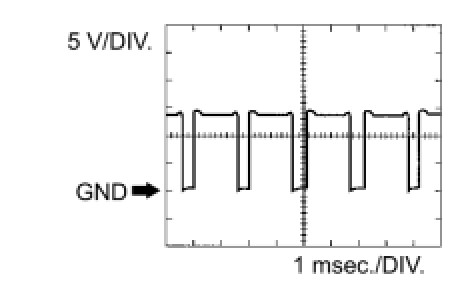

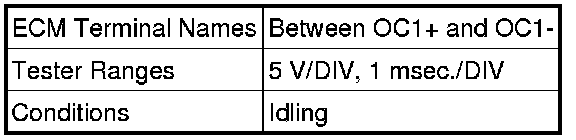

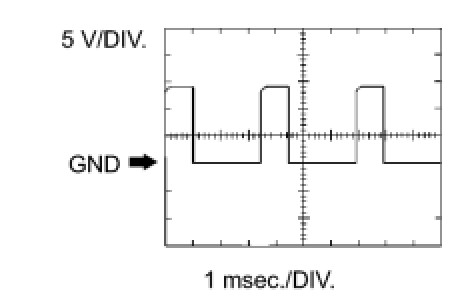

1. WAVEFORM 1





Camshaft timing oil control valve (OCV)

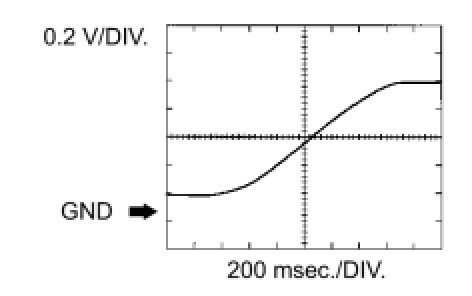

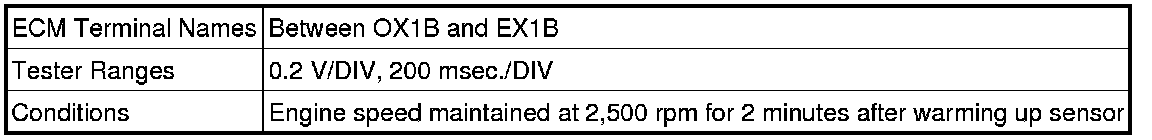

2. WAVEFORM 2





Heated oxygen sensor





HINT
In DATA LIST, item O2S B1 S2 shows the ECM input values from the heated oxygen sensor.

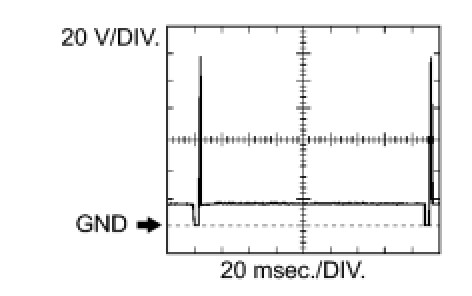

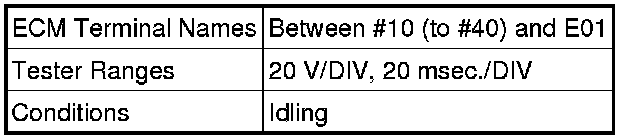

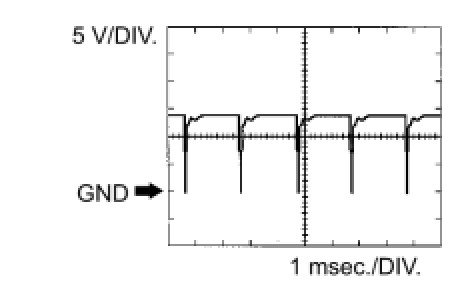

3. WAVEFORM 3





Injector No. 1 (to No. 4) injection signal





HINT
The wavelength becomes shorter as the engine rpm increases.

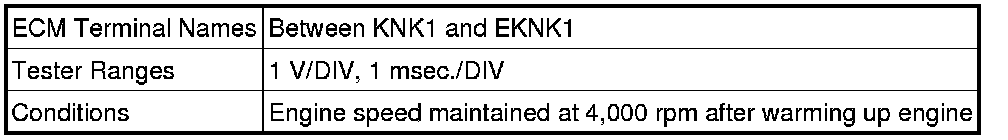

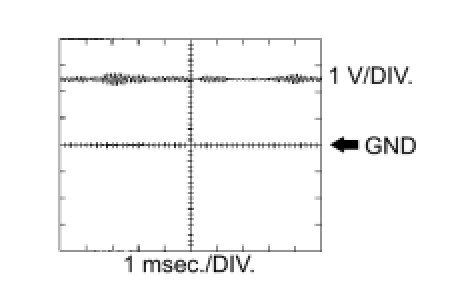

4. WAVEFORM 4





Knock sensor





HINT
* The wavelength becomes shorter as the engine rpm increases.
* The waveforms and amplitudes displayed differ slightly depending on the vehicle.

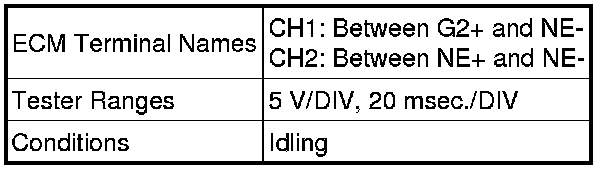

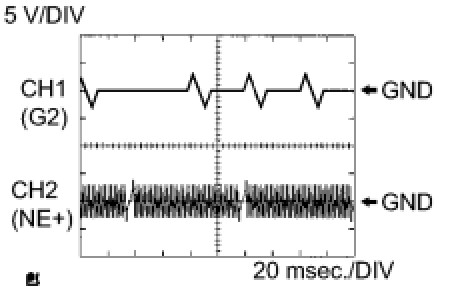

5. WAVEFORM 5





Crankshaft position sensor and Camshaft position sensor





HINT
The wavelength becomes shorter as the engine rpm increases.

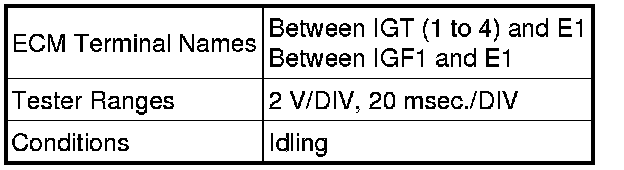

6. WAVEFORM 6





Igniter IGT signal (from ECM to igniter) and Igniter IGF signal (from igniter to ECM)





HINT
The wavelength becomes shorter as the engine rpm increases.

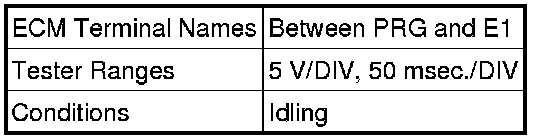

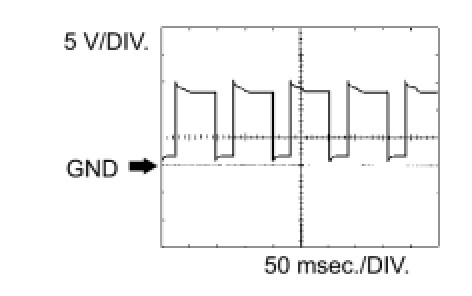

7. WAVEFORM 7





Purge VSV





HINT
If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

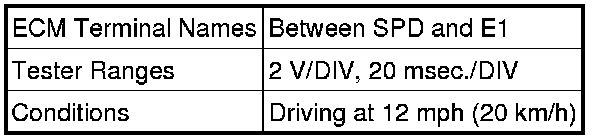

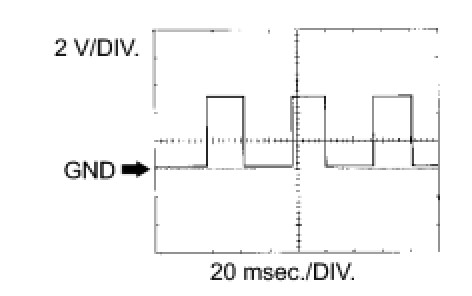

8. WAVEFORM 8





Vehicle speed signal





HINT
The wavelength becomes shorter as the vehicle speed increases.

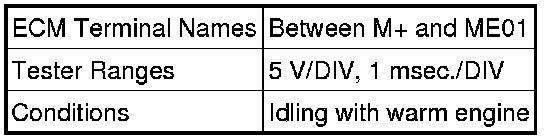

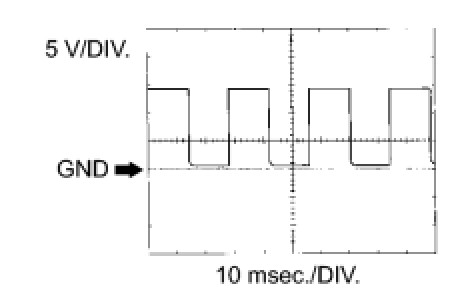

9. WAVEFORM 9





Throttle actuator positive terminal





HINT
The duty ratio varies depending on the throttle actuator operation.

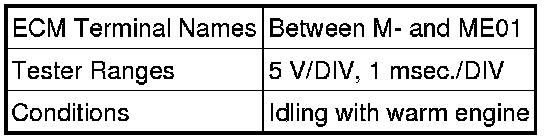

10. WAVEFORM 10





Throttle actuator negative terminal





HINT
The duty ratio varies depending on the throttle actuator operation.

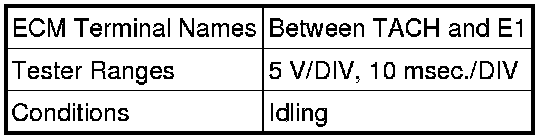

11. WAVEFORM 11





Engine speed signal





HINT
The wavelength becomes shorter as the engine rpm increases.

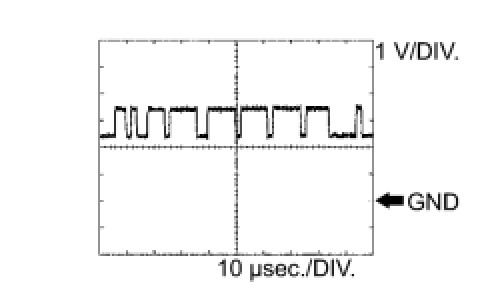

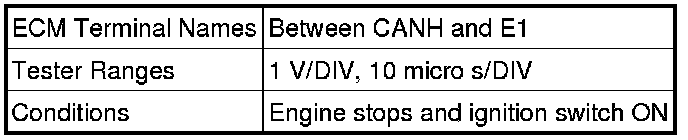

12. WAVEFORM 12





CAN communication signal





HINT
The waveform varies depending on the CAN communication signal.

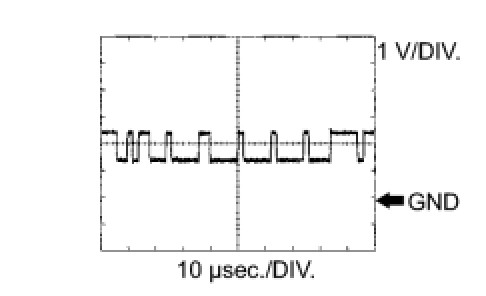

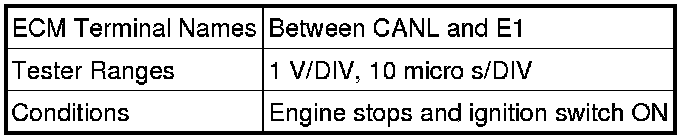

13. WAVEFORM 13





CAN communication signal





HINT
The waveform varies depending on the CAN communication signal.
