Data List / Active List

1NZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

HINT
By reading the DATA LIST displayed on an intelligent tester, values can be checked, including those of the switches, sensors, and actuators, without removing any parts. Reading the DATA LIST as the first step of troubleshooting is one method of shortening diagnostic time.

NOTICE:
In the table below, the values listed under Normal Condition are for reference only. Do not depend solely on these values when determining whether or not a part is faulty.

(a) Warm up the engine.

(b) Turn the ignition switch to OFF.

(c) Connect the intelligent tester to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the tester ON.

(f) Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST.

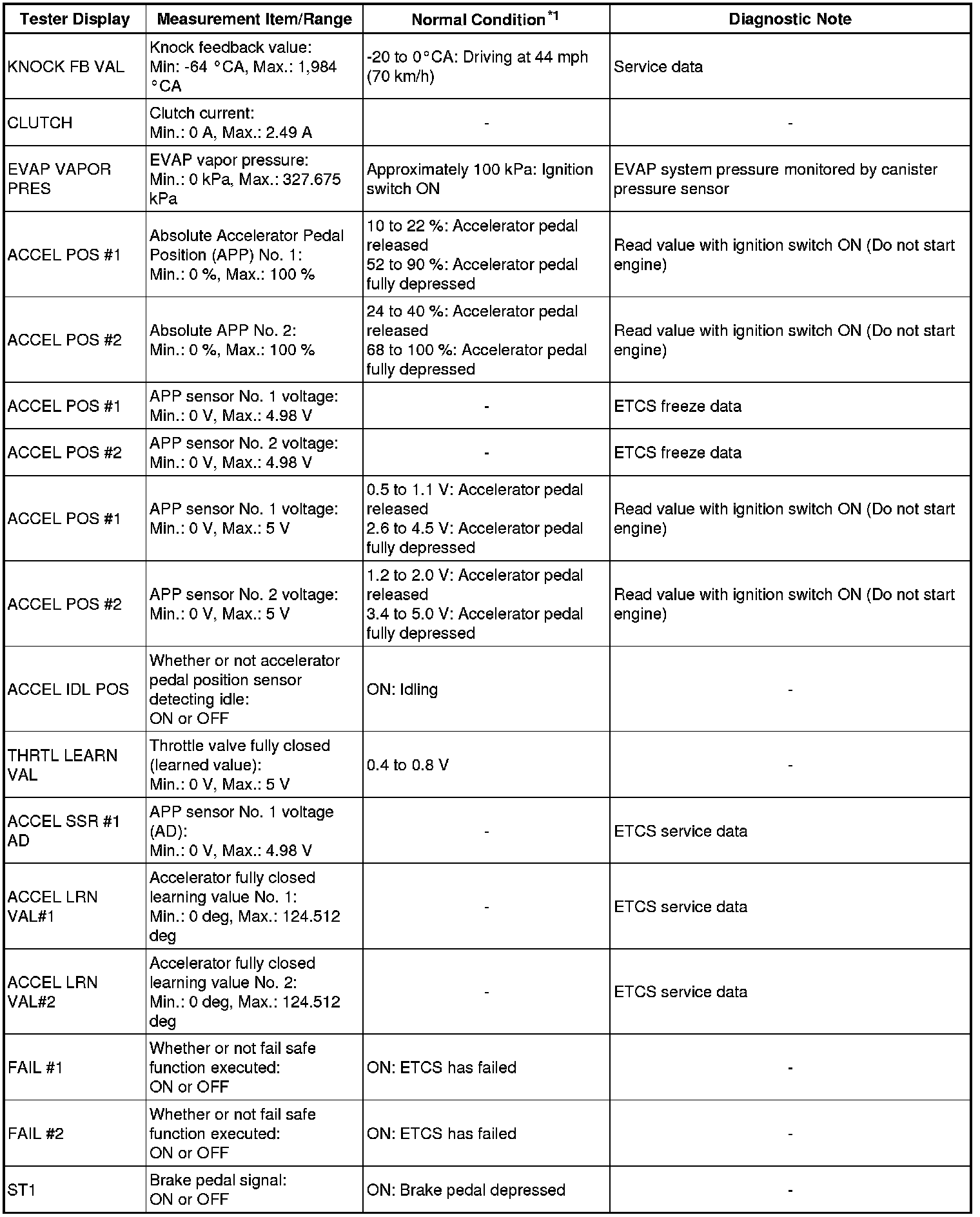

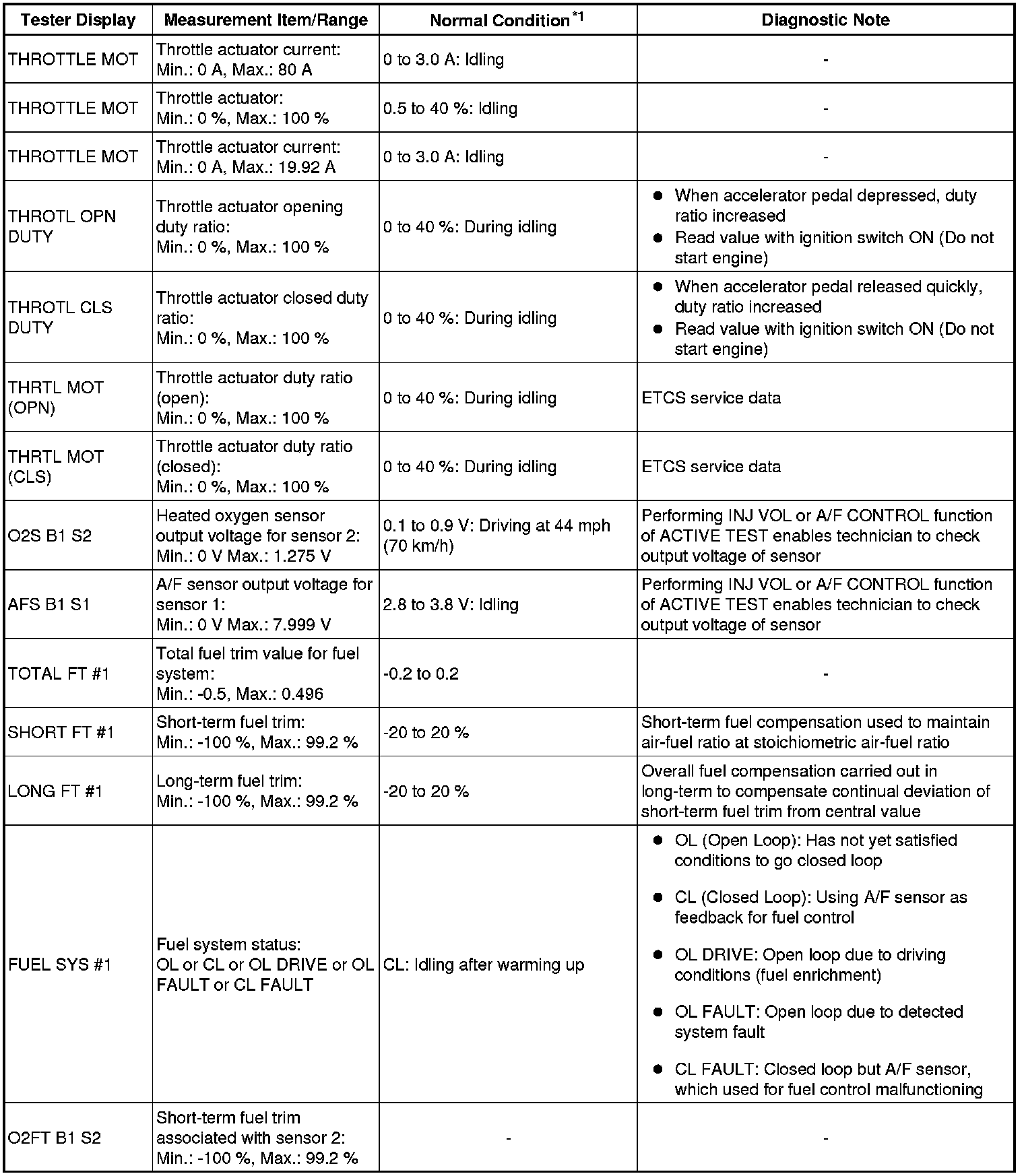

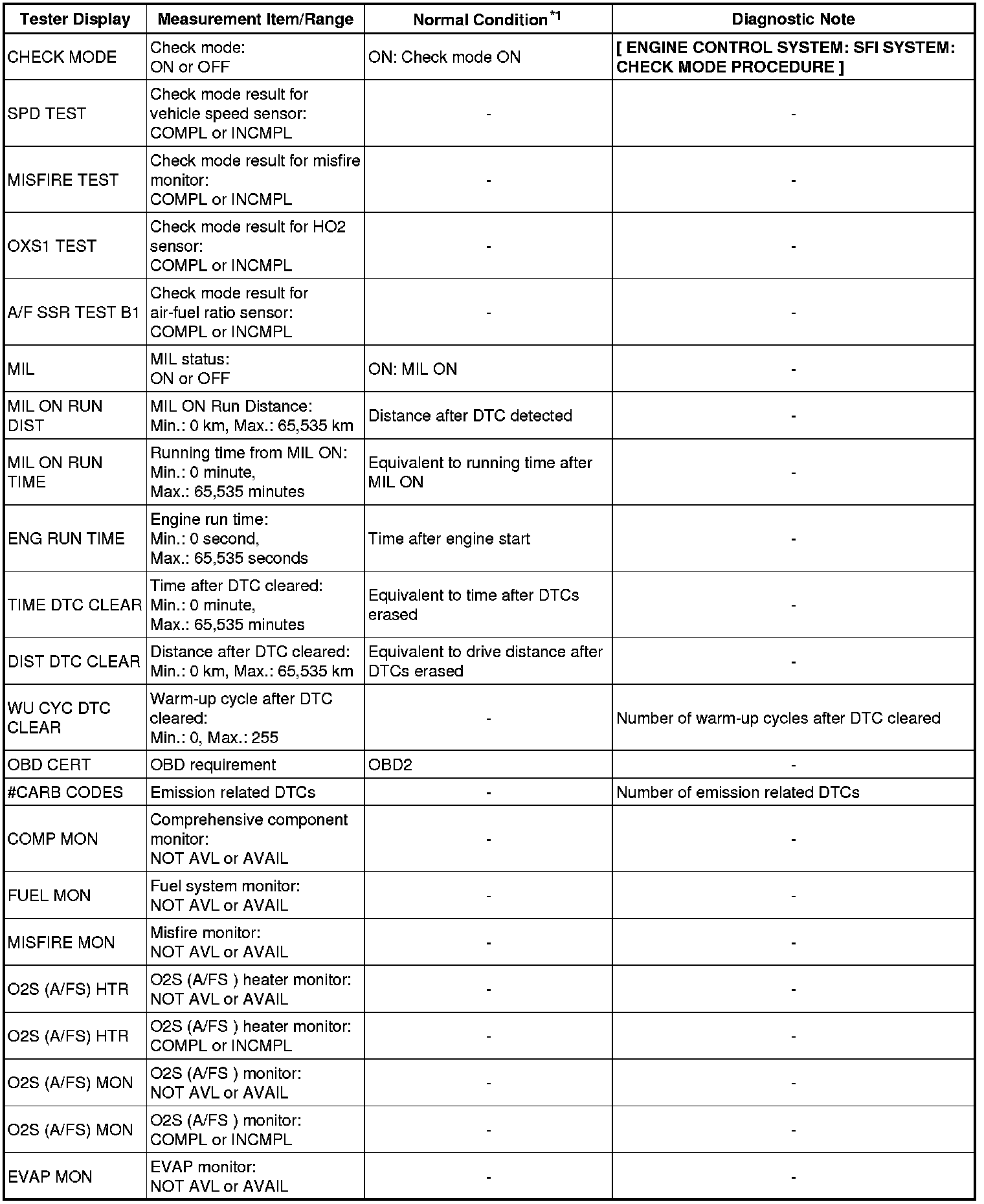

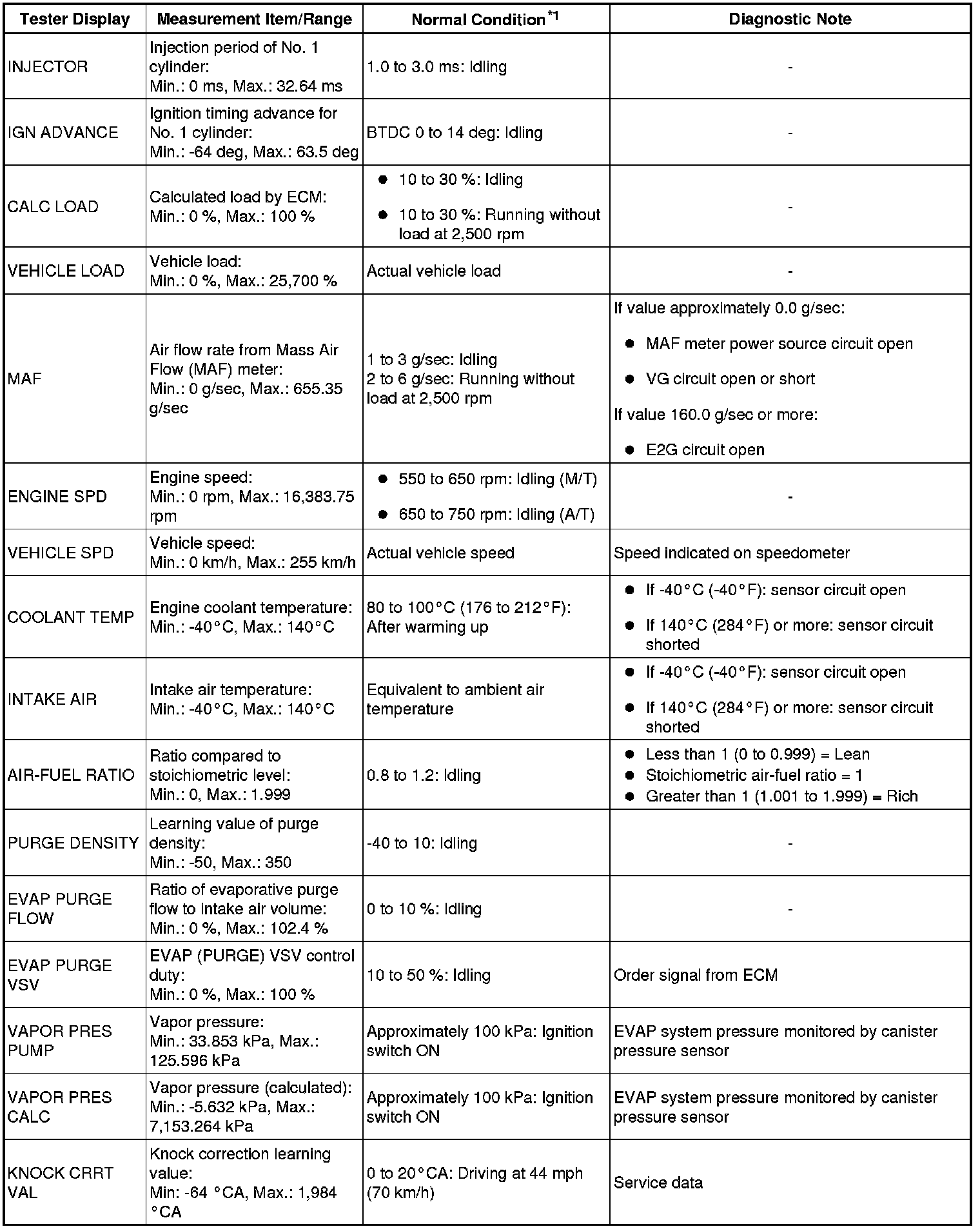

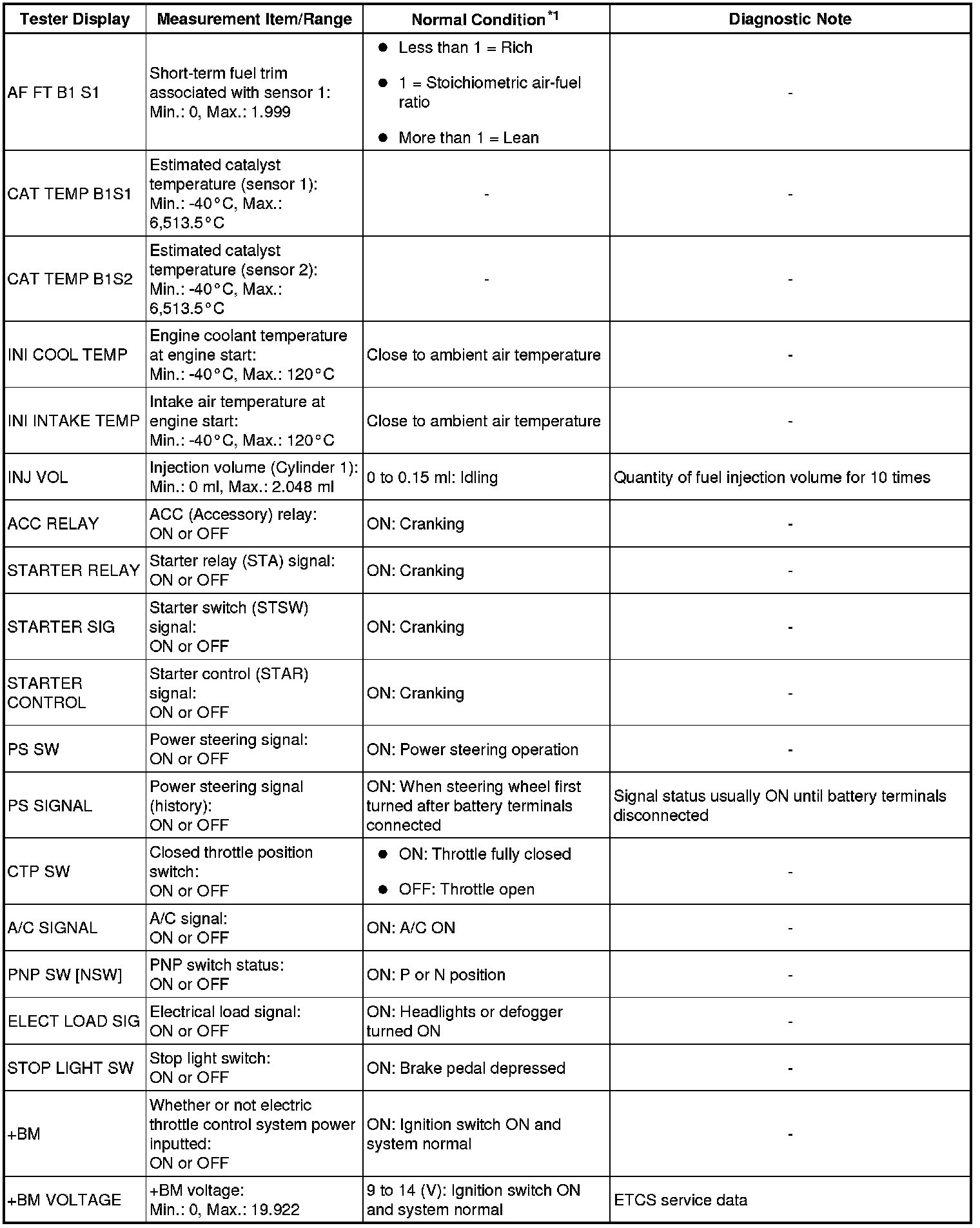

(g) Check the values by referring to the table below.

































HINT
* *1: If no idling conditions are specified, the transmission gear selector lever should be in the N or P position, and the A/C switch and all accessory switches should be OFF.
* *2: DATA LIST values are only displayed when performing the following ACTIVE TESTs: VVT B1. For other ACTIVE TESTs, the DATA LIST value will be 0.

2. ACTIVE TEST

HINT
Performing an ACTIVE TEST enables components including the relays, VSV (Vacuum Switching Valve) and actuators, to be operated without removing any parts. The ACTIVE TEST can be performed with an intelligent tester. Performing an ACTIVE TEST as the first step of troubleshooting is one method of shortening diagnostic time.

* DATA LIST can be displayed during ACTIVE TEST.

(a) Connect the intelligent tester to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the tester ON.

(d) Select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST.

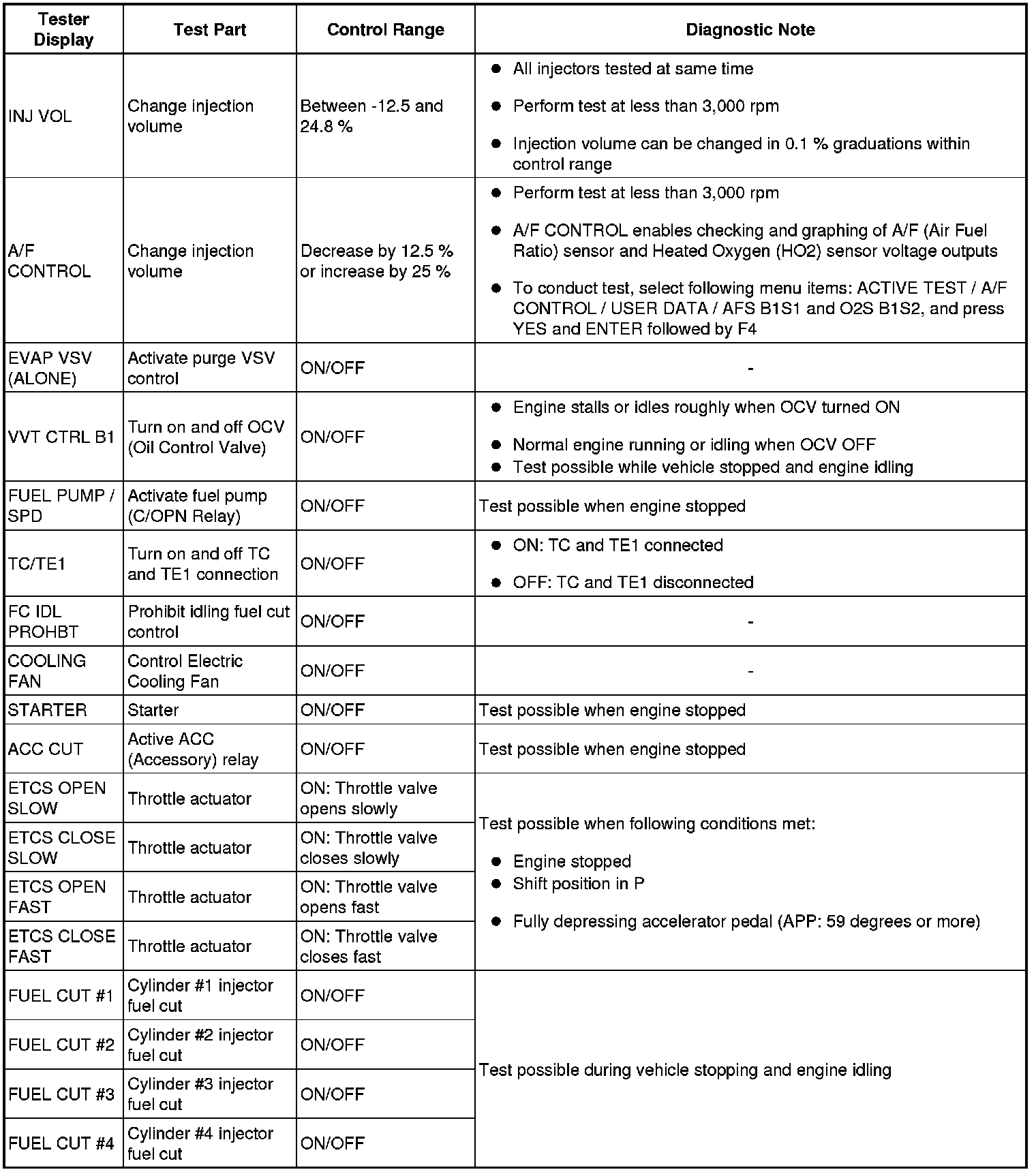

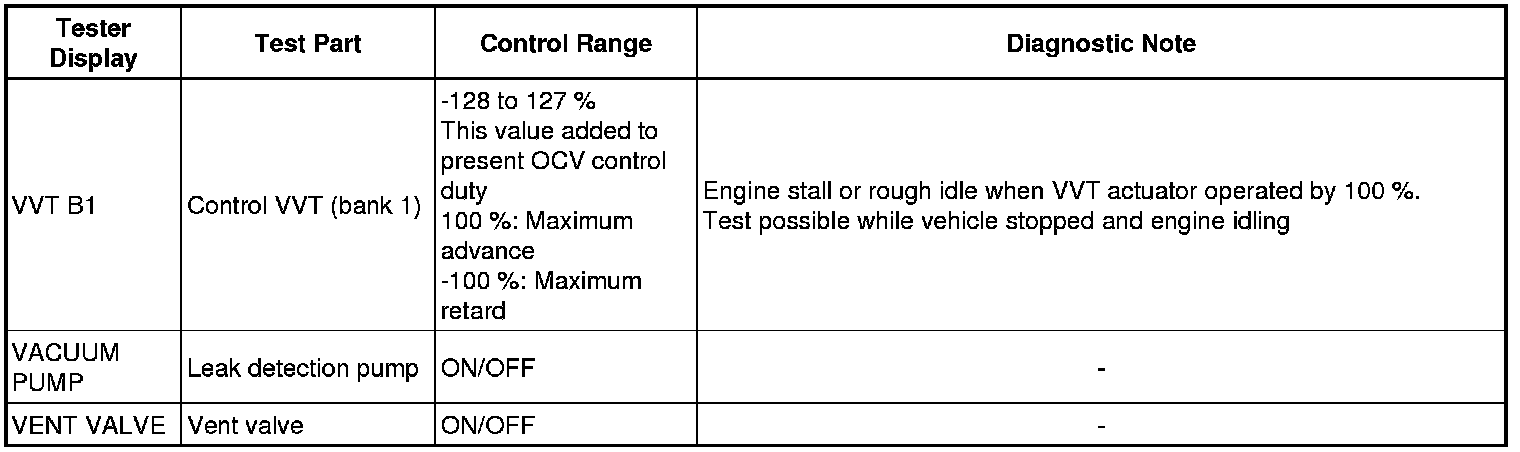

(e) Perform the ACTIVE TEST by referring to the table below.









3. SYSTEM CHECK

HINT
Performing a SYSTEM CHECK enables the system, which consists of multiple actuators, to be operated without removing any parts. In addition, it can show whether or not any DTCs are set, and can detect potential malfunctions in the system. The SYSTEM CHECK can be performed with an intelligent tester.

(a) Connect the intelligent tester to the DLC3.

(b) Turn the ignition switch to ON

(c) Turn the tester ON.

(d) Select the following menu items: DIAGNOSIS / ENHANCED OBD II / SYSTEM CHECK.

(e) Perform the SYSTEM CHECK by referring to the table below.
