Component Tests and General Diagnostics

U340E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSPECTION

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Disconnect the park/neutral position switch connector.

(b) Measure the resistance with the shift lever in each position.

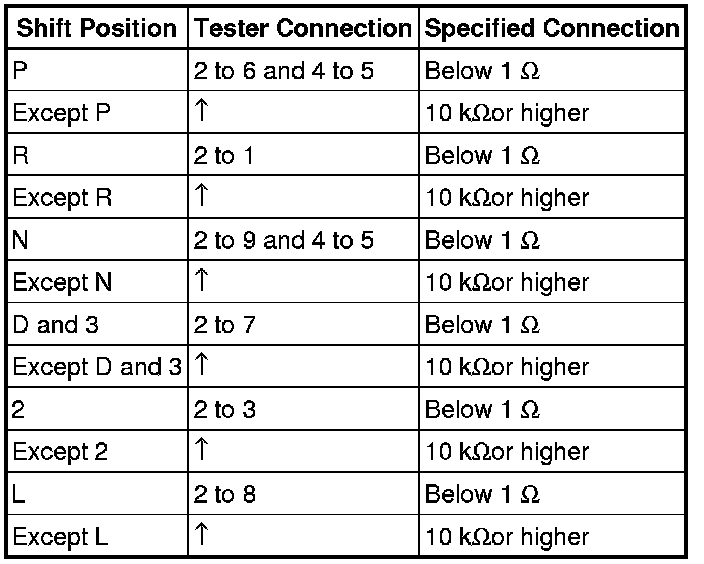

Standard resistance:
