Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Yaris (CANADA) L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Brakes and Traction Control
>>
Electronic Brake Control Module
>>
Locations
Electronic Brake Control Module: Locations

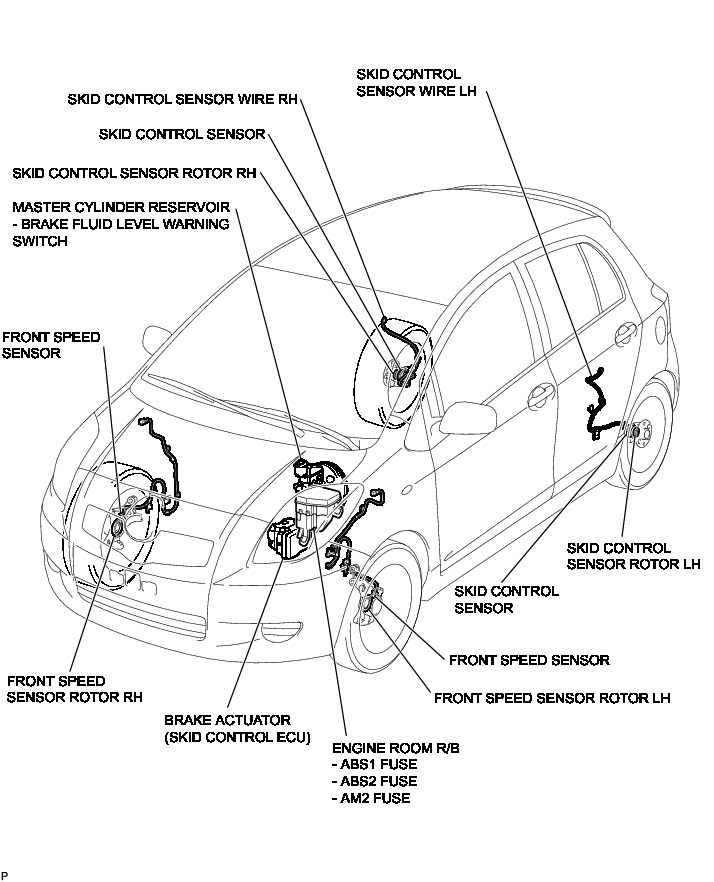

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: PARTS LOCATION
Engine Compartment:
