Alignment

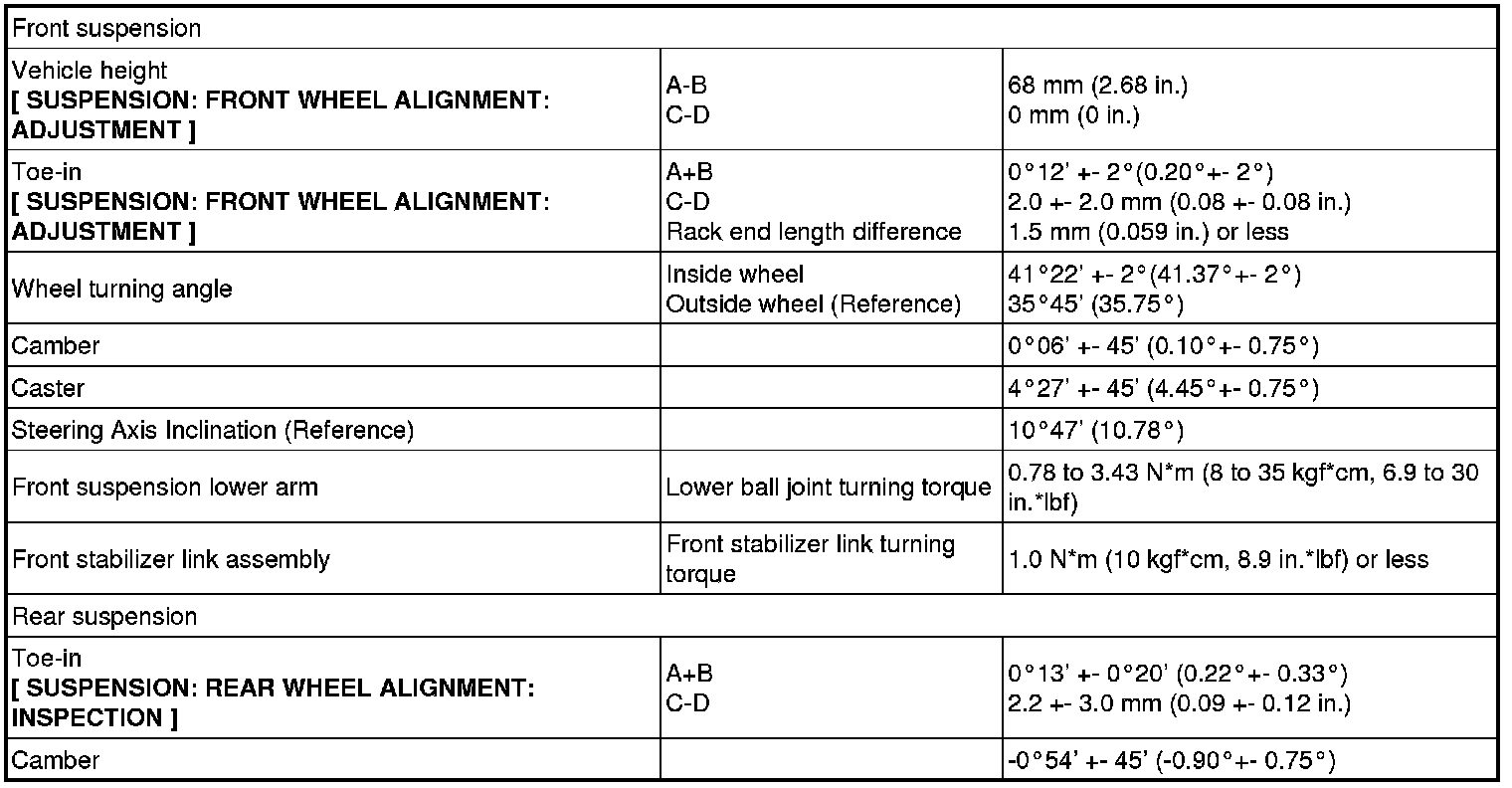

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

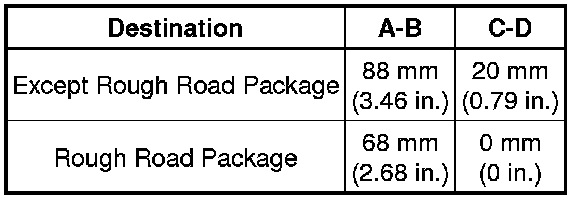

Except Rough Road Package






Rough Road Package

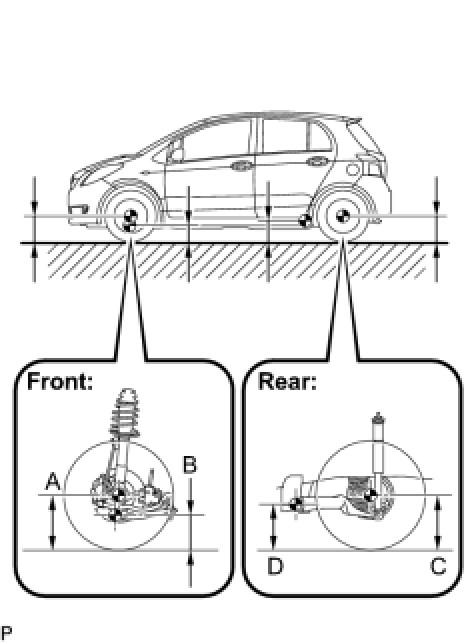

MEASURE VEHICLE HEIGHT






Vehicle height:






Measuring points:

A:Ground clearance of front wheel center
B:Ground clearance of lower arm set front bolt center
C:Ground clearance of rear wheel center
D:Ground clearance of axle beam set bolt center
