Intake Manifold

INTAKE MANIFOLD

Install a new gasket onto the intake manifold.

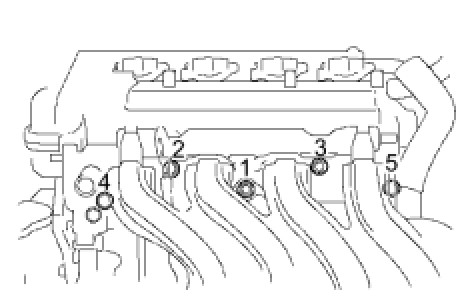

Provisionally tighten the intake manifold nuts and bolts in the order shown in the illustration, and then tighten them to the specified torque.






Torque 30 Nm (306 kgf-cm, 22 ft-lbf)
