Timing Cover

Timing Cover

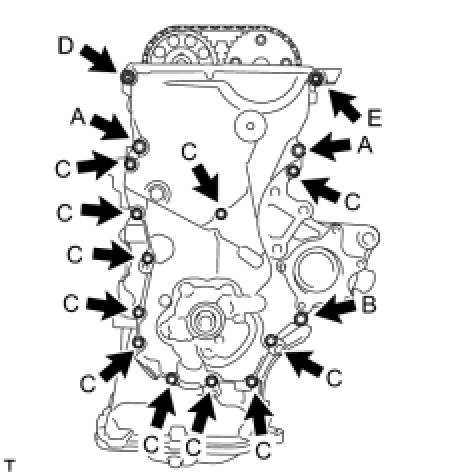

Install the oil pump assembly with the 15 bolts and the nut. Tighten the bolts and nut uniformly in several steps.





Torque : 32 Nm (326 kgf-cm, 24 ft-lbf) for bolt A

Torque : 11 Nm (112 kgf-cm, 8.1 ft-lbf) for bolt B

Torque : 11 Nm (112 kgf-cm, 8.1 ft-lbf) for bolt C

Torque : 24 Nm (245 kgf-cm, 18 ft-lbf) for nut D

Torque : 24 Nm (245 kgf-cm, 18 ft-lbf) for bolt E

NOTICE:
After installing the oil pump assembly, install the mounting bracket and water pump within 15 minutes.

HINT
Each bolt length is as follows.

A: 30 mm (1.181 in.)

B: 35 mm (1.378 in.)

C: 20 mm (0.787 in.)

E: 14 to 20 mm (0.551 to 0.787 in.), Double ended bolt
