Repair and Diagnosis: Testing and Inspection

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

HINT
The following can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

1. THEFT DETERRENT SYSTEM

Theft Deterrent System





HINT
Sensitivity adjustments are difficult to confirm. Check by driving the customer's vehicle.

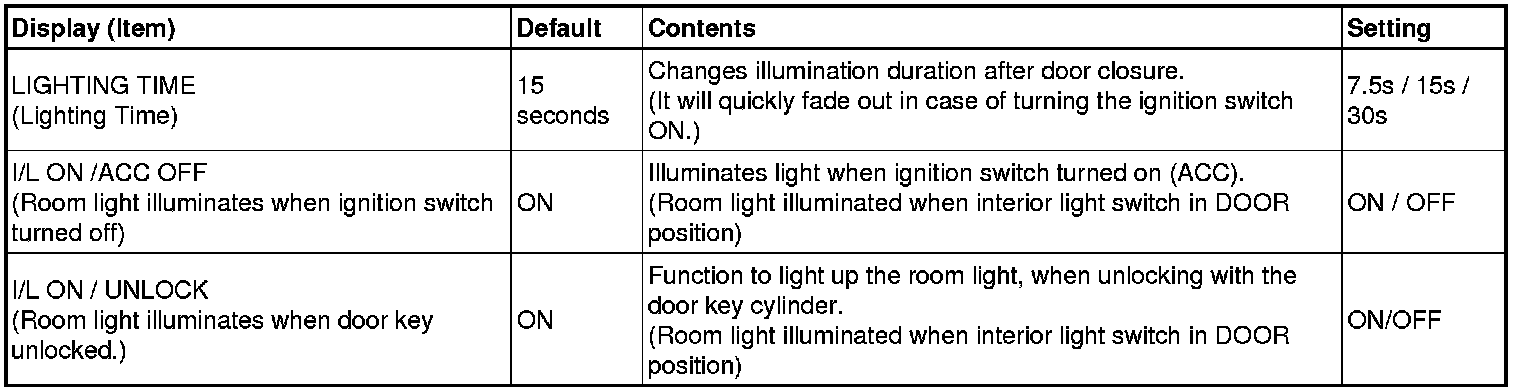

2. LIGHTING SYSTEM

Illuminated Entry





HINT
Sensitivity adjustments are difficult to confirm. Check by driving the customer's vehicle.

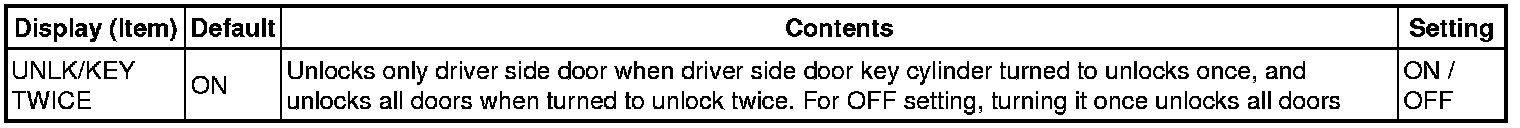

3. POWER DOOR LOCK CONTROL SYSTEM

Power Door Lock Control System

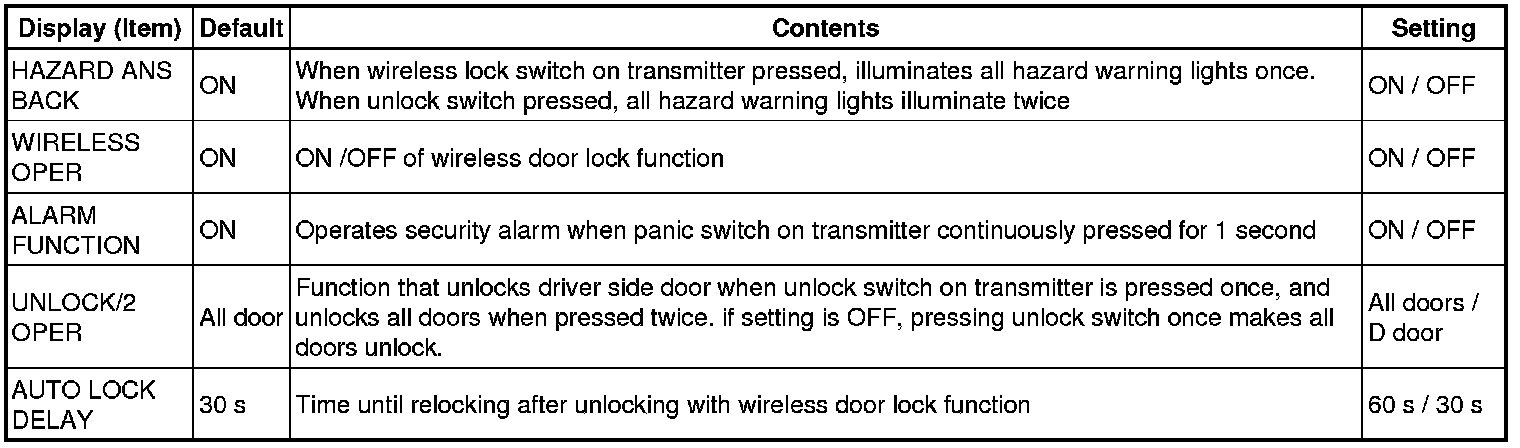

4. WIRELESS DOOR LOCK CONTROL SYSTEM

Wireless Door Lock Control System

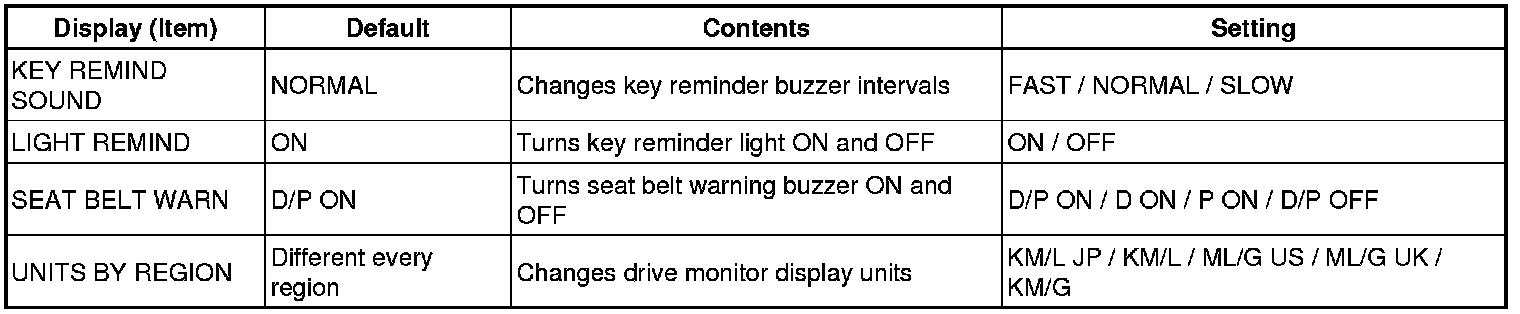

5. GAUGE SYSTEM

Combination Meter Assembly
