Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

Cruise Control Main Switch:

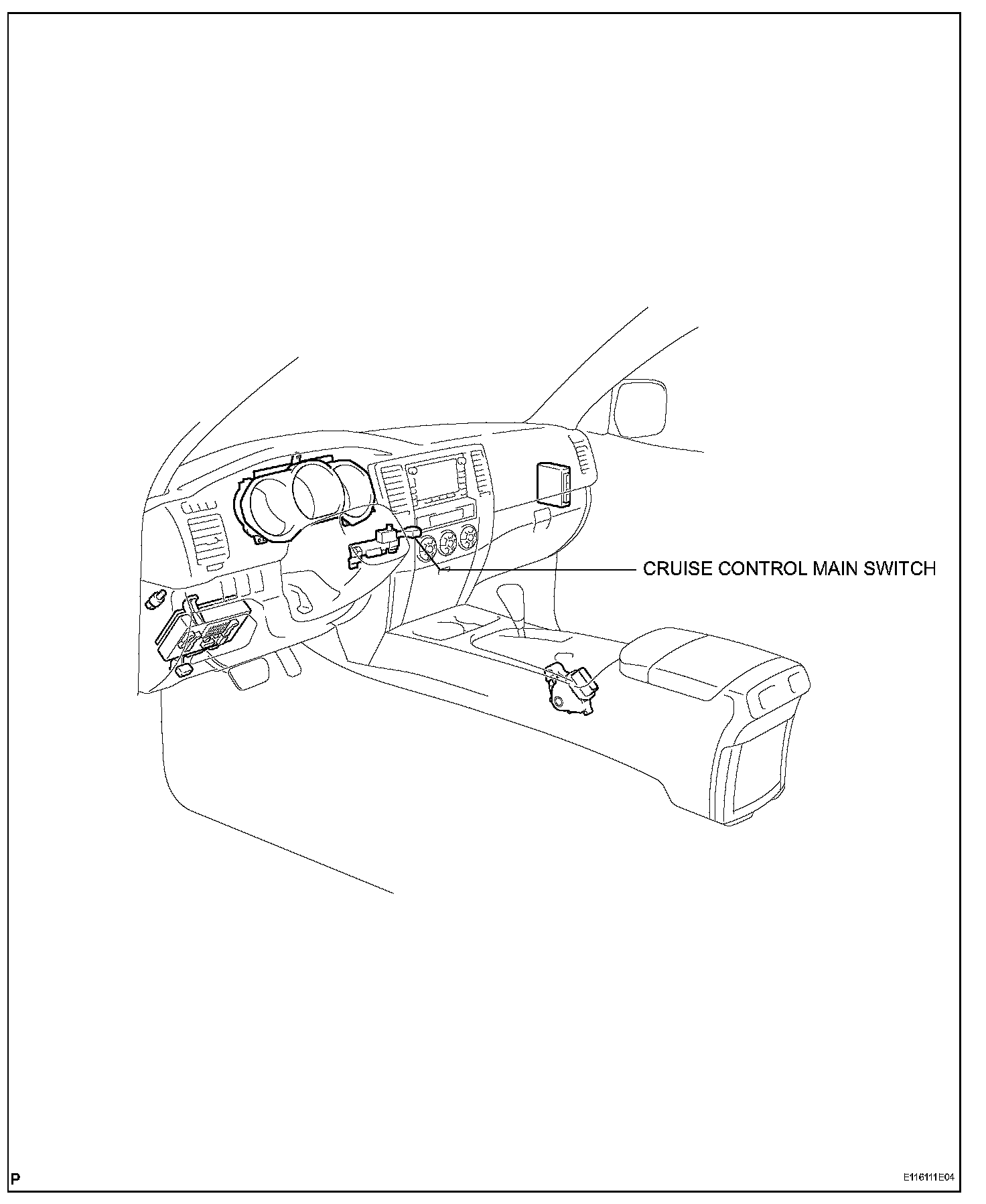

CRUISE CONTROL MAIN SWITCH

REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE STEERING WHEEL COVER LOWER NO.2
3. REMOVE STEERING WHEEL COVER LOWER NO.3
4. REMOVE STEERING PAD




5. REMOVE CRUISE CONTROL MAIN SWITCH

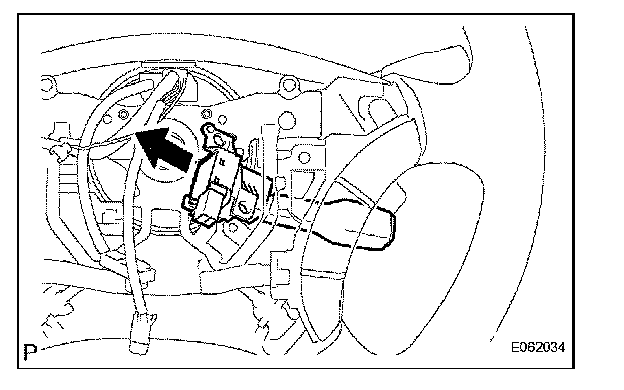

a. Disconnect the connector.

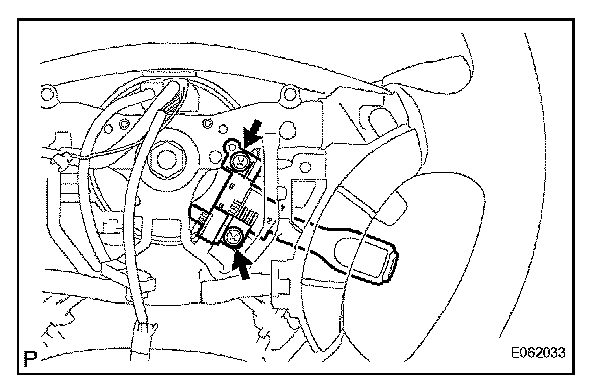

b. Remove the 2 screws and cruise control main switch.

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH
2. INSTALL STEERING PAD
3. INSTALL STEERING WHEEL COVER LOWER NO.3
4. INSTALL STEERING WHEEL COVER LOWER NO.2
5. CONNECT BATTERY NEGATIVE TERMINAL
6. INSPECT STEERING PAD
7. INSPECT SRS WARNING LIGHT
