Overhaul

DISASSEMBLY

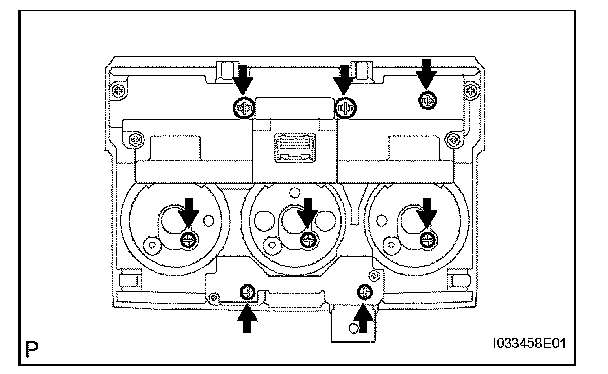

1. REMOVE COOLER CONTROL SWITCH BULB (EXCEPT INDEPENDENCE TEMPERATURE CONTROL)
a. Remove the 8 cooler control switch bulbs from the air conditioning control assembly.

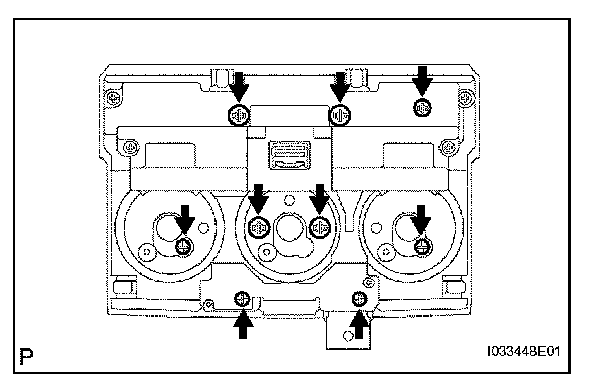

2. REMOVE COOLER CONTROL SWITCH BULB (INDEPENDENCE TEMPERATURE CONTROL)
a. Remove the 9 cooler control switch bulbs from the air conditioning control assembly.

REASSEMBLY

1. INSTALL COOLER CONTROL SWITCH BULB (INDEPENDENCE TEMPERATURE CONTROL)
2. INSTALL COOLER CONTROL SWITCH BULB (EXCEPT INDEPENDENCE TEMPERATURE CONTROL)
