Removal and Replacement

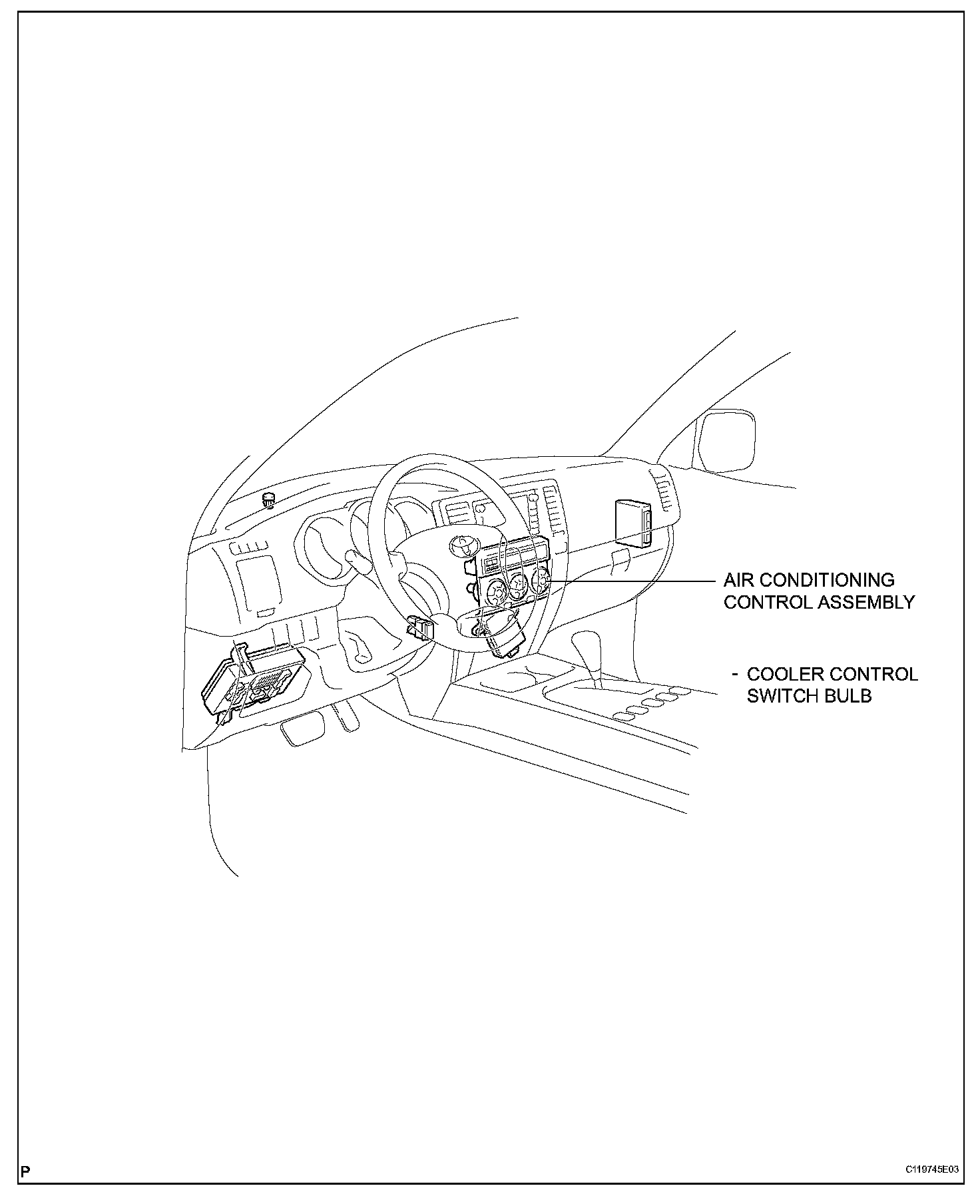

Air Conditioning Control Assembly:

AIR CONDITIONING CONTROL ASSEMBLY

REMOVAL

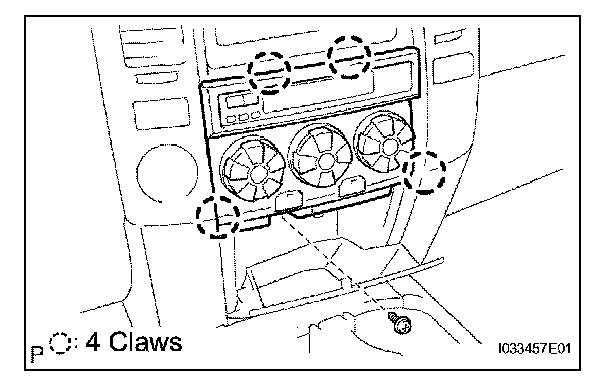

1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
a. Remove the screw.
b. Release the 4 claw fittings.
c. Disconnect the connector and remove the air conditioning control assembly.

INSTALLATION

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
