Check CAN Bus Lines For Short Circuit
Check CAN Bus Lines for Short CircuitDESCRIPTION

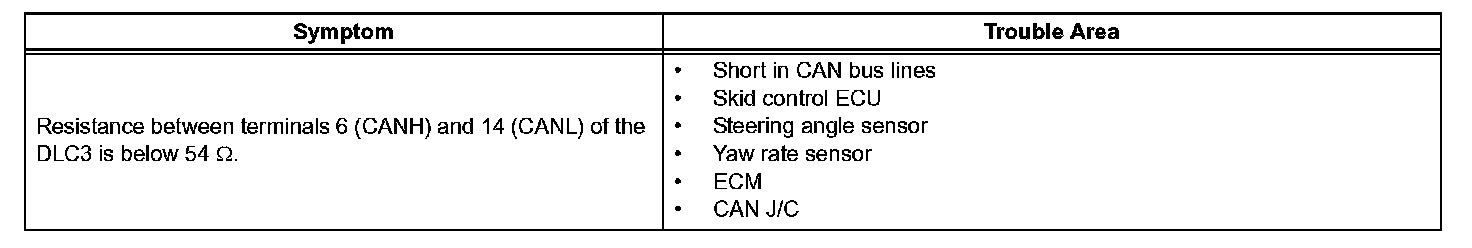

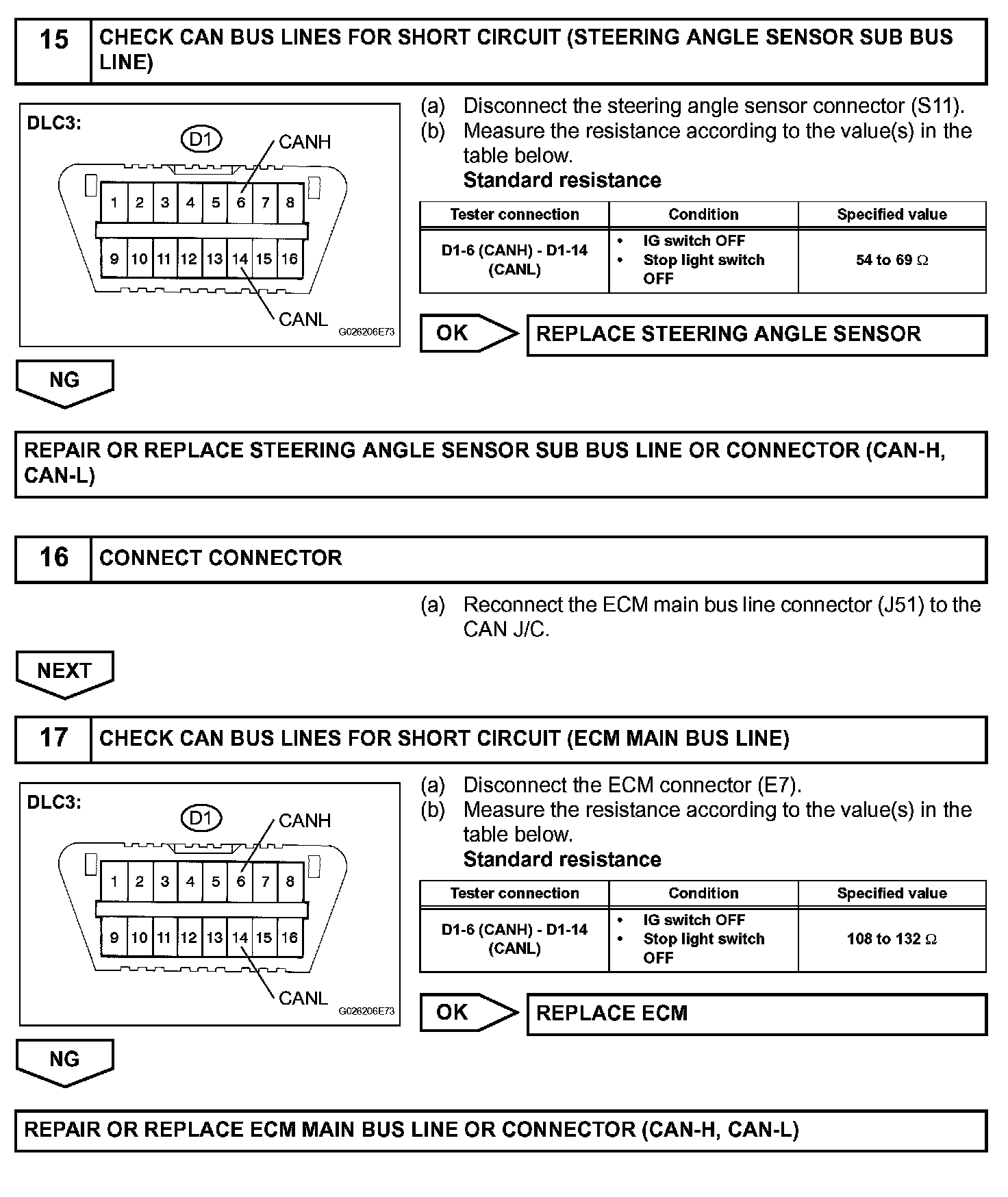

The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 ohms.

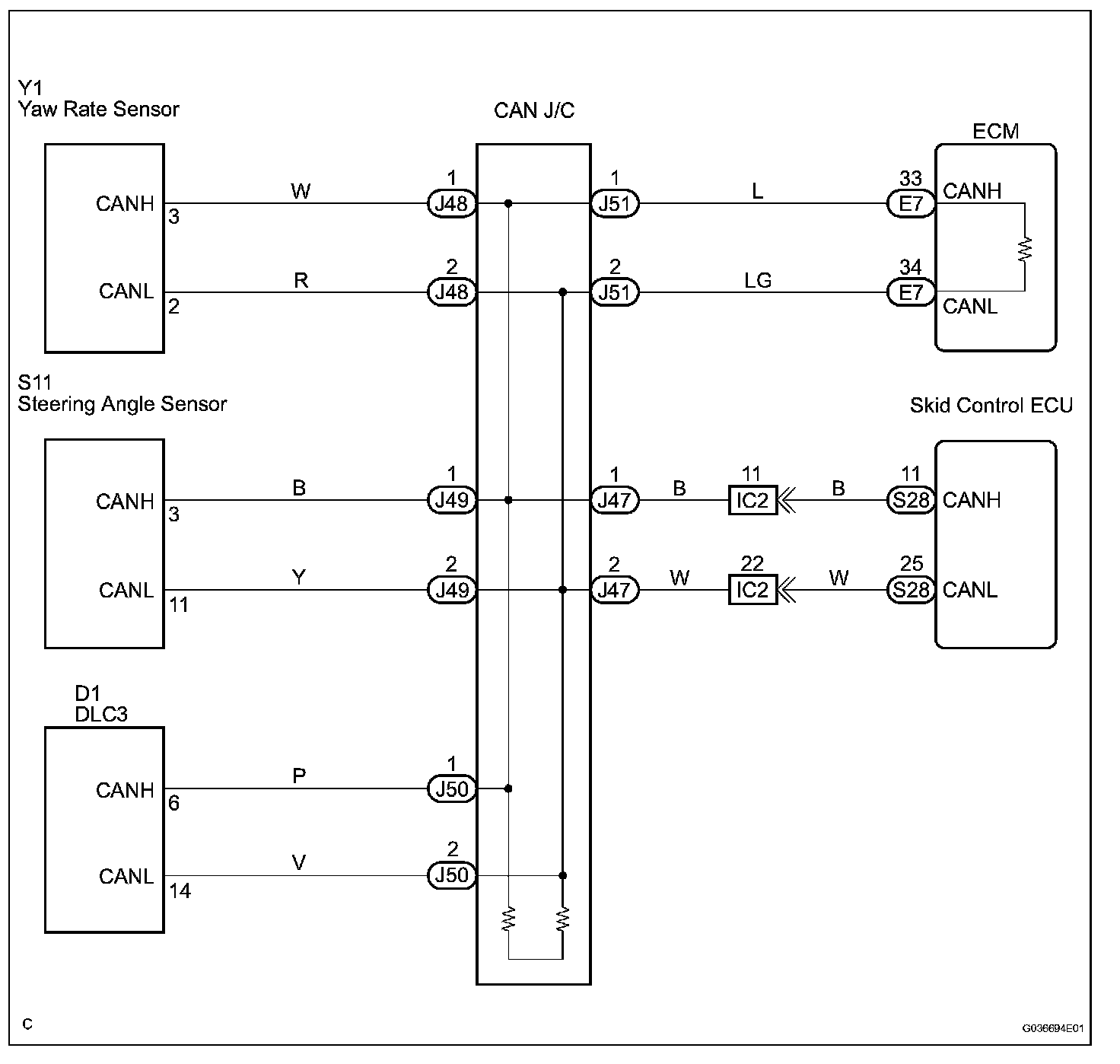

Wiring Diagram:
Step 1-2:

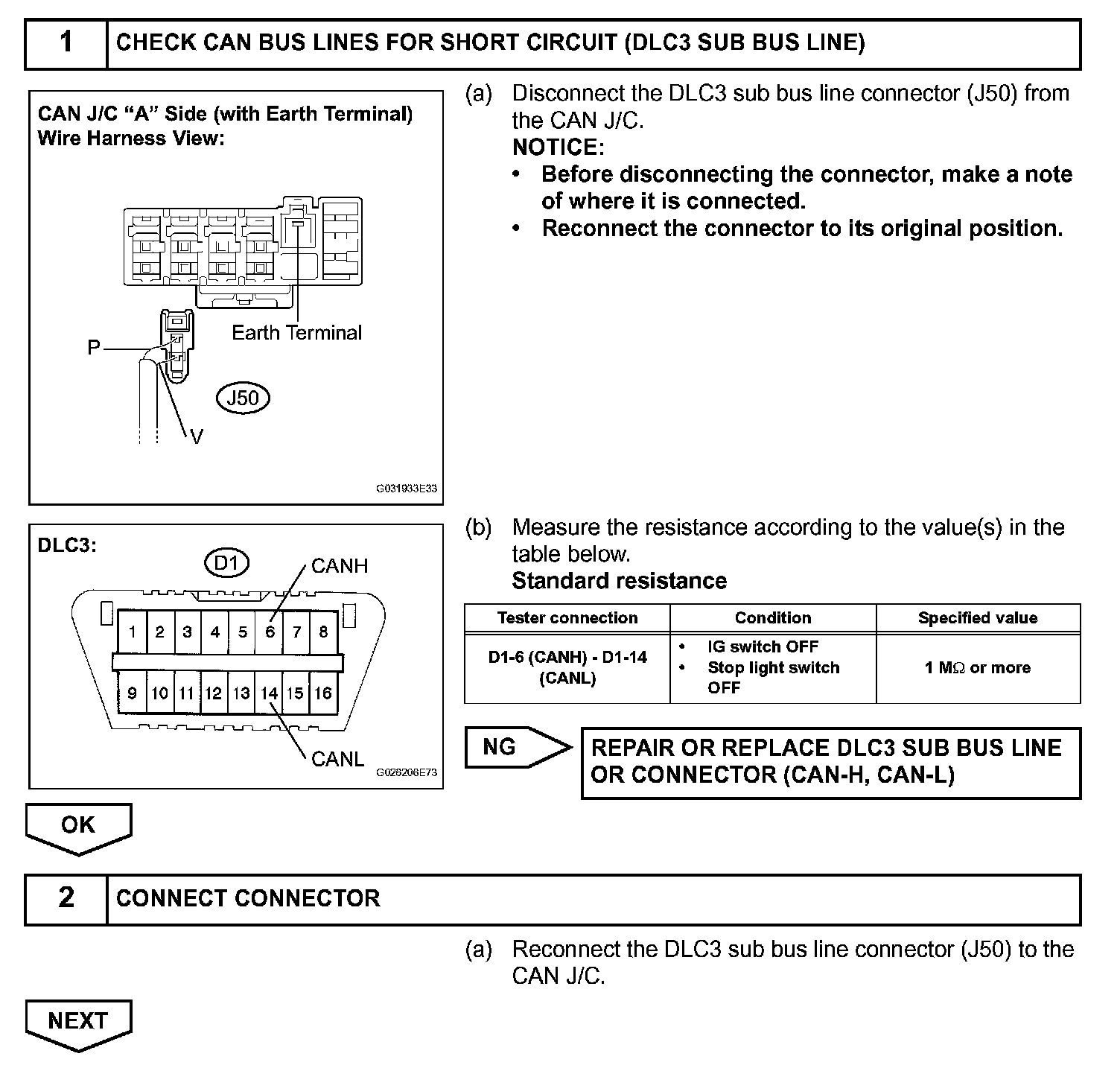

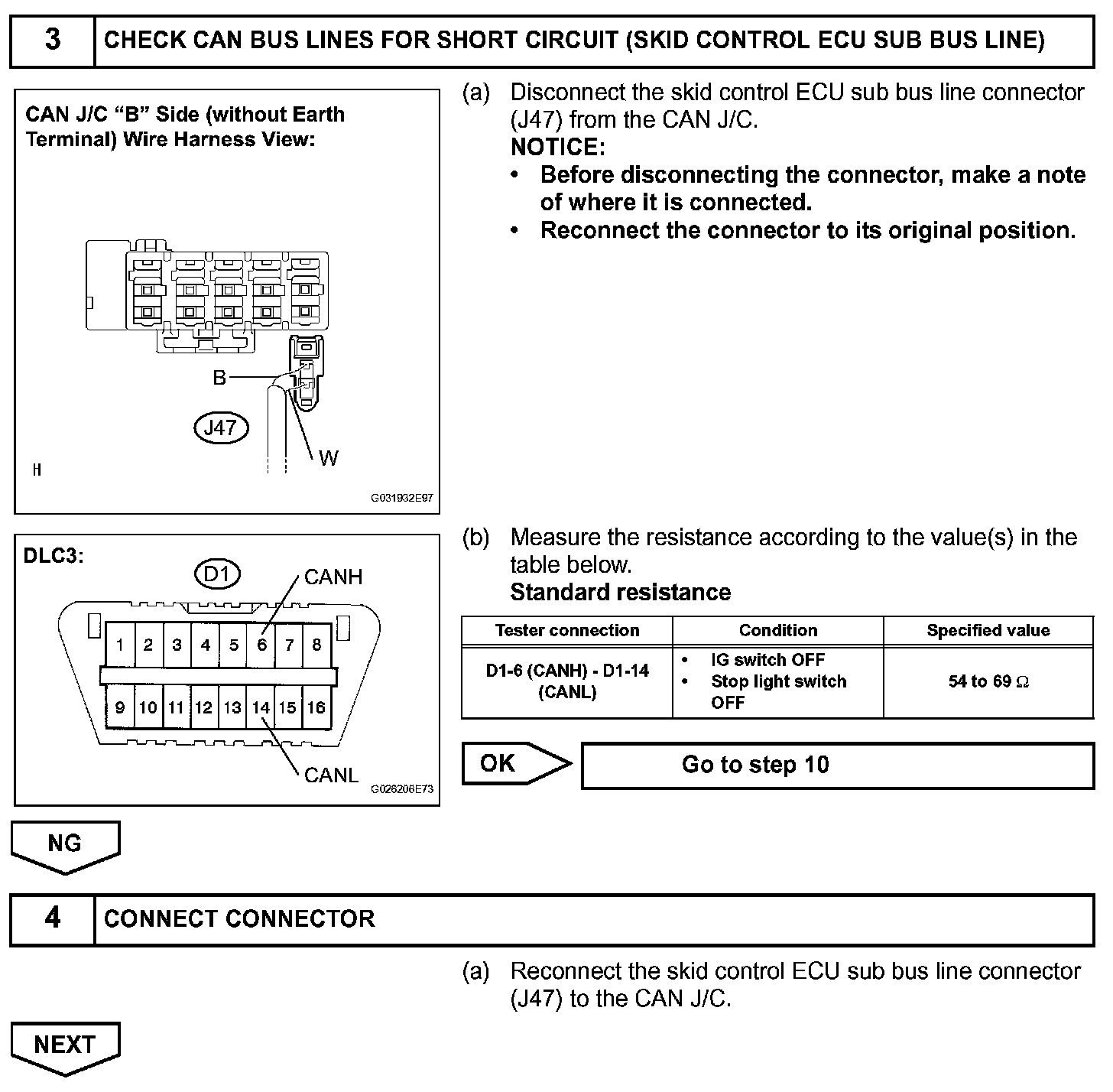

Step 3-4:

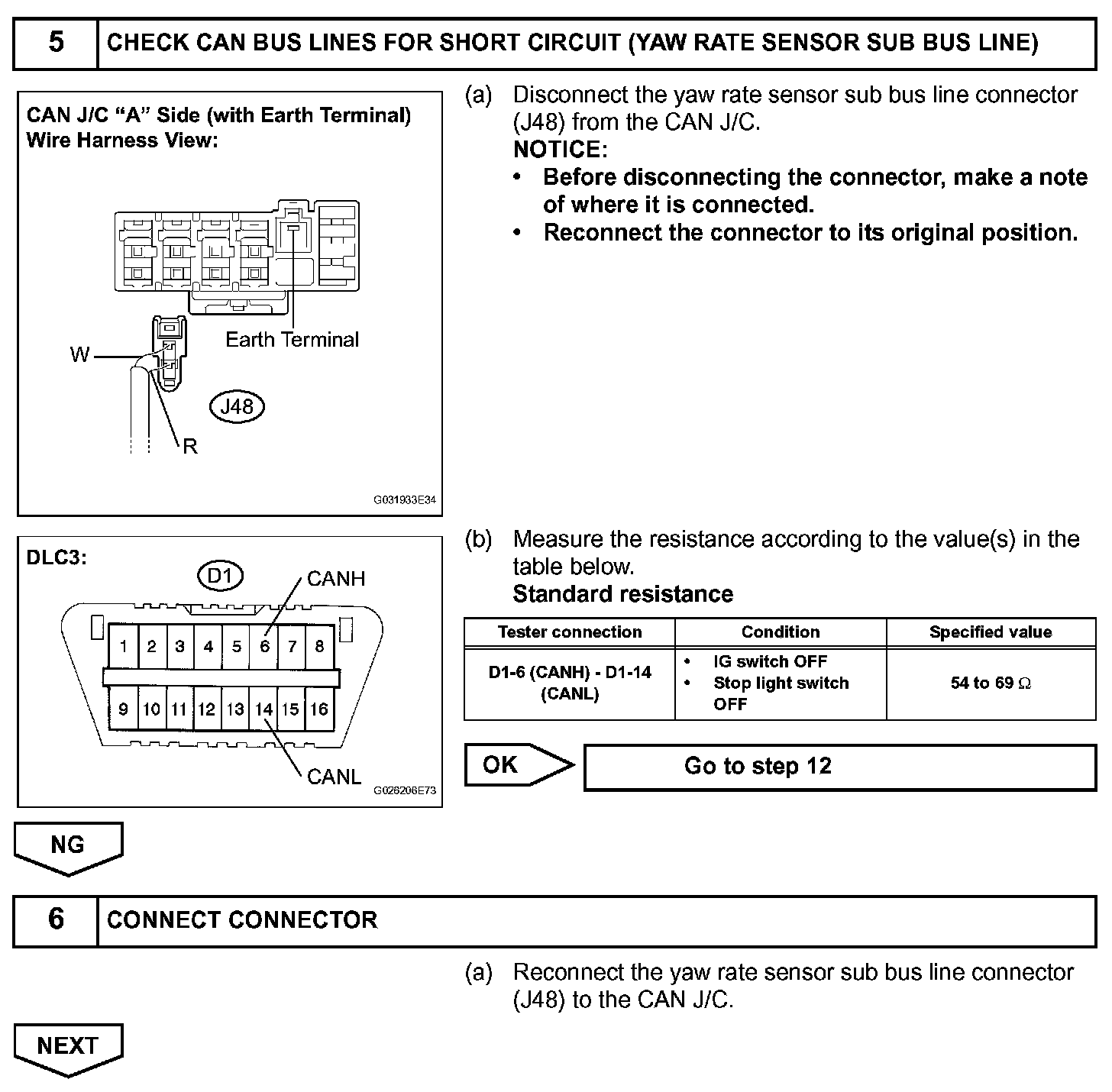

Step 5-6:

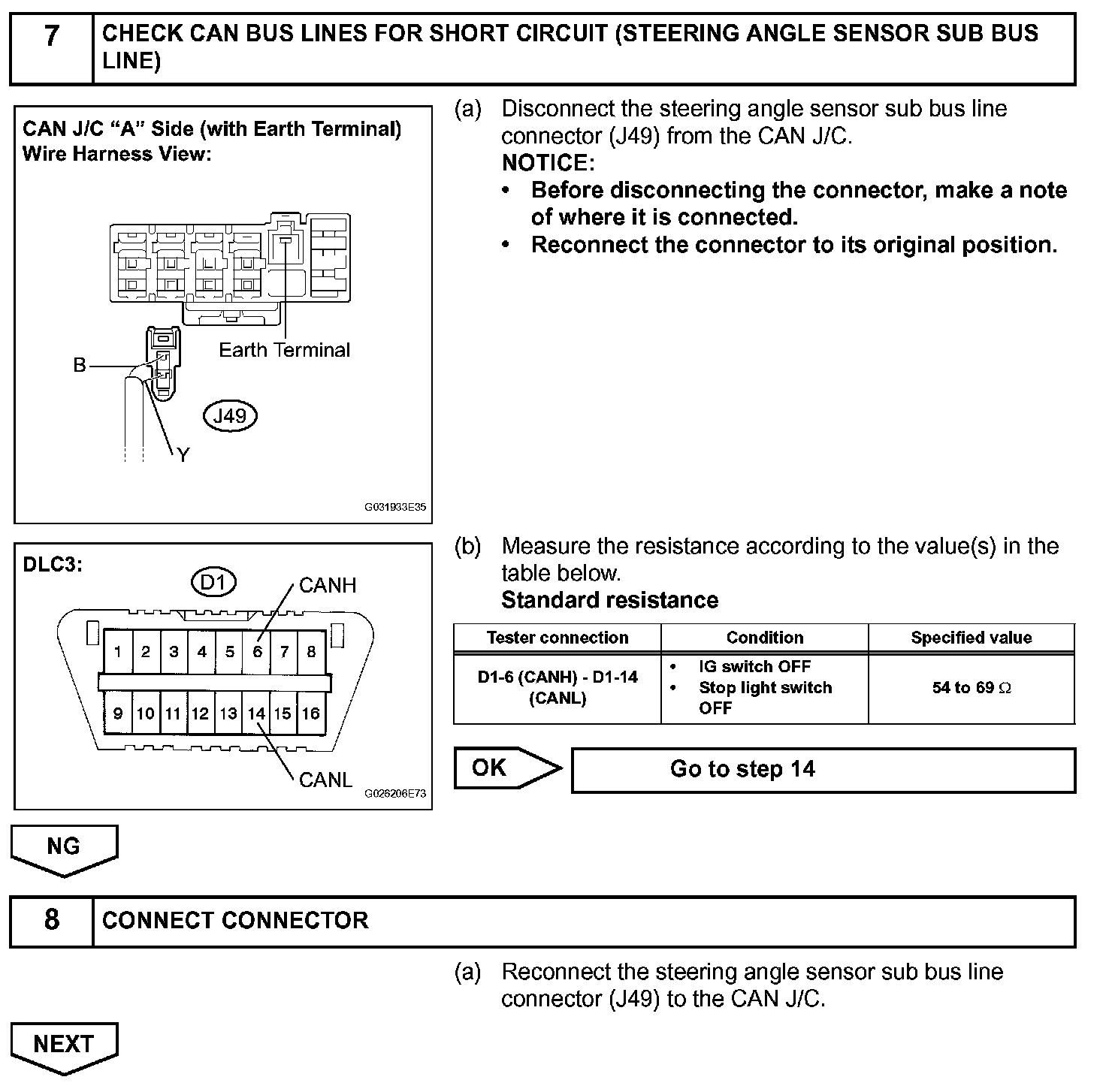

Step 7-8:

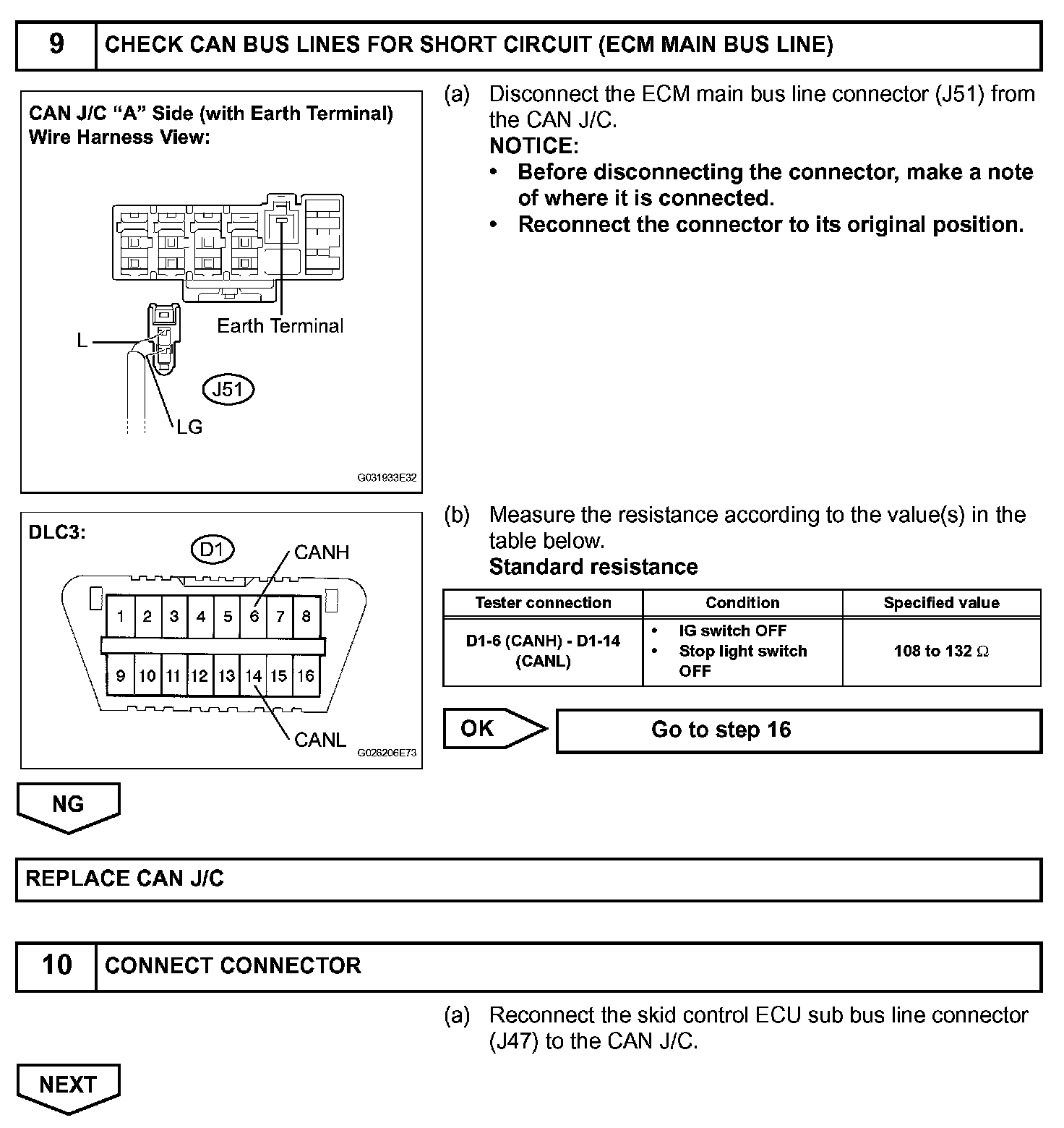

Step 9-10:

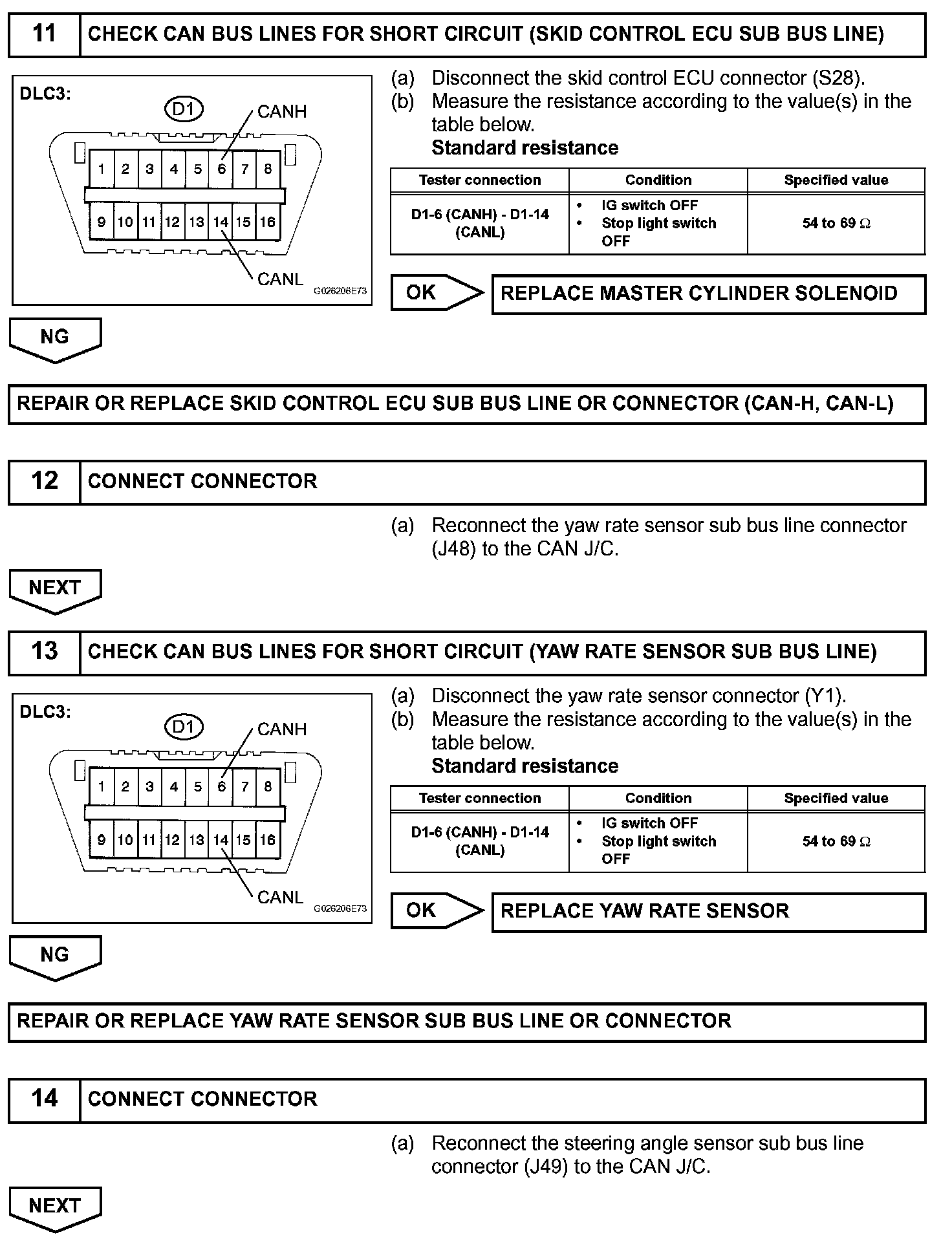

Step 11-14:
Step 15-17:
INSPECTION PROCEDURE
