Fail-Safe Chart

FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION

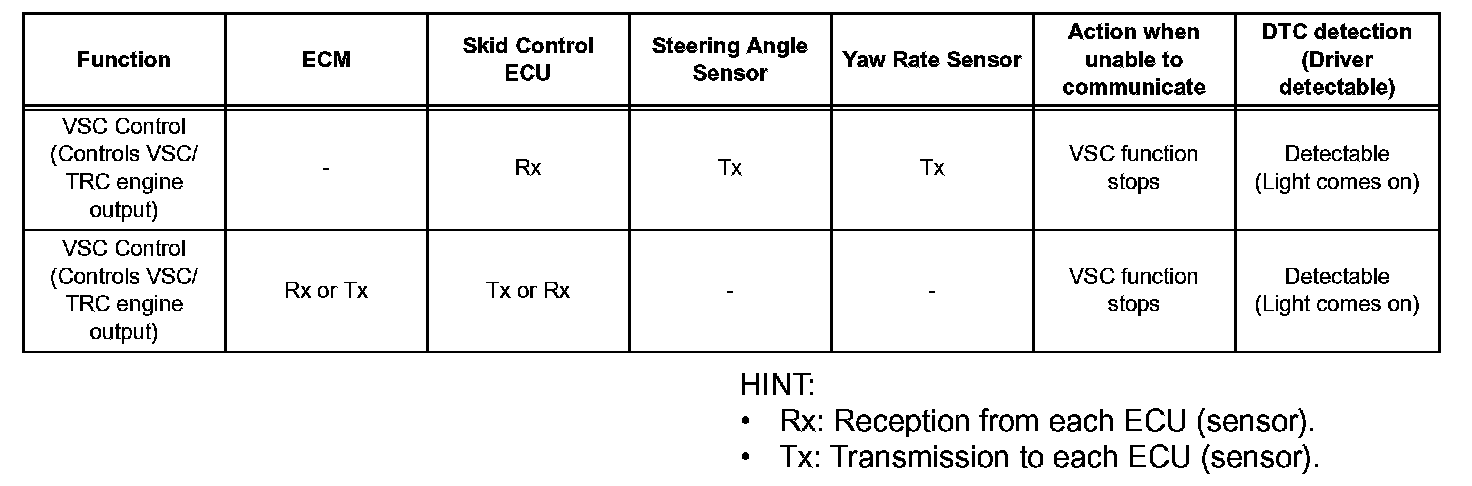

a. When communication fails in any of the CAN bus lines (communication lines) due to a short circuit or any other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.





b. This function operates for each system when communication is impossible. (For further details, see the pages for each system.)
