CAN Communication System

TERMINALS OF ECU

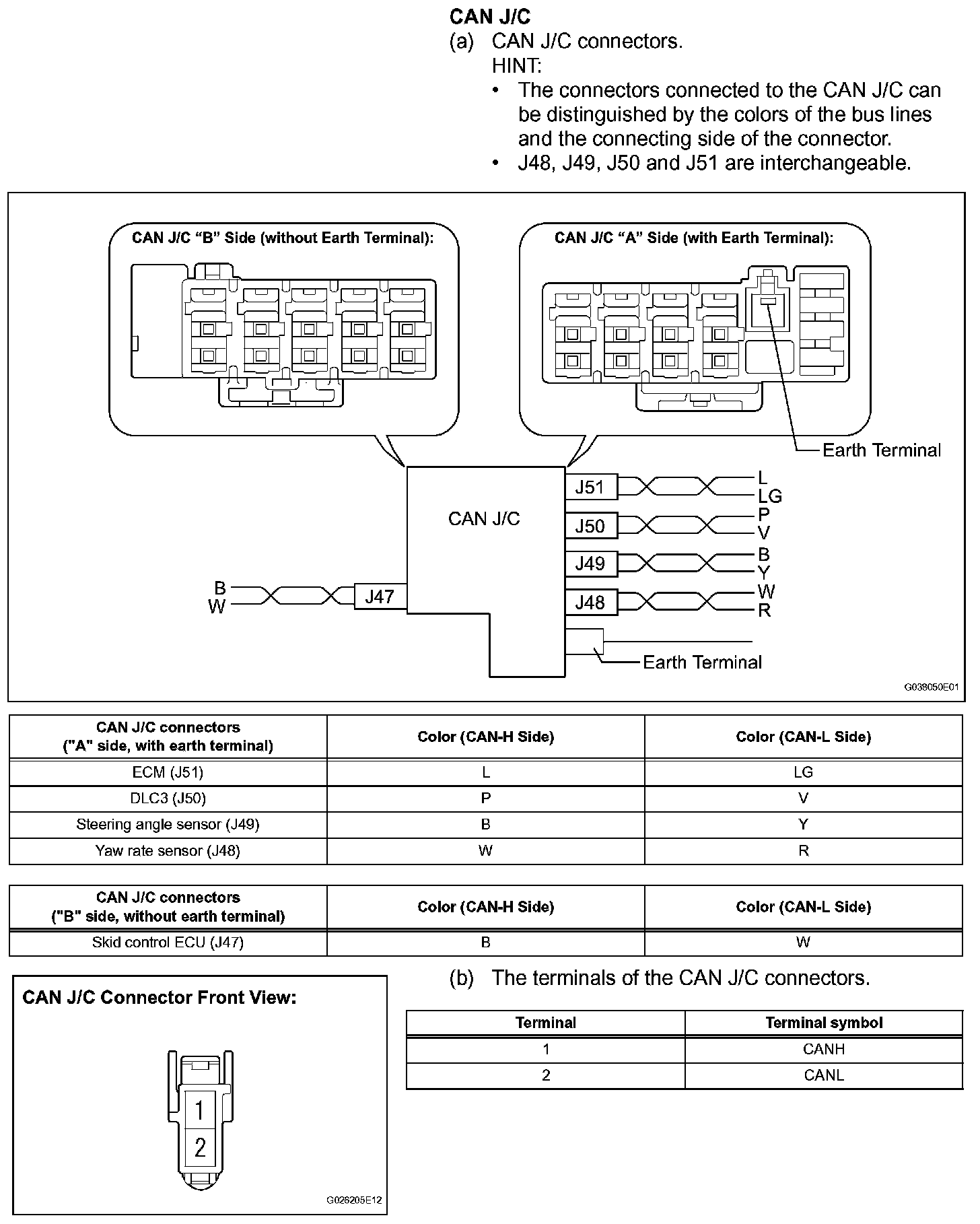

Terminals Of Control Module/Pinouts - CAN J/C (Part 1):

Terminals Of Control Module/Pinouts - CAN J/C (Part 2):

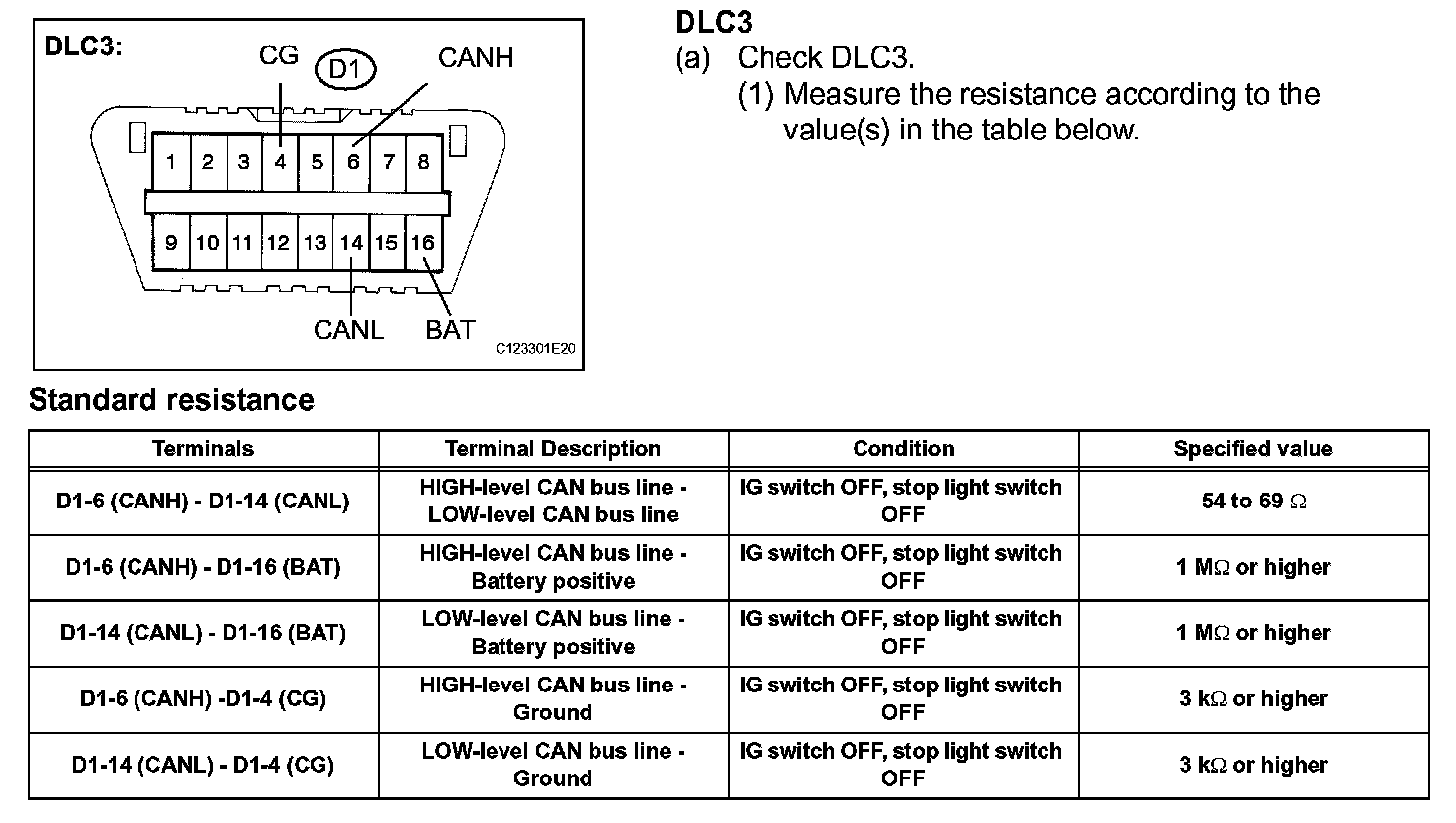

Terminals Of Control Module/Pinouts - DLC3:

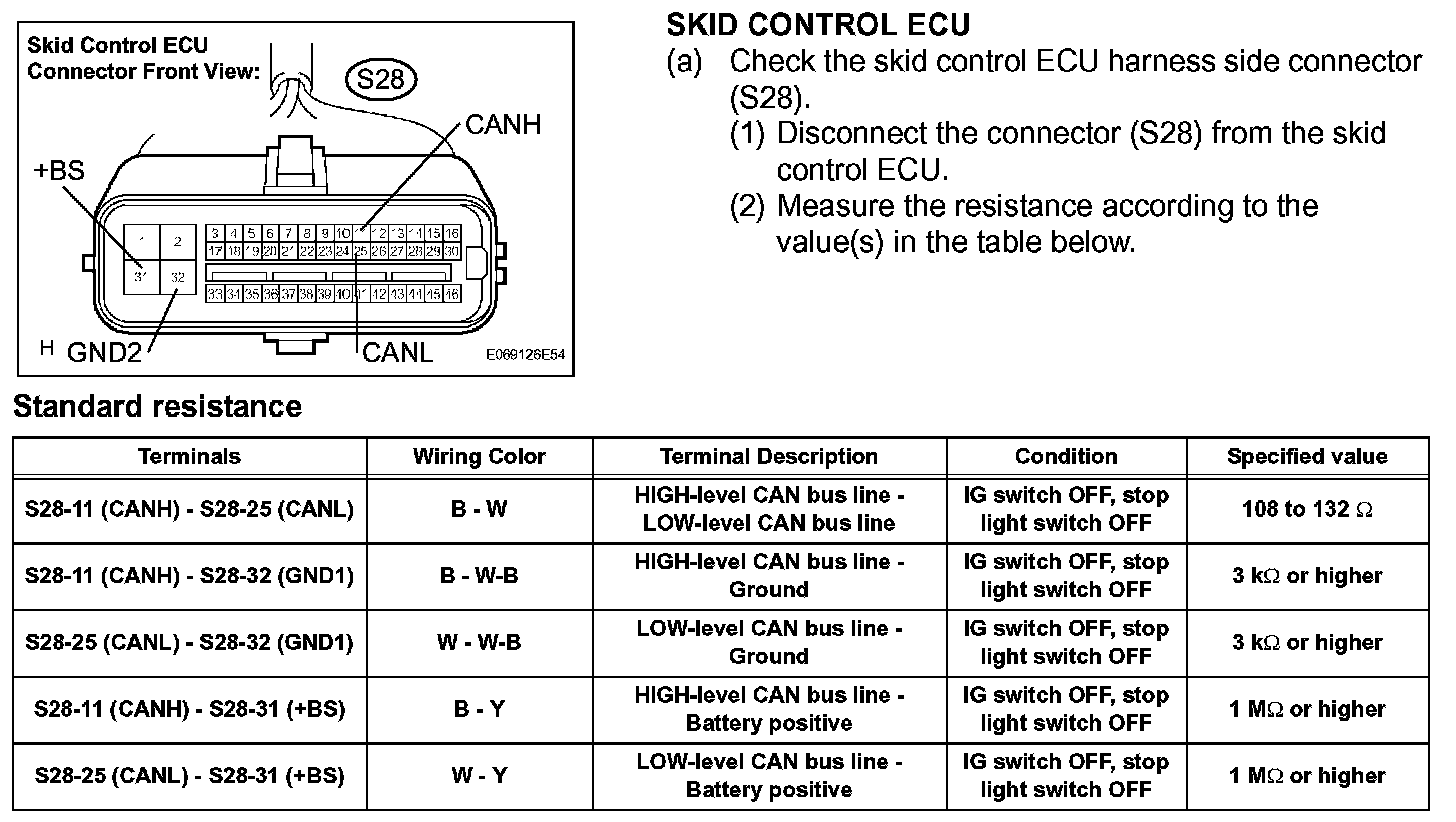

Terminals Of Control Module/Pinouts - Skid Control ECU:

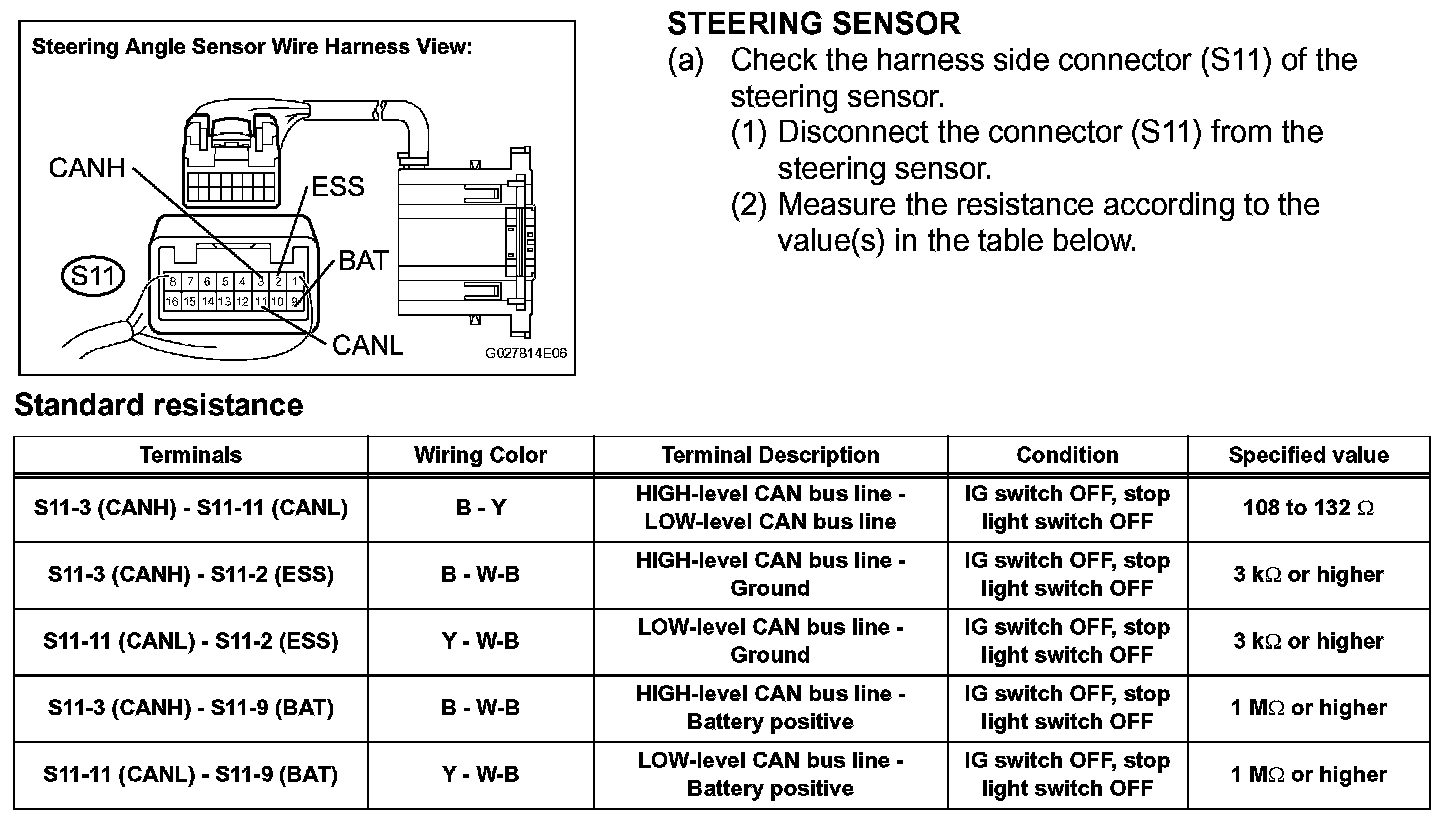

Terminals Of Control Module/Pinouts - Steering Sensor:

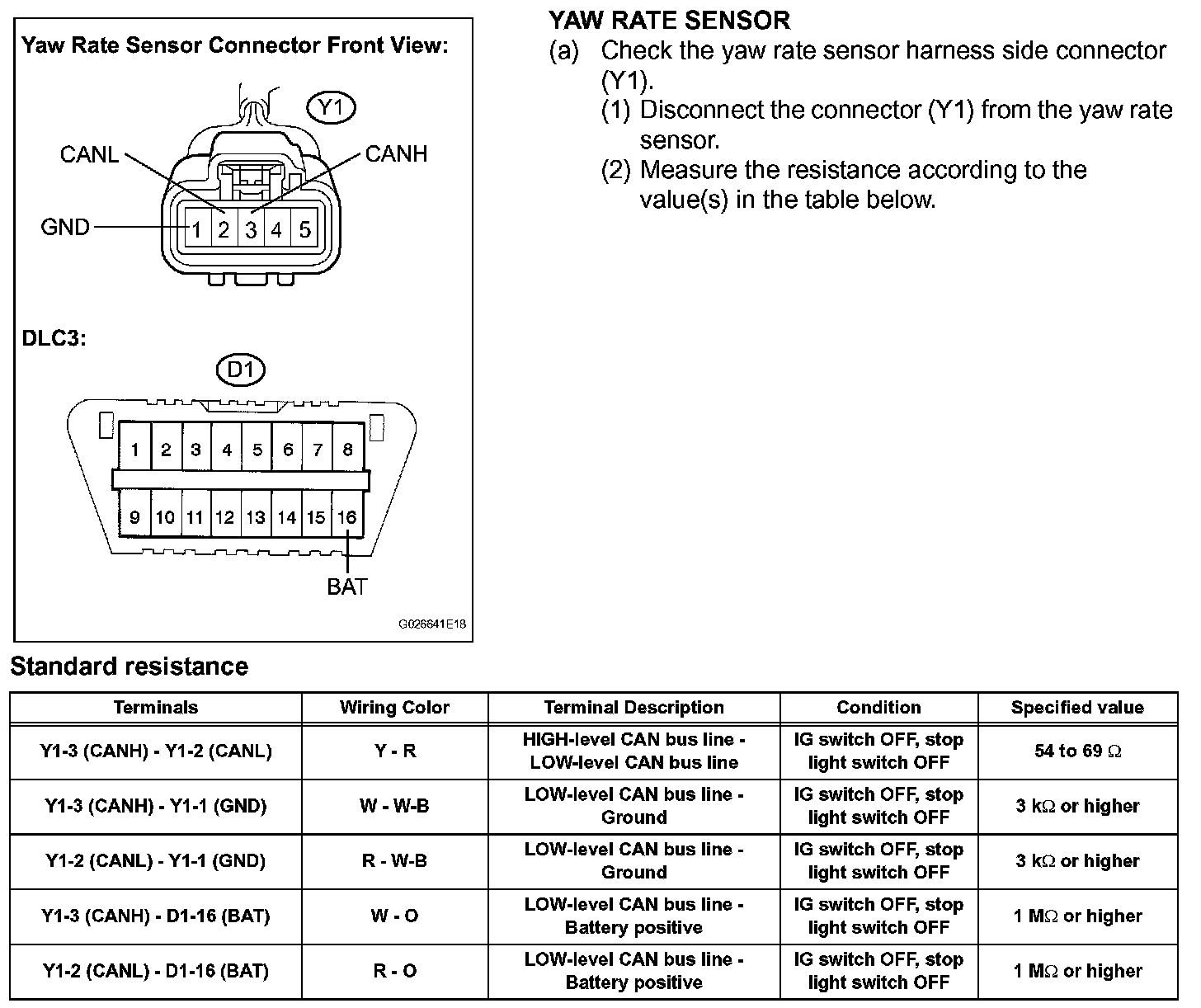

Terminals Of Control Module/Pinouts - Yaw Rate Sensor:

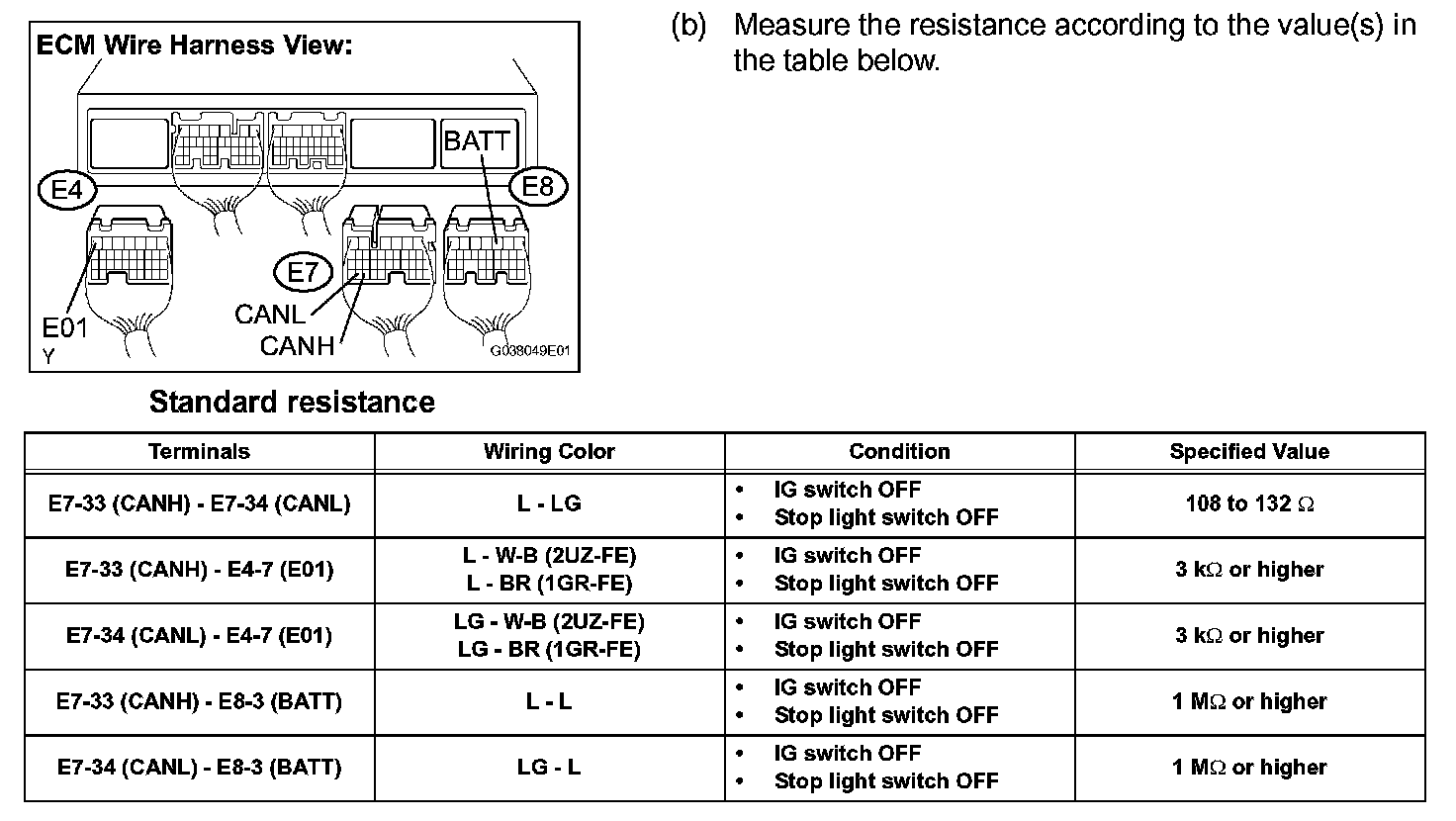

Terminals Of Control Module/Pinouts - ECM (Part 1):

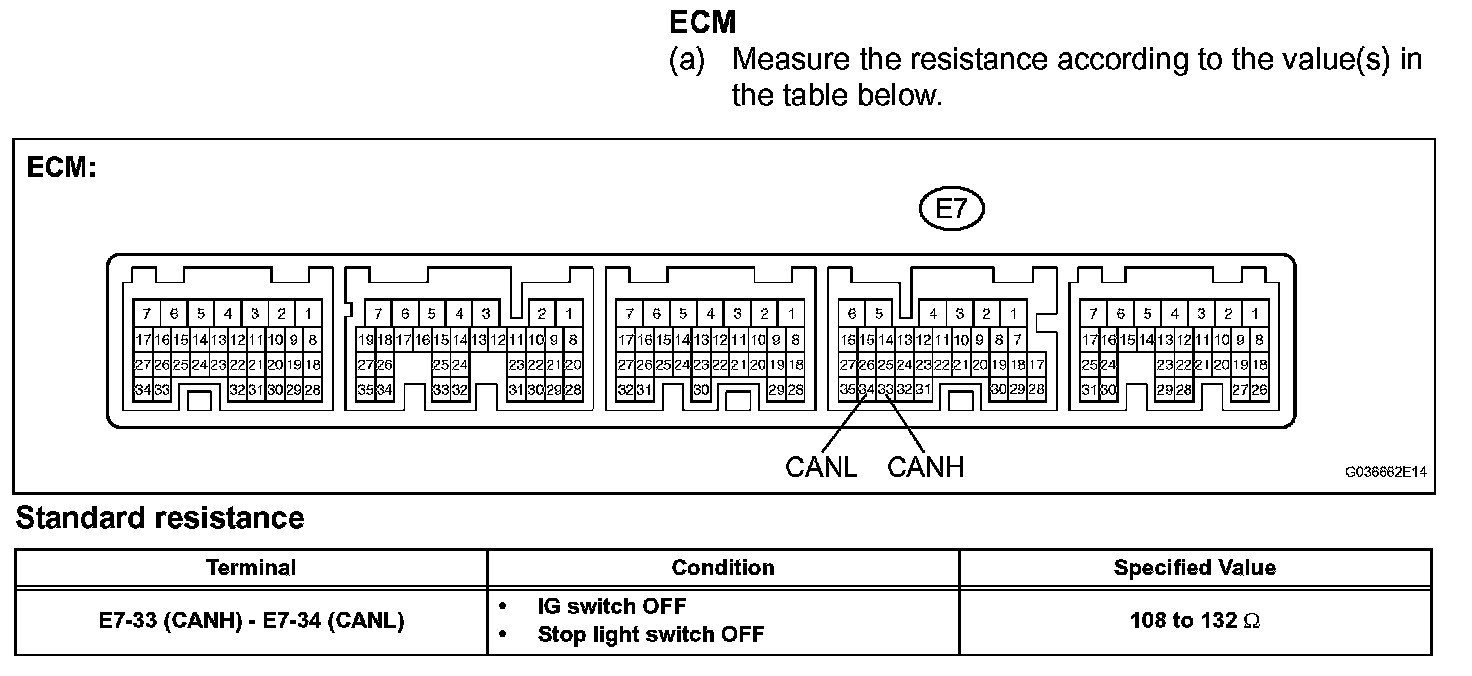

Terminals Of Control Module/Pinouts - ECM (Part 2):

HINT: This section describes the standard CAN values for all CAN related components.
