Multiplex Communication System

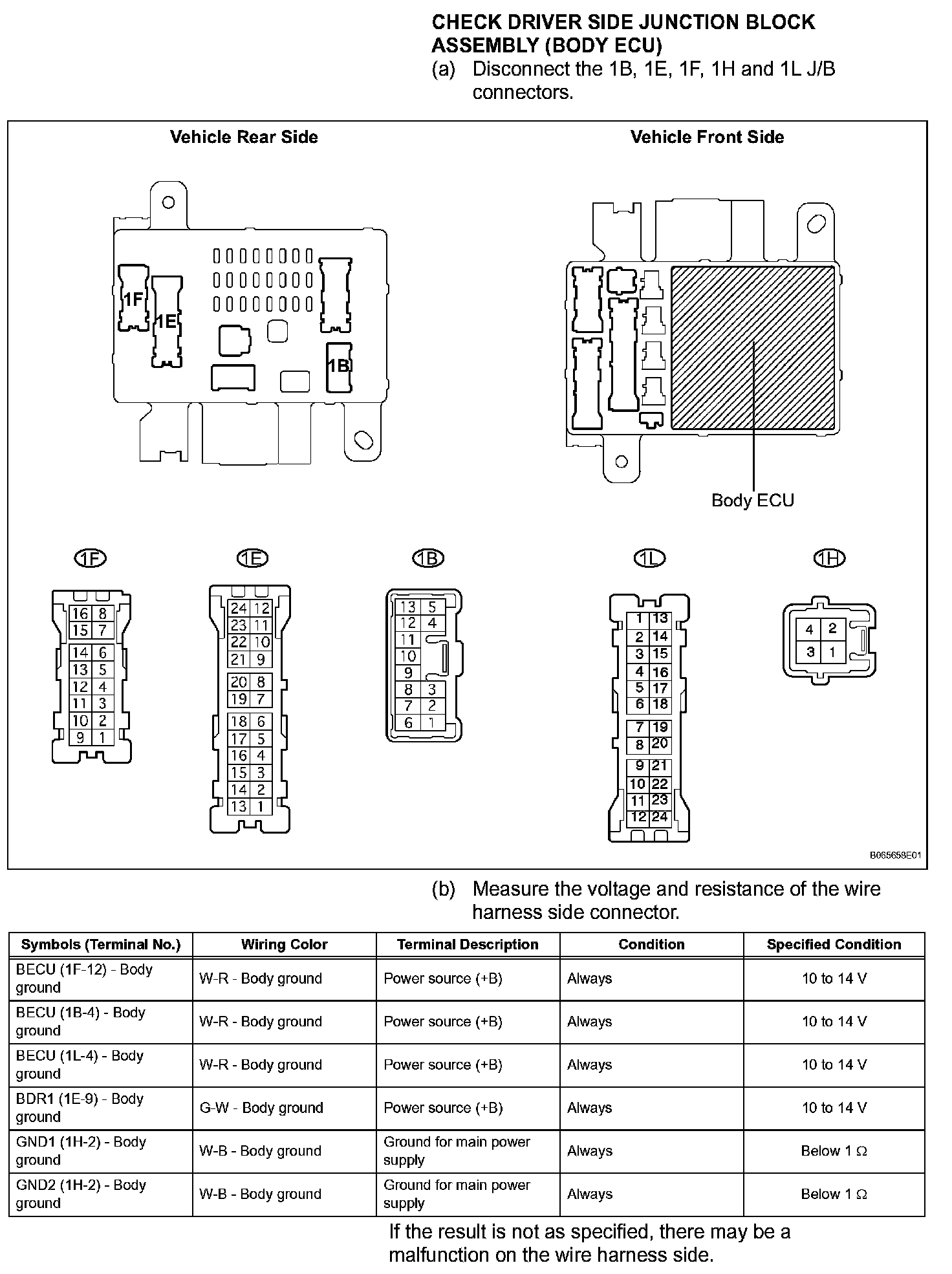

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block Assembly (Body ECU):

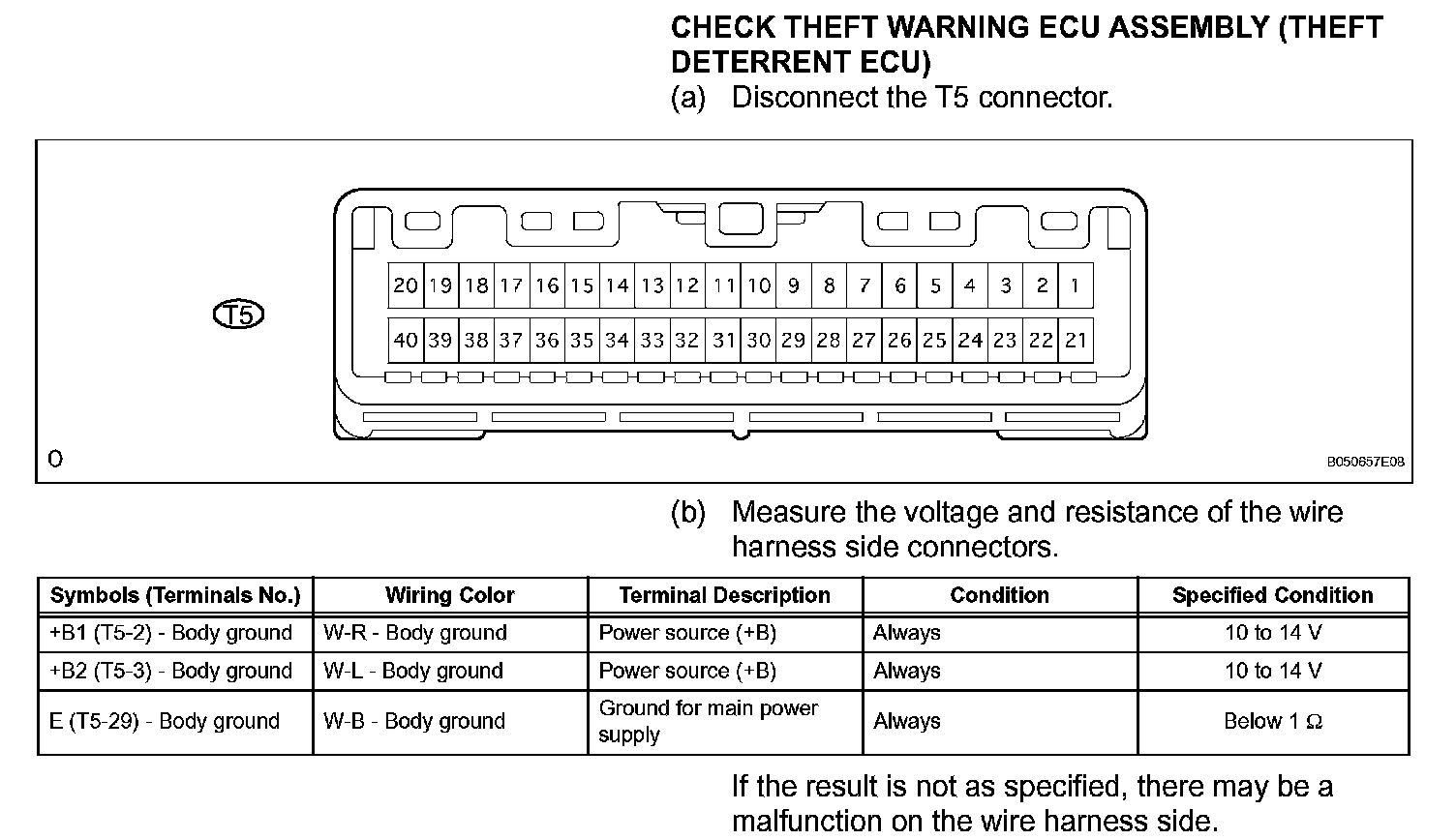

Terminals Of Control Module/Pinouts - Check Theft Warning ECU Assembly (Theft Deterrent ECU):

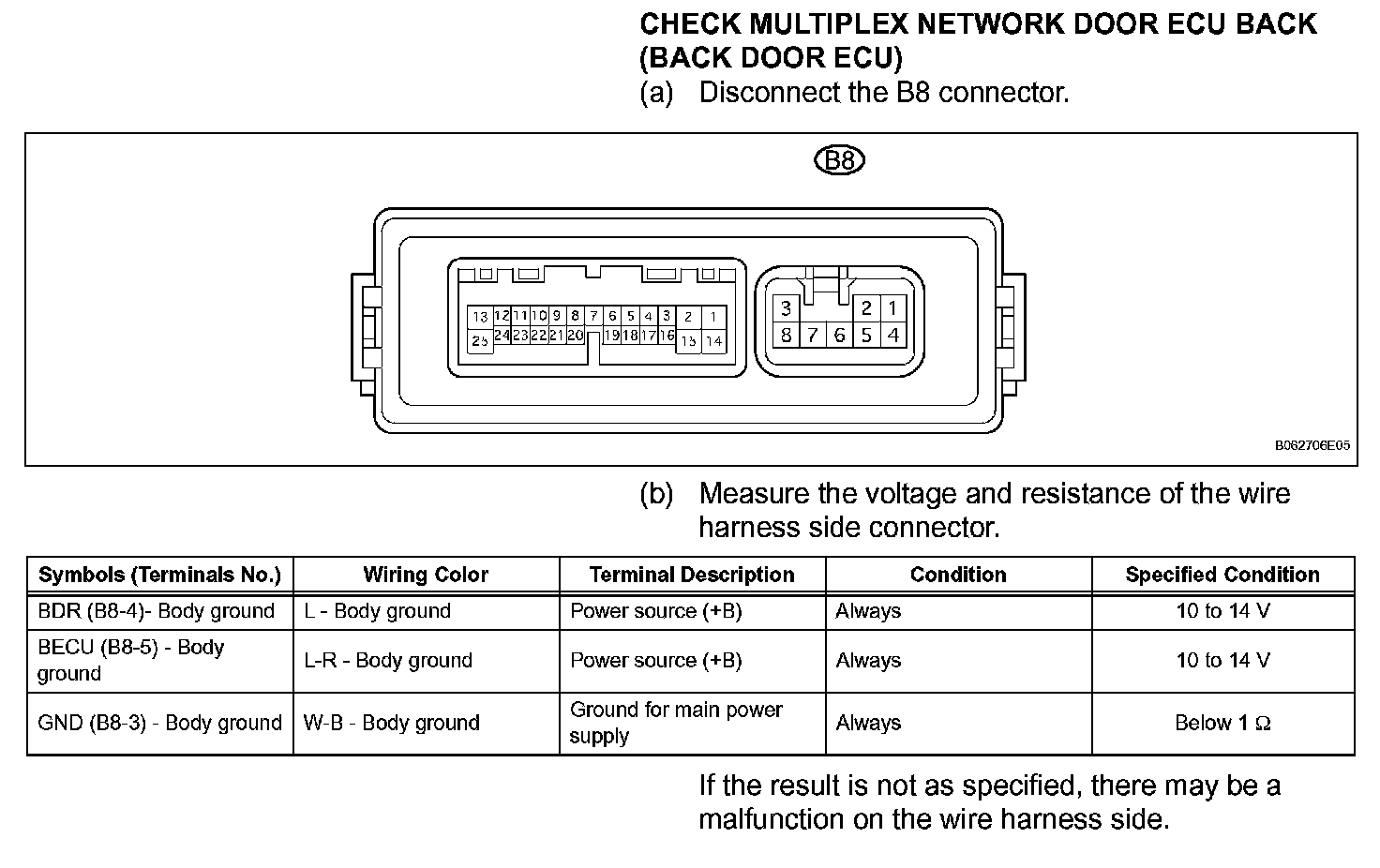

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Back (Back Door ECU):
