Engine Control Module: Service and Repair

REMOVAL

1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2
2. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.2
4. REMOVE ECM




a. Disconnect the 5 the ECM connectors from the ECM.

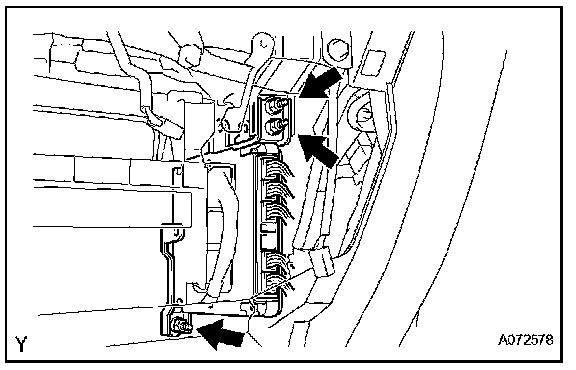

b. Remove the 3 nuts and the ECM.
c. Remove the 2 screws and the ECM bracket No. 1 from the ECM.
d. Remove the 2 screws and the ECM bracket No. 2 from the ECM.

INSTALLATION

1. INSTALL ECM




a. Install the ECM bracket No. 2 with the 2 screws to the ECM.
b. Install the ECM bracket No. 1 with the 2 screws to the ECM.

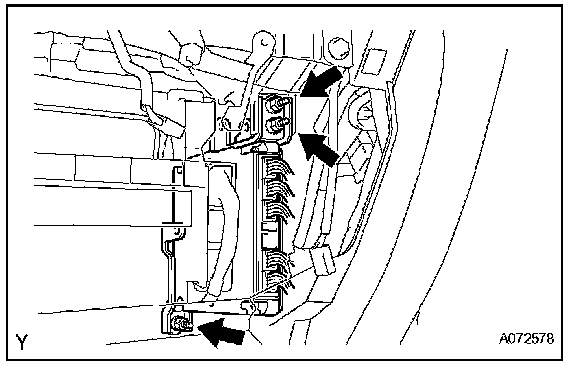

c. Install the ECM with the 3 nuts.

Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

d. Connect the 5 ECM connectors to the ECM.

2. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO.2
3. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
4. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2
