Control Module HVAC: Service and Repair

Air Conditioning Amplifier:

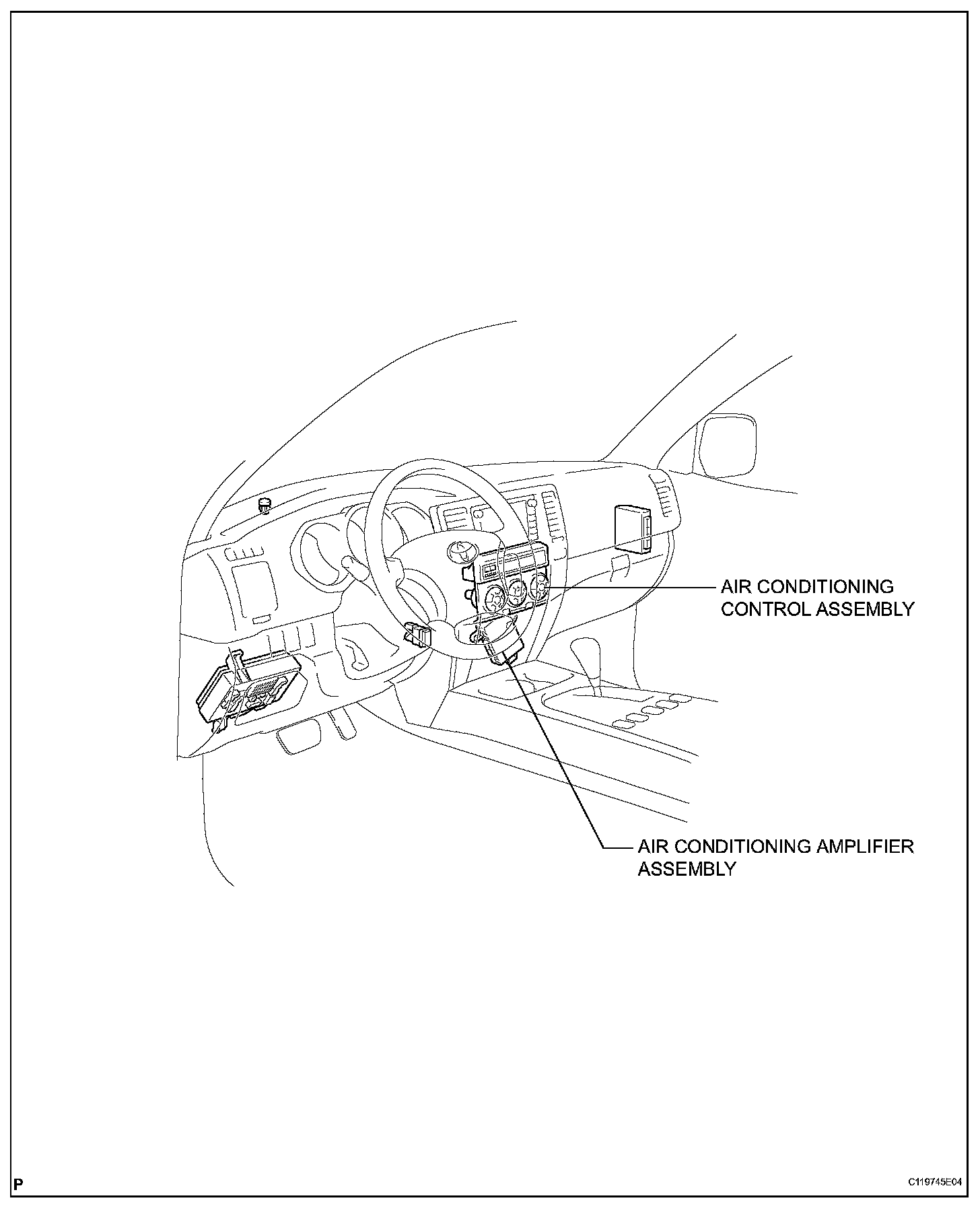

AIR CONDITIONING AMPLIFIER

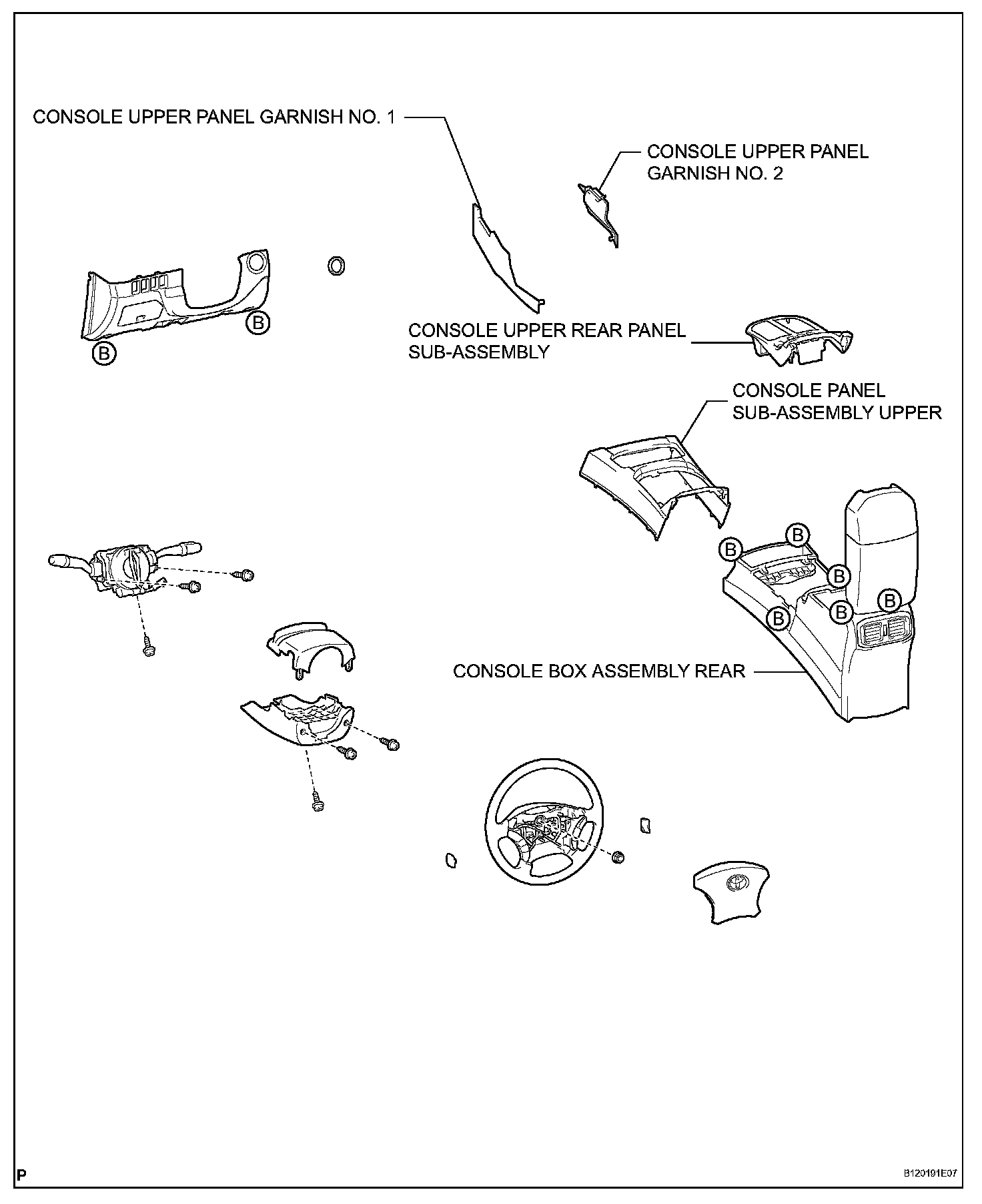

REMOVAL

1. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
3. REMOVE CONSOLE UPPER PANEL GARNISH NO.1
4. REMOVE CONSOLE UPPER PANEL GARNISH NO.2
5. REMOVE CONSOLE BOX ASSEMBLY REAR

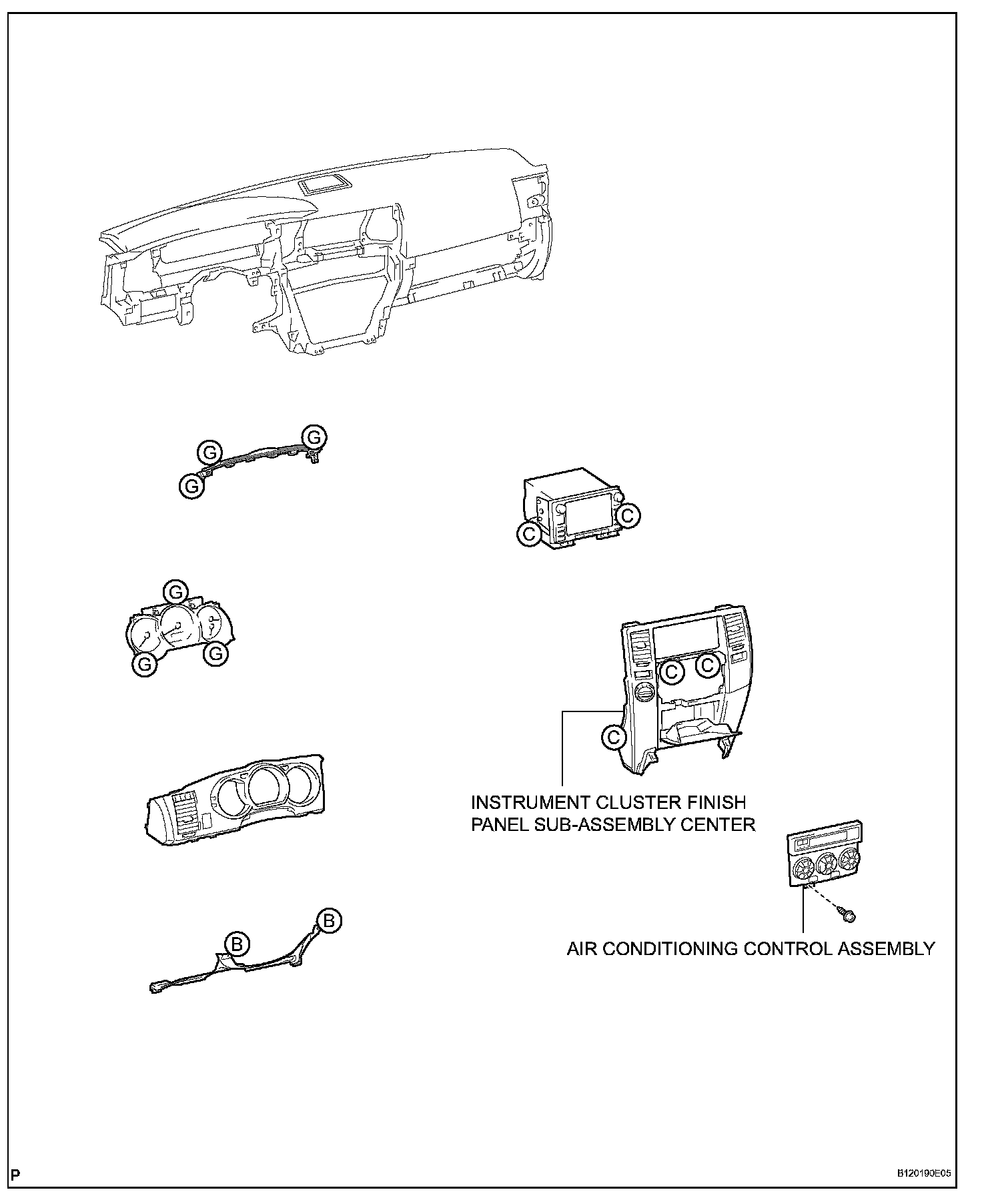

6. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

8. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
a. Disconnect the connectors.

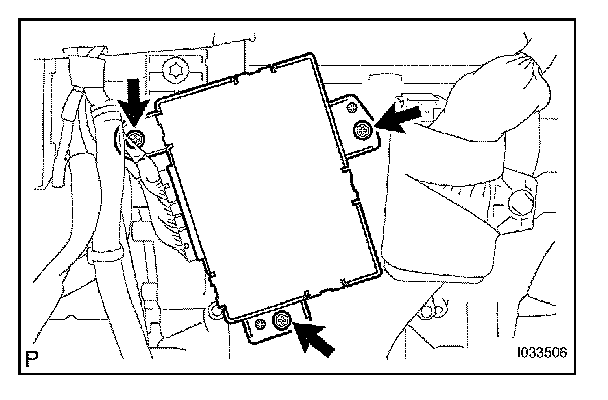

b. Remove the 3 screws and air conditioning amplifier assembly.

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
3. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
4. INSTALL CONSOLE BOX ASSEMBLY REAR
5. INSTALL CONSOLE UPPER PANEL GARNISH NO.2
6. INSTALL CONSOLE UPPER PANEL GARNISH NO.1
7. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
8. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
